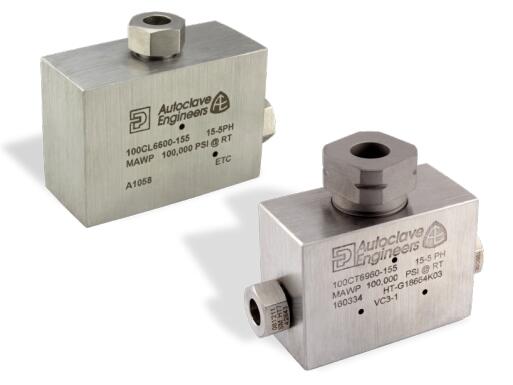

Parker Autoclave's F Series are high pressure cone and thread fittings
Parker Fittings接头 Tube Fittings
Cone and Thread Fittings, 150,000 PSI - F Series

锥形和螺纹接头，150,000 PSI - F 系列 | #CL6600
Parker Autoclave 的 F 系列是高压锥螺纹接头，适用于各种应用，带有 1/4" 至 1" Parker Autoclave 管。这些锥螺纹接头的额定压力为 150,000 psi (10342 bar)。Parker Autoclave 的 F 系列和 SF 系列高压接头采用特殊设计的轴环来固定管连接。这些锥螺纹接头用作特殊系统中的流体处理组件，压力高达 150,000 PSI (10342 BAR)，带有派克高压灭菌管。这些高质量、高压组件在气体和液体应用中提供可靠的性能。

Parker Autoclave's F Series are high pressure cone and thread fittings
Cone and Thread Fittings, 150,000 PSI - F Series

Parker Autoclave's F Series are high pressure cone and thread fittings for use in a variety of applications with 1/4" to 1" Parker Autoclave tubing. These cone and thread fittings are rated to 150,000 psi (10342 bar). Parker Autoclave's F Series and SF Series high pressure fittings utilize a special designed collar to secure the tube connection. These cone and thread fittings are used as fluid handling components in specialty systems up to 150,000 PSI (10342 BAR) with Parker Autoclave Tubing. These high quality, high pressure components provide dependable performance in gas and liquid applications.

市场：
- 化工
- 石化
- 石油和天然气
- 食品制备
- 喷水行业

特性/优点：
- 锥形螺纹连接
- 管道尺寸为 1/4"、5/16"、3/8"、9/16 ", and 1"
- 配件由冷加工 316 不锈钢制成
- 提供抗振连接组件
-
自紧管- 工作温度从 -423oF (-252oC) 到 1200oF (649oC)
- 可用于特殊材料

应用：
- 水射流切割系统
- LDPE 系统
- HPP 食品加工线
- 喷水

Markets:
- Chemical
- Petrochemical
- Oil and Gas
- Food Preparation
- Water Blast Industries


Features/Benefits:
- Coned-and-threaded connection
- Tubing sizes are 1/4", 5/16", 3/8", 9/16", and 1"
- Fittings manufactured from cold worked 316 stainless steel
- Anti-vibration connections components available
- Autofrettaged tubing
- Operating temperatures from -423oF (-252oC ) to 1200oF (649oC)
- Available in special materials

Applications:
- Water Jet Cutting Systems
- LDPE systems
- HPP Food Processing Lines
- Water Blasting

Technical Specifications

Cone and Thread Fittings, 150,000 PSI - F Series 型号
