计量阀，2,000 PSI - NS 系列计量阀 | #2A-NSL-KZ-SS-V
Parker NS Series of metering valves计量阀
Parker 调节阀 - Parker Metering Valves

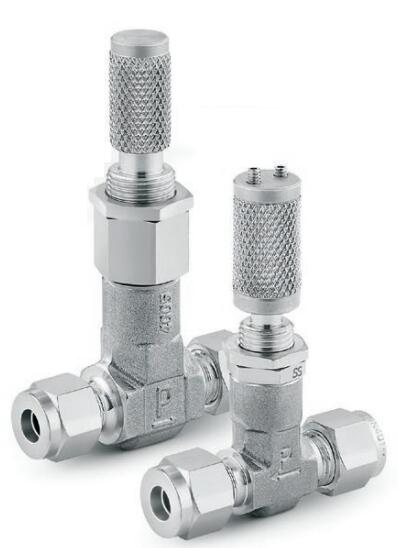

Metering Valve, 2,000 PSI - NS Series
Parker NS 系列计量阀在高达 2,000 PSI (138 BAR) 的各种应用中提供准确和稳定的流量控制。由于采用“正向止动”手柄设计，这些计量阀不会被拧得过紧。派克的 NS 系列计量阀是精密阀门。它们旨在在各种仪器应用中提供准确和稳定的流量控制。由于采用了“正向止动”手柄设计，这些计量阀不会过度拧紧并损坏阀杆尖端。各种端部连接尺寸和密封材料提供了相当多的应用多功能性。这些紧凑的计量阀在所有密封温度范围内的工作压力高达 2,000 PSI (138 BAR)。此外，这些阀门有角度和内联阀体样式，以帮助安装在复杂的管道系统中。
Metering Valve, 2,000 PSI - NS Series
市场：
- 化学
- 研究
- 石化
- 大学
特点/优势：
- 精密锥形阀杆可准确控制流量
- 黄铜或 316 SS 锻造阀体结构
- 面板或
内嵌式安装 - 正面的手柄挡块可防止过度拧紧
- 角形或内嵌式 -
阀杆螺纹不与过程流体接触
- 100% 功能测试
- 可选的阀杆密封件和手柄
应用:
- 测试面板
- 监控系统
Parker's NS Series Metering Valves provide accurate and stable control of flow rates in various applications up to 2,000 PSI (138 BAR). These metering valves can't be overtightened due to a “positive stop” handle design. Parker's NS Series of metering valves are precision valves. They are designed to provide accurate and stable control of flow rates in various instrumentation applications. These metering valves can't be overtightened and damaging the stem tip due to a “positive stop” handle design.
A wide variety of end connection sizes, and seal materials provide considerable application versatility. These compact, metering valves work up to 2,000 PSI (138 BAR) at all seal temperature ranges. In addition, these valves are available in angle and inline body patterns to assist installation in complex tubing systems.
Markets:
- Chemical
- Research
- Petrochemical
- Universities
Features/ Benefits:
- Precision tapered valve stem accurately controls flow
- Brass or 316 SS forged body construction
- Panel or in-line mounting
- Positive handle stop prevents overtightening
- Angle or in-line patterns
- Valve stem threads not in contact with process fluid
- 100% function tested
- Optional stem seals and handles
Applications:
- Test Panels
- Monitoring Systems
Technical Specifications
| Connection 1 Size: |
1/16" to 1/4", Two Ferrule Compression, Single Ferrule Compression |
| Connection 2 Size: |
1/16" to 1/4", Two Ferrule Compression, Single Ferrule Compression |
| Fitting Type: |
Inline, Angle |
| Body Material: |
316 Stainless Steel, Brass-Nickel Plated |
| Maximum Operating Pressure: |
2,000 psi, 138 bar |
| Maximum Operating Temperature: |
250 °F |
| Minimum Operating Temperature: |
-10 °F |
| Handle Type: |
Knurled |
Metering Valve, 2,000 PSI - NS Series 型号
| Parts |
Connection 1 Size |
Connection 2 Size |
Connection 1 Style |
Connection 2 Style |
Body Shape |
Body Material |
Maximum Working Pressure (psi) |
| 1A-NSA-BN-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-BN-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-BN-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-BN-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-BN-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-BN-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-BN-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-BN-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-EPR-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-EPR-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-EPR-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-EPR-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-EPR-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-EPR-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-EPR-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-EPR-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-KZ-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-KZ-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-KZ-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-KZ-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-KZ-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-KZ-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-KZ-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-KZ-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-V-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-V-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-V-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-V-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1A-NSA-V-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-V-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-V-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSA-V-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1A-NSL-BN-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-BN-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-BN-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-BN-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-BN-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-BN-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-BN-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-BN-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-EPR-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-EPR-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-EPR-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-EPR-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-EPR-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-EPR-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-EPR-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-EPR-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-KZ-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-KZ-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-KZ-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-KZ-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-KZ-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-KZ-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-KZ-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-KZ-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-V-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-V-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-V-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-V-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1A-NSL-V-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-V-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-V-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1A-NSL-V-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSA-BN-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-BN-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-BN-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-BN-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-BN-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-BN-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-BN-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-BN-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-EPR-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-EPR-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-EPR-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-EPR-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-EPR-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-EPR-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-EPR-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-EPR-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-KZ-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-KZ-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-KZ-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-KZ-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-KZ-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-KZ-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-KZ-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-KZ-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-V-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-V-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-V-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-V-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 1Z-NSA-V-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-V-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-V-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSA-V-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 1Z-NSL-BN-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-BN-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-BN-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-BN-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| Parts |
Connection 1 Size |
Connection 2 Size |
Connection 1 Style |
Connection 2 Style |
Body Shape |
Body Material |
Maximum Working Pressure (psi) |
| 1Z-NSL-BN-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-BN-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-BN-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-BN-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-EPR-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-EPR-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-EPR-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-EPR-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-EPR-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-EPR-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-EPR-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-EPR-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-KZ-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-KZ-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-KZ-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-KZ-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-KZ-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-KZ-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-KZ-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-KZ-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-V-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-V-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-V-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-V-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 1Z-NSL-V-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-V-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-V-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 1Z-NSL-V-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSA-BN-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-BN-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-BN-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-BN-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-BN-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-BN-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-BN-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-BN-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-EPR-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-EPR-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-EPR-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-EPR-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-EPR-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-EPR-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-EPR-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-EPR-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-KZ-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-KZ-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-KZ-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-KZ-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-KZ-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-KZ-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-KZ-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-KZ-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-V-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-V-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-V-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-V-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2A-NSA-V-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-V-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-V-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSA-V-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2A-NSL-BN-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-BN-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-BN-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-BN-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-BN-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-BN-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-BN-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-BN-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-EPR-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-EPR-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-EPR-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-EPR-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-EPR-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-EPR-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-EPR-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-EPR-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-KZ-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-KZ-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-KZ-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-KZ-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-KZ-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-KZ-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-KZ-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-KZ-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-V-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-V-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-V-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-V-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2A-NSL-V-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-V-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-V-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2A-NSL-V-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSA-BN-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-BN-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-BN-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-BN-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-BN-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-BN-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-BN-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-BN-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| Parts |
Connection 1 Size |
Connection 2 Size |
Connection 1 Style |
Connection 2 Style |
Body Shape |
Body Material |
Maximum Working Pressure (psi) |
| 2Z-NSA-EPR-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-EPR-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-EPR-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-EPR-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-EPR-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-EPR-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-EPR-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-EPR-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-KZ-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-KZ-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-KZ-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-KZ-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-KZ-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-KZ-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-KZ-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-KZ-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-V-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-V-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-V-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-V-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 2Z-NSA-V-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-V-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-V-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSA-V-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 2Z-NSL-BN-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-BN-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-BN-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-BN-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-BN-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-BN-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-BN-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-BN-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-EPR-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-EPR-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-EPR-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-EPR-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-EPR-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-EPR-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-EPR-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-EPR-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-KZ-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-KZ-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-KZ-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-KZ-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-KZ-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-KZ-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-KZ-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-KZ-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-V-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-V-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-V-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-V-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 2Z-NSL-V-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-V-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-V-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 2Z-NSL-V-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSA-BN-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-BN-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-BN-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-BN-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-BN-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-BN-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-BN-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-BN-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-EPR-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-EPR-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-EPR-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-EPR-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-EPR-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-EPR-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-EPR-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-EPR-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-KZ-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-KZ-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-KZ-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-KZ-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-KZ-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-KZ-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-KZ-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-KZ-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-V-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-V-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-V-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-V-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4A-NSA-V-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-V-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-V-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSA-V-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4A-NSL-BN-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-BN-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-BN-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-BN-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-BN-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-BN-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-BN-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-BN-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-EPR-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-EPR-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-EPR-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-EPR-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| Parts |
Connection 1 Size |
Connection 2 Size |
Connection 1 Style |
Connection 2 Style |
Body Shape |
Body Material |
Maximum Working Pressure (psi) |
| 4A-NSL-EPR-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-EPR-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-EPR-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-EPR-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-KZ-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-KZ-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-KZ-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-KZ-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-KZ-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-KZ-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-KZ-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-KZ-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-V-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-V-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-V-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-V-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4A-NSL-V-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-V-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-V-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4A-NSL-V-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSA-BN-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-BN-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-BN-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-BN-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-BN-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-BN-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-BN-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-BN-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-EPR-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-EPR-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-EPR-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-EPR-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-EPR-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-EPR-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-EPR-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-EPR-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-KZ-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-KZ-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-KZ-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-KZ-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-KZ-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-KZ-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-KZ-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-KZ-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-V-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-V-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-V-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-V-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
| 4Z-NSA-V-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-V-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-V-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSA-V-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
| 4Z-NSL-BN-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-BN-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-BN-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-BN-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-BN-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-BN-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-BN-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-BN-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-EPR-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-EPR-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-EPR-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-EPR-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-EPR-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-EPR-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-EPR-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-EPR-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-KZ-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-KZ-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-KZ-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-KZ-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-KZ-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-KZ-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-KZ-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-KZ-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-V-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-V-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-V-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-V-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
| 4Z-NSL-V-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-V-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-V-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
| 4Z-NSL-V-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
Part Connection 1 Size Connection 2 Size Connection 1 Style Connection 2 Style Body Shape Body Material Maximum Working Pressure (psi) Maximum Working Pressure (Bar) Maximum Working Temperature (F) Minimum Working Temperature (F) Handle Seal Material
1A-NSA-BN-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
1A-NSA-BN-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
1A-NSA-BN-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
1A-NSA-BN-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
1A-NSA-BN-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
1A-NSA-BN-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
1A-NSA-BN-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
1A-NSA-BN-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
1A-NSA-EPR-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1A-NSA-EPR-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1A-NSA-EPR-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1A-NSA-EPR-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1A-NSA-EPR-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1A-NSA-EPR-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1A-NSA-EPR-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1A-NSA-EPR-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1A-NSA-KZ-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1A-NSA-KZ-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1A-NSA-KZ-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1A-NSA-KZ-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1A-NSA-KZ-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1A-NSA-KZ-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1A-NSA-KZ-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1A-NSA-KZ-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1A-NSA-V-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
1A-NSA-V-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
1A-NSA-V-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1A-NSA-V-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1A-NSA-V-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
1A-NSA-V-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
1A-NSA-V-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1A-NSA-V-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1A-NSL-BN-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
1A-NSL-BN-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
1A-NSL-BN-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
1A-NSL-BN-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
1A-NSL-BN-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
1A-NSL-BN-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
1A-NSL-BN-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
1A-NSL-BN-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
1A-NSL-EPR-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1A-NSL-EPR-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1A-NSL-EPR-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1A-NSL-EPR-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1A-NSL-EPR-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1A-NSL-EPR-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1A-NSL-EPR-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1A-NSL-EPR-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1A-NSL-KZ-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1A-NSL-KZ-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1A-NSL-KZ-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1A-NSL-KZ-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1A-NSL-KZ-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1A-NSL-KZ-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1A-NSL-KZ-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1A-NSL-KZ-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1A-NSL-V-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
1A-NSL-V-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
1A-NSL-V-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1A-NSL-V-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1A-NSL-V-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
1A-NSL-V-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled Fluorocarbon Rubber
1A-NSL-V-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1A-NSL-V-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1Z-NSA-BN-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
1Z-NSA-BN-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
1Z-NSA-BN-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
1Z-NSA-BN-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
1Z-NSA-BN-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
1Z-NSA-BN-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
1Z-NSA-BN-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
1Z-NSA-BN-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
1Z-NSA-EPR-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1Z-NSA-EPR-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1Z-NSA-EPR-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1Z-NSA-EPR-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1Z-NSA-EPR-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1Z-NSA-EPR-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1Z-NSA-EPR-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1Z-NSA-EPR-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1Z-NSA-KZ-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1Z-NSA-KZ-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1Z-NSA-KZ-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1Z-NSA-KZ-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1Z-NSA-KZ-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1Z-NSA-KZ-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1Z-NSA-KZ-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1Z-NSA-KZ-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1Z-NSA-V-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
1Z-NSA-V-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
1Z-NSA-V-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1Z-NSA-V-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1Z-NSA-V-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
1Z-NSA-V-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
1Z-NSA-V-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1Z-NSA-V-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1Z-NSL-BN-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
1Z-NSL-BN-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
1Z-NSL-BN-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
1Z-NSL-BN-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
1Z-NSL-BN-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
1Z-NSL-BN-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
1Z-NSL-BN-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
1Z-NSL-BN-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
1Z-NSL-EPR-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1Z-NSL-EPR-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1Z-NSL-EPR-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1Z-NSL-EPR-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1Z-NSL-EPR-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1Z-NSL-EPR-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1Z-NSL-EPR-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1Z-NSL-EPR-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1Z-NSL-KZ-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1Z-NSL-KZ-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1Z-NSL-KZ-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1Z-NSL-KZ-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1Z-NSL-KZ-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1Z-NSL-KZ-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1Z-NSL-KZ-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1Z-NSL-KZ-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1Z-NSL-V-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
1Z-NSL-V-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
1Z-NSL-V-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1Z-NSL-V-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1Z-NSL-V-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
1Z-NSL-V-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled Fluorocarbon Rubber
1Z-NSL-V-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1Z-NSL-V-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2A-NSA-BN-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
2A-NSA-BN-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
2A-NSA-BN-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
2A-NSA-BN-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
2A-NSA-BN-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
2A-NSA-BN-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
2A-NSA-BN-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
2A-NSA-BN-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
2A-NSA-EPR-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2A-NSA-EPR-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2A-NSA-EPR-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2A-NSA-EPR-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2A-NSA-EPR-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2A-NSA-EPR-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2A-NSA-EPR-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2A-NSA-EPR-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2A-NSA-KZ-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2A-NSA-KZ-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2A-NSA-KZ-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2A-NSA-KZ-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2A-NSA-KZ-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2A-NSA-KZ-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2A-NSA-KZ-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2A-NSA-KZ-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2A-NSA-V-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
2A-NSA-V-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
2A-NSA-V-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2A-NSA-V-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2A-NSA-V-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
2A-NSA-V-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
2A-NSA-V-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2A-NSA-V-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2A-NSL-BN-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
2A-NSL-BN-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
2A-NSL-BN-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
2A-NSL-BN-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
2A-NSL-BN-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
2A-NSL-BN-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
2A-NSL-BN-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
2A-NSL-BN-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
2A-NSL-EPR-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2A-NSL-EPR-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2A-NSL-EPR-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2A-NSL-EPR-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2A-NSL-EPR-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2A-NSL-EPR-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2A-NSL-EPR-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2A-NSL-EPR-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2A-NSL-KZ-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2A-NSL-KZ-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2A-NSL-KZ-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2A-NSL-KZ-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2A-NSL-KZ-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2A-NSL-KZ-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2A-NSL-KZ-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2A-NSL-KZ-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2A-NSL-V-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
2A-NSL-V-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
2A-NSL-V-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2A-NSL-V-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2A-NSL-V-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
2A-NSL-V-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
2A-NSL-V-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2A-NSL-V-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2Z-NSA-BN-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
2Z-NSA-BN-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
2Z-NSA-BN-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
2Z-NSA-BN-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
2Z-NSA-BN-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
2Z-NSA-BN-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
2Z-NSA-BN-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
2Z-NSA-BN-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
2Z-NSA-EPR-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2Z-NSA-EPR-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2Z-NSA-EPR-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2Z-NSA-EPR-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2Z-NSA-EPR-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2Z-NSA-EPR-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2Z-NSA-EPR-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2Z-NSA-EPR-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2Z-NSA-KZ-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2Z-NSA-KZ-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2Z-NSA-KZ-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2Z-NSA-KZ-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2Z-NSA-KZ-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2Z-NSA-KZ-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2Z-NSA-KZ-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2Z-NSA-KZ-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2Z-NSA-V-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Neoprene Rubber
2Z-NSA-V-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
2Z-NSA-V-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2Z-NSA-V-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2Z-NSA-V-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
2Z-NSA-V-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
2Z-NSA-V-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2Z-NSA-V-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2Z-NSL-BN-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
2Z-NSL-BN-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
2Z-NSL-BN-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
2Z-NSL-BN-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
2Z-NSL-BN-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
2Z-NSL-BN-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
2Z-NSL-BN-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
2Z-NSL-BN-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
2Z-NSL-EPR-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2Z-NSL-EPR-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2Z-NSL-EPR-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2Z-NSL-EPR-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2Z-NSL-EPR-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2Z-NSL-EPR-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2Z-NSL-EPR-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2Z-NSL-EPR-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2Z-NSL-KZ-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2Z-NSL-KZ-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2Z-NSL-KZ-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2Z-NSL-KZ-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2Z-NSL-KZ-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2Z-NSL-KZ-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2Z-NSL-KZ-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2Z-NSL-KZ-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2Z-NSL-V-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
2Z-NSL-V-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
2Z-NSL-V-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2Z-NSL-V-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2Z-NSL-V-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
2Z-NSL-V-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
2Z-NSL-V-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2Z-NSL-V-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4A-NSA-BN-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
4A-NSA-BN-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
4A-NSA-BN-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
4A-NSA-BN-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
4A-NSA-BN-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
4A-NSA-BN-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
4A-NSA-BN-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
4A-NSA-BN-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
4A-NSA-EPR-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4A-NSA-EPR-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4A-NSA-EPR-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4A-NSA-EPR-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4A-NSA-EPR-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4A-NSA-EPR-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4A-NSA-EPR-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4A-NSA-EPR-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4A-NSA-KZ-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4A-NSA-KZ-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4A-NSA-KZ-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4A-NSA-KZ-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4A-NSA-KZ-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4A-NSA-KZ-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4A-NSA-KZ-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4A-NSA-KZ-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4A-NSA-V-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Neoprene Rubber
4A-NSA-V-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
4A-NSA-V-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4A-NSA-V-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4A-NSA-V-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
4A-NSA-V-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
4A-NSA-V-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4A-NSA-V-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4A-NSL-BN-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
4A-NSL-BN-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
4A-NSL-BN-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
4A-NSL-BN-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
4A-NSL-BN-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
4A-NSL-BN-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
4A-NSL-BN-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
4A-NSL-BN-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
4A-NSL-EPR-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4A-NSL-EPR-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4A-NSL-EPR-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4A-NSL-EPR-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4A-NSL-EPR-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4A-NSL-EPR-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4A-NSL-EPR-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4A-NSL-EPR-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4A-NSL-KZ-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4A-NSL-KZ-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4A-NSL-KZ-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4A-NSL-KZ-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4A-NSL-KZ-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4A-NSL-KZ-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4A-NSL-KZ-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4A-NSL-KZ-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4A-NSL-V-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
4A-NSL-V-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
4A-NSL-V-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4A-NSL-V-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4A-NSL-V-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
4A-NSL-V-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
4A-NSL-V-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4A-NSL-V-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4Z-NSA-BN-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
4Z-NSA-BN-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
4Z-NSA-BN-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
4Z-NSA-BN-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
4Z-NSA-BN-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
4Z-NSA-BN-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
4Z-NSA-BN-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
4Z-NSA-BN-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
4Z-NSA-EPR-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4Z-NSA-EPR-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4Z-NSA-EPR-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4Z-NSA-EPR-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4Z-NSA-EPR-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4Z-NSA-EPR-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4Z-NSA-EPR-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4Z-NSA-EPR-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4Z-NSA-KZ-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4Z-NSA-KZ-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4Z-NSA-KZ-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4Z-NSA-KZ-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4Z-NSA-KZ-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4Z-NSA-KZ-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4Z-NSA-KZ-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4Z-NSA-KZ-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4Z-NSA-V-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Neoprene Rubber
4Z-NSA-V-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
4Z-NSA-V-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4Z-NSA-V-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4Z-NSA-V-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
4Z-NSA-V-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
4Z-NSA-V-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4Z-NSA-V-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4Z-NSL-BN-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
4Z-NSL-BN-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
4Z-NSL-BN-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
4Z-NSL-BN-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
4Z-NSL-BN-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
4Z-NSL-BN-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
4Z-NSL-BN-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
4Z-NSL-BN-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
4Z-NSL-EPR-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4Z-NSL-EPR-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4Z-NSL-EPR-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4Z-NSL-EPR-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4Z-NSL-EPR-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4Z-NSL-EPR-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4Z-NSL-EPR-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4Z-NSL-EPR-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4Z-NSL-KZ-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4Z-NSL-KZ-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4Z-NSL-KZ-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4Z-NSL-KZ-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4Z-NSL-KZ-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4Z-NSL-KZ-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4Z-NSL-KZ-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4Z-NSL-KZ-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4Z-NSL-V-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
4Z-NSL-V-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
4Z-NSL-V-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4Z-NSL-V-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4Z-NSL-V-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
4Z-NSL-V-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
4Z-NSL-V-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4Z-NSL-V-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
|
fcg.cnmec@parkerdistribution.com.cn
