派克 Autoclave 2B 系列2通球阀 - 20,000 PSI | #2B4S15P6

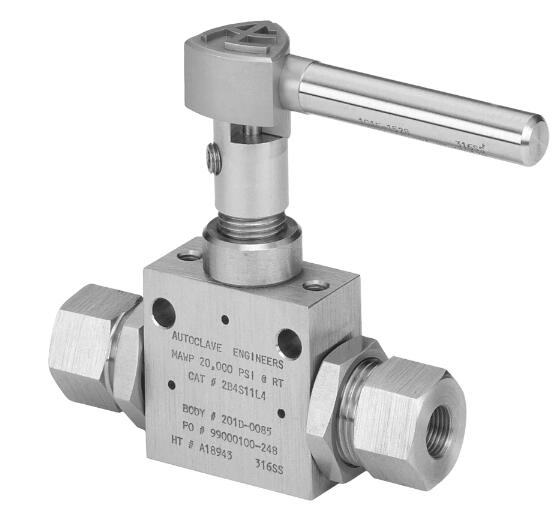

Parker Autoclave's 2B Series ball valves
Parker Autoclave's 2B Series ball valves Parker 球阀
Parker Ball Valves - Ball Valve, 2 Way 2B Series - 20,000 PSI

派克 Autoclave 的 2B 系列球阀是直角回转手动二通阀。这些球阀可在高达 20,000 psi (1,379 bar) 的压力下工作，并带有各种端部连接。这些阀门还具有安装在耳轴上的阀杆。派克 Autoclave 的 2B 系列球阀旨在提供卓越的质量，以在各种阀门样式、尺寸和过程连接中实现最大性能。这些球阀具有一体式耳轴安装球和阀杆，可消除两件式设计常见的剪切故障。阀座压盖可重新拧紧以延长阀座寿命，低摩擦压力辅助石墨填充 PTFE 阀杆密封可降低驱动扭矩并增加循环寿命。这些阀门具有全端口流路，可最大限度地减少压降，并配有 PEEK 阀座，以确保出色的耐化学性、耐热性和耐磨性。

作为标准配置，这些高压球阀由冷加工 316 不锈钢制成，能够在高达 20,000 PSI (1,379 bar) 的压力下运行。接液部件也有其他材料。阀门配有 Viton O 型圈，额定工作温度范围为 -17.8 至 204°C（0 至 400°F）。可选择使用其他 O 形圈材料，以将上限扩展至 260?C (500?F)。

Parker Autoclave's 2B Series ball valves Ball Valve, 2 Way 2B Series - 20,000 PSI

市场：
- 石油和天然气
- 石化
- 研究
- 化学
- 动力

特性/优点：
- 一体式、耳轴安装式、阀杆设计消除了剪切失效并减少了两件式设计中的侧向载荷影响。
- 可重新拧紧的阀座密封套，延长阀座使用寿命。
- PEEK 阀座具有出色的耐化学性、耐热性和耐磨性。
- 全端口流路将压降降至最低。
- 316 冷加工不锈钢结构。
- 低摩擦压力辅助石墨填充聚四氟乙烯阀杆密封可延长循环寿命并降低操作扭矩。
- 从打开到关闭的四分之一圈，带正止挡。
- Viton O 型圈，可在 0°F (-17.8°C) 至 400°F (204°C) 的温度范围内运行。
- 可选的O 形圈可用于高温应用。
- 可选的接液材料。
- 有多种管子和管端配件可供选择。
- 电动和气动执行器选项。

应用：
- 高压滑板
- 化学品注入
- 特种高压气体系统
- 研究系统
- 高压测试板

Parker Autoclave's 2B Series Ball Valves are quarter turn, manual 2 way valves. These ball valves operate up to 20,000 psi (1,379 bar) with a variety of end connections. These valves also feature a trunnion mounted stem.

Parker Autoclave's 2B Series ball valves have been designed to provide superior quality for maximum performance within a variety of valve styles, sizes, and process connections. These ball valves feature an integral one-piece trunnion mounted ball and stem that eliminates the shear failure common to two-piece designs. The seat glands are re-torqueable for longer seat life, and the low friction pressure-assisted graphite filled PTFE stem seal reduces actuation torque and increases cycle life. The valves have a full port flow path that minimizes pressure drop, and are fitted with PEEK seats to ensure excellent chemical, heat and wear resistance.

As standard, these high pressure ball valves are manufactured from cold worked 316 stainless steel and are capable of operating at up to 20,000 PSI (1,379 bar). The wetted parts are also available in other materials. The valves are fitted with Viton O-rings, rated for operation over a temperature range of -17.8 to 204?C (0 to 400?F). Other O-ring materials are optionally available to extend the upper limit to 260?C (500?F).

Markets:
- Oil and Gas
- Petrochemical
- Research
- Chemical
- Power


Features/Benefits:
- One-piece, trunnion mounted style, stem design eliminates shear failure and reduces the effects of side loading found in two piece designs.
- Re-torqueable seat glands for longer seat life.
- PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion.
- Full-port flow path minimizes pressure drop.
- 316 cold worked stainless steel construction.
- Low friction pressure assisted graphite filled Teflon stem seal increases cycle life and reduces operating torque.
- Quarter turn from open to close with positive stop.
- Viton o-rings for operation from 0°F (-17.8°C) to 400°F (204°C).
- Optional o-rings available for high-temperature applications.
- Optional wetted materials.
- Wide selection of tube and pipe end fittings available.
- Electric and pneumatic actuator options.

Applications:
- High Pressure Skid Panels
- Chemical Injection
- Specialty High Pressure Gas Systems
- Research Systems
- High Pressure Test Panels

Technical Specifications

Ball Valve, 2 Way 2B Series - 20,000 PSI 型号
