Parker's 20,000 PSI Hi-Pro series Parker 手动球阀 - Parker Ball Valves
20,000 PSI Ball Valve - Hi-Pro Series

派克Hi-Pro 球阀是一种两件式双向手动球阀，设计用于从 3,600 PSI (247 bar) 到 20,000 PSI (1379 bar) 额定值的冷工作压力过程控制应用，提供连续可重复的性能。产品概述 Parker 的 20,000 PSI Hi-Pro 系列球阀适用于石油、天然气和过程控制行业的广泛应用，冷加工工作压力从 3600 PSI (247 bar) 到 20,000 PSI (1379 bar)。派克可以提供采用一系列耐腐蚀合金制成的这些球阀，这使得它们适用于各种环境。这些球阀已经在世界各地的许多大型项目中指定使用，经过现场验证并按照 Parker 质量标准制造。所有 20, 000 PSI Hi-Pro 系列球阀旨在确保 100% 可重复的气密关闭，并具有 Tru-Loc 压盖调节器，可选择石墨油或 PTFE 填料。它们还提供 PTFE 或 PEEK 阀座材料的选择。提供可选的支架和面板安装版本。

20,000 PSI Ball Valve - Hi-Pro Series

市场：
- 海上石油和天然气
- 陆上石油和天然气
- 石化
- 化学

特性/优点：
- 压盖调节器上的 Tru-Loc? 防振锁定系统可实现 100% 安全
- 热码可追溯且 NACE 兼容材料
- 派克端系列连接（双套圈、单套圈、Phastite、锥体和螺纹）
- 耐腐蚀合金

应用：
- 仪表管线
- 液压动力装置
- 上部脐带终端装置 它们还提供 PTFE 或 PEEK 阀座材料的选择。提供可选的支架和面板安装版本。

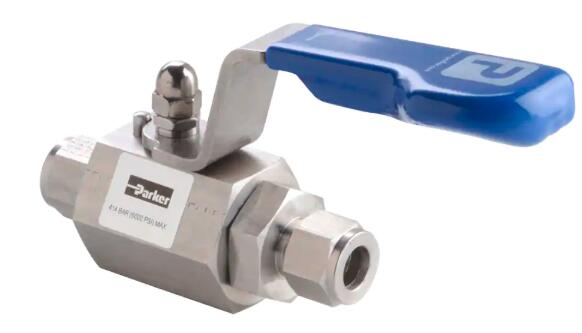

Parker's Hi-Pro ball valve is a two piece bi-directional manual ball valve designed for cold working pressure process control applications from 3,600 PSI (247 bar) up to 20,000 PSI (1379 bar) rating, giving continuous repeatable performance.

Parker's 20,000 PSI Hi-Pro series ball valves are suitable for a wide range of applications in the oil, gas and process control industries, with cold working operating pressures from 3600 PSI (247 bar) up to 20,000 PSI (1379 bar). Parker can offer these ball valves in a range of corrosion resistant alloy, which makes them suitable for a range of environments. Already specified on many of the large projects around the world, these ball valves are field proven and manufactured to Parker quality standards.

All 20,000 PSI Hi-Pro series ball valves are designed to ensure 100% repeatable bubble-tight shut-off and feature a Tru-Loc? gland adjuster, with a choice of Graphoil or PTFE packing. They also offer a choice of PTFE or PEEK seat material.

Optional bracket and panel mounting versions are available.

Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical

Features/Benefits:
- Tru-Loc? anti-vibration locking system on gland adjuster for 100% security
- Heat code traceable and NACE compatible materials
- Range of Parker end connections (double ferrule, single ferrule, Phastite, Cone and Thread)
- Corrosion resistant alloys

Applications:
- Instrumentation lines
- Hydraulic power units
- Topside umbilical termination units

Technical Specifications

20,000 PSI Ball Valve - Hi-Pro Series 型号
