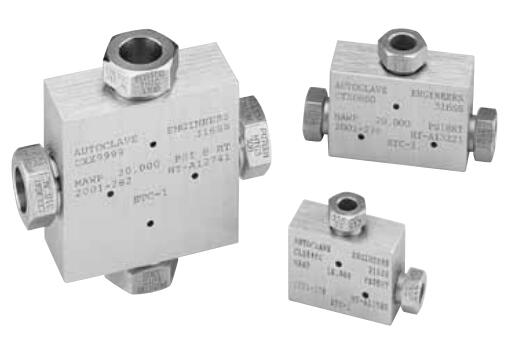

Parker Autoclave's SF Series are medium pressure cone and thread fittings
Parker Fittings接头 Tube Fittings
Cone and Thread Fittings, 20,000 PSI - SF Series

派克 Autoclave 的中压锥螺纹接头用于 1/4" 至 1-1/2" 管道，额定压力为 20,000 psi (1379 bar)。Parker Autoclave 的 SF 系列中压锥螺纹接头设计用于 20SM 系列中压阀和 Parker Autoclave 中压管。这些锥螺纹接头的额定压力高达 20,000 PSI (1379 BAR)。其独特之处之一是这些接头与孔口的连接尺寸与高流量派克 Autoclave 20SC 系列阀门相匹配。安装人员可以使用这些匹配的阀门、接头和管道获得更高的流速。

Parker Autoclave's SF Series are medium pressure cone and thread fittings
Cone and Thread Fittings, 20,000 PSI - SF Series

Parker Autoclave's SF Series are medium pressure cone and thread fittings for use in a variety of applications with 1/4" to 1-1/2" Parker Autoclave Tubing. These cone and thread fittings are rated to 20,000 psi (1379 bar). Parker Autoclave's SF Series medium pressure cone and thread fittings are designed for use with 20SM Series medium pressure valves and Parker Autoclave medium pressure tubing. These cone and thread fittings are rated up to 20,000 PSI (1379 BAR). One of the unique features is that these fittings incorporate connections with orifices sized to match the high-flow Parker Autoclave 20SC Series valves. The installer can obtain a higher flow rate with these matched valves, fittings and tubing

市场：
- 石油和天然气
- 石化
- 研究
- 化学

特性/优点：
- 工作压力
高达20,000 psi (1379 bar) - 设计了锥形和螺纹连接允许更大的孔径增加流速
- 管道尺寸为 1/4"、3/8"、9/16"、3/4" 和 1-1/2"
- 用于安全和泄漏检测的连接泄水孔
- 接头由冷加工 316 不锈钢制成
- 工作温度从 -423oF (-252oC) 到 1200oF (649oC)
- 可用于特殊材料

应用：
- 高压测试面板
- 海上撬板
- 化学品注入
- 高压气体系统

Markets:
- Oil and Gas
- Petrochemical
- Research
- Chemical


Features/Benefits:
- Working pressures to 20,000 psi (1379 bar)
- Coned-and-threaded connection designed to permit larger bore sizes increased flow rates
- Tubing sizes are 1/4", 3/8", 9/16", 3/4", and 1-1/2"
- Connection weep holes for safety and leak detection
- Fittings manufactured from cold worked 316 stainless steel
- Operating temperatures from -423oF (-252oC ) to 1200oF (649oC)
- Available in special materials

Applications:
- High Pressure Test Panels
- Offshore Skid Panels
- Chemical Injection
- High Pressure Gas Systems

Technical Specifications

Cone and Thread Fittings, 20,000 PSI - SF Series 型号
