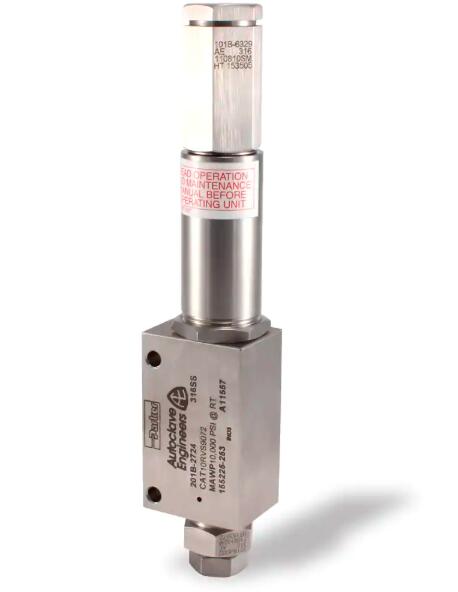

Parker安全阀 - Parker Pressure Relief Valves - Relief Valve, RVS Series - 20,000 PSI
派克 Autoclave Engineers RVS系列软座安全阀
Autoclave Engineers RVS 系列安全阀 - 20,000 PSI | #10RVS9072



派克 Autoclave Engineers 安全阀为 1,500 psi (103 bar) 至 20,000 psi (1378 bar) 的设定压力提供可靠的气体排放。软阀座设计提供气密密封、可重复弹出和重新安装。这些精密阀门专为零泄漏至关重要的压力气体系统而设计。Parker Autoclave 的 RVS 系列安全阀采用软阀座设计,可在 1500 psi (103 bar) 至 20000 psi (1378 bar) 的设定压力下可靠地排放气体。工作温度范围为 32°F (0°C) 至 400°F (204°C)。软阀座设计提供气密密封、可重复弹出和重新安装。此外,软座阀提供比金属座减压阀更高的循环寿命。

这些精密安全阀专为压力气体系统而设计,其中零泄漏至关重要。不建议将它们用于液氮或液态二氧化碳,因为它们在释放时会在低温下产生气体。它们被设计成与压力增加成比例地打开。因此,不建议将它们用于需要在设定压力下立即全阀流量的应用(例如分解、聚合等)。溢流阀的全流量定义为超过设定压力 10%。

选项:Autoclave Engineers可以根据特殊订单提供各种入口和出口连接。

注意:
1. 派克 Autoclave 安全阀已预设并在工厂密封。如果客户破坏密封,则保修无效。
2. 最大系统工作压力不应超过安全阀设定压力的 90%。超过此压力的工作压力可能会导致渗漏,从而损坏塞子和阀座。



Relief Valve, RVS Series - 20,000 PSI



市场:
- 石油和天然气
- 石化
- 化工
- 研究

特点/优点:
- 标准型号的安全阀由 316 不锈钢制成,并带有选定的部件
- 由防磨损不锈钢材料制成,以实现最佳经济性和坚固性。
- 设计有 9/16” Parker Autoclave Engineers 中压入口连接。所有型号的出口连接都是 3/4 英寸 NPT 内螺纹。虽然可以使用其他尺寸和连接类型的适配器,但它们的尺寸必须满足特定的流量要求。
- 孔口直径范围从 .062 (1.57mm) 到 .312” (7.92mm)。
- 设计为随着系统压力增加而打开。正确的弹簧选择可确保打开、全升程和流量以及复位压力的可重复性。
- 材料工程和严格的质量控制程序相结合,以确保最高的质量、可靠性和使用寿命。每个阀门都经过预设和工厂密封,以确保阀门正常运行。
- 独特的阀座结构加上喷嘴导向和正确选择的材料允许标准设定压力达到 75,000 psi。(5171 bar)
- 旨在提供气密性的气体关闭。
- RVS 阀门设计用于使用较少的基本组件,有助于最大限度地减少备件库存并易于维护
- 可提供 CE 标志。可应要求提供 SOG 选项。

应用:
- 压力气体系统
- 低温系统
- 蒸汽处理系统
- 中压流体处理系统



特征

泄压阀设计为随着系统压力增加而打开。
孔口尺寸基于阀门压力范围。
比金属座阀具有更高的循环寿命。
由 316 SS 制成,精选部件由抗磨损不锈钢材料制成。
温度范围从 -50°F (-46°C) 到 400°F (204°C)。
可重复的复位压力。
可靠的关闭。
零件少,维修方便。
CE 标志选项。



优点
Parker Autoclave RVS 溢流阀提供系统过压保护,主要用于流量不重要的高压下的小容量溢流应用。软座安全阀能够处理空气、气体和液体,但不推荐用于蒸汽锅炉应用,并且不能被 ASME 代码标记。





Parker Autoclave's RVS Series relief valves provide reliable venting of gases for set pressures from 1,500 psi (103 bar) to 20,000 psi (1378 bar). The valve's soft seat design provides bubble tight sealing, repeatable pop-off, and reseat capability.

Parker Autoclave's RVS Series relief valves are designed with a soft seat design for reliable venting of gases at set pressures from 1500 psi (103 bar) to 20000 psi (1378 bar). The operating temperature range is 32°F (0°C) to 400°F (204°C). The soft seat design provides bubble tight sealing, repeatable pop-off, and reseat. Additionally, soft seat valves provide a higher cycle life than metal seat relief valves.

These precision relief valves are designed for pressure gas systems, where zero leakage is critical. They are not recommended for liquid nitrogen or liquid carbon dioxide, which produce gas at cryogenic temperatures upon relief. They are designed to open proportionally to increasing pressure. Therefore, they are not recommended for applications requiring immediate full valve flow at set pressure (such as decompositions, polymerizations, etc.). Full flow of relief valve is defined at 10% over set pressure.

Options: Autoclave Engineers can supply various inlet and outlet connections on special order.

CAUTION:
1. Parker Autoclave relief valves are preset and factory sealed. Warranty is voided if seal is broken by customer.
2. Maximum system operating pressure should not exceed 90% of relief valve set pressure. Operating pressures in excess of this may cause weepage resulting in damage to the plug and seat.



Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Research

Features/Benefits:
- Standard models of Relief Valves are constructed of 316 stainless steel with selected components
- made of anti-galling stainless steel material for optimum economy and ruggedness.
- Designed with 9/16” Parker Autoclave Engineers Medium Pressure inlet connections. The outlet connection on all models is a female 3/4” NPT. While adapters to other sizes and connection types are available, they must be sized for specific flow requirements.
- Orifice diameters range from .062 (1.57mm) to .312” (7.92mm).
- Designed to open as a function of increasing system pressure. Proper spring selection assures repeatability of opening, full lift and flow, and reseat pressures.
- Materials engineering and stringent quality control procedures combine to assure the highest quality, reliability and service life. Each valve is preset and factory sealed to ensure proper valve operation.
- Unique seat construction plus over-the-nozzle guiding and proper selection of materials permits standard set pressures to 75,000 psi. (5171 bar)
- Designed to provide bubble tight shut off of gases.
- Engineered to perform with fewer basic components, RVS valves facilitate minimum stocking of spare parts and ease of maintenance
- Available with CE Mark. SOG option available upon request.


Applications:
- Pressure Gas Systems
- Cryogenic systems
- Steam Handling Systems
- Medium Pressure Fluid Handling Systems



技术规格

  • 最大工作压力 (psi): 10000
  • 最大工作压力(巴): 689
  • 入口连接尺寸: SF562CX
  • 出口连接尺寸: 3/4" NPT
  • 孔口尺寸: 0.250" 英寸,6.35 毫米
  • 建筑材料: 316不锈钢
  • 最高工作温度: 204 摄氏度,400 华氏度
  • 最低工作温度: 0 °C, 32 °F
  • 最大工作压力: 10000 磅/平方英寸,689 巴



Technical Specifications

Inlet Connection Size: SF562CX , SF562CX
Outlet Connection Size: 3/4" NPT
Orifice Size: 0.312, 0.250, 0.156 inch, 7.92 , 6.35 , 3.96 mm
Materials of Construction: 316 Stainless Steel
Maximum Operating Temperature: 204 °C, 400 °F
Minimum Operating Temperature: 0 °C, 32 °F
Maximum Operating Pressure: 5000, 10000, 20000 psi, 344.73, 689, 1378.93 bar





Relief Valve, RVS Series - 20,000 PSI 型号

Part Maximum Working Pressure (Bar) Maximum Working Pressure (psi)
10RVS9072 689 10000
20RVS9072 1378.93 20000
5RVS9072 344.73 5000
