Parker Autoclave's BV Series wellhead bleed and gauge valves
Parker 仪表阀 - Parker Instrumentation Valves
Wellhead Bleed and Gauge Valve, 30,000 PSI



20,000 PSI 井口放气阀 - 20BV 系列 | # 20BV6002-SOG


井口压力表和排放阀是仪器校准或取样的理想选择。井口压力表和放气阀采用 316 不锈钢退火材料制成,符合 NACE MR0175 标准。 井口压力表和排放阀是仪器校准或取样的理想选择。井口压力表和放气阀采用 316 不锈钢退火材料制成,符合 NACE MR0175 标准。Parker Autoclave Engineers 井口计量阀是仪器校准和过程采样的理想选择。主要应用在石油和天然气钻探和生产中,但其他市场也使用这些。为不存在 H2S 的正常现场服务提供标准组件,为存在 H2S 的服务键入“SOG”。Parker Autoclave Engineers 型 SOG 组件可提供标准 API 测试和仪表连接(Parker Autoclave Engineers F562C)。油管尺寸为 3/8" 和 9/16"

一个入口和三个出口,所有 9/16" 端口都是 API 测试和仪表连接端口

非旋转阀杆设计可防止阀杆/阀座磨损

金属对金属阀座用于气密关闭

泄放阀是一件式六角结构,便于安装

防爆裂阀杆设计

技术规格
最大工作压力 (psi):10,000
管道外径(毫米):9.53 毫米
阀杆类型:针
阀门类型:排气阀
连接类型:SM375CX
最大工作压力:690 巴
管道外径:3/8"英寸

Wellhead Bleed and Gauge Valve, 30,000 PSI
Parker Autoclave's BV Series wellhead bleed and gauge valves

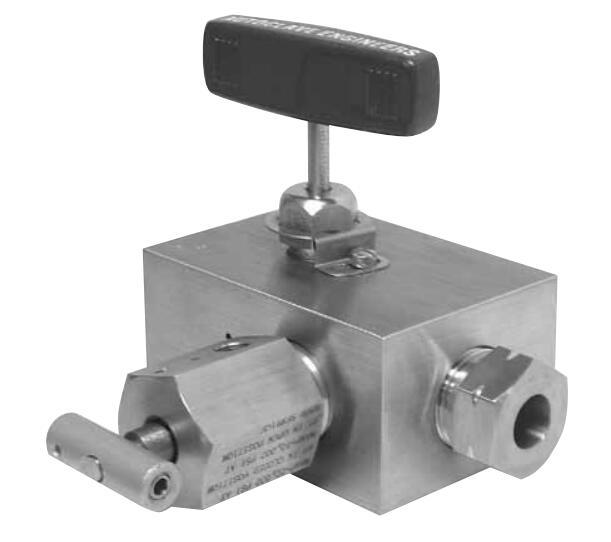

Parker Autoclave's BV Series wellhead bleed and gauge valves are ideal for instrumentation calibration or sampling. The BV Series is standard in 316 stainless steel material and will perform up to 30,000 PSI. These valves comply with NACE MR0175 .



Parker Autoclave's BV and GV Series bleed and gauge valves are a non-rotating rising stem design, working pressures to 30,000 psi (2068 bar). Tubing sizes are 3/8" and 9/16" and are designed to utilize the parker Autoclave Tubing. These valves are 316 stainless steel construction with other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.
Parker Autoclave Engineers wellhead gauge valves are ideal for instrument calibration and process sampling. The main applications are found in oil and gas drilling, and production, but other markets use these as well. Standard components are offered for normal field service where H2S is not present and type "SOG" for service where H2S is present. Parker Autoclave Engineers type SOG components are available with standard API test and gauge connection (Parker Autoclave Engineers F562C).



Markets:
- Oil and Gas
- Petrochemical
- Chemical


Features/Benefits:
- Tubing sizes are 3/8" and 9/16"
- One inlet and three outlet ports, all 9/16" ports are API test and gauge connection ports
- Non-rotating stem design prevents stem/seat galling
- Metal-to-metal seating for bubble-tight shut-off
- Bleed valve is one piece hex construction allowing easy installation
- Anti-blowout stem design

Applications:
- Process Sampling
- Instrument Calibration
- High Pressure Skid Panels



Technical Specifications

Maximum Operating Pressure: 690, 1379 bar
Pipe Outside Diameter: 3/8, 9/16, 1/4 inch







Wellhead Bleed and Gauge Valve, 30,000 PSI 型号

Part Maximum Working Pressure (psi) Pipe O.D. (mm) Stem Type Valve Type Connection Type
20BV6002-SOG 10,000 9.53 mm Needle Bleed Valve SM375CX
20BV9002-SOG 10,000 14.29 mm Needle Bleed Valve SM562CX
20GV6078-SOG 10,000 9.53 mm Needle Gauge Valve SF375CX
20GV9078-SOG 10,000 14.29 mm Needle Gauge Valve SF562CX
30BV4002-SOG 20,000 6.35 mm Needle Bleed Valve M250C
30BV9002-SOG 20,000 14.29 mm Needle Bleed Valve M562C
30GV9078-SOG 20,000 14.29 mm Needle Gauge Valve F562C
