Parker's SWB Series Ball Valves ar球阀，旋出球阀 2500 PSI - SWB 系列外摆式球阀 | #4F-SWB4L-PKR-G-SS

Parker 球阀 - Parker Ball Valves
Ball Valve,Swing Out Ball valve 2500 PSI - SWB Series

Parker 的 SWB 系列球阀采用外摆式设计，可以处理各种仪表和过程应用中高达 2,500 PSI (172 BAR) 的压力和管道负载。Parker 的 SWB 系列外摆式球阀采用三件式设计。这些仪表球阀是耐用的阀门，可以处理各种低压 (2,500 PSI) 压力管道和管道负载。球阀的中心体部分可以向外摆动，提供快速简便的阀座、密封件和球更换。所有这些维修能力都无需从仪表管或管道系统上拆下阀门。

Ball Valve,Swing Out Ball valve 2500 PSI - SWB Series

市场：
- 纸浆和造纸
- 化工
- 石化
- 电力
- 一般行业

特点/优势：
- 低内部容积
- 自由浮动球设计允许阀座磨损补偿
- 自补偿阀杆密封
- 弹簧加载阀座
- 抗爆裂阀杆
- 全封闭阀体螺栓连接
- 四螺栓结构
- ISO 型执行器安装设计
- 气动和电动驱动选项
- 100% 工厂测试

应用：

- 工艺管线
- 润滑系统
- 冲洗系统
- 蒸汽管线

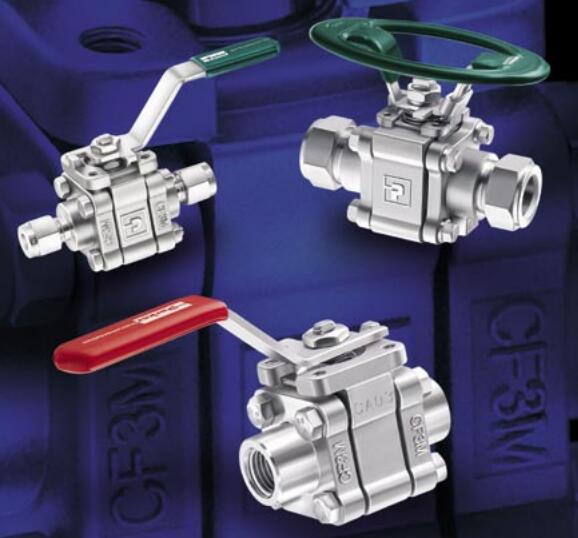

Parker's SWB Series Ball Valves are a swing-out design that can handle the pressure and piping loads in various instrumentation and process applications up to 2,500 PSI (172 BAR).

Parker's SWB Series, Swing - Out Ball Valves are a three piece design. These instrumentation ball valves are durable valves that can handle various low pressure (2,500 PSI) pressure tubing and piping loads. The ball valve's center body section can swing out provide quick and easy valve seat, seals and the ball replacement. All of this repair capability is without having to remove the valve from the instrumentation tubing or piping system.

Markets:
- Pulp and Paper
- Chemical
- Petrochemical
- Power
- General Industry

Features/Benefits:
- Low internal volume
- Free floating ball design allows for seat wear compensation
- Self-compensating stem seal
- Spring-loaded seats
- Blow out resistant stem
- Fully enclosed body bolting
- Four bolt construction
- ISO-type actuator mounting design
- Pneumatic and electric actuation options
- 100% factory tested

Applications:

- Process Lines
- Lubrication Systems
- Wash Down Systems
- Steam Lines

Technical Specifications

Ball Valve,Swing Out Ball valve 2500 PSI - SWB Series 型号
