球阀,3000 PSI - MB 系列球阀 | #12A-MB8A-PFA-SSP

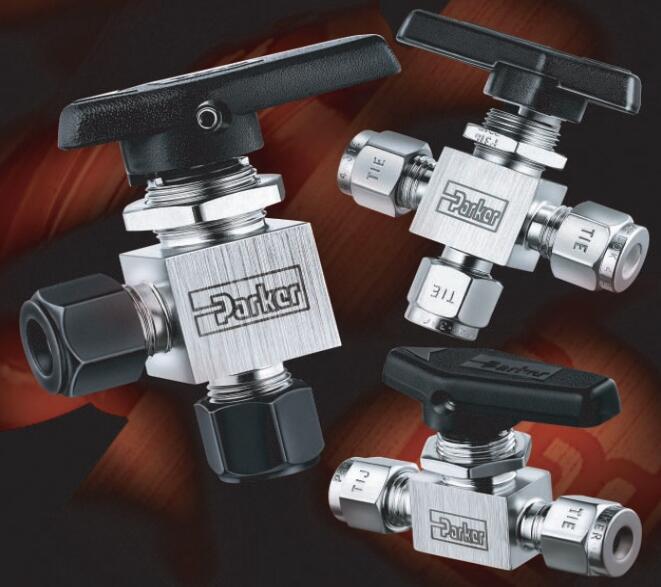

Parker MB Series ball valves
Parker 球阀 - Parker Ball Valves
Ball Valve,3000 PSI - MB Series

Parker 的 MB 系列球阀采用棒料阀体和紧凑型设计，可对流体进行可靠关闭或方向控制。这些球阀适用于各种压力和温度应用。高达 3,000 PSI。Parker 的 MB 系列球阀采用棒料、紧凑型设计，可为过程、电力和仪表应用中的流体提供可靠的关闭或方向控制。独特的一体式阀座/填料设计确保出色的密封特性，同时适应卓越的温度范围（-65?F 至 300?F）、高达 3000 PSIG 和长循环寿命。 这些阀门有两通和三通配置，黄铜和不锈钢结构，具有多种端口连接。此外，所有端口都适合作为阀门全工作压力的入口。

Ball Valve,3000 PSI - MB Series

市场：

- 石油和天然气
- 研究
- 化学
- 微电子

特性/优势：

- 一体式阀座/包装设计
- 温度范围广
- 涂层金属嵌件
- 一体式阀杆/球
- 各种美国常用和 SI 端口
- 面板可安装到 1/4"" 厚度
- 双向流动
- 手柄指示流动方向
- 任何端口处的全工作压力
- 正手柄停止
- 颜色编码手柄
- 100% 工厂测试
- 排气选项
- 手动、电动或气动驱动
- 三通阀上的防漏中心位置

应用：

- 实验室中的样品提取/分配系统
- 控制面板
- 研发实验室
- 特种气体
- 化学品输送
- 中试工厂

Parker's MB Series ball valves, with barstock body and compact design, offer positive shut off or directional control of fluids. These ball valves work in a variety of pressure and temperature applications.up to 3,000 PSI.

Parker's MB Series ball valves, with their barstock, compact design, offer positive shut off or directional control of fluids in process, power and instrumentation applications. The unique one piece seat/packing design insures excellent sealing characteristics while accommodating a superior temperature range (-65?F to 300?F), up to 3000 PSIG and long cycle life.
These valves are available in two-way and three-way configurations, brass and stainless steel construction, with a wide variety of port connections. Also, all ports are suitable as inlets to full operating pressure of the valve.

Markets:

- Oil and Gas
- Research
- Chemical
- Microelectronics

Features/Benefits:

- One piece seat/packing design
- Broad temperature range
- Coated metal inserts
- One piece stem/ball
- Wide variety of US Customary and SI ports
- Panel mountable to 1/4"" thickness
- Bi-directional flow
- Handle indicates direction of flow
- Full operating pressure at any port
- Positive handle stops
- Color coded handles
- 100% factory tested
- Vent option
- Manual, electric or pneumatic actuation
- Leak-tight center-off position on three-way valves

Applications:

- Sample Extraction/Dispensing Systems in Labs
- Control Panels
- R&D Labs
- Specialty Gas
- Chemical delivery
- Pilot Plants

Technical Specifications

Ball Valve,3000 PSI - MB Series 型号
