Parker CB Series check and filter check valves
Parker 止回阀 - Parker Check Valves

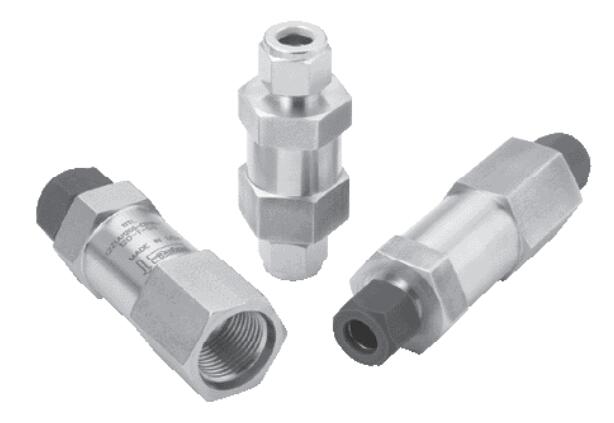

Check Valve, Ball Check - CB Series

Parker CB系列单向和过滤器单向阀
止回阀，止回球 - CB 系列 | #12A-CB12L-1-PC-SS



Parker CB系列单向和过滤器单向阀采用独特的球形止回设计。这些止回阀处理关键流体和气体的单向流量控制，特别是在高温或“粘性”应用中。Parker 的 CB 和 CBF 系列止回阀设计用于流体和气体的单向流动控制。独特的浮动球阀设计可处理各种行业的苛刻服务。CB/CBF 系列专门设计用于减少双燃料涡轮机的止回阀维护和性能要求。一般的提升设计止回阀不能很好地处理这些高要求的应用。提升式止回阀的具体问题包括但不限于阀座泄漏、焦化、高维修和维护成本。所有这些问题都会直接影响涡轮效率，从而影响运营成本。

CB/CBF系列止回阀的先进阀座材料特别适用于需要高完整性泄漏率和重新密封能力的高温应用。



Check Valve, Ball Check - CB Series





市场：
- 电力
- 化工
- 石油和天然气

特性/优点：
- 坚固可靠的浮动球阀座设计优化了密封特性，同时最大限度地减少了焦化的影响。
- 可选的硬质 PTFE 涂层球笼可抵抗燃油焦化时常见的提升阀“粘连”。
- 可使用派克重建套件进行全面现场维修。无需特殊工具即可在几分钟内更换座椅。
- 派克为空气净化和燃油等要求严苛的应用而设计的高级增强型 PTFE 共聚物阀座材料。
- 用于阀座和喷嘴保护的集成“最后机会”过滤器选项。
- 直接连接到派克金属软管以帮助进一步减少维修期间的涡轮机停机时间。

应用：
- 双燃料涡轮
- 燃油系统
- 高温系统保护
- 喷射系统





Parker's CB Series check and filter check valves are a unique ball check design. These check valves handle uni-directional flow control of critical fluids and gases, especially in high temperature or “sticky” applications. parker's CB and CBF Series Check Valves are designed for uni-directional flow control of fluids and gases. The unique floating ball valve design handles demanding services in a variety of industries. The CB/CBF Series are specifically designed to reduce check valve maintenance and performance requirements on dual fuel turbines. General poppet design check valves do not handle these high demand applications very well. Specific issues of a poppet check valve include, but are not limited to seat leakage, coking, high repair and maintenance costs. All of these issues directly affect turbine efficiency, impacting operating costs.

The advanced seat materials of the CB/CBF Series Check Valves are particularly suited for higher temperature applications requiring high integrity leak rates and re-sealing capabilities.



Markets:
- Power
- Chemical
- Oil & Gas


Features/benefits:
- Rugged and reliable floating ball valve seat design optimizes sealing characteristics while minimizing effects of coking.
- Optional hard PTFE coated ball cage resists poppet “stick” commonly experienced with fuel oil coking.
- Fully field serviceable with Parker rebuild kits. Replace seats in minutes without special tools.
- Advanced reinforced PTFE copolymer seat materials designed by Parker for demanding applications such as air purge and fuel oil.
- Integral “last chance” filter option for seat and nozzle protection.
- Connects directly to Parker metal hoses to assist in even further reduce turbine downtime during repairs.

Applications:
- Dual Fuel Turbines
- Fuel Systems
- High Temperature System Protection
- Injection Systems



Technical Specifications

Connection 1 Size: 3/8" to 3/4"
Connection 2 Size: 3/8" to 3/4"
Inlet Connection Size: Two Ferrule Compression, Single Ferrule Compression
Outlet Connection Size: Two Ferrule Compression, Single Ferrule Compression
Cracking Pressure: 1, 5 psi
Seal Material: Parkerfill
Body Material: 316 Stainless Steel
Maximum Operating Pressure: 1000 psi
Maximum Operating Temperature: 100 °F
Operating Pressure: 300 psi
Operating Temperature: 450 °F
Micron Rating: 75 μm



Check Valve, Ball Check - CB Series 型号

Parts
Connection 1 Size
Connection 2 Size
Inlet Connection
Outlet Connection
Cracking Pressure (psi)
12A-CB12L-1-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1
12A-CB12L-1-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1
12A-CB12L-10-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10
12A-CB12L-10-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10
12A-CB12L-100-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100
12A-CB12L-100-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100
12A-CB12L-120-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120
12A-CB12L-120-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120
12A-CB12L-15-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 15
12A-CB12L-15-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 15
12A-CB12L-5-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5
12A-CB12L-5-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5
12A-CB12L-50-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50
12A-CB12L-50-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50
12A-CBF12L-1-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1
12A-CBF12L-1-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1
12A-CBF12L-1-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1
12A-CBF12L-1-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1
12A-CBF12L-1-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1
12A-CBF12L-1-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1
12A-CBF12L-1-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1
12A-CBF12L-1-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1
12A-CBF12L-10-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10
12A-CBF12L-10-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10
12A-CBF12L-10-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10
12A-CBF12L-10-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10
12A-CBF12L-10-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10
12A-CBF12L-10-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10
12A-CBF12L-10-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10
12A-CBF12L-10-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10
12A-CBF12L-100-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100
12A-CBF12L-100-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100
12A-CBF12L-100-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100
12A-CBF12L-100-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100
12A-CBF12L-100-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100
12A-CBF12L-100-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100
12A-CBF12L-100-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100
12A-CBF12L-100-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100
12A-CBF12L-120-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120
12A-CBF12L-120-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120
12A-CBF12L-120-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120
12A-CBF12L-120-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120
12A-CBF12L-120-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120
12A-CBF12L-120-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120
12A-CBF12L-120-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120
12A-CBF12L-120-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120
12A-CBF12L-25-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25
12A-CBF12L-25-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25
12A-CBF12L-25-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25
12A-CBF12L-25-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25
12A-CBF12L-25-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25
12A-CBF12L-25-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25
12A-CBF12L-25-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25
12A-CBF12L-25-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25
12A-CBF12L-5-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5
12A-CBF12L-5-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5
12A-CBF12L-5-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5
12A-CBF12L-5-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5
12A-CBF12L-5-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5
12A-CBF12L-5-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5
12A-CBF12L-5-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5
12A-CBF12L-5-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5
12A-CBF12L-50-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50
12A-CBF12L-50-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50
12A-CBF12L-50-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50
12A-CBF12L-50-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50
12A-CBF12L-50-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50
12A-CBF12L-50-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50
12A-CBF12L-50-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50
12A-CBF12L-50-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50
12A-CBF12L-75-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75
12A-CBF12L-75-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75
12A-CBF12L-75-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75
12A-CBF12L-75-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75
12A-CBF12L-75-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75
12A-CBF12L-75-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75
12A-CBF12L-75-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75
12A-CBF12L-75-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75
12Z-CB12L-1-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1
12Z-CB12L-1-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1
12Z-CB12L-10-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10
12Z-CB12L-10-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10
12Z-CB12L-100-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100
12Z-CB12L-100-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100
12Z-CB12L-120-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120
12Z-CB12L-120-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120
12Z-CB12L-15-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 15
12Z-CB12L-15-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 15
12Z-CB12L-5-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5
12Z-CB12L-5-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5
12Z-CB12L-50-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50
12Z-CB12L-50-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50
12Z-CBF12L-1-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1
12Z-CBF12L-1-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1
12Z-CBF12L-1-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1
12Z-CBF12L-1-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1
12Z-CBF12L-1-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1
12Z-CBF12L-1-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1
12Z-CBF12L-1-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1
12Z-CBF12L-1-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1



Parts Connection 1 Size Connection 2 Size Inlet Connection Outlet Connection Cracking Pressure (psi)
12Z-CBF12L-10-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10
12Z-CBF12L-10-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10
12Z-CBF12L-10-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10
12Z-CBF12L-10-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10
12Z-CBF12L-10-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10
12Z-CBF12L-10-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10
12Z-CBF12L-10-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10
12Z-CBF12L-10-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10
12Z-CBF12L-100-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100
12Z-CBF12L-100-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100
12Z-CBF12L-100-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100
12Z-CBF12L-100-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100
12Z-CBF12L-100-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100
12Z-CBF12L-100-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100
12Z-CBF12L-100-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100
12Z-CBF12L-100-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100
12Z-CBF12L-120-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120
12Z-CBF12L-120-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120
12Z-CBF12L-120-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120
12Z-CBF12L-120-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120
12Z-CBF12L-120-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120
12Z-CBF12L-120-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120
12Z-CBF12L-120-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120
12Z-CBF12L-120-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120
12Z-CBF12L-25-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25
12Z-CBF12L-25-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25
12Z-CBF12L-25-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25
12Z-CBF12L-25-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25
12Z-CBF12L-25-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25
12Z-CBF12L-25-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25
12Z-CBF12L-25-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25
12Z-CBF12L-25-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25
12Z-CBF12L-5-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5
12Z-CBF12L-5-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5
12Z-CBF12L-5-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5
12Z-CBF12L-5-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5
12Z-CBF12L-5-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5
12Z-CBF12L-5-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5
12Z-CBF12L-5-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5
12Z-CBF12L-5-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5
12Z-CBF12L-50-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50
12Z-CBF12L-50-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50
12Z-CBF12L-50-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50
12Z-CBF12L-50-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50
12Z-CBF12L-50-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50
12Z-CBF12L-50-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50
12Z-CBF12L-50-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50
12Z-CBF12L-50-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50
12Z-CBF12L-75-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75
12Z-CBF12L-75-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75
12Z-CBF12L-75-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75
12Z-CBF12L-75-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75
12Z-CBF12L-75-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75
12Z-CBF12L-75-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75
12Z-CBF12L-75-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75
12Z-CBF12L-75-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75
6A-CB6L-1-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1
6A-CB6L-1-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1
6A-CB6L-10-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10
6A-CB6L-10-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10
6A-CB6L-100-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100
6A-CB6L-100-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100
6A-CB6L-120-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120
6A-CB6L-120-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120
6A-CB6L-15-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 15
6A-CB6L-15-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 15
6A-CB6L-5-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5
6A-CB6L-5-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5
6A-CB6L-50-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50
6A-CB6L-50-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50
6A-CBF6L-1-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1
6A-CBF6L-1-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1
6A-CBF6L-1-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1
6A-CBF6L-1-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1
6A-CBF6L-1-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1
6A-CBF6L-1-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1
6A-CBF6L-1-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1
6A-CBF6L-1-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1
6A-CBF6L-10-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10
6A-CBF6L-10-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10
6A-CBF6L-10-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10
6A-CBF6L-10-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10
6A-CBF6L-10-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10
6A-CBF6L-10-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10
6A-CBF6L-10-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10
6A-CBF6L-10-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10
6A-CBF6L-100-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100
6A-CBF6L-100-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100
6A-CBF6L-100-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100
6A-CBF6L-100-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100
6A-CBF6L-100-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100
6A-CBF6L-100-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100
6A-CBF6L-100-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100
6A-CBF6L-100-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100
6A-CBF6L-120-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120
6A-CBF6L-120-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120
6A-CBF6L-120-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120
6A-CBF6L-120-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120
6A-CBF6L-120-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120
6A-CBF6L-120-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120



Parts
Connection 1 Size
Connection 2 Size
Inlet Connection
Outlet Connection
Cracking Pressure (psi)
6A-CBF6L-120-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120
6A-CBF6L-120-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120
6A-CBF6L-25-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25
6A-CBF6L-25-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25
6A-CBF6L-25-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25
6A-CBF6L-25-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25
6A-CBF6L-25-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25
6A-CBF6L-25-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25
6A-CBF6L-25-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25
6A-CBF6L-25-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25
6A-CBF6L-5-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5
6A-CBF6L-5-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5
6A-CBF6L-5-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5
6A-CBF6L-5-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5
6A-CBF6L-5-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5
6A-CBF6L-5-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5
6A-CBF6L-5-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5
6A-CBF6L-5-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5
6A-CBF6L-50-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50
6A-CBF6L-50-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50
6A-CBF6L-50-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50
6A-CBF6L-50-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50
6A-CBF6L-50-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50
6A-CBF6L-50-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50
6A-CBF6L-50-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50
6A-CBF6L-50-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50
6A-CBF6L-75-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75
6A-CBF6L-75-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75
6A-CBF6L-75-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75
6A-CBF6L-75-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75
6A-CBF6L-75-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75
6A-CBF6L-75-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75
6A-CBF6L-75-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75
6A-CBF6L-75-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75
6Z-CB6L-1-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1
6Z-CB6L-1-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1
6Z-CB6L-10-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10
6Z-CB6L-10-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10
6Z-CB6L-100-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100
6Z-CB6L-100-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100
6Z-CB6L-120-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120
6Z-CB6L-120-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120
6Z-CB6L-15-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 15
6Z-CB6L-15-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 15
6Z-CB6L-5-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5
6Z-CB6L-5-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5
6Z-CB6L-50-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50
6Z-CB6L-50-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50
6Z-CBF6L-1-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1
6Z-CBF6L-1-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1
6Z-CBF6L-1-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1
6Z-CBF6L-1-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1
6Z-CBF6L-1-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1
6Z-CBF6L-1-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1
6Z-CBF6L-1-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1
6Z-CBF6L-1-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1
6Z-CBF6L-10-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10
6Z-CBF6L-10-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10
6Z-CBF6L-10-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10
6Z-CBF6L-10-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10
6Z-CBF6L-10-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10
6Z-CBF6L-10-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10
6Z-CBF6L-10-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10
6Z-CBF6L-10-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10
6Z-CBF6L-100-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100
6Z-CBF6L-100-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100
6Z-CBF6L-100-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100
6Z-CBF6L-100-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100
6Z-CBF6L-100-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100
6Z-CBF6L-100-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100
6Z-CBF6L-100-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100
6Z-CBF6L-100-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100
6Z-CBF6L-120-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120
6Z-CBF6L-120-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120
6Z-CBF6L-120-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120
6Z-CBF6L-120-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120
6Z-CBF6L-120-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120
6Z-CBF6L-120-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120
6Z-CBF6L-120-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120
6Z-CBF6L-120-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120
6Z-CBF6L-25-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25
6Z-CBF6L-25-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25
6Z-CBF6L-25-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25
6Z-CBF6L-25-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25
6Z-CBF6L-25-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25
6Z-CBF6L-25-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25
6Z-CBF6L-25-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25
6Z-CBF6L-25-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25
6Z-CBF6L-5-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5
6Z-CBF6L-5-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5
6Z-CBF6L-5-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5
6Z-CBF6L-5-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5
6Z-CBF6L-5-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5
6Z-CBF6L-5-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5
6Z-CBF6L-5-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5
6Z-CBF6L-5-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5
6Z-CBF6L-50-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50
6Z-CBF6L-50-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50
6Z-CBF6L-50-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50
6Z-CBF6L-50-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50



Parts Connection 1 Size Connection 2 Size Inlet Connection Outlet Connection Cracking Pressure (psi)
6Z-CBF6L-50-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50
6Z-CBF6L-50-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50
6Z-CBF6L-50-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50
6Z-CBF6L-50-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50
6Z-CBF6L-75-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75
6Z-CBF6L-75-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75
6Z-CBF6L-75-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75
6Z-CBF6L-75-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75
6Z-CBF6L-75-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75
6Z-CBF6L-75-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75
6Z-CBF6L-75-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75
6Z-CBF6L-75-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75
8A-CB8L-1-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1
8A-CB8L-1-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1
8A-CB8L-10-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10
8A-CB8L-10-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10
8A-CB8L-100-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100
8A-CB8L-100-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100
8A-CB8L-120-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120
8A-CB8L-120-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120
8A-CB8L-15-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 15
8A-CB8L-15-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 15
8A-CB8L-5-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5
8A-CB8L-5-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5
8A-CB8L-50-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50
8A-CB8L-50-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50
8A-CBF8L-1-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1
8A-CBF8L-1-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1
8A-CBF8L-1-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1
8A-CBF8L-1-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1
8A-CBF8L-1-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1
8A-CBF8L-1-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1
8A-CBF8L-1-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1
8A-CBF8L-1-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1
8A-CBF8L-10-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10
8A-CBF8L-10-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10
8A-CBF8L-10-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10
8A-CBF8L-10-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10
8A-CBF8L-10-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10
8A-CBF8L-10-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10
8A-CBF8L-10-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10
8A-CBF8L-10-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10
8A-CBF8L-100-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100
8A-CBF8L-100-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100
8A-CBF8L-100-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100
8A-CBF8L-100-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100
8A-CBF8L-100-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100
8A-CBF8L-100-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100
8A-CBF8L-100-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100
8A-CBF8L-100-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100
8A-CBF8L-120-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120
8A-CBF8L-120-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120
8A-CBF8L-120-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120
8A-CBF8L-120-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120
8A-CBF8L-120-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120
8A-CBF8L-120-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120
8A-CBF8L-120-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120
8A-CBF8L-120-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120
8A-CBF8L-25-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25
8A-CBF8L-25-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25
8A-CBF8L-25-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25
8A-CBF8L-25-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25
8A-CBF8L-25-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25
8A-CBF8L-25-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25
8A-CBF8L-25-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25
8A-CBF8L-25-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25
8A-CBF8L-5-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5
8A-CBF8L-5-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5
8A-CBF8L-5-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5
8A-CBF8L-5-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5
8A-CBF8L-5-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5
8A-CBF8L-5-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5
8A-CBF8L-5-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5
8A-CBF8L-5-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5
8A-CBF8L-50-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50
8A-CBF8L-50-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50
8A-CBF8L-50-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50
8A-CBF8L-50-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50
8A-CBF8L-50-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50
8A-CBF8L-50-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50
8A-CBF8L-50-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50
8A-CBF8L-50-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50
8A-CBF8L-75-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75
8A-CBF8L-75-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75
8A-CBF8L-75-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75
8A-CBF8L-75-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75
8A-CBF8L-75-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75
8A-CBF8L-75-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75
8A-CBF8L-75-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75
8A-CBF8L-75-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75
8Z-CB8L-1-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1
8Z-CB8L-1-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1
8Z-CB8L-10-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10
8Z-CB8L-10-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10
8Z-CB8L-100-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100
8Z-CB8L-100-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100
8Z-CB8L-120-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120
8Z-CB8L-120-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120
8Z-CB8L-15-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 15
8Z-CB8L-15-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 15



Parts Connection 1 Size Connection 2 Size Inlet Connection Outlet Connection Cracking Pressure (psi)
8Z-CB8L-5-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5
8Z-CB8L-5-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5
8Z-CB8L-50-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50
8Z-CB8L-50-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50
8Z-CBF8L-1-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1
8Z-CBF8L-1-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1
8Z-CBF8L-1-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1
8Z-CBF8L-1-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1
8Z-CBF8L-1-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1
8Z-CBF8L-1-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1
8Z-CBF8L-1-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1
8Z-CBF8L-1-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1
8Z-CBF8L-10-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10
8Z-CBF8L-10-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10
8Z-CBF8L-10-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10
8Z-CBF8L-10-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10
8Z-CBF8L-10-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10
8Z-CBF8L-10-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10
8Z-CBF8L-10-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10
8Z-CBF8L-10-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10
8Z-CBF8L-100-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100
8Z-CBF8L-100-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100
8Z-CBF8L-100-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100
8Z-CBF8L-100-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100
8Z-CBF8L-100-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100
8Z-CBF8L-100-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100
8Z-CBF8L-100-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100
8Z-CBF8L-100-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100
8Z-CBF8L-120-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120
8Z-CBF8L-120-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120
8Z-CBF8L-120-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120
8Z-CBF8L-120-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120
8Z-CBF8L-120-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120
8Z-CBF8L-120-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120
8Z-CBF8L-120-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120
8Z-CBF8L-120-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120
8Z-CBF8L-25-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25
8Z-CBF8L-25-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25
8Z-CBF8L-25-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25
8Z-CBF8L-25-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25
8Z-CBF8L-25-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25
8Z-CBF8L-25-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25
8Z-CBF8L-25-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25
8Z-CBF8L-25-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25
8Z-CBF8L-5-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5
8Z-CBF8L-5-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5
8Z-CBF8L-5-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5
8Z-CBF8L-5-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5
8Z-CBF8L-5-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5
8Z-CBF8L-5-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5
8Z-CBF8L-5-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5
8Z-CBF8L-5-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5
8Z-CBF8L-50-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50
8Z-CBF8L-50-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50
8Z-CBF8L-50-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50
8Z-CBF8L-50-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50
8Z-CBF8L-50-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50
8Z-CBF8L-50-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50
8Z-CBF8L-50-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50
8Z-CBF8L-50-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50
8Z-CBF8L-75-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75
8Z-CBF8L-75-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75
8Z-CBF8L-75-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75
8Z-CBF8L-75-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75
8Z-CBF8L-75-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75
8Z-CBF8L-75-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75
8Z-CBF8L-75-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75
8Z-CBF8L-75-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75



Part Connection 1 Size Connection 2 Size Inlet Connection Outlet Connection Cracking Pressure (psi) Seal Material Body Material Maximum Working Pressure (psi) Maximum Working Temperature (F) Operating Pressure (psi) Operating Temperature (F) Micron Rating (μm)
12A-CB12L-1-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12A-CB12L-1-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12A-CB12L-10-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12A-CB12L-10-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12A-CB12L-100-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12A-CB12L-100-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12A-CB12L-120-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12A-CB12L-120-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12A-CB12L-15-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 15 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12A-CB12L-15-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 15 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12A-CB12L-5-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12A-CB12L-5-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12A-CB12L-50-PC-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12A-CB12L-50-PF-SS 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12A-CBF12L-1-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12A-CBF12L-1-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12A-CBF12L-1-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12A-CBF12L-1-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12A-CBF12L-1-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12A-CBF12L-1-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12A-CBF12L-1-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12A-CBF12L-1-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12A-CBF12L-10-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12A-CBF12L-10-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12A-CBF12L-10-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12A-CBF12L-10-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12A-CBF12L-10-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12A-CBF12L-10-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12A-CBF12L-10-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12A-CBF12L-10-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12A-CBF12L-100-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12A-CBF12L-100-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12A-CBF12L-100-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12A-CBF12L-100-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12A-CBF12L-100-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12A-CBF12L-100-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12A-CBF12L-100-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12A-CBF12L-100-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12A-CBF12L-120-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12A-CBF12L-120-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12A-CBF12L-120-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12A-CBF12L-120-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12A-CBF12L-120-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12A-CBF12L-120-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12A-CBF12L-120-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12A-CBF12L-120-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12A-CBF12L-25-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12A-CBF12L-25-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12A-CBF12L-25-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12A-CBF12L-25-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12A-CBF12L-25-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12A-CBF12L-25-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12A-CBF12L-25-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12A-CBF12L-25-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12A-CBF12L-5-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12A-CBF12L-5-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12A-CBF12L-5-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12A-CBF12L-5-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12A-CBF12L-5-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12A-CBF12L-5-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12A-CBF12L-5-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12A-CBF12L-5-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12A-CBF12L-50-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12A-CBF12L-50-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12A-CBF12L-50-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12A-CBF12L-50-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12A-CBF12L-50-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12A-CBF12L-50-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12A-CBF12L-50-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12A-CBF12L-50-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12A-CBF12L-75-PC-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12A-CBF12L-75-PC-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12A-CBF12L-75-PC-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12A-CBF12L-75-PC-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12A-CBF12L-75-PF-SS-200 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12A-CBF12L-75-PF-SS-380 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12A-CBF12L-75-PF-SS-500 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12A-CBF12L-75-PF-SS-75 3/4" 3/4" Two Ferrule Compression Two Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12Z-CB12L-1-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12Z-CB12L-1-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12Z-CB12L-10-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12Z-CB12L-10-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12Z-CB12L-100-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12Z-CB12L-100-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12Z-CB12L-120-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12Z-CB12L-120-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12Z-CB12L-15-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 15 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12Z-CB12L-15-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 15 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12Z-CB12L-5-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12Z-CB12L-5-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12Z-CB12L-50-PC-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
12Z-CB12L-50-PF-SS 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
12Z-CBF12L-1-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12Z-CBF12L-1-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12Z-CBF12L-1-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12Z-CBF12L-1-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12Z-CBF12L-1-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12Z-CBF12L-1-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12Z-CBF12L-1-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12Z-CBF12L-1-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12Z-CBF12L-10-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12Z-CBF12L-10-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12Z-CBF12L-10-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12Z-CBF12L-10-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12Z-CBF12L-10-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12Z-CBF12L-10-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12Z-CBF12L-10-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12Z-CBF12L-10-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12Z-CBF12L-100-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12Z-CBF12L-100-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12Z-CBF12L-100-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12Z-CBF12L-100-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12Z-CBF12L-100-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12Z-CBF12L-100-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12Z-CBF12L-100-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12Z-CBF12L-100-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12Z-CBF12L-120-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12Z-CBF12L-120-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12Z-CBF12L-120-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12Z-CBF12L-120-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12Z-CBF12L-120-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12Z-CBF12L-120-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12Z-CBF12L-120-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12Z-CBF12L-120-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12Z-CBF12L-25-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12Z-CBF12L-25-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12Z-CBF12L-25-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12Z-CBF12L-25-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12Z-CBF12L-25-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12Z-CBF12L-25-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12Z-CBF12L-25-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12Z-CBF12L-25-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12Z-CBF12L-5-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12Z-CBF12L-5-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12Z-CBF12L-5-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12Z-CBF12L-5-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12Z-CBF12L-5-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12Z-CBF12L-5-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12Z-CBF12L-5-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12Z-CBF12L-5-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12Z-CBF12L-50-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12Z-CBF12L-50-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12Z-CBF12L-50-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12Z-CBF12L-50-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12Z-CBF12L-50-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12Z-CBF12L-50-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12Z-CBF12L-50-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12Z-CBF12L-50-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 75
12Z-CBF12L-75-PC-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
12Z-CBF12L-75-PC-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
12Z-CBF12L-75-PC-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
12Z-CBF12L-75-PC-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
12Z-CBF12L-75-PF-SS-200 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 200
12Z-CBF12L-75-PF-SS-380 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 380
12Z-CBF12L-75-PF-SS-500 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 500
12Z-CBF12L-75-PF-SS-75 3/4" 3/4" Single Ferrule Compression Single Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6A-CB6L-1-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6A-CB6L-1-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6A-CB6L-10-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6A-CB6L-10-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6A-CB6L-100-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6A-CB6L-100-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6A-CB6L-120-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6A-CB6L-120-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6A-CB6L-15-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 15 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6A-CB6L-15-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 15 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6A-CB6L-5-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6A-CB6L-5-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6A-CB6L-50-PC-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6A-CB6L-50-PF-SS 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6A-CBF6L-1-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6A-CBF6L-1-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6A-CBF6L-1-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6A-CBF6L-1-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6A-CBF6L-1-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6A-CBF6L-1-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6A-CBF6L-1-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6A-CBF6L-1-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6A-CBF6L-10-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6A-CBF6L-10-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6A-CBF6L-10-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6A-CBF6L-10-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6A-CBF6L-10-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6A-CBF6L-10-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6A-CBF6L-10-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6A-CBF6L-10-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6A-CBF6L-100-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6A-CBF6L-100-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6A-CBF6L-100-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6A-CBF6L-100-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6A-CBF6L-100-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6A-CBF6L-100-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6A-CBF6L-100-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6A-CBF6L-100-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6A-CBF6L-120-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6A-CBF6L-120-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6A-CBF6L-120-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6A-CBF6L-120-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6A-CBF6L-120-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6A-CBF6L-120-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6A-CBF6L-120-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6A-CBF6L-120-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6A-CBF6L-25-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6A-CBF6L-25-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6A-CBF6L-25-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6A-CBF6L-25-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6A-CBF6L-25-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6A-CBF6L-25-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6A-CBF6L-25-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6A-CBF6L-25-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6A-CBF6L-5-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6A-CBF6L-5-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6A-CBF6L-5-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6A-CBF6L-5-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6A-CBF6L-5-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6A-CBF6L-5-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6A-CBF6L-5-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6A-CBF6L-5-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6A-CBF6L-50-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6A-CBF6L-50-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6A-CBF6L-50-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6A-CBF6L-50-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6A-CBF6L-50-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6A-CBF6L-50-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6A-CBF6L-50-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6A-CBF6L-50-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6A-CBF6L-75-PC-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6A-CBF6L-75-PC-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6A-CBF6L-75-PC-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6A-CBF6L-75-PC-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6A-CBF6L-75-PF-SS-200 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6A-CBF6L-75-PF-SS-380 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6A-CBF6L-75-PF-SS-500 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6A-CBF6L-75-PF-SS-75 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6Z-CB6L-1-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6Z-CB6L-1-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6Z-CB6L-10-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6Z-CB6L-10-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6Z-CB6L-100-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6Z-CB6L-100-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6Z-CB6L-120-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6Z-CB6L-120-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6Z-CB6L-15-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 15 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6Z-CB6L-15-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 15 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6Z-CB6L-5-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6Z-CB6L-5-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6Z-CB6L-50-PC-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
6Z-CB6L-50-PF-SS 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
6Z-CBF6L-1-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6Z-CBF6L-1-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6Z-CBF6L-1-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6Z-CBF6L-1-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6Z-CBF6L-1-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6Z-CBF6L-1-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6Z-CBF6L-1-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6Z-CBF6L-1-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6Z-CBF6L-10-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6Z-CBF6L-10-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6Z-CBF6L-10-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6Z-CBF6L-10-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6Z-CBF6L-10-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6Z-CBF6L-10-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6Z-CBF6L-10-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6Z-CBF6L-10-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6Z-CBF6L-100-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6Z-CBF6L-100-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6Z-CBF6L-100-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6Z-CBF6L-100-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6Z-CBF6L-100-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6Z-CBF6L-100-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6Z-CBF6L-100-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6Z-CBF6L-100-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6Z-CBF6L-120-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6Z-CBF6L-120-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6Z-CBF6L-120-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6Z-CBF6L-120-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6Z-CBF6L-120-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6Z-CBF6L-120-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6Z-CBF6L-120-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6Z-CBF6L-120-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6Z-CBF6L-25-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6Z-CBF6L-25-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6Z-CBF6L-25-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6Z-CBF6L-25-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6Z-CBF6L-25-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6Z-CBF6L-25-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6Z-CBF6L-25-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6Z-CBF6L-25-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6Z-CBF6L-5-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6Z-CBF6L-5-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6Z-CBF6L-5-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6Z-CBF6L-5-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6Z-CBF6L-5-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6Z-CBF6L-5-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6Z-CBF6L-5-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6Z-CBF6L-5-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6Z-CBF6L-50-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6Z-CBF6L-50-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6Z-CBF6L-50-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6Z-CBF6L-50-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6Z-CBF6L-50-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6Z-CBF6L-50-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6Z-CBF6L-50-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6Z-CBF6L-50-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 75
6Z-CBF6L-75-PC-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
6Z-CBF6L-75-PC-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
6Z-CBF6L-75-PC-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
6Z-CBF6L-75-PC-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
6Z-CBF6L-75-PF-SS-200 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 200
6Z-CBF6L-75-PF-SS-380 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 380
6Z-CBF6L-75-PF-SS-500 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 500
6Z-CBF6L-75-PF-SS-75 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8A-CB8L-1-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8A-CB8L-1-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8A-CB8L-10-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8A-CB8L-10-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8A-CB8L-100-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8A-CB8L-100-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8A-CB8L-120-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8A-CB8L-120-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8A-CB8L-15-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 15 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8A-CB8L-15-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 15 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8A-CB8L-5-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8A-CB8L-5-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8A-CB8L-50-PC-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8A-CB8L-50-PF-SS 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8A-CBF8L-1-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8A-CBF8L-1-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8A-CBF8L-1-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8A-CBF8L-1-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8A-CBF8L-1-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8A-CBF8L-1-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8A-CBF8L-1-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8A-CBF8L-1-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8A-CBF8L-10-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8A-CBF8L-10-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8A-CBF8L-10-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8A-CBF8L-10-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8A-CBF8L-10-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8A-CBF8L-10-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8A-CBF8L-10-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8A-CBF8L-10-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8A-CBF8L-100-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8A-CBF8L-100-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8A-CBF8L-100-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8A-CBF8L-100-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8A-CBF8L-100-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8A-CBF8L-100-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8A-CBF8L-100-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8A-CBF8L-100-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8A-CBF8L-120-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8A-CBF8L-120-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8A-CBF8L-120-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8A-CBF8L-120-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8A-CBF8L-120-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8A-CBF8L-120-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8A-CBF8L-120-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8A-CBF8L-120-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8A-CBF8L-25-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8A-CBF8L-25-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8A-CBF8L-25-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8A-CBF8L-25-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8A-CBF8L-25-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8A-CBF8L-25-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8A-CBF8L-25-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8A-CBF8L-25-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8A-CBF8L-5-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8A-CBF8L-5-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8A-CBF8L-5-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8A-CBF8L-5-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8A-CBF8L-5-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8A-CBF8L-5-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8A-CBF8L-5-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8A-CBF8L-5-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8A-CBF8L-50-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8A-CBF8L-50-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8A-CBF8L-50-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8A-CBF8L-50-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8A-CBF8L-50-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8A-CBF8L-50-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8A-CBF8L-50-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8A-CBF8L-50-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8A-CBF8L-75-PC-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8A-CBF8L-75-PC-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8A-CBF8L-75-PC-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8A-CBF8L-75-PC-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8A-CBF8L-75-PF-SS-200 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8A-CBF8L-75-PF-SS-380 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8A-CBF8L-75-PF-SS-500 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8A-CBF8L-75-PF-SS-75 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8Z-CB8L-1-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8Z-CB8L-1-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8Z-CB8L-10-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8Z-CB8L-10-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8Z-CB8L-100-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8Z-CB8L-100-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8Z-CB8L-120-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8Z-CB8L-120-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8Z-CB8L-15-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 15 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8Z-CB8L-15-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 15 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8Z-CB8L-5-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8Z-CB8L-5-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8Z-CB8L-50-PC-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 N/A
8Z-CB8L-50-PF-SS 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 N/A
8Z-CBF8L-1-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8Z-CBF8L-1-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8Z-CBF8L-1-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8Z-CBF8L-1-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8Z-CBF8L-1-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8Z-CBF8L-1-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8Z-CBF8L-1-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8Z-CBF8L-1-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 1 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8Z-CBF8L-10-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8Z-CBF8L-10-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8Z-CBF8L-10-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8Z-CBF8L-10-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8Z-CBF8L-10-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8Z-CBF8L-10-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8Z-CBF8L-10-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8Z-CBF8L-10-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 10 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8Z-CBF8L-100-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8Z-CBF8L-100-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8Z-CBF8L-100-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8Z-CBF8L-100-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8Z-CBF8L-100-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8Z-CBF8L-100-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8Z-CBF8L-100-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8Z-CBF8L-100-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 100 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8Z-CBF8L-120-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8Z-CBF8L-120-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8Z-CBF8L-120-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8Z-CBF8L-120-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8Z-CBF8L-120-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8Z-CBF8L-120-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8Z-CBF8L-120-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8Z-CBF8L-120-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 120 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8Z-CBF8L-25-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8Z-CBF8L-25-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8Z-CBF8L-25-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8Z-CBF8L-25-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8Z-CBF8L-25-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8Z-CBF8L-25-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8Z-CBF8L-25-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8Z-CBF8L-25-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 25 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8Z-CBF8L-5-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8Z-CBF8L-5-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8Z-CBF8L-5-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8Z-CBF8L-5-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8Z-CBF8L-5-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8Z-CBF8L-5-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8Z-CBF8L-5-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8Z-CBF8L-5-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 5 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8Z-CBF8L-50-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8Z-CBF8L-50-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8Z-CBF8L-50-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8Z-CBF8L-50-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8Z-CBF8L-50-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8Z-CBF8L-50-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8Z-CBF8L-50-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8Z-CBF8L-50-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 50 Parkerfill 316 Stainless Steel 1000 100 300 450 75
8Z-CBF8L-75-PC-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 200
8Z-CBF8L-75-PC-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 380
8Z-CBF8L-75-PC-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 500
8Z-CBF8L-75-PC-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75 Parker Carbon 316 Stainless Steel 2500 100 1250 450 75
8Z-CBF8L-75-PF-SS-200 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 200
8Z-CBF8L-75-PF-SS-380 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 380
8Z-CBF8L-75-PF-SS-500 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 500
8Z-CBF8L-75-PF-SS-75 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression 75 Parkerfill 316 Stainless Steel 1000 100 300 450 75








美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
