Parker Weld-lok 系列管件、焊接管件
Parker Fittings接头 - Tube Fittings



Parker 的 Weld-lok系列永久承插焊和对焊管接头可满足任何系统的最严格要求。与通用焊接接头相比，派克焊接接头能够通过单个或两个套圈压缩管接头直接连接到管道系统。这些 316 不锈钢接头是一件式适配器，可在可能需要拆卸的情况下将焊接连接到可拆卸的压缩连接。这些焊接配件由 ASTM/ASME 密纹锻件和棒料制成。它们的设计符合 ANSI B 16.11，其中包括“承插焊和螺纹锻钢配件”。Parker 的设计与 Schedule 80、3000 磅配件压力等级相似，并且与满足相关（3000 磅管道等级）压力要求的 OD 管壁厚兼容。
Weld-lok管件符合 ANSI B31.1、ANSI B31.7 和 ASME 锅炉和压力容器规范的第 III 部分，以满足客户的行业要求。

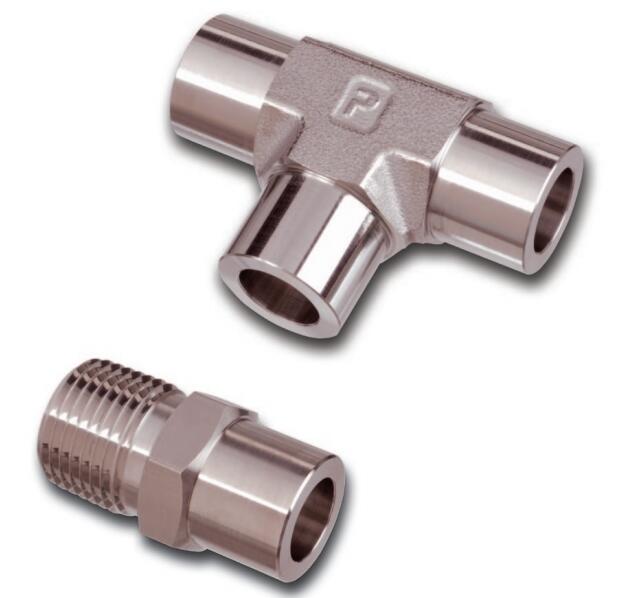

Parker Tube Fitting, Weld Fitting - Weld-lok Series



Parker's Weld-lok Series fitting is a permanent socket weld tube fitting that meets the most exacting requirements of any system in the chemical and nuclear industry. Parker's Weld-lok Series of permanent socket weld and butt weld tube fittings meet the most exacting requirements of any system. In contrast to general purpose weld fittings, the Parker weld fittings have the ability to directly connect to a tubing system with either single or two ferrule compression tube fittings. These 316 stainless steel fittings are a one piece adapter that makes a weld connection to a removable compression connection where removal may be necessary. These weld fittings are made from ASTM/ASME close grain forgings and bar stock. They are designed in accordance with ANSI B 16.11, which covers “Forged Steel Fittings Socket Welded and threaded”. Parker's design parallels the Schedule 80, 3000 pound fitting pressure class, and is compatible with O.D. tube wall thickness meeting the related (3000 pound pipe class) pressure requirements. Weld-lok Fittings conform to ANSI B31.1, ANSI B31.7, and Section III of the ASME Boiler and pressure Vessel Code to meet customer industry requirements.



市场：

- 电力
- 化学
- 核电站

特点/优势：

- 可追溯的热代码以确保材料责任
- 密纹锻件
- 配置的多样性
- 提供单套圈和两个套圈连接

应用：

- 蒸汽管线
- 工艺管道
- 传感管线



Markets:
- Power
- Chemical
- Nuclear Plants

Features/ Benefits:
- Heat Code Traceable for material accountability
- Close Grain Forgings
- Variety of configurations
- Single Ferrule and Two Ferrule connections available

Applications:
- Steam Lines
- Process Piping
- Sensing Lines





Technical Specifications

Fitting Type: Welded, Soldered
Connection 1 Size: 1/4" to 3/4", Socket Weld, Single Ferrule Compression
Connection 2 Size: 1/4" to 3/4", Socket Weld
Connection 3 Tube Outside Diameter: 1/4 to 3/4 inch
Connection 4 Tube Outside Diameter: 1/4 to 3/4 inch
Body Type: Union, Elbow, 45 Elbow, Tee, Cross, Socket Weld Connector
Maximum Operating Pressure: 9,600, 8,100, 7,300, 6,000 psi
Connection 3 Size: Socket Weld
Connection 4 Size: Socket Weld
Materials of Construction: Stainless Steel



Tube Fitting, Weld Fitting - Weld-lok Series 型号

Part
Connection 1 Size
Connection 2 Size
Connection 3 Tube O.D. (inch)
Connection 4 Tube O.D. (inch)
Body Type
Maximum Working Pressure (psi)
Connection 1 Style
12 CW-SS 3/4" 3/4" N/A N/A Male Elbow 6,000 Socket Weld
12 DW-SS 3/4" 3/4" N/A N/A Female Elbow 3,500 Socket Weld
12 EW-SS 3/4" 3/4" N/A N/A Elbow 6,000 Socket Weld
12 GW-SS 3/4" 3/4" N/A N/A Female Connector 4,300 Socket Weld
12 HW-SS 3/4" 3/4" N/A N/A Union 6,000 Socket Weld
12 JW-SS 3/4" 3/4" 3/4" N/A Tee 6,000 Socket Weld
12 KW-SS 3/4" 3/4" 3/4" 3/4" Cross 6,000 Socket Weld
12 NW-SS 3/4" 3/4" N/A N/A 45 Elbow 6,000 Socket Weld
12 RW-SS 3/4" 3/4" 3/4" N/A Male Run Tee 6,000 Socket Weld
12 SW-SS 3/4" 3/4" 3/4" N/A Male Branch Tee 6,000 Socket Weld

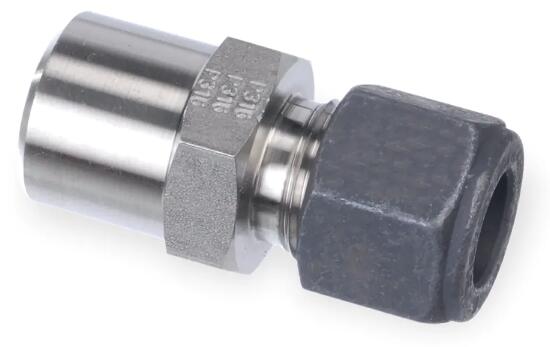

12-12 ZHBW-SS 3/4" 3/4" N/A N/A Socket Weld Connector N/A Single Ferrule Compression
16 CW-SS 1" 1" N/A N/A Male Elbow 4,400 Socket Weld
16 DW-SS 1" 1" N/A N/A Female Elbow 3,900 Socket Weld
16 EW-SS 1" 1" N/A N/A Elbow 4,400 Socket Weld
16 GW-SS 1" 1" N/A N/A Female Connector 4,500 Socket Weld
16 HW-SS 1" 1" N/A N/A Union 4,900 Socket Weld
16 JW-SS 1" 1" 1" N/A Tee 4,400 Socket Weld
16 KW-SS 1" 1" 1" 1" Cross 4,400 Socket Weld
16 NW-SS 1" 1" N/A N/A 45 Elbow 4,400 Socket Weld
16 RW-SS 1" 1" 1" N/A Male Run Tee 4,400 Socket Weld
16 SW-SS 1" 1" 1" N/A Male Branch Tee 4,400 Socket Weld
2 CW-SS 1/8" 1/8" N/A N/A Male Elbow 9,100 Socket Weld
2 DW-SS 1/8" 1/8" N/A N/A Female Elbow 5,500 Socket Weld
2 GW-SS 1/8" 1/8" N/A N/A Female Connector 6,400 Socket Weld
2 HW-SS 1/8" 1/8" N/A N/A Union 10,200 Socket Weld
20 CW-SS 1 1/4" 1 1/4" N/A N/A Male Elbow 3,500 Socket Weld
20 DW-SS 1 1/4" 1 1/4" N/A N/A Female Elbow 3,100 Socket Weld
20 EW-SS 1 1/4" 1 1/4" N/A N/A Elbow 4,600 Socket Weld
20 GW-SS 1 1/4" 1 1/4" N/A N/A Female Connector 3,500 Socket Weld
20 HW-SS 1 1/4" 1 1/4" N/A N/A Union 4,600 Socket Weld
20 JW-SS 1 1/4" 1 1/4" 1 1/4" N/A Tee 4,600 Socket Weld
20 KW-SS 1 1/4" 1 1/4" 1 1/4" 1 1/4" Cross 4,600 Socket Weld
20 NW-SS 1 1/4" 1 1/4" N/A N/A 45 Elbow 4,600 Socket Weld
20 RW-SS 1 1/4" 1 1/4" 1 1/4" N/A Male Run Tee 3,500 Socket Weld
20 SW-SS 1 1/4" 1 1/4" 1 1/4" N/A Male Branch Tee 3,500 Socket Weld
24 CW-SS 1 1/2" 1 1/2" N/A N/A Male Elbow 2,900 Socket Weld
24 DW-SS 1 1/2" 1 1/2" N/A N/A Female Elbow 2,500 Socket Weld
24 EW-SS 1 1/2" 1 1/2" N/A N/A Elbow 3,700 Socket Weld
24 HW-SS 1 1/2" 1 1/2" N/A N/A Union 3,700 Socket Weld
24 JW-SS 1 1/2" 1 1/2" 1 1/2" N/A Tee 3,700 Socket Weld
24 KW-SS 1 1/2" 1 1/2" 1 1/2" 1 1/2" Cross 3,700 Socket Weld
24 NW-SS 1 1/2" 1 1/2" N/A N/A 45 Elbow 3,700 Socket Weld
24 RW-SS 1 1/2" 1 1/2" 1 1/2" N/A Male Run Tee 2,900 Socket Weld
24 SW-SS 1 1/2" 1 1/2" 1 1/2" N/A Male Branch Tee 2,900 Socket Weld
32 EW-SS 2" 2" N/A N/A Elbow 3,300 Socket Weld
32 HW-SS 2" 2" N/A N/A Union 3,300 Socket Weld
32 JW-SS 2" 2" 2" N/A Tee 3,300 Socket Weld
32 KW-SS 2" 2" 2" 2" Cross 3,300 Socket Weld
32 NW-SS 2" 2" N/A N/A 45 Elbow 3,300 Socket Weld
32 RW-SS 2" 2" 2" N/A Male Run Tee 2,600 Socket Weld
32 SW-SS 2" 2" 2" N/A Male Branch Tee 2,600 Socket Weld
4 CW-SS 1/4" 1/4" N/A N/A Male Elbow 9,100 Socket Weld
4 DW-SS 1/4" 1/4" N/A N/A Female Elbow 5,500 Socket Weld
4 EW-SS 1/4" 1/4" N/A N/A Elbow 9,600 Socket Weld
4 GW-SS 1/4" 1/4" N/A N/A Female Connector 6,400 Socket Weld
4 HW-SS 1/4" 1/4" N/A N/A Union 9,600 Socket Weld
4 JW-SS 1/4" 1/4" 1/4" N/A Tee 9,600 Socket Weld
4 KW-SS 1/4" 1/4" 1/4" 1/4" Cross 9,600 Socket Weld
4 NW-SS 1/4" 1/4" N/A N/A 45 Elbow 9,600 Socket Weld
4 RW-SS 1/4" 1/4" 1/4" N/A Male Run Tee 9,100 Socket Weld
4 SW-SS 1/4" 1/4" 1/4" N/A Male Branch Tee 9,100 Socket Weld
4-4 ZHBW-SS 1/4" 1/4" N/A N/A Socket Weld Connector N/A Single Ferrule Compression
6 CW-SS 3/8" 3/8" N/A N/A Male Elbow 7,500 Socket Weld
6 DW-SS 3/8" 3/8" N/A N/A Female Elbow 5,600 Socket Weld
6 EW-SS 3/8" 3/8" N/A N/A Elbow 8,100 Socket Weld
6 GW-SS 3/8" 3/8" N/A N/A Female Connector 6,600 Socket Weld
6 HW-SS 3/8" 3/8" N/A N/A Union 8,100 Socket Weld
6 JW-SS 3/8" 3/8" 3/8" N/A Tee 8,100 Socket Weld
6 KW-SS 3/8" 3/8" 3/8" 3/8" Cross 8,100 Socket Weld
6 NW-SS 3/8" 3/8" N/A N/A 45 Elbow 8,100 Socket Weld
6 RW-SS 3/8" 3/8" 3/8" N/A Male Run Tee 9,100 Socket Weld
6 SW-SS 3/8" 3/8" 3/8" N/A Male Branch Tee 9,100 Socket Weld
6-6 ZHBW-SS 3/8" 3/8" N/A N/A Socket Weld Connector N/A Single Ferrule Compression
8 CW-SS 1/2" 1/2" N/A N/A Male Elbow 7,200 Socket Weld
8 DW-SS 1/2" 1/2" N/A N/A Female Elbow 5,000 Socket Weld
8 EW-SS 1/2" 1/2" N/A N/A Elbow 7,300 Socket Weld
8 GW-SS 1/2" 1/2" N/A N/A Female Connector 5,300 Socket Weld
8 HW-SS 1/2" 1/2" N/A N/A Union 7,300 Socket Weld
8 JW-SS 1/2" 1/2" 1/2" N/A Tee 7,300 Socket Weld
8 KW-SS 1/2" 1/2" 1/2" 1/2" Cross 7,300 Socket Weld
8 NW-SS 1/2" 1/2" N/A N/A 45 Elbow 7,300 Socket Weld
8 RW-SS 1/2" 1/2" 1/2" N/A Male Run Tee 9,100 Socket Weld
8 SW-SS 1/2" 1/2" 1/2" N/A Male Branch Tee 9,100 Socket Weld
8-8 ZHBW-SS 1/2" 1/2" N/A N/A Socket Weld Connector N/A Single Ferrule Compression
