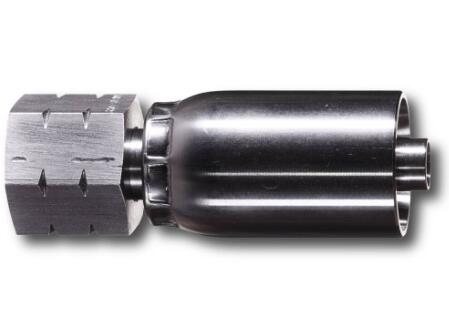

Crimped Thermoplastic UHP Hose Fittings, 3X Series
Parker High Pressure 3X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for hose types with working pressure up to 69 MPa.
Parker Polyflex High Pressure 3X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.
Crimped Thermoplastic UHP Hose Fittings, 3X Series
Markets:
- Industrial
- Oil & Gas
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- High pressure applications where non-conductivity is required
- Suitable for hose types with working pressure up to 69 MPa (10.000 psi)
Technical Specifications
|
| Nominal Hose Inside Diameter: |
DN10 |
| Hose I.D. (size): |
-6 |
| Hose Inside Diameter: |
3/8 inch |
| Connection Thread Size: |
9/16 (18), 1/2, 3/4 (16) inch |
| Connection Type: |
UNF, BSP, Metric, UNF - LH |
| Length: |
69, 66, 75, 88, 72, 137 mm, 2,7, 2,6, 3, 3,5, 2,8, 5,4 inch |
| Maximum Operating Pressure: |
10000, 15000, 20000 psi |
| Shape: |
Straight |
| Product Style: |
JIC female swivel, BSP female swivel (60° cone), Metric female swivel, Type ?M? female swivel fitting, Medium pressure tube nipple |
| Materials of Construction: |
Stainless steel (AISI 316), other materials on request. |
Crimped Thermoplastic UHP Hose Fittings, 3X Series 型号
|
