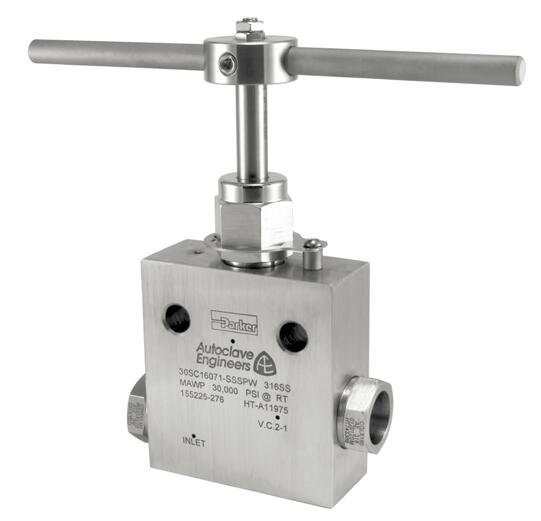

Needle Valve, High Pressure - SC Series

派克 Autoclave 的 SC 系列针阀采用非旋转升降杆设计，工作压力高达 43,000 psi (2965 bar)。这些阀门采用 316 不锈钢材质，并采用经过验证的高压釜锥体和螺纹连接。派克 Autoclave 的 SC 系列针阀采用非旋转升降杆设计，工作压力高达 43,000 psi (2965 bar)。此高压阀的管道尺寸为 1"。管道连接采用派克 Autoclave 锥体和螺纹设计。带有 PTFE 填料的标准高压针阀可在 0°F (-17.8°C) 至 450°F (232°C) 范围内运行。）高温填料是可从-423°F（-252℃）到1200°F（649℃）的服务以及它们的许多特征，这些阀提供在多种应用中可靠和无故障的服务。

Needle Valve, High Pressure - SC Series

市场：
- 石油和天然气
- 石化
- 化学

特性/优点：
- 管道尺寸从 1/4” 到 1”。
- 非旋转阀杆可防止阀杆/阀座磨损。
- 上升杆/棒材主体设计。
- 金属对金属阀座可实现气密关闭、更长的阀杆/阀座在磨料流中的使用寿命、更高的重复开/关循环的耐用性和出色的耐腐蚀性。
- 对于可靠的阀杆和阀体密封，30SC、43SC 和 30VM 阀门配备有 PTFE 封装填料；40VM 和 60VM 阀门在螺纹下方采用尼龙/皮革填料。
- 选择了阀杆套筒和填料压盖材料以延长螺纹循环寿命并降低手柄扭矩。
- 可选择V 形或调节阀杆尖端。

应用：
- 大直径管道
- 高压滑板
- 化学品注入
- 高压流体处理系统

Parker Autoclave's SC Series needle valves are a non-rotating rising stem design, with working pressures to 43,000 psi (2965 bar). These valves are available in 316 Stainless Steel and utilize the proven autoclave cone and thread connection.

Parker Autoclave's SC Series needle valves are a non-rotating rising stem design, working pressures to 43,000 psi (2965 bar). Tubing sizes are 1" for this high pressure valve. Tubing connections utilizes Parker Autoclave cone and thread design. Standard high pressure needle valves with PTFE packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) Along with their many features these valves provide dependable and trouble free service in wide variety of applications.

Markets:
- Oil and Gas
- Petrochemical
- Chemical


Features/Benefits:
- Tubing sizes from 1/4” to 1”.
- Non-rotating stem prevents stem/seat galling.
- Rising stem/barstock body design.
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- For dependable stem and body sealing 30SC, 43SC and 30VM valves are furnished with PTFE encapsulated packing; the 40VM and 60VM valves feature nylon/leather packing below threads.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.


Applications:
- Large Diameter Tubing Lines
- High Pressure Skid Panels
- Chemical Injection
- High Pressure Fluid Handling Systems

Technical Specifications

Needle Valve, High Pressure - SC Series 型号
