针阀，轭式阀 - Y 系列 50,000 PSI | #50Y9872 针导轭式阀
Parker 针阀 Parker Needle Valves

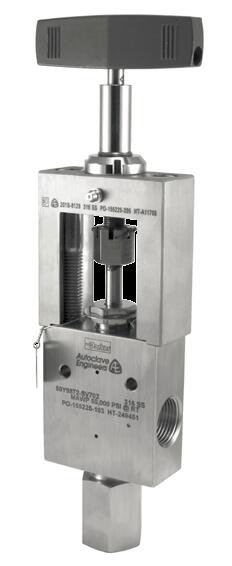

Needle Valve, Yoke Style - Y Series 50,000 PSI

Parker Autoclave 的 Y 系列轭阀采用非旋转上升杆设计，可在 50,000 psi (3447 bar) 的压力下安全可靠地运行。轭阀是超重型、工厂级阀门，适用于工业和严苛工况应用。Parker Autoclave 的 Y 系列轭阀采用非旋转上升杆设计，工作压力高达 50,000 psi (3447 bar)。这些轭阀是超重型、工厂级仪表阀，适用于工业和严苛工况应用。轭阀具有低关闭扭矩，易于操作。管道尺寸为 9/16” 至 1”。管道连接采用派克 Autoclave 锥体和螺纹设计。带有 PTFE 填料的标准高压针阀可在 0°F (-17.8°C) 至 450°F (232°C) 的温度范围内运行。高温填料可用于 600°F (316°C) 的服务。这些高压针阀在螺纹下方具有可调节的填料，以防止介质接触动力螺纹并在驱动过程中造成磨损除了它们的许多功能外，这些阀门还可以在各种应用中提供可靠且无故障的服务。

Needle Valve, Yoke Style - Y Series 50,000 PSI

市场：

- 石油和天然气
- 石化
- 化工
- 动力

特性/优势：

- 管道尺寸从 9/16" 到 1"。
- 上升杆/棒材主体设计。
- 非旋转阀杆可防止阀杆/阀座磨损。
- 金属对金属阀座可实现气密关闭、更长的阀杆/阀座在磨料流中的使用寿命、更高的重复开/关循环的耐用性和出色的耐腐蚀性。阀门
- PTFE 封装填料提供可靠的阀杆和阀体密封。
- 选择了阀杆套筒和填料压盖材料以延长螺纹循环寿命并降低手柄扭矩。
- 可选择V 形或调节阀杆尖端。
- 有两种体型可供选择。
- 用于低温和其他应用的可选材料。

应用：

- 通用仪表系统
- 高压橇
- 高压流体处理系统

Parker Autoclave's Y Series yoke valves are a non-rotating rising stem design, built to operate safely and reliably to 50,000 psi (3447 bar). Yoke valves are extra heavy-duty, plant grade valves for industrial and severe service applications.

Parker Autoclave's Y Series yoke valves are a non-rotating rising stem design, working pressures to 50,000 psi (3447 bar). These yoke valves are extra heavy duty, plant grade instrument valves for industrial and severe service applications. Yoke valves feature low closing torque for ease of operation. The tubing size is 9/16” to 1”. Tubing connections utilize the Parker Autoclave cone and thread design. Standard high pressure needle valves with PTFE packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service 600°F (316°C). These high pressure needle valves have adjustable packing below the threads to eliminate the media from contacting the power threads, and causing galling during actuation

Along with their many features these valves provide dependable and trouble free service in wide variety of applications.

Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Power


Features/Benefits:
- Tubing sizes from 9/16” to 1”.
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling.
- Metal-to-metal seating achieves bubble-tight shutoff, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance. Valves
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Available in two body patterns.
- Optional materials for cryogenic and other applications.

Applications:
- General Instrumentation Systems
- High Pressure Skids
- High Pressure Fluid Handling Systems

Technical Specifications

Needle Valve, Yoke Style - Y Series 50,000 PSI 型号
