Hose Fittings
Parflex 51 Series Hose Fittings

Parker's 51 Series fittings can be used with 510A, 510C and 518C hoses from Parflex division.





Parker's 51 Series fittings can be used with 510A, 510C and 518C hoses from Parflex division. Unlike crimp fittings, Parker's Field Attachable Fittings allow customers the convenience of making assemblies in the field with the use of a vice rather than a crimper. Please note the couplings on these fittings are only intended for use on hoses that have not previously been in service.

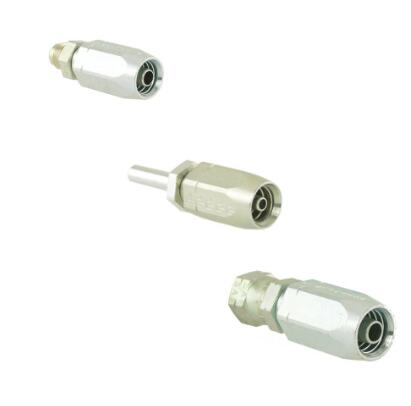

Parflex 51 Series Hose Fittings



Markets:
- Construction
- Aerial Lift
- Machine Tool

Features/Benefits:
- No crimper needed for installation

Applications:
- Medium pressure hydraulic service



Technical Specifications

Port Size: 0.125 - 1.000 inch
Application: Various
Connection Type: Field-Attachable, Pipe, NPTF, 37° Flare, 45° Flare
Hose Inside Diameter: 1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 3/4, 1 inch, 3, 5, 6, 8, 10, 13, 19, 25 mm
Materials of Construction: Steel, Stainless Steel
Shape: Straight, 90°
Connection Thread Size: Varies
Length: Varies
Product Style: Crimp (Permanent)



Parflex 51 Series Hose Fittings 型号

Part Hose I.D. (inch) Port Connection (inch) Shape Style
20151-12-12 0.75 0.75 Straight Male NPTF Pipe - Rigid - Straight
20151-16-16 1 1 Straight Male NPTF Pipe - Rigid - Straight
20151-2-3 0.1875 0.125 Straight Male NPTF Pipe - Rigid - Straight
20151-2-4 0.25 0.125 Straight Male NPTF Pipe - Rigid - Straight
20151-4-3 0.1875 0.25 Straight Male NPTF Pipe - Rigid - Straight
20151-4-4 0.25 0.25 Straight Male NPTF Pipe - Rigid - Straight
20151-4-5 0.3125 0.25 Straight Male NPTF Pipe - Rigid - Straight
20151-4-6 0.375 0.25 Straight Male NPTF Pipe - Rigid - Straight
20151-6-5 0.3125 0.375 Straight Male NPTF Pipe - Rigid - Straight
20151-6-6 0.375 0.375 Straight Male NPTF Pipe - Rigid - Straight
20151-6-8 0.5 0.375 Straight Male NPTF Pipe - Rigid - Straight
20151-8-6 0.375 0.5 Straight Male NPTF Pipe - Rigid - Straight
20151-8-8 0.5 0.5 Straight Male NPTF Pipe - Rigid - Straight
20351-4-3 0.1875 0.25 Straight Male JIC 37° - Rigid - Straight
20351-5-4 0.25 0.313 Straight Male JIC 37° - Rigid - Straight
20351-6-5 0.3125 0.375 Straight Male JIC 37° - Rigid - Straight
20351-6-6 0.375 0.375 Straight Male JIC 37° - Rigid - Straight
20351-8-6 0.375 0.5 Straight Male JIC 37° - Rigid - Straight
20351-8-8 0.5 0.5 Straight Male JIC 37° - Rigid - Straight
20651-10-8 0.5 0.625 Straight Female JIC 37° - Swivel - Straight
20651-12-12 0.75 0.75 Straight Female JIC 37° - Swivel - Straight
20651-16-16 1 1 Straight Female JIC 37° - Swivel - Straight
20651-4-3 0.1875 0.25 Straight Female JIC 37° - Swivel - Straight
20651-4-4 0.25 0.25 Straight Female JIC 37° - Swivel - Straight
20651-5-4 0.25 0.313 Straight Female JIC 37° - Swivel - Straight
20651-6-4 0.25 0.375 Straight Female JIC 37° - Swivel - Straight
20651-6-5 0.3125 0.375 Straight Female JIC 37° - Swivel - Straight
20651-6-6 0.375 0.375 Straight Female JIC 37° - Swivel - Straight
20651-8-6 0.375 0.5 Straight Female JIC 37° - Swivel - Straight
20651-8-8 0.5 0.5 Straight Female JIC 37° - Swivel - Straight
20851-6-6 0.375 0.375 Straight Female SAE 45° - Swivel - Straight
23951-4-3 0.1875 0.25 90° Elbow - Short Drop Female JIC 37° - Swivel - 90° Elbow - Short Drop
23951-6-6 0.375 0.375 90° Elbow - Short Drop Female JIC 37° - Swivel - 90° Elbow - Short Drop
23951-8-6 0.375 0.5 90° Elbow - Short Drop Female JIC 37° - Swivel - 90° Elbow - Short Drop
2J951-4-4 0.25 0.25 90° Elbow Seal-lok 90° Elbow
2JC51-4-4 0.25 0.25 Straight Seal-lok Female SAE Swivel
