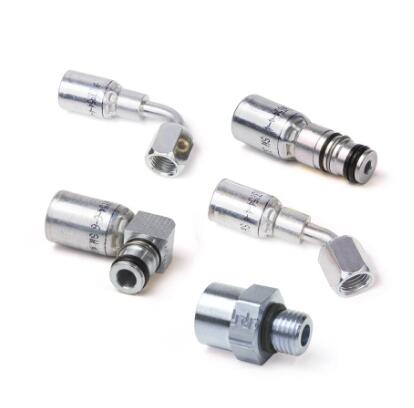

Rapid Assembly Fittings for 515 Hose – 54 Series

54 Series are used with Parflex 515H hoses. The rapid assembly fittings allow for quick connections.





Parker's Rapid Assembly Fittings are designed to be used with Parflex 515H Compact Hose and their quick connect design offers plug and play convenience in a very compact, economical system. The connector design is durable and easy to install, eliminating the need for wrenches and other tools which allows the 515H hose the advantage of easy installation and improved assembly time. The Parflex Rapid Assembly series fittings are not live swivels; therefore, care should be taken to insure that relative movement between the adapter and the hose fitting is eliminated. Sealing is achieved through the use of petroleum and synthetic hydraulic oil resistant elastomeric o-rings. Download our latest literature for more information.



Rapid Assembly Fittings for 515 Hose – 54 Series



Markets:
- Construction
- Agriculture
- Turf Care

Features/Benefits:
- Compact for improved assembly time
- Light weight for reduced system weight
- Quick connecting fittings eliminate the need for additional tools


Applications:
- Hydraulic and pneumatic systems where a small O.D. hose is necessary
- Pilot lines
- Joystick controls



Technical Specifications

Application: Various
Connection Type: Crimped, Seal-Lok; Flare, 37°; SAE ORB
Hose Inside Diameter: 3/16, 1/4, 5/16, 3/8, 1/2 inch, 5, 6, 8, 10, 13 mm
Materials of Construction: Steel, Stainless Steel
Shape: Straight, 45°, 90°
Tube Stem Outside Diameter: 0.250 - 0.375 inch
Connection Thread Size: Varies
Length: Varies, Varies mm
Fitting Type: Crimp (Permanent)
Product Style: Female, Male



Rapid Assembly Fittings for 515 Hose – 54 Series 型号

Part Shape Hose I.D. (inch) Port Size (inch) Thread Type
10654-4-4 Straight 0.25 0.25 Flare, 37°
10654-6-6 Straight 0.375 0.375 Flare, 37°
13754-4-4 Elbow, 45° 0.25 0.25 Flare, 37°
13954-4-4 Elbow, 90° 0.25 0.25 Flare, 37°
13954-6-6 Elbow, 90° 0.375 0.375 Flare, 37°
1J754-4-4 Elbow, 45° 0.25 0.25 Seal-Lok
1J954-4-4 Elbow, 90° 0.25 0.25 Seal-Lok
1J954-6-6 Elbow, 90° 0.375 0.375 Seal-Lok
1JC54-4-4 Straight 0.25 0.25 Seal-Lok
1JC54-6-6 Straight 0.375 0.375 Seal-Lok
1WU54-4-4 Straight 0.25 na na
1WU54-6-6 Straight 0.375 na na
1WW54-4-4 Elbow, 45° 0.25 na na
1WW54-6-6 Elbow, 45° 0.375 na na
1WY54-4-4 Elbow, 90° 0.25 na na
1WY54-6-6 Elbow, 90° 0.375 na na
685RA-4-4 Straight 0.25 0.25 SAE ORB
685RA-4-6 Straight 0.375 0.25 SAE ORB
685RA-6-4 Straight 0.25 0.375 SAE ORB
685RA-6-6 Straight 0.375 0.375 SAE ORB
