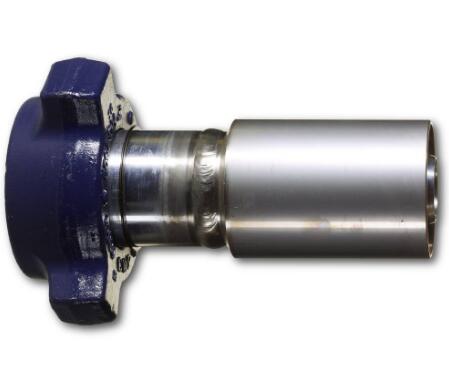

Crimped Thermoplastic UHP Hose Fittings, 5X Series

Parker High Pressure 5X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for hydraulic hose types with working pressure from 140 up to 250 MPa.





Parker Polyflex High Pressure 5X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.



Crimped Thermoplastic UHP Hose Fittings, 5X Series



Markets:
- Industrial
- Oil & Gas
- Construction machinery
- Marine

Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.

Applications:
- High and Ultra High pressure cleaning and jetting
- Media transfer (petroleum, synthetic hydraulic fluids, gas and chemical fluids)
- Especially suitable for hydraulic pre-tensioning equibment, test rigs, as well as in offshore oil applications
- Suitable for hydraulic hose types with working pressure from 140 up to 250 MPa (20.300 up to 36.250 psi)



Technical Specifications

Nominal Hose Inside Diameter: 5, 12, 20 mm
Hose I.D. (size): -3, -8, -12
Hose Inside Diameter: 3/16, 1/2, 3/4 inch
Connection Thread Size: 14x1.5, 24x1.5, 36x2, 52 x 2 mm
Connection Type: BSP, UNF, Metric, UNF-LH, LH , NPT, Acme , UNF - LH, UNF - 2B
Length: 3,1, 2,6, 3,2, 2,5, 3,4, 3,6, 3,8, 4,2, 9,1, 9,6, 9,8, 4,3, 5,6, 15,6, 10,9, 11,5, 15,9, 10,7, 6,4, 6,9, 5,5, 4 inch
Maximum Operating Pressure: 36250, 26100, 20300, 20000, 10000, 15000, 5000 psi
Shape: Straight
Product Style: BSP female swivel (60° cone), Type ?M? female swivel, Metric female swivel light series, Metric female swivel heavy series with O-ring, High pressure tube nipple UNF ? LH thread, Medium pressure tube nipple, NPT Male fitting, API flange, swivel, Type ?M?
Materials of Construction: Nipple: very high strength carbon steel, zinc plated
Shell and nut: high strength carbon steel, zinc plated, Special materials, Nipple: very high strength stainless steel
Shell: stainless steel, Stainless Steel



Crimped Thermoplastic UHP Hose Fittings, 5X Series 型号

Part Maximum Working Pressure (MPa) Hose I.D. (mm) Fitting Type Connection Thread Size (inch) Length (mm)
1925X-4-03 250 4.8 92 1/4 78
1AY5X-11-08 180 12.7 AY 1 - 12 80
1AY5X-11-08C-M-Subsea* 103 NA AY 1 - 12 102.2
1AY5X-16-12 140 19 AY 1 5/16 - 12 82
1AY5X-6-03 250 4.8 AY 9/16 - 18 66
1C35X-8-03 250 4.8 C3 NA 64
1C95X-16-08 180 12.7 C9 NA 87
1C95X-25-12 140 19 C9 NA 92
1C95X-38-24COSK-TC 103.5 NA C9 NA 143
1HE5X-48-48-FLAT 103.5 NA HE 5 3/8 - 3 1/2 395
1HN5X-48-48 103.5 NA HN 5 3/8 - 3 1/2 405
1Y25X-9-08C-M-Subsea* 103.5 NA Y2 9/16 - 18 162.2
1YA5X-1-03 250 4.8 YA 1/4 - 28 92
1YA5X-3-03 250 4.8 YA 3/8 - 24 97
68K5X-29-32-API17DSV* 69 NA 8K NA 250
6HN5X-32-32-602TC 34.5 NA HN 3 13/16 - 3 245.1
6Y25X-16-12C 138 NA Y2 1 - 14 139
