6,000 PSI Distribution Manifold - H Series

派克 6,000 PSI 分配歧管 - H 系列分配歧管阀单元 | #HCDMS53STRATNC

派克的 H 系列分配歧管阀单元提供 5 或 10 金属阀座针阀选择，带有 PTFE 压盖填料、“H”系列头组件，易于操作和可靠的气密关闭。派克H 系列分配歧管阀提供紧凑的歧管主体，可接受用户定义的 5 个或 10 个金属密封针阀 - 额定压力高达 6000 PSI (414 Bar)。用户还可以指定多种构建选项，包括添加连接到入口的单个隔离阀。作为标准，将提供 2 个连接（普通尺寸的每一端一个）。其中一个将被用户用作入口，另一个可以关闭或安装阀门以方便清洗。如果需要净化阀，则应在询价阶段明确说明型号。Parker 可以将单个隔离阀连接到入口，作为主隔离阀，允许用户将所有出口阀与供应点完全隔离。这样的要求必须在查询阶段说明，阀门类型应明确规定。这些额外的阀门要求将在报价阶段纳入零件编号。

Parker 6,000 PSI Distribution Manifold - H Series

市场：
- 海上
石油和天然气
- 陆上石油和天然气- 石化
- 化学

特性/优点：
- 带有保留操作键的球形针阀金属/金属阀座
- 5 或 10 个阀门（5 和 10 之间将作为 10 路供应 -冗余出口可由用户堵塞）

应用：
- 低压仪表空气或工厂空气的分配和控制
- 高压仪表或液压管路

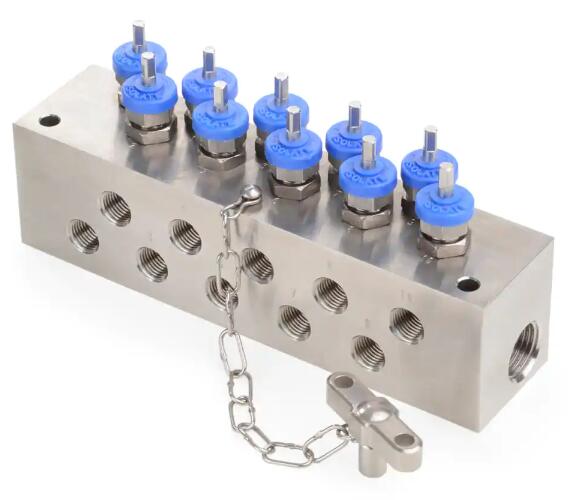

Parker H-Series distribution manifold unit offers choice of 5 or 10 metal seated needle valves with PTFE gland packing, ‘H' series head assemblies for easy operation and positive bubble tight shut off. H Series Distribution manifold valve provides a compact manifold body that accepts a user-defined choice of five or 10 metal-seated needle valves - rated for pressures up to 6000 PSI (414 Bar). Users can also specify numerous build options including the addition of a single isolate valve connected to the inlet. As standard, 2 connections (one at each end of common size) will be provided. One of these will be utilised by the user as an inlet, the other can be either blanked off or fitted with a valve to facilitate purging. Should a purge valve be required then the style should be clearly stated at enquiry stage. Parker can connect a single isolate valve to the inlet to act as a primary isolate valve allowing the user to totally isolate all the outlet valves from the supply point. Such a requirement must be stated at enquiry stage, the valve style should be clearly specified. These additional valve requirements will be structured into the part number at quotation stage.

Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical

Features/Benefits:
- Globe style needle valve metal/metal seat with retained operating key
- 5 or 10 valves (between 5 & 10 will be supplied as 10 way - redundant outlets can be plugged by user)

Applications:
- Distribution and control of low pressure instrument air or plant air
- High pressure instrument or hydraulic lines

Technical Specifications

6,000 PSI Distribution Manifold - H Series 型号
