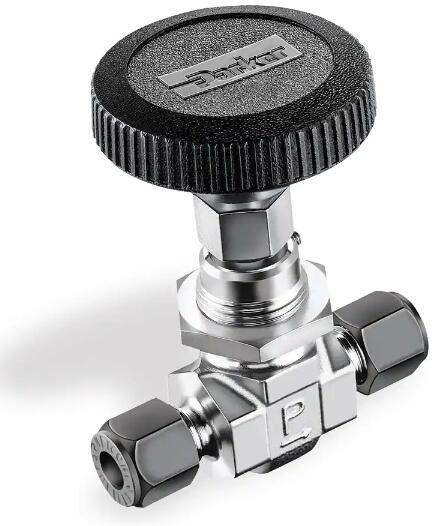

Parker NP6 needle valves Parker 针阀 - Parker Needle Valves
派克Needle Valve,Screwed Bonnet 6000 PSI - NP6 Series

针阀，螺纹阀盖 6000 PSI - NP6 系列 | #6A-NP6LR-SSP

Parker NP6 针阀设计在阀杆螺纹下方带有填料和两件式阀杆，适用于压力高达 6,000 PSI (414 BAR) 的关键应用。Parker 的 NP6 针阀是严苛工况的针阀。它们的设计在阀杆螺纹下方带有填料和两件式阀杆，适用于压力高达 6,000 PSI (414 BAR) 的关键系统。螺纹下方的填料可保护流体免受螺纹润滑剂污染或冲刷，并保护阀杆螺纹免受介质的潜在损坏影响。两件式阀杆产生一个不旋转的下阀杆，可实现卓越的、可重复的密封并减少填料磨损。

Parker Needle Valve,Screwed Bonnet 6000 PSI - NP6 Series

市场：
- 化工
- 石化
- 石油和天然气
- 动力

特性/优点：
- 动力螺纹下方的填料可保护螺纹润滑剂免受介质的影响，并将介质与润滑剂隔离，适用于严苛的服务应用
- 阀盖中的 O 形环防尘密封可保护阀杆螺纹免受外部污染
- 可选择两种非旋转阀杆类型：R-阀杆 – 全金属、钝阀杆尖端，K-阀杆 – PCTFE 阀杆尖端
- 非旋转下阀杆延长填料和阀门寿命
- 316 不锈钢结构
- 内嵌和角型
- 多种美国惯用和 SI 端口
- 面板安装
- 100% 工厂测试
- 可选颜色编码手柄

应用：
- 溶剂系统
- 关键关闭 – 关闭系统

Parker NP6 needle valves are designed with packing below the stem threads and a two-piece stem for critical applications up to 6,000 PSI (414 BAR). Parker's NP6 Needle Valves are severe service, needle valves. They are designed with the packing below the stem threads and a two-piece stem for critical systems up to 6,000 PSI (414 BAR). The packing below the threads protects the flow stream from thread lubricant contamination or washout and also protects the stem threads from potential damaging effects of the media. The two-piece stem produces a non-rotating lower stem for superior, repeatable sealing and reduced packing wear.


Markets:
- Chemical
- Petrochemical
- Oil and Gas
- Power

Features/Benefits:
- Packing below power threads protects thread lubricants from media and isolates the media from the lubricant for severe service applications
- O-ring dust seal in bonnet protects stem threads from external contamination
- Choice of two non-rotating stem types: R-Stem – All metal, blunt stem tip, K-Stem – PCTFE stem tip
- Non rotating lower stem extends packing and valve life
- 316 stainless steel construction
- Inline and angle patterns
- Wide variety of US Customary and SI ports
- Panel mountable
- 100% factory tested
- Optional color coded handles

Applications:
- Solvent Systems
- Critical Shut – Off Systems

Technical Specifications

Needle Valve,Screwed Bonnet 6000 PSI - NP6 Series 型号
