Parker SN6 Series needle valves Parker 针阀 - Parker Needle Valves
Needle Valve,Integral Bonnet 6000 PSI - SN6 Series

针阀，整体式阀帽 6000 PSI - SN6 系列 | #4M4F-SN6LR-SS

派克的 SN6 系列针阀是紧凑的一体式阀盖阀，用于关闭和粗调压力高达 6,000 PSI (414 BAR) 的液体和气体。派克的 SN6 系列针阀提供高达 6,000 PSI (414 BAR) 的液体和气体的关闭和粗调。这些紧凑、坚固的阀门由 316 不锈钢棒料制成，是整体阀盖设计，阀杆螺纹上方有填料。SN6 阀门使安装人员能够将该阀门放置在 350?F 的环境中，使用 PTFE 或高达 700?F 的关键环境使用 Grafoil? 填料，同时仍然采用相同的小而紧凑的设计。其他类似的阀门不提供这种应用灵活性。

派克PARKER Needle Valve,Integral Bonnet 6000 PSI - SN6 Series

市场：
- 石化
- 化工
- 一般工业
- 动力

特性/优点：

- 整体式阀盖设计
- 316 不锈钢结构
- 两种阀杆类型的选择：
R-Stem – 全金属、钝阀杆尖端
K-Stem – PCTFE 阀杆尖端
- 可选择 PTFE 或 Grafoil? 填料
- 内嵌和角型
- 100% 工厂测试

应用：
- 样品气瓶
- 控制面板

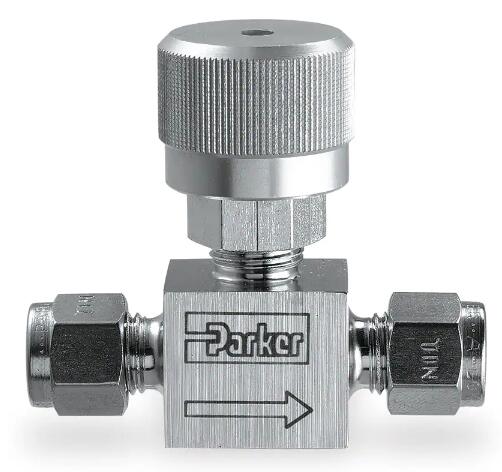

Parker SN6 Series needle valves are compact, integral bonnet valves for shut-off and coarse regulation of liquids and gases up to 6,000 PSI (414 BAR). Parker's SN6 Series Needle Valves provide shut-off and coarse regulation of liquids and gases up to 6,000 PSI (414 BAR). These compact, rugged valves are manufactured from 316 stainless steel bar stock and are integral bonnet designs with packing above the stem threads. The SN6 valve offers the installer the ability to place this valve in environments from 350?F with PTFE or up to critical environments up to 700?F with Grafoil packing while still in the same small, compact design. Other similar valves do not offer that application flexibility.


Markets:
- Petrochemical
- Chemical
- General Industry
- Power


Features/Benefits:

- Integral bonnet design
- 316 stainless steel construction
- Choice of two stem types:
R-Stem – All metal, blunt stem tip
K-Stem – PCTFE stem tip
- Choice of PTFE or Grafoil packing
- Inline and angle patterns
- 100% factory tested


Applications:
- Sample Cylinders
- Control Panels

Technical Specifications

Needle Valve,Integral Bonnet 6000 PSI - SN6 Series 型号
