Parker U Series Union Bonnet valves Parker 针阀 - Parker Needle Valves

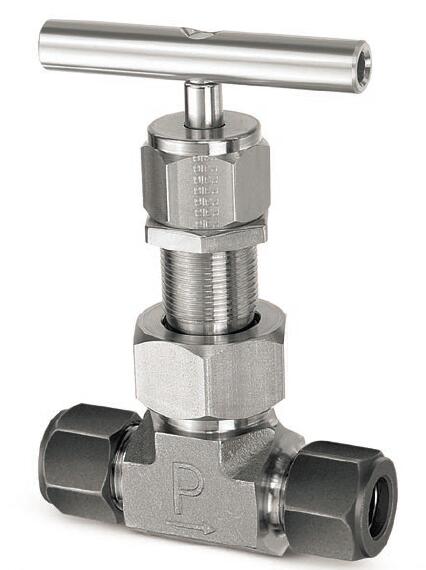

Needle Valve,Union Bonnet 6,000 PSI - U Series
针阀，联合阀帽 6,000 PSI - U 系列 | #6A-U12LR-G-SS-HT

派克的联合阀帽针阀 U 系列设计用于高压和高温仪表和工业应用。这些严苛工况针阀在螺纹下方有填料以保护阀杆.派克的 U 系列联合阀盖阀设计用于压力高达 6,000 (414 bar) 和温度高达 1,200°F (649°C)。重型设计具有不旋转的下部阀杆，通过消除阀杆在填料区域的旋转，有助于延长填料寿命。螺纹下方的阀杆填料将螺纹润滑剂与流体隔离开来，无论介质如何，都能确保充分润滑。

派克PARKER Needle Valve,Union Bonnet 6,000 PSI - U Series

市场：
- 电力
- 核电站
- 石油和天然气
- 化学/石化
特性/优点：
- 联合阀盖设计确保在严苛的服务应用下具有高完整性密封
- 动力螺纹下方的填料可保护螺纹润滑剂免受介质的影响，并将润滑剂与流体隔离媒体
- 填料螺母中的防尘密封可保护阀杆螺纹免受外部污染
- 阀杆在填料上方的旋转消除了滞留区域并延长了填料寿命
- 可选择 Grafoil? 或 PTFE 填料
- 可选择调节阀杆或钝阀杆类型。钝阀杆类型有助于防止出现两相流（即蒸汽服务）时可能发生的拉丝
- 316 不锈钢结构
- 各种美国习惯和 SI 端口
- 面板安装
- 100% 工厂测试

应用：
- 蒸汽排污服务
- 过程控制线
- 高温采样线

Parker union bonnet needle valves, U Series have been engineered for use in high pressure and high temperature instrumentation and industrial applications. These severe service needle valves have packing below the threads to protect the valve stem. Parker U Series Union Bonnet valves are engineered for use at pressures up to 6,000 (414 bar) and temperatures as high as 1,200°F (649°C). The heavy duty design has a non-rotating lower stem that helps to extend packing life by removing stem rotation through the packing area. Stem packing below the threads isolates the thread lubricant from the flow, ensuring adequate lubrication regardless of the media.

Markets:
- Power
- Nuclear Plants
- Oil and Gas
- Chemical / Petro-Chemical
Features/Benefits:
- Union bonnet design ensures high integrity seal under severe service applications
- Packing below the power threads protects thread lubricants from media and isolates the lubricants from the media
- Dust seal in the packing nut protects stem threads from external contamination
- Stem swivel above the packing eliminates entrapment area and increases packing life
- Choice of Grafoil or PTFE packing
- Choice of Regulating or Blunt stem types. Blunt stem type helps combat wire draw which may occur when two phase flow is present (i.e. steam service)
- 316 stainless steel construction
- Wide variety of US Customary and SI ports
- Panel mountable
- 100% factory tested

Applications:
- Steam Blow Down Service
- Process Control Lines
- High Temperature Sampling Lines

Technical Specifications

Needle Valve,Union Bonnet 6,000 PSI - U Series 型号
