Parker Fittings A-LOK Series双卡套接头
Compression Fittings

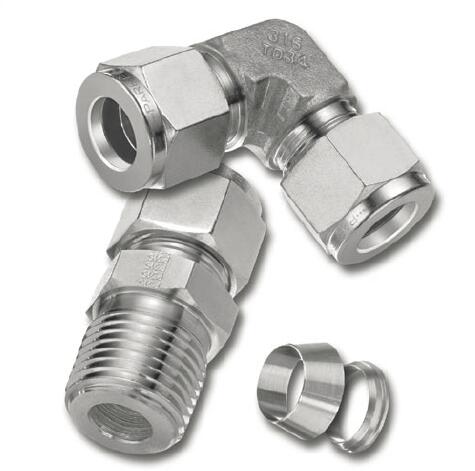

Tube Fitting ,Two Ferrule Compression Fitting - A-LOK Series双卡套接头

派克A-LOK双卡套接头为过程仪表控制和工业应用等提供无泄漏的可靠连接。多种材质可选。派克的A-LOK双卡套接头系列产品能够为仪器仪表，过程控制和分析行业等提供可靠的无泄漏密封连接。接头严格按照zui高质量标准制造，多种尺寸、耐腐蚀材料和结构可选。根据行业标准，派克的A-LOK管接头采用316不锈钢制造，其它材质如：6Mo合金，825合金，625合金和C-276合金可选。直通接头用冷加工工艺制造，而其他特殊形状管件通过细晶粒锻造工艺制成。

Tube Fitting ,Two Ferrule Compression Fitting - A-LOK Series

Parker's two ferrule compression fittings, A-LOK Tube Fittings are designed for leak-free connections in process instrumentation and industrial applications. Available in a wide range of materials. Parker's A-LOK two ferrule compression tube fittings are designed to provide reliable leak-free connections for instrumentation, process and control, and analyzer applications that specify a two ferrule system. Manufactured to the highest quality standards, these tube fittings are available in a broad range of sizes, corrosion resistant materials and configurations.

As standard, Parker's A-LOK tube fitting are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276. Straight fittings are machined from cold finished bar stock, while shaped bodies are machined from close grain forgings. The fittings are available for imperial pipe sizes from 1/16” through to 2” O.D., and for metric sizes from 2 mm through to 25 mm O.D.


A-LOK 市场：

- 半导体/微电子
- 化工
- 石油化工
- 运输
- 电力
- 核能
- 石油和天然气
- 研究实验室

功能/优点：

- 多种多样的配置样式；
管对公管管
对母管管
对管接头
端口接头
37?喇叭形（AN）至A-LOK
管对O型圈密封
管对焊接 系统分析
配件
带刺配件
- 多种耐腐蚀合金可选
- EC79批准用于氢气服务
- 派克Suparcase?表面处理工艺可实现出色的材料硬化
- 硬化的密封垫圈提供无泄漏的连接
- 镀银螺母可在化妆时提供抗胆性

应用范围：

- 仪表连接系统
- 分析装置
- 天然气/液化天然气管线
- 氢气服务
- 海上控制面板
- 传感管线

Markets:
- Semiconductor/Microelectronics
- Chemical
- Petro-Chemical
- Power
- Nuclear
- Oil and Gas
- Research Labs

Features/Benefits:
- Exceptionally wide choice of configuration styles;
Tube to male pipe
Tube to female pipe
Tube to tube unions
Port connectors
37? flare (AN) to A-LOK
Tube to O-ring seal
Tube to welded systems
Analytical fittings
Barbed fittings
- Parker Suparcase? surface treatment process for superior material hardening
- Hardened ferrules provide leak free connections
- Silver plated nuts provide gall resistance during makeup

Applications:
- Steam Service Lines
- Offshore Control Panels
- Sensing Lines

Technical Specifications

Tube Fitting ,Two Ferrule Compression Fitting -
A-LOK Series型号

Part Tube Size Shape Connection 1 Size Connection 2 Size Connection 3 Thread Size (inch) Material Style
10EE10-316 5/8" Union Elbow 5/8" 5/8" N/A 316 Stainless Steel Tube to Tube Unions
10ET10-316 5/8" Union Tee 5/8" 5/8" 5/8" 316 Stainless Steel Tube to Tube Unions
10FBT8N-316 5/8" NPT Female Branch Tee 5/8" 5/8" 1/2" 316 Stainless Steel Tube to Female Pipe
10FSC8N-316 5/8 NPT Male Connector 316 Stainless Steel Tube to Male Pipe
10MSC12N-316 5/8" NPT Male Connector 5/8" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
10MSC8N-316 5/8" NPT Male Connector 5/8" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
10MSC8N-B 5/8" NPT Male Connector 5/8" 1/2" N/A Brass Tube to Male Pipe
10MSEL8N-316
10MSEL8N-B 5/8" NPT Male Elbow 5/8" 1/2" N/A Brass Tube to Male Pipe
10NU10-B 5/8" Tube Nut 5/8" N/A N/A Brass Components
10SC10-316 5/8" Union 5/8" 5/8" N/A 316 Stainless Steel Tube to Tube Unions
12-12-6 JLZ-SS 3/4" Drop Size Tee 3/4" 3/4" 3/8" 316 Stainless Steel Tube to Tube Unions
12-12-8 JLZ-SS 3/4" Drop Size Tee 3/4" 3/4" 1/2" 316 Stainless Steel Tube to Tube Unions
12BC12-316 3/4" Bulkhead Union 3/4" 3/4" N/A 316 Stainless Steel Tube to Tube Unions
12BLEN12-316 3/4" Cap 3/4" N/A N/A 316 Stainless Steel Components
12BLP12-316
12ECR12-316 3/4" Union Cross 3/4" N/A N/A 316 Stainless Steel Tube to Tube Unions
12EE12-316 3/4" Union Elbow 3/4" 3/4" N/A 316 Stainless Steel Tube to Tube Unions
12EE12-625 3/4" Union Elbow 3/4" 3/4" N/A Alloy 625 Tube to Tube Unions
12EE12-6MO 3/4" Union Elbow 3/4" 3/4" N/A 6Mo Tube to Tube Unions
12EE12-6MO-NSK
12EE12-825 3/4" Union Elbow 3/4" 3/4" N/A Alloy 825 Tube to Tube Unions
12EE12-NNR
12ET12-316 3/4" Union Tee 3/4" 3/4" 3/4" 316 Stainless Steel Tube to Tube Unions
12ET12-625 3/4" Union Tee 3/4" 3/4" 3/4" Alloy 625 Tube to Tube Unions
12ET12-6MO 3/4" Union Tee 3/4" 3/4" 3/4" 6Mo Tube to Tube Unions
12ET12-6MO-NSK
12ET12-825 3/4" Union Tee 3/4" 3/4" 3/4" Alloy 825 Tube to Tube Unions
12ET12-NNR
12FBT12N-316 3/4" NPT Female Branch Tee 3/4" 3/4" 3/4" 316 Stainless Steel Tube to Female Pipe
12FEL12N-316 3/4" NPT Female Elbow 3/4" 3/4" N/A 316 Stainless Steel Tube to Female Pipe
12FEL8N-316 3/4" NPT Female Elbow 3/4" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
12FSC12N-316 3/4" Gauge Connector 3/4" 3/4" N/A 316 Stainless Steel Tube to Female Pipe
12FSC8N-316 3/4" Gauge Connector 3/4" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
12M5SEL12-316 3/4" SAE Straight Thread Elbow 3/4" 3/4" N/A 316 Stainless Steel Tube to O-Ring Seal
12MA12N-316 3/4" NPT Tube End Male Adapter 3/4" 3/4" N/A 316 Stainless Steel Port Connectors
12MRT12N-316 3/4" NPT Male Run Tee 3/4" 3/4" 3/4" 316 Stainless Steel Tube to Male Pipe
12MSC12N-316 3/4" NPT Male Connector 3/4" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
12MSC12N-625 3/4" NPT Male Connector 3/4" 3/4" N/A Alloy 625 Tube to Male Pipe
12MSC12N-6MO 3/4" NPT Male Connector 3/4" 3/4" N/A 6Mo Tube to Male Pipe
12MSC12N-6MO-NSK
12MSC12N-825 3/4" NPT Male Connector 3/4" 3/4" N/A Alloy 825 Tube to Male Pipe
12MSC12N-NNR
12MSC16N-316 3/4" NPT Male Connector 3/4" 1" N/A 316 Stainless Steel Tube to Male Pipe
12MSC8N-316
12MSEL12N-316 3/4" NPT Male Elbow 3/4" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
12MSEL8N-316 3/4" NPT Male Elbow 3/4" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
12NU12-316 3/4" Tube Nut 3/4" N/A N/A 316 Stainless Steel Components
12PC12-316 3/4" Port Connector 3/4" 3/4" N/A 316 Stainless Steel Port Connectors
12RU8-316 3/4" Reducing Union 3/4" 1/2" N/A 316 Stainless Steel Tube to Tube Unions
12SC12-316 3/4" Union 3/4" 3/4" N/A 316 Stainless Steel Tube to Tube Unions
12SC12-625 3/4" Union 3/4" 3/4" N/A Alloy 625 Tube to Tube Unions
12SC12-6MO 3/4" Union 3/4" 3/4" N/A 6Mo Tube to Tube Unions
12SC12-6MO-NSK
12SC12-825 3/4" Union 3/4" 3/4" N/A Alloy 825 Tube to Tube Unions
12SC12-NNR
12TUR8-316 3/4" Tube End Reducer 3/4" 1/2" N/A 316 Stainless Steel Port Connectors
12XASC12-316 3/4" 37 Flare to Compression 3/4" 3/4" N/A 316 Stainless Steel 37° Flare (AN) to A-LOK?
16-1 ZHLW2-6MO 1" Socket Weld Connector 1" 1" N/A 6Mo Tube to Welded Systems
16-1 ZHLW2-6MO-NSK
16BC16-316 1" Bulkhead Union 1" 1" N/A 316 Stainless Steel Tube to Tube Unions
16BLEN16-316 1" Cap 1" N/A N/A 316 Stainless Steel Components
16EE16-316 1" Union Elbow 1" 1" N/A 316 Stainless Steel Tube to Tube Unions
16EE16-625 1" Union Elbow 1" 1" N/A Alloy 625 Tube to Tube Unions
16EE16-6MO 1" Union Elbow 1" 1" N/A 6Mo Tube to Tube Unions
16EE16-6MO-NSK
16EE16-825 1" Union Elbow 1" 1" N/A Alloy 825 Tube to Tube Unions
16EE16-NNR
16ET16-316 1" Union Tee 1" 1" 1" 316 Stainless Steel Tube to Tube Unions
16ET16-625 1" Union Tee 1" 1" 1" Alloy 625 Tube to Tube Unions
16ET16-6MO 1" Union Tee 1" 1" 1" 6Mo Tube to Tube Unions
16ET16-6MO-NSK
16ET16-825 1" Union Tee 1" 1" 1" Alloy 825 Tube to Tube Unions
16ET16-NNR
16ET16-S 1" Union Tee 1" 1" 1" Steel Tube to Tube Unions
16FSC16N-316 1" NPT Female Connector 1" 1" N/A 316 Stainless Steel Tube to Female Pipe
16FSC16N-625 1" NPT Female Connector 1" 1" N/A Alloy 625 Tube to Female Pipe
16FSC16N-6MO 1" NPT Female Connector 1" 1" N/A 6Mo Tube to Female Pipe
16FSC16N-6MO-NSK
16FSC16N-825 1" NPT Female Connector 1" 1" N/A Alloy 825 Tube to Female Pipe
16FSC16N-NNR
16M1SC16-316 1" Tube Connector to SAE 1" 1" N/A 316 Stainless Steel Port Connectors
16MA16N-316 1" NPT Tube End Male Adapter 1" 1" N/A 316 Stainless Steel Port Connectors
16MSC12N-316 1" NPT Male Connector 1" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
16MSC16N-316 1" NPT Male Connector 1" 1" N/A 316 Stainless Steel Tube to Male Pipe
16MSC16N-625 1" NPT Male Connector 1" 1" N/A Alloy 625 Tube to Male Pipe
16MSC16N-6MO 1" NPT Male Connector 1" 1" N/A 6Mo Tube to Male Pipe
16MSC16N-6MO-NSK
16MSC16N-825 1" NPT Male Connector 1" 1" N/A Alloy 825 Tube to Male Pipe
16MSC16N-NNR
16MSC16N-S 1" NPT Male Connector 1" 1" N/A Steel Tube to Male Pipe
16MSEL16N-316 1" NPT Male Elbow 1" 1" N/A 316 Stainless Steel Tube to Male Pipe
16MSEL16N-625 1" NPT Male Elbow 1" 1" N/A Alloy 625 Tube to Male Pipe
16MSEL16N-6MO 1" NPT Male Elbow 1" 1" N/A 6Mo Tube to Male Pipe
16MSEL16N-6MO-NSK
16MSEL16N-825 1" NPT Male Elbow 1" 1" N/A Alloy 825 Tube to Male Pipe
16MSEL16N-NNR
16NU16-316 1" Tube Nut 1" N/A N/A 316 Stainless Steel Components
16RU12-316 1" Reducing Union 1" 3/4" N/A 316 Stainless Steel Tube to Tube Unions
16RU8-316 1" Reducing Union 1" 1/2" N/A 316 Stainless Steel Tube to Tube Unions
16SC16-316 1" Union 1" 1" N/A 316 Stainless Steel Tube to Tube Unions
16SC16-625 1" Union 1" 1" N/A Alloy 625 Tube to Tube Unions
16SC16-6MO 1" Union 1" 1" N/A 6Mo Tube to Tube Unions
16SC16-6MO-NSK
16SC16-825 1" Union 1" 1" N/A Alloy 825 Tube to Tube Unions
16SC16-NNR
16XASC16-316 1" 37 Flare to Compression 1" 1" N/A 316 Stainless Steel 37° Flare (AN) to A-LOK?
1BF1-316 1/16" Back Ferrule 1/16" N/A N/A 316 Stainless Steel Components
1FF1-316 1/16" Front Ferrule 1/16" N/A N/A 316 Stainless Steel Components
1MSC1N-316 1/16" NPT Male Connector 1/16" 1/16" N/A 316 Stainless Steel Tube to Male Pipe
1MSC2N-316 1/16" NPT Male Connector 1/16" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
1SC1-316 1/16" Union 1/16" 1/16" N/A 316 Stainless Steel Tube to Tube Unions
2BC2-316 1/8" Bulkhead Union 1/8" 1/8" N/A 316 Stainless Steel Tube to Tube Unions
2BF2-316 1/8" Back Ferrule 1/8" N/A N/A 316 Stainless Steel Components
2BLP2-316
2ECR2-316 1/8" Union Cross 1/8" N/A N/A 316 Stainless Steel Tube to Tube Unions
2ET2-316
2FF2-316 1/8" Front Ferrule 1/8" N/A N/A 316 Stainless Steel Components
2FSC4N-316 1/8" Gauge Connector 1/8" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
2MSC1N-316 1/8" NPT Male Connector 1/8" 1/16" N/A 316 Stainless Steel Tube to Male Pipe
2MSC2N-316 1/8" NPT Male Connector 1/8" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
2MSC2N-B 1/8" NPT Male Connector 1/8" 1/8" N/A Brass Tube to Male Pipe
2MSC4N-316 1/8" NPT Male Connector 1/8" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
2MSEL2N-316 1/8" NPT Male Elbow 1/8" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
2MSEL4N-316
2MTC2N-316 1/8" Thermocouple Connector 1/8" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
2MTC4N-316 1/8" Thermocouple Connector 1/8" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
2NU2-316 1/8" Tube Nut 1/8" N/A N/A 316 Stainless Steel Components
2RU1-316 1/8" Reducing Union 1/8" 1/16" N/A 316 Stainless Steel Tube to Tube Unions
2SC2-316 1/8" Union 1/8" 1/8" N/A 316 Stainless Steel Tube to Tube Unions
2TUR1-316 1/8" Tube End Reducer 1/8" 1/16" N/A 316 Stainless Steel Port Connectors
2TUR4-316 1/8" Tube End Reducer 1/8" 1/4" N/A 316 Stainless Steel Port Connectors
2XASC2-316 1/8" 37 Flare to Compression 1/8" 1/8" N/A 316 Stainless Steel 37° Flare (AN) to A-LOK?
3MSC2N-316
4BC4-316 1/4" Bulkhead Union 1/4" 1/4" N/A 316 Stainless Steel Tube to Tube Unions
4BC4-B 1/4" Bulkhead Union 1/4" 1/4" N/A Brass Tube to Tube Unions
4BF4-316 1/4" Back Ferrule 1/4" N/A N/A 316 Stainless Steel Components
4BLEN4-316 1/4" Cap 1/4" N/A N/A 316 Stainless Steel Components
4BLP4-316
4ECR4-316
4EE4-316 1/4" Union Elbow 1/4" 1/4" N/A 316 Stainless Steel Tube to Tube Unions
4EE4-625 1/4" Union Elbow 1/4" 1/4" N/A Alloy 625 Tube to Tube Unions
4EE4-6MO 1/4" Union Elbow 1/4" 1/4" N/A 6Mo Tube to Tube Unions
4EE4-6MO-NSK
4EE4-825 1/4" Union Elbow 1/4" 1/4" N/A Alloy 825 Tube to Tube Unions
4EE4-B 1/4" Union Elbow 1/4" 1/4" N/A Brass Tube to Tube Unions
4EE4-NNR
4ET4-316 1/4" Union Tee 1/4" 1/4" 1/4" 316 Stainless Steel Tube to Tube Unions
4ET4-625 1/4" Union Tee 1/4" 1/4" 1/4" Alloy 625 Tube to Tube Unions
4ET4-6MO 1/4" Union Tee 1/4" 1/4" 1/4" 6Mo Tube to Tube Unions
4ET4-6MO-NSK
4ET4-825 1/4" Union Tee 1/4" 1/4" 1/4" Alloy 825 Tube to Tube Unions
4ET4-B 1/4" Union Tee 1/4" 1/4" 1/4" Brass Tube to Tube Unions
4ET4-NNR
4FA4N-316 1/4" NPT Tube End Female Adapter 1/4" 1/4" N/A 316 Stainless Steel Port Connectors
4FBC4N-316 1/4" Female Bulkhead Connector 1/4" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
4FBT4N-316 1/4" NPT Female Branch Tee 1/4" 1/4" 1/4" 316 Stainless Steel Tube to Female Pipe
4FEL2N-316 1/4" NPT Female Elbow 1/4" 1/8" N/A 316 Stainless Steel Tube to Female Pipe
4FEL2N-B 1/4" NPT Female Elbow 1/4" 1/8" N/A Brass Tube to Female Pipe
4FEL4N-316 1/4" NPT Female Elbow 1/4" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
4FEL8N-316 1/4" NPT Female Elbow 1/4" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
4FF4-316 1/4" Front Ferrule 1/4" N/A N/A 316 Stainless Steel Components
4FF4-B 1/4" Front Ferrule 1/4" N/A N/A Brass Components
4FRT4N-316 1/4" NPT Female Run Tee 1/4" 1/4" 1/4" 316 Stainless Steel Tube to Female Pipe
4FSC2N-316 1/4" NPT Female Connector 1/4" 1/8" N/A 316 Stainless Steel Tube to Female Pipe
4FSC4N-316
4FSC6N-316 1/4" NPT Female Connector 1/4" 3/8" N/A 316 Stainless Steel Tube to Female Pipe
4FSC6N-B 1/4" NPT Female Connector 1/4" 3/8" N/A Brass Tube to Female Pipe
4FSC8N-316 1/4" NPT Female Connector 1/4" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
4M1SC4-316 1/4" Tube Connector to SAE 1/4" 1/4" N/A 316 Stainless Steel Port Connectors
4M5SEL4-316 1/4" SAE Straight Thread Elbow 1/4" 1/4" N/A 316 Stainless Steel Tube to O-Ring Seal
4MA2N-316 1/4" NPT Tube End Male Adapter 1/4" 1/8" N/A 316 Stainless Steel Port Connectors
4MA4N-316 1/4" NPT Tube End Male Adapter 1/4" 1/4" N/A 316 Stainless Steel Port Connectors
4MBC2N-316 1/4" Male Bulkhead Connector 1/4" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
4MBC4N-316 1/4" Male Bulkhead Connector 1/4" 1/4" N/A 316 Stainless Steel Tube to Male Pipe

- Parker派克A-LOK 系列双卡套接头
Parker A-LOK Series Two Ferrule Compression Fitting Tube Fitting

4MBT2N-316
4MBT4N-316 1/4" NPT Male Branch Tee 1/4" 1/4" 1/4" 316 Stainless Steel Tube to Male Pipe
4MRT4N-316 1/4" NPT Male Run Tee 1/4" 1/4" 1/4" 316 Stainless Steel Tube to Male Pipe
4MRT4N-625 1/4" NPT Male Run Tee 1/4" 1/4" 1/4" Alloy 625 Tube to Male Pipe
4MRT4N-6MO 1/4" NPT Male Run Tee 1/4" 1/4" 1/4" 6Mo Tube to Male Pipe
4MRT4N-6MO-NSK
4MRT4N-825 1/4" NPT Male Run Tee 1/4" 1/4" 1/4" Alloy 825 Tube to Male Pipe
4MRT4N-NNR
4MSC2N-316 1/4" NPT Male Connector 1/4" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
4MSC2N-B 1/4" NPT Male Connector 1/4" 1/8" N/A Brass Tube to Male Pipe
4MSC4N-316 1/4" NPT Male Connector 1/4" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
4MSC4N-625 1/4" NPT Male Connector 1/4" 1/4" N/A Alloy 625 Tube to Male Pipe
4MSC4N-6MO 1/4" NPT Male Connector 1/4" 1/4" N/A 6Mo Tube to Male Pipe
4MSC4N-6MO-NSK
4MSC4N-825 1/4" NPT Male Connector 1/4" 1/4" N/A Alloy 825 Tube to Male Pipe
4MSC4N-B
4MSC4N-NNR
4MSC6N-316
4MSC6N-B
4MSC8N-316 1/4" NPT Male Connector 1/4" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
4MSC8N-625 1/4" NPT Male Connector 1/4" 1/2" N/A Alloy 625 Tube to Male Pipe
4MSC8N-6MO 1/4" NPT Male Connector 1/4" 1/2" N/A 6Mo Tube to Male Pipe
4MSC8N-6MO-NSK
4MSC8N-825 1/4" NPT Male Connector 1/4" 1/2" N/A Alloy 825 Tube to Male Pipe
4MSC8N-NNR
4MSEL2N-316
4MSEL2N-B 1/4" NPT Male Elbow 1/4" 1/8" N/A Brass Tube to Male Pipe
4MSEL4N-316 1/4" NPT Male Elbow 1/4" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
4MSEL4N-625 1/4" NPT Male Elbow 1/4" 1/4" N/A Alloy 625 Tube to Male Pipe
4MSEL4N-6MO 1/4" NPT Male Elbow 1/4" 1/4" N/A 6Mo Tube to Male Pipe
4MSEL4N-6MO-NSK
4MSEL4N-825 1/4" NPT Male Elbow 1/4" 1/4" N/A Alloy 825 Tube to Male Pipe
4MSEL4N-B 1/4" NPT Male Elbow 1/4" 1/4" N/A Brass Tube to Male Pipe
4MSEL4N-NNR
4MSEL4N-S 1/4" NPT Male Elbow 1/4" 1/4" N/A Steel Tube to Male Pipe
4MSEL6N-316 1/4" NPT Male Elbow 1/4" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
4MSEL8N-316 1/4" NPT Male Elbow 1/4" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
4MTC8N-316 1/4" Thermocouple Connector 1/4" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
4NU4-316 1/4" Tube Nut 1/4" N/A N/A 316 Stainless Steel Components
4PC4-316 1/4" Port Connector 1/4" 1/4" N/A 316 Stainless Steel Port Connectors
4RU2-316 1/4" Reducing Union 1/4" 1/8" N/A 316 Stainless Steel Tube to Tube Unions
4SC4-316 1/4" Union 1/4" 1/4" N/A 316 Stainless Steel Tube to Tube Unions
4SC4-625 1/4" Union 1/4" 1/4" N/A Alloy 625 Tube to Tube Unions
4SC4-6MO-NSK
4SC4-825 1/4" Union 1/4" 1/4" N/A Alloy 825 Tube to Tube Unions
4SC4-B 1/4" Union 1/4" 1/4" N/A Brass Tube to Tube Unions
4SC4-NNR
4TUR2-316 1/4" Tube End Reducer 1/4" 1/8" N/A 316 Stainless Steel Port Connectors
5ET5-B 5/16" Union Tee 5/16" 5/16" 5/16" Brass Tube to Tube Unions
5MSC4N-316
5MSEL4N-316 5/16" NPT Male Elbow 5/16" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
6-6-4 JLZ-SS 3/8" Drop Size Tee 3/8" 3/8" 1/4" 316 Stainless Steel Tube to Tube Unions
6BC6-316 3/8" Bulkhead Union 3/8" 3/8" N/A 316 Stainless Steel Tube to Tube Unions
6BC6-625 3/8" Bulkhead Union 3/8" 3/8" N/A Alloy 625 Tube to Tube Unions
6BC6-6MO 3/8" Bulkhead Union 3/8" 3/8" N/A 6Mo Tube to Tube Unions
6BC6-6MO-NSK
6BC6-825 3/8" Bulkhead Union 3/8" 3/8" N/A Alloy 825 Tube to Tube Unions
6BC6-B 3/8" Bulkhead Union 3/8" 3/8" N/A Brass Tube to Tube Unions
6BC6-NNR
6BF6-316 3/8" Back Ferrule 3/8" N/A N/A 316 Stainless Steel Components
6BLEN6-316 3/8" Cap 3/8" N/A N/A 316 Stainless Steel Components
6BLP6-316
6ECR6-316 3/8" Union Cross 3/8" N/A N/A 316 Stainless Steel Tube to Tube Unions
6EE6-316 3/8" Union Elbow 3/8" 3/8" N/A 316 Stainless Steel Tube to Tube Unions
6EE6-625 3/8" Union Elbow 3/8" 3/8" N/A Alloy 625 Tube to Tube Unions
6EE6-6MO 3/8" Union Elbow 3/8" 3/8" N/A 6Mo Tube to Tube Unions
6EE6-6MO-NSK
6EE6-825 3/8" Union Elbow 3/8" 3/8" N/A Alloy 825 Tube to Tube Unions
6EE6-B 3/8" Union Elbow 3/8" 3/8" N/A Brass Tube to Tube Unions
6EE6-NNR
6ET6-316 3/8" Union Tee 3/8" 3/8" 3/8" 316 Stainless Steel Tube to Tube
6ET6-625 3/8" Union Tee 3/8" 3/8" 3/8" Alloy 625 Tube to Tube
6ET6-6MO 3/8" Union Tee 3/8" 3/8" 3/8" 6Mo Tube to Tube
6ET6-6MO-NSK
6ET6-825 3/8" Union Tee 3/8" 3/8" 3/8" Alloy 825 Tube to Tube
6ET6-B 3/8" Union Tee 3/8" 3/8" 3/8" Brass Tube to Tube Unions
6ET6-NNR
6ET6-S 3/8" Union Tee 3/8" 3/8" 3/8" Steel Tube to Tube Unions
6FBT4N-316 3/8" NPT Female Branch Tee 3/8" 3/8" 1/4" 316 Stainless Steel Tube to Female Pipe
6FEL4N-316 3/8" NPT Female Elbow 3/8" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
6FEL8N-316 3/8" NPT Female Elbow 3/8" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
6FF6-316 3/8" Front Ferrule 3/8" N/A N/A 316 Stainless Steel Components
6FRT4N-316 3/8" NPT Female Run Tee 3/8" 3/8" 1/4" 316 Stainless Steel Tube to Female Pipe
6FSC4N-316
6FSC6N-316
6FSC8N-316 3/8" Gauge Connector 3/8" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
6M1SC6-316 3/8" Tube Connector to SAE 3/8" 3/8" N/A 316 Stainless Steel Port Connectors
6M5SEL6-316 3/8" SAE Straight Thread Elbow 3/8" 3/8" N/A 316 Stainless Steel Tube to O-Ring Seal
6MBT4N-316 3/8" NPT Male Branch Tee 3/8" 3/8" 1/4" 316 Stainless Steel Tube to Male Pipe
6MBT6N-316 3/8" NPT Male Branch Tee 3/8" 3/8" 3/8" 316 Stainless Steel Tube to Male Pipe
6MRT4N-316 3/8" NPT Male Run Tee 3/8" 3/8" 1/4" 316 Stainless Steel Tube to Male Pipe
6MSC12N-316 3/8" NPT Male Connector 3/8" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
6MSC2N-316 3/8" NPT Male Connector 3/8" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
6MSC4N-316 3/8" NPT Male Connector 3/8" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
6MSC4N-625 3/8" NPT Male Connector 3/8" 1/4" N/A Alloy 625 Tube to Male Pipe
6MSC4N-6MO 3/8" NPT Male Connector 3/8" 1/4" N/A 6Mo Tube to Male Pipe
6MSC4N-6MO-NSK
6MSC4N-825 3/8" NPT Male Connector 3/8" 1/4" N/A Alloy 825 Tube to Male Pipe
6MSC4N-B 3/8" NPT Male Connector 3/8" 1/4" N/A Brass Tube to Male Pipe
6MSC4N-NNR
6MSC4N-S 3/8" NPT Male Connector 3/8" 1/4" N/A Steel Tube to Male Pipe
6MSC6N-316 3/8" NPT Male Connector 3/8" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
6MSC6N-625 3/8" NPT Male Connector 3/8" 3/8" N/A Alloy 625 Tube to Male Pipe
6MSC6N-6MO 3/8" NPT Male Connector 3/8" 3/8" N/A 6Mo Tube to Male Pipe
6MSC6N-6MO-NSK
6MSC6N-825 3/8" NPT Male Connector 3/8" 3/8" N/A Alloy 825 Tube to Male Pipe
6MSC6N-B 3/8" NPT Male Connector 3/8" 3/8" N/A Brass Tube to Male Pipe
6MSC6N-NNR 3/8" NPT Male Connector 3/8" 3/8" N/A Alloy C-276 Tube to Male Pipe
6MSC8N-316 3/8" NPT Male Connector 3/8" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
6MSC8N-625 3/8" NPT Male Connector 3/8" 1/2" N/A Alloy 625 Tube to Male Pipe
6MSC8N-6MO 3/8" NPT Male Connector 3/8" 1/2" N/A 6Mo Tube to Male Pipe
6MSC8N-6MO-NSK
6MSC8N-825 3/8" NPT Male Connector 3/8" 1/2" N/A Alloy 825 Tube to Male Pipe
6MSC8N-B 3/8" NPT Male Connector 3/8" 1/2" N/A Brass Tube to Male Pipe
6MSC8N-NNR
6MSEL2N-316 3/8" NPT Male Elbow 3/8" 1/8" N/A 316 Stainless Steel Tube to Male Pipe
6MSEL4N-316 3/8" NPT Male Elbow 3/8" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
6MSEL4N-625 3/8" NPT Male Elbow 3/8" 1/4" N/A Alloy 625 Tube to Male Pipe
6MSEL4N-6MO 3/8" NPT Male Elbow 3/8" 1/4" N/A 6Mo Tube to Male Pipe
6MSEL4N-6MO-NSK
6MSEL4N-825 3/8" NPT Male Elbow 3/8" 1/4" N/A Alloy 825 Tube to Male Pipe
6MSEL4N-B 3/8" NPT Male Elbow 3/8" 1/4" N/A Brass Tube to Male Pipe
6MSEL4N-NNR
6MSEL4N-S 3/8" NPT Male Elbow 3/8" 1/4" N/A Steel Tube to Male Pipe
6MSEL6N-316
6MSEL6N-B 3/8" NPT Male Elbow 3/8" 3/8" N/A Brass Tube to Male Pipe
6MSEL6N-S 3/8" NPT Male Elbow 3/8" 3/8" N/A Steel Tube to Male Pipe
6MSEL8N-316 3/8" NPT Male Elbow 3/8" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
6MSEL8N-625 3/8" NPT Male Elbow 3/8" 1/2" N/A Alloy 625 Tube to Male Pipe
6MSEL8N-6MO 3/8" NPT Male Elbow 3/8" 1/2" N/A 6Mo Tube to Male Pipe
6MSEL8N-6MO-NSK
6MSEL8N-825 3/8" NPT Male Elbow 3/8" 1/2" N/A Alloy 825 Tube to Male Pipe
6MSEL8N-NNR
6MSEL8N-S 3/8" NPT Male Elbow 3/8" 1/2" N/A Steel Tube to Male Pipe
6NU6-316 3/8" Tube Nut 3/8" N/A N/A 316 Stainless Steel Components
6P2TU6-316 3/8" Push Lok to Tube Adapter 3/8" 3/8" N/A 316 Stainless Steel Port Connectors
6PC6-316 3/8" Port Connector 3/8" 3/8" N/A 316 Stainless Steel Port Connectors
6RU4-316 3/8" Reducing Union 3/8" 1/4" N/A 316 Stainless Steel Tube to Tube Unions
6RU5-316 3/8" Reducing Union 3/8" 5/16" N/A 316 Stainless Steel Tube to Tube Unions
6SC6-316 3/8" Union 3/8" 3/8" N/A 316 Stainless Steel Tube to Tube Unions
6SC6-625 3/8" Union 3/8" 3/8" N/A Alloy 625 Tube to Tube Unions
6SC6-6MO 3/8" Union 3/8" 3/8" N/A 6Mo Tube to Tube Unions
6SC6-6MO-NSK
6SC6-825 3/8" Union 3/8" 3/8" N/A Alloy 825 Tube to Tube Unions
6SC6-B
6SC6-NNR
6SC6-S 3/8" Union 3/8" 3/8" N/A Steel Tube to Tube Unions
6TUR4-316 3/8" Tube End Reducer 3/8" 1/4" N/A 316 Stainless Steel Port Connectors
6XASC3/8MP-316 3/8" 37 Flare to Compression 3/8" 3/8" N/A 316 Stainless Steel 37° Flare (AN) to A-LOK?
6XASC3/8MP-625 3/8" 37 Flare to Compression 3/8" 3/8" N/A Alloy 625 37° Flare (AN) to A-LOK?
6XASC3/8MP-6MO 3/8" 37 Flare to Compression 3/8" 3/8" N/A 6Mo 37° Flare (AN) to A-LOK?
6XASC3/8MP-6MO-NSK
6XASC3/8MP-825 3/8" 37 Flare to Compression 3/8" 3/8" N/A Alloy 825 37° Flare (AN) to A-LOK?
6XASC3/8MP-NNR
6XASC6-316 3/8" 37 Flare to Compression 3/8" 3/8" N/A 316 Stainless Steel 37° Flare (AN) to A-LOK?
8 ALOK-316-SET 1/2" Ferrule Set 1/2" N/A N/A 316 Stainless Steel Components
8-8-4 JLZ-SS 1/2" Drop Size Tee 1/2" 1/2" 1/4" 316 Stainless Steel Tube to Tube Unions
8-8-6 JLZ-SS 1/2" Drop Size Tee 1/2" 1/2" 3/8" 316 Stainless Steel Tube to Tube Unions
8BC8-316 1/2" Bulkhead Union 1/2" 1/2" N/A 316 Stainless Steel Tube to Tube Unions
8BC8-625 1/2" Bulkhead Union 1/2" 1/2" N/A Alloy 625 Tube to Tube Unions
8BC8-6MO 1/2" Bulkhead Union 1/2" 1/2" N/A 6Mo Tube to Tube Unions
8BC8-6MO-NSK
8BC8-825 1/2" Bulkhead Union 1/2" 1/2" N/A Alloy 825 Tube to Tube Unions
8BC8-NNR
8BF8-316 1/2" Back Ferrule 1/2" N/A N/A 316 Stainless Steel Components
8BLEN8-316 1/2" Cap 1/2" N/A N/A 316 Stainless Steel Components
8BLEN8-625 1/2" Cap 1/2" N/A N/A Alloy 625 Components
8BLEN8-6MO 1/2" Cap 1/2" N/A N/A 6Mo Components
8BLEN8-6MO-NSK
8BLEN8-6MONC
8BLEN8-825 1/2" Cap 1/2" N/A N/A Alloy 825 Components
8BLEN8-NNR
8BLP8-316 1/2" Plug 1/2" N/A N/A 316 Stainless Steel Components
8BLP8-625 1/2" Plug 1/2" N/A N/A Alloy 625 Components
8BLP8-6MO 1/2" Plug 1/2" N/A N/A 6Mo Components
8BLP8-6MO-NSK
8BLP8-825 1/2" Plug 1/2" N/A N/A Alloy 825 Components
8BLP8-NNR
8ECR8-316
8EE8-316 1/2" Union Elbow 1/2" 1/2" N/A 316 Stainless Steel Tube to Tube Unions
8EE8-625 1/2" Union Elbow 1/2" 1/2" N/A Alloy 625 Tube to Tube Unions
8EE8-6MO 1/2" Union Elbow 1/2" 1/2" N/A 6Mo Tube to Tube Unions
8EE8-6MO-NSK
8EE8-825 1/2" Union Elbow 1/2" 1/2" N/A Alloy 825 Tube to Tube Unions
8EE8-B 1/2" Union Elbow 1/2" 1/2" N/A Brass Tube to Tube Unions
8EE8-NNR
8ET8-316 1/2" Union Tee 1/2" 1/2" 1/2" 316 Stainless Steel Tube to Tube Unions
8ET8-625 1/2" Union Tee 1/2" 1/2" 1/2" Alloy 625 Tube to Tube Unions
8ET8-6MO 1/2" Union Tee 1/2" 1/2" 1/2" 6Mo Tube to Tube Unions
8ET8-6MO-NSK
8ET8-6MONC
8ET8-825 1/2" Union Tee 1/2" 1/2" 1/2" Alloy 825 Tube to Tube Unions
8ET8-B 1/2" Union Tee 1/2" 1/2" 1/2" Brass Tube to Tube Unions
8ET8-NNR
8FA4N-316 1/2" NPT Tube End Female Adapter 1/2" 1/4" N/A 316 Stainless Steel Port Connectors
8FA8N-316
8FBT8N-316 1/2" NPT Female Branch Tee 1/2" 1/2" 1/2" 316 Stainless Steel Tube to Female Pipe
8FEL4N-316 1/2" NPT Female Elbow 1/2" 1/4" N/A 316 Stainless Steel Tube to Female Pipe
8FEL6N-316
8FEL8N-316
8FF8-316 1/2" Front Ferrule 1/2" N/A N/A 316 Stainless Steel Components
8FRT6N-316 1/2" NPT Female Run Tee 1/2" 1/2" 3/8" 316 Stainless Steel Tube to Female Pipe
8FSC12N-316 1/2" Gauge Connector 1/2" 3/4" N/A 316 Stainless Steel Tube to Female Pipe
8FSC4N-316
8FSC6N-316 1/2" Gauge Connector 1/2" 3/8" N/A 316 Stainless Steel Tube to Female Pipe
8FSC8N-316 1/2" NPT Female Connector 1/2" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
8FSC8N-625 1/2" NPT Female Connector 1/2" 1/2" N/A Alloy 625 Tube to Female Pipe
8FSC8N-6MO 1/2" NPT Female Connector 1/2" 1/2" N/A 6Mo Tube to Female Pipe
8FSC8N-6MO-NC
8FSC8N-6MO-NSK
8FSC8N-825 1/2" NPT Female Connector 1/2" 1/2" N/A Alloy 825 Tube to Female Pipe
8FSC8N-NNR
8M1SC8-316 1/2" Tube Connector to SAE 1/2" 1/2" N/A 316 Stainless Steel Port Connectors
8M5SEL8-316 1/2" SAE Straight Thread Elbow 1/2" 1/2" N/A 316 Stainless Steel Tube to O-Ring Seal
8MA4N-316 1/2" NPT Tube End Male Adapter 1/2" 1/4" N/A 316 Stainless Steel Port Connectors
8MA8N-316 1/2" NPT Tube End Male Adapter 1/2" 1/2" N/A 316 Stainless Steel Port Connectors
8MA8N-625 1/2" NPT Tube End Male Adapter 1/2" 1/2" N/A Alloy 625 Port Connectors
8MA8N-6MO 1/2" NPT Tube End Male Adapter 1/2" 1/2" N/A 6Mo Port Connectors
8MA8N-6MO-NSK
8MA8N-825 1/2" NPT Tube End Male Adapter 1/2" 1/2" N/A Alloy 825 Port Connectors
8MA8N-NNR
8MBC8N-316 1/2" Male Bulkhead Connector 1/2" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
8MBT8N-316 1/2" NPT Male Branch Tee 1/2" 1/2" 1/2" 316 Stainless Steel Tube to Male Pipe
8MBT8N-B 1/2" NPT Male Branch Tee 1/2" 1/2" 1/2" Brass Tube to Male Pipe
8MRT8N-316 1/2" NPT Male Run Tee 1/2" 1/2" 1/2" 316 Stainless Steel Tube to Male Pipe
8MRT8N-B 1/2" NPT Male Run Tee 1/2" 1/2" 1/2" Brass Tube to Male Pipe
8MSC12N-316 1/2" NPT Male Connector 1/2" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
8MSC12N-625 1/2" NPT Male Connector 1/2" 3/4" N/A Alloy 625 Tube to Male Pipe
8MSC12N-6MO 1/2" NPT Male Connector 1/2" 3/4" N/A 6Mo Tube to Male Pipe
8MSC12N-6MO-NSK
8MSC12N-825 1/2" NPT Male Connector 1/2" 3/4" N/A Alloy 825 Tube to Male Pipe
8MSC12N-NNR
8MSC16N-316 1/2" NPT Male Connector 1/2" 1" N/A 316 Stainless Steel Tube to Male Pipe
8MSC4N-316 1/2" NPT Male Connector 1/2" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
8MSC4N-625 1/2" NPT Male Connector 1/2" 1/4" N/A Alloy 625 Tube to Male Pipe
8MSC4N-6MO 1/2" NPT Male Connector 1/2" 1/4" N/A 6Mo Tube to Male Pipe
8MSC4N-6MO-NSK
8MSC4N-6MONC
8MSC4N-825 1/2" NPT Male Connector 1/2" 1/4" N/A Alloy 825 Tube to Male Pipe
8MSC4N-B 1/2" NPT Male Connector 1/2" 1/4" N/A Brass Tube to Male Pipe
8MSC4N-NNR
8MSC6N-316 1/2" NPT Male Connector 1/2" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
8MSC6N-B 1/2" NPT Male Connector 1/2" 3/8" N/A Brass Tube to Male Pipe
8MSC6N-S 1/2" NPT Male Connector 1/2" 3/8" N/A Steel Tube to Male Pipe
8MSC8N-316 1/2" NPT Male Connector 1/2" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
8MSC8N-625 1/2" NPT Male Connector 1/2" 1/2" N/A Alloy 625 Tube to Male Pipe
8MSC8N-6MO 1/2" NPT Male Connector 1/2" 1/2" N/A 6Mo Tube to Male Pipe
8MSC8N-6MO-NSK
8MSC8N-6MONC
8MSC8N-825 1/2" NPT Male Connector 1/2" 1/2" N/A Alloy 825 Tube to Male Pipe
8MSC8N-B 1/2" NPT Male Connector 1/2" 1/2" N/A Brass Tube to Male Pipe
8MSC8N-NNR
8MSC8N-S 1/2" NPT Male Connector 1/2" 1/2" N/A Steel Tube to Male Pipe
8MSEL12N-316 1/2" NPT Male Elbow 1/2" 3/4" N/A 316 Stainless Steel Tube to Male Pipe
8MSEL4N-316 1/2" NPT Male Elbow 1/2" 1/4" N/A 316 Stainless Steel Tube to Male Pipe
8MSEL4N-625 1/2" NPT Male Elbow 1/2" 1/4" N/A Alloy 625 Tube to Male Pipe
8MSEL4N-6MO 1/2" NPT Male Elbow 1/2" 1/4" N/A 6Mo Tube to Male Pipe
8MSEL4N-6MO-NSK
8MSEL4N-825 1/2" NPT Male Elbow 1/2" 1/4" N/A Alloy 825 Tube to Male Pipe
8MSEL4N-NNR
8MSEL6N-316 1/2" NPT Male Elbow 1/2" 3/8" N/A 316 Stainless Steel Tube to Male Pipe
8MSEL6N-B 1/2" NPT Male Elbow 1/2" 3/8" N/A Brass Tube to Male Pipe
8MSEL8N-316 1/2" NPT Male Elbow 1/2" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
8MSEL8N-625 1/2" NPT Male Elbow 1/2" 1/2" N/A Alloy 625 Tube to Male Pipe
8MSEL8N-6MO 1/2" NPT Male Elbow 1/2" 1/2" N/A 6Mo Tube to Male Pipe
8MSEL8N-6MO-NSK
8MSEL8N-825 1/2" NPT Male Elbow 1/2" 1/2" N/A Alloy 825 Tube to Male Pipe
8MSEL8N-B 1/2" NPT Male Elbow 1/2" 1/2" N/A Brass Tube to Male Pipe
8MSEL8N-NNR
8MSEL8N-S 1/2" NPT Male Elbow 1/2" 1/2" N/A Steel Tube to Male Pipe
8MTC8N-316 1/2" Thermocouple Connector 1/2" 1/2" N/A 316 Stainless Steel Tube to Male Pipe
8NU8-316 1/2" Tube Nut 1/2" N/A N/A 316 Stainless Steel Components
8NU8-316-BP1000
8PC8-316 1/2" Port Connector 1/2" 1/2" N/A 316 Stainless Steel Port Connectors
8RU4-316 1/2" Reducing Union 1/2" 1/4" N/A 316 Stainless Steel Tube to Tube Unions
8RU6-316 1/2" Reducing Union 1/2" 3/8" N/A 316 Stainless Steel Tube to Tube Unions
8SC8-316 1/2" Union 1/2" 1/2" N/A 316 Stainless Steel Tube to Tube Unions
8SC8-625 1/2" Union 1/2" 1/2" N/A Alloy 625 Tube to Tube Unions
8SC8-6MO 1/2" Union 1/2" 1/2" N/A 6Mo Tube to Tube Unions
8SC8-6MO-NSK
8SC8-6MONC
8SC8-825 1/2" Union 1/2" 1/2" N/A Alloy 825 Tube to Tube Unions
8SC8-B
8SC8-NNR
8TUR4-316 1/2" Tube End Reducer 1/2" 1/4" N/A 316 Stainless Steel Port Connectors
8TUR6-316 1/2" Tube End Reducer 1/2" 3/8" N/A 316 Stainless Steel Port Connectors
8XASC8-316 1/2" 37 Flare to Compression 1/2" 1/2" N/A 316 Stainless Steel 37° Flare (AN) to A-LOK?
BCM10-316 10 mm Bulkhead Union 10 mm 10 mm N/A 316 Stainless Steel Tube to Tube Unions
BCM10-625 10 mm Bulkhead Union 10 mm 10 mm N/A Alloy 625 Tube to Tube Unions
BCM10-6MO 10 mm Bulkhead Union 10 mm 10 mm N/A 6Mo Tube to Tube Unions
BCM10-6MO-NSK
BCM10-825 10 mm Bulkhead Union 10 mm 10 mm N/A Alloy 825 Tube to Tube Unions
BCM10-NNR
BCM12-316 12 mm Bulkhead Union 12 mm 12 mm N/A 316 Stainless Steel Tube to Tube Unions
BCM12-625 12 mm Bulkhead Union 12 mm 12 mm N/A Alloy 625 Tube to Tube Unions
BCM12-6MO 12 mm Bulkhead Union 12 mm 12 mm N/A 6Mo Tube to Tube Unions
BCM12-6MO-NSK
BCM12-825 12 mm Bulkhead Union 12 mm 12 mm N/A Alloy 825 Tube to Tube Unions
BCM12-NNR
BCM6-316 6 mm Bulkhead Union 6 mm 6 mm N/A 316 Stainless Steel Tube to Tube Unions
BCM6-625 6 mm Bulkhead Union 6 mm 6 mm N/A Alloy 625 Tube to Tube Unions
BCM6-6MO 6 mm Bulkhead Union 6 mm 6 mm N/A 6Mo Tube to Tube Unions
BCM6-6MO-NSK
BCM6-825 6 mm Bulkhead Union 6 mm 6 mm N/A Alloy 825 Tube to Tube Unions
BCM6-NNR
EEM10-316 10 mm Union Elbow 10 mm 10 mm N/A 316 Stainless Steel Tube to Tube Unions
EEM10-625 10 mm Union Elbow 10 mm 10 mm N/A Alloy 625 Tube to Tube Unions
EEM10-6MO 10 mm Union Elbow 10 mm 10 mm N/A 6Mo Tube to Tube Unions
EEM10-6MO-NSK
EEM10-825 10 mm Union Elbow 10 mm 10 mm N/A Alloy 825 Tube to Tube Unions
EEM10-NNR
EEM12-316 12 mm Union Elbow 12 mm 12 mm N/A 316 Stainless Steel Tube to Tube Unions
EEM12-625 12 mm Union Elbow 12 mm 12 mm N/A Alloy 625 Tube to Tube Unions
EEM12-6MO 12 mm Union Elbow 12 mm 12 mm N/A 6Mo Tube to Tube Unions
EEM12-6MO-NSK
EEM12-825 12 mm Union Elbow 12 mm 12 mm N/A Alloy 825 Tube to Tube Unions
EEM12-NNR
EEM16-316 16 mm Union Elbow 16 mm 16 mm N/A 316 Stainless Steel Tube to Tube Unions
EEM16-625 16 mm Union Elbow 16 mm 16 mm N/A Alloy 625 Tube to Tube Unions
EEM16-6MO 16 mm Union Elbow 16 mm 16 mm N/A 6Mo Tube to Tube Unions
EEM16-6MO-NSK
EEM16-825 16 mm Union Elbow 16 mm 16 mm N/A Alloy 825 Tube to Tube Unions
EEM16-NNR
EEM20-316 20 mm Union Elbow 20 mm 20 mm N/A 316 Stainless Steel Tube to Tube Unions
EEM20-625 20 mm Union Elbow 20 mm 20 mm N/A Alloy 625 Tube to Tube Unions
EEM20-6MO 20 mm Union Elbow 20 mm 20 mm N/A 6Mo Tube to Tube Unions
EEM20-6MO-NSK
EEM20-825 20 mm Union Elbow 20 mm 20 mm N/A Alloy 825 Tube to Tube Unions
EEM20-NNR
EEM25-316 25 mm Union Elbow 25 mm 25 mm N/A 316 Stainless Steel Tube to Tube Unions
EEM25-625 25 mm Union Elbow 25 mm 25 mm N/A Alloy 625 Tube to Tube Unions
EEM25-6MO 25 mm Union Elbow 25 mm 25 mm N/A 6Mo Tube to Tube Unions
EEM25-6MO-NSK
EEM25-825 25 mm Union Elbow 25 mm 25 mm N/A Alloy 825 Tube to Tube Unions
EEM25-NNR
EEM6-316 6 mm Union Elbow 6 mm 6 mm N/A 316 Stainless Steel Tube to Tube Unions
EEM6-625 6 mm Union Elbow 6 mm 6 mm N/A Alloy 625 Tube to Tube Unions
EEM6-6MO 6 mm Union Elbow 6 mm 6 mm N/A 6Mo Tube to Tube Unions
EEM6-6MO-NSK
EEM6-825 6 mm Union Elbow 6 mm 6 mm N/A Alloy 825 Tube to Tube Unions
EEM6-NNR
ETM10-316 10 mm Union Tee 10 mm 10 mm 10 mm 316 Stainless Steel Tube to Tube Unions
ETM10-625 10 mm Union Tee 10 mm 10 mm 10 mm Alloy 625 Tube to Tube Unions
ETM10-6MO 10 mm Union Tee 10 mm 10 mm 10 mm 6Mo Tube to Tube Unions
ETM10-6MO-NSK
ETM10-825 10 mm Union Tee 10 mm 10 mm 10 mm Alloy 825 Tube to Tube Unions
ETM10-NNR
ETM12-316 12 mm Union Tee 12 mm 12 mm 12 mm 316 Stainless Steel Tube to Tube Unions
ETM12-625 12 mm Union Tee 12 mm 12 mm 12 mm Alloy 625 Tube to Tube Unions
ETM12-6MO 12 mm Union Tee 12 mm 12 mm 12 mm 6Mo Tube to Tube Unions
ETM12-6MO-NSK
ETM12-825 12 mm Union Tee 12 mm 12 mm 12 mm Alloy 825 Tube to Tube Unions
ETM12-NNR
ETM20-316 20 mm Union Tee 20 mm 20 mm 20 mm 316 Stainless Steel Tube to Tube Unions
ETM20-625 20 mm Union Tee 20 mm 20 mm 20 mm Alloy 625 Tube to Tube Unions
ETM20-6MO 20 mm Union Tee 20 mm 20 mm 20 mm 6Mo Tube to Tube Unions
ETM20-6MO-NSK
ETM20-825 20 mm Union Tee 20 mm 20 mm 20 mm Alloy 825 Tube to Tube Unions
ETM20-NNR
ETM25-316 25 mm Union Tee 25 mm 25 mm 25 mm 316 Stainless Steel Tube to Tube Unions
ETM25-625 25 mm Union Tee 25 mm 25 mm 25 mm Alloy 625 Tube to Tube Unions
ETM25-6MO-NSK
ETM25-825 25 mm Union Tee 25 mm 25 mm 25 mm Alloy 825 Tube to Tube Unions
ETM25-NNR
ETM6-316 6 mm Union Tee 6 mm 6 mm 6 mm 316 Stainless Steel Tube to Tube Unions
ETM6-625 6 mm Union Tee 6 mm 6 mm 6 mm Alloy 625 Tube to Tube Unions
ETM6-6MO 6 mm Union Tee 6 mm 6 mm 6 mm 6Mo Tube to Tube Unions
ETM6-6MO-NSK
ETM6-825 6 mm Union Tee 6 mm 6 mm 6 mm Alloy 825 Tube to Tube Unions
ETM6-NNR
ETM8-316 8 mm Union Tee 8 mm 8 mm 8 mm 316 Stainless Steel Tube to Tube Unions
ETM8-625 8 mm Union Tee 8 mm 8 mm 8 mm Alloy 625 Tube to Tube Unions
ETM8-6MO 8 mm Union Tee 8 mm 8 mm 8 mm 6Mo Tube to Tube Unions
ETM8-6MO-NSK
ETM8-825 8 mm Union Tee 8 mm 8 mm 8 mm Alloy 825 Tube to Tube Unions
ETM8-NNR
M10MSC1/2N-316 10 mm NPT Male Connector 10 mm 1/2" N/A 316 Stainless Steel Tube to Male Pipe
M10MSC1/2N-625 10 mm NPT Male Connector 10 mm 1/2" N/A Alloy 625 Tube to Male Pipe
M10MSC1/2N-6MO 10 mm NPT Male Connector 10 mm 1/2" N/A 6Mo Tube to Male Pipe
M10MSC1/2N-6MO-NSK
M10MSC1/2N-825 10 mm NPT Male Connector 10 mm 1/2" N/A Alloy 825 Tube to Male Pipe
M10MSC1/2N-NNR
M10MSC1/4N-316 10 mm NPT Male Connector 10 mm 1/4" N/A 316 Stainless Steel Tube to Male Pipe
M10MSC1/4N-625 10 mm NPT Male Connector 10 mm 1/4" N/A Alloy 625 Tube to Male Pipe
M10MSC1/4N-6MO 10 mm NPT Male Connector 10 mm 1/4" N/A 6Mo Tube to Male Pipe
M10MSC1/4N-6MO-NSK
M10MSC1/4N-825 10 mm NPT Male Connector 10 mm 1/4" N/A Alloy 825 Tube to Male Pipe
M10MSC1/4N-NNR
M10MSEL1/4N-316 10 mm NPT Male Elbow 10 mm 1/4" N/A 316 Stainless Steel Tube to Male Pipe
M10MSEL1/4N-625 10 mm NPT Male Elbow 10 mm 1/4" N/A Alloy 625 Tube to Male Pipe
M10MSEL1/4N-6MO 10 mm NPT Male Elbow 10 mm 1/4" N/A 6Mo Tube to Male Pipe
M10MSEL1/4N-6MO-NSK
M10MSEL1/4N-825 10 mm NPT Male Elbow 10 mm 1/4" N/A Alloy 825 Tube to Male Pipe
M10MSEL1/4N-NNR
M12FSC1/2N-316 12 mm NPT Female Connector 1/2" 1/2" N/A 316 Stainless Steel Tube to Female Pipe
M12FSC1/2N-625 12 mm NPT Female Connector 1/2" 1/2" N/A Alloy 625 Tube to Female Pipe
M12FSC1/2N-6MO 12 mm NPT Female Connector 1/2" 1/2" N/A 6Mo Tube to Female Pipe
M12FSC1/2N-6MO-NSK
M12FSC1/2N-825 12 mm NPT Female Connector 1/2" 1/2" N/A Alloy 825 Tube to Female Pipe
M12FSC1/2N-NNR
M12MSC1/2N-316 12 mm NPT Male Connector 12 mm 1/2" N/A 316 Stainless Steel Tube to Male Pipe
M12MSC1/2N-625 12 mm NPT Male Connector 12 mm 1/2" N/A Alloy 625 Tube to Male Pipe
M12MSC1/2N-6MO 12 mm NPT Male Connector 12 mm 1/2" N/A 6Mo Tube to Male Pipe
M12MSC1/2N-6MO-NSK
M12MSC1/2N-825 12 mm NPT Male Connector 12 mm 1/2" N/A Alloy 825 Tube to Male Pipe
M12MSC1/2N-NNR
M12MSC1/2R-316 12 mm BSPP Male Connector 12 mm 1/2" N/A 316 Stainless Steel Tube to Male Pipe
M12MSC1/2R-625 12 mm BSPP Male Connector 12 mm 1/2" N/A Alloy 625 Tube to Male Pipe
M12MSC1/2R-6MO 12 mm BSPP Male Connector 12 mm 1/2" N/A 6Mo Tube to Male Pipe
M12MSC1/2R-6MO-NSK
M12MSC1/2R-825 12 mm BSPP Male Connector 12 mm 1/2" N/A Alloy 825 Tube to Male Pipe
M12MSC1/2R-ED-316 12 mm BSPP Male Connector with ED Seal 12 mm 1/2" N/A 316 Stainless Steel Tube to Male Pipe
M12MSC1/2R-ED-625 12 mm BSPP Male Connector with ED Seal 12 mm 1/2" N/A Alloy 625 Tube to Male Pipe
M12MSC1/2R-ED-6MO 12 mm BSPP Male Connector with ED Seal 12 mm 1/2" N/A 6Mo Tube to Male Pipe
M12MSC1/2R-ED-6MO-NSK
M12MSC1/2R-ED-825 12 mm BSPP Male Connector with ED Seal 12 mm 1/2" N/A Alloy 825 Tube to Male Pipe
M12MSC1/2R-ED-NNR
M12MSC1/2R-NNR
M12MSC1/4N-316 12 mm NPT Male Connector 12 mm 1/4" N/A 316 Stainless Steel Tube to Male Pipe
M12MSC1/4N-625 12 mm NPT Male Connector 12 mm 1/4" N/A Alloy 625 Tube to Male Pipe
M12MSC1/4N-6MO 12 mm NPT Male Connector 12 mm 1/4" N/A 6Mo Tube to Male Pipe
M12MSC1/4N-6MO-NSK
M12MSC1/4N-825 12 mm NPT Male Connector 12 mm 1/4" N/A Alloy 825 Tube to Male Pipe
M12MSC1/4N-NNR
M12MSEL1/2N-316 12 mm NPT Male Elbow 12 mm 1/2" N/A 316 Stainless Steel Tube to Male Pipe
M12MSEL1/2N-625 12 mm NPT Male Elbow 12 mm 1/2" N/A Alloy 625 Tube to Male Pipe
M12MSEL1/2N-6MO 12 mm NPT Male Elbow 12 mm 1/2" N/A 6Mo Tube to Male Pipe
M12MSEL1/2N-6MO-NSK
M12MSEL1/2N-825 12 mm NPT Male Elbow 12 mm 1/2" N/A Alloy 825 Tube to Male Pipe
M12MSEL1/2N-NNR
M12MSEL1/4N-316 12 mm NPT Male Elbow 12 mm 1/4" N/A 316 Stainless Steel Tube to Male Pipe
M12MSEL1/4N-625 12 mm NPT Male Elbow 12 mm 1/4" N/A Alloy 625 Tube to Male Pipe
M12MSEL1/4N-6MO 12 mm NPT Male Elbow 12 mm 1/4" N/A 6Mo Tube to Male Pipe
M12MSEL1/4N-6MO-NSK
M12MSEL1/4N-825 12 mm NPT Male Elbow 12 mm 1/4" N/A Alloy 825 Tube to Male Pipe
M12MSEL1/4N-NNR
M20MSC3/4N-316 20 mm NPT Male Connector 20 mm 3/4" N/A 316 Stainless Steel Tube to Male Pipe
M20MSC3/4N-625 20 mm NPT Male Connector 20 mm 3/4" N/A Alloy 625 Tube to Male Pipe
M20MSC3/4N-6MO 20 mm NPT Male Connector 20 mm 3/4" N/A 6Mo Tube to Male Pipe
M20MSC3/4N-6MO-NSK
M20MSC3/4N-825 20 mm NPT Male Connector 20 mm 3/4" N/A Alloy 825 Tube to Male Pipe
M20MSC3/4N-NNR
M6GC1/4R-316 6 mm BSPP Gauge Connector 6 mm 1/4" N/A 316 Stainless Steel Tube to Female Pipe
M6GC1/4R-625 6 mm BSPP Gauge Connector 6 mm 1/4" N/A Alloy 625 Tube to Female Pipe
M6GC1/4R-6MO 6 mm BSPP Gauge Connector 6 mm 1/4" N/A 6Mo Tube to Female Pipe
M6GC1/4R-6MO-NSK
M6GC1/4R-825 6 mm BSPP Gauge Connector 6 mm 1/4" N/A Alloy 825 Tube to Female Pipe
M6GC1/4R-NNR
M6MSC1/2N-316 6 mm NPT Male Connector 6 mm 1/2" N/A 316 Stainless Steel Tube to Male Pipe
M6MSC1/2N-625 6 mm NPT Male Connector 6 mm 1/2" N/A Alloy 625 Tube to Male Pipe
M6MSC1/2N-6MO 6 mm NPT Male Connector 6 mm 1/2" N/A 6Mo Tube to Male Pipe
M6MSC1/2N-6MO-NSK
M6MSC1/2N-825 6 mm NPT Male Connector 6 mm 1/2" N/A Alloy 825 Tube to Male Pipe
M6MSC1/2N-NNR
M6MSC1/4N-316 6 mm NPT Male Connector 6 mm 1/4" N/A 316 Stainless Steel Tube to Male Pipe
M6MSC1/4N-625 6 mm NPT Male Connector 6 mm 1/4" N/A Alloy 625 Tube to Male Pipe
M6MSC1/4N-6MO 6 mm NPT Male Connector 6 mm 1/4" N/A 6Mo Tube to Male Pipe
M6MSC1/4N-6MO-NSK
M6MSC1/4N-825 6 mm NPT Male Connector 6 mm 1/4" N/A Alloy 825 Tube to Male Pipe
M6MSC1/4N-NNR
M8MSC1/4N-316 8 mm NPT Male Connector 8 mm 1/4" N/A 316 Stainless Steel Tube to Male Pipe
M8MSC1/4N-625 8 mm NPT Male Connector 8 mm 1/4" N/A Alloy 625 Tube to Male Pipe
M8MSC1/4N-6MO 8 mm NPT Male Connector 8 mm 1/4" N/A 6Mo Tube to Male Pipe
M8MSC1/4N-6MO-NSK
M8MSC1/4N-825 8 mm NPT Male Connector 8 mm 1/4" N/A Alloy 825 Tube to Male Pipe
M8MSC1/4N-NNR
SCM10-316 10 mm Union 10 mm 10 mm N/A 316 Stainless Steel Tube to Tube Unions
SCM10-625 10 mm Union 10 mm 10 mm N/A Alloy 625 Tube to Tube Unions
SCM10-6MO 10 mm Union 10 mm 10 mm N/A 6Mo Tube to Tube Unions
SCM10-6MO-NSK
SCM10-825 10 mm Union 10 mm 10 mm N/A Alloy 825 Tube to Tube Unions
SCM10-NNR
SCM12-316 12 mm Union 12 mm 12 mm N/A 316 Stainless Steel Tube to Tube Unions
SCM12-625 12 mm Union 12 mm 12 mm N/A Alloy 625 Tube to Tube Unions
SCM12-6MO 12 mm Union 12 mm 12 mm N/A 6Mo Tube to Tube Unions
SCM12-6MO-NSK
SCM12-825 12 mm Union 12 mm 12 mm N/A Alloy 825 Tube to Tube Unions
SCM12-NNR
SCM20-316 20 mm Union 20 mm 20 mm N/A 316 Stainless Steel Tube to Tube Unions
SCM20-625 20 mm Union 20 mm 20 mm N/A Alloy 625 Tube to Tube Unions
SCM20-6MO 20 mm Union 20 mm 20 mm N/A 6Mo Tube to Tube Unions
SCM20-6MO-NSK
SCM20-825 20 mm Union 20 mm 20 mm N/A Alloy 825 Tube to Tube Unions
SCM20-NNR
SCM25-316 25 mm Union 25 mm 25 mm N/A 316 Stainless Steel Tube to Tube Unions
SCM25-625 25 mm Union 25 mm 25 mm N/A Alloy 625 Tube to Tube Unions
SCM25-6MO 25 mm Union 25 mm 25 mm N/A 6Mo Tube to Tube Unions
SCM25-6MO-NSK
SCM25-825 25 mm Union 25 mm 25 mm N/A Alloy 825 Tube to Tube Unions
SCM25-NNR
SCM6-316 6 mm Union 6 mm 6 mm N/A 316 Stainless Steel Tube to Tube Unions
SCM6-625 6 mm Union 6 mm 6 mm N/A Alloy 625 Tube to Tube Unions
SCM6-6MO 6 mm Union 6 mm 6 mm N/A 6Mo Tube to Tube Unions
SCM6-6MO-NSK
SCM6-825 6 mm Union 6 mm 6 mm N/A Alloy 825 Tube to Tube Unions
SCM6-NNR
SCM8-316 8 mm Union 8 mm 8 mm N/A 316 Stainless Steel Tube to Tube Unions
SCM8-625 8 mm Union 8 mm 8 mm N/A Alloy 625 Tube to Tube Unions
SCM8-6MO 8 mm Union 8 mm 8 mm N/A 6Mo Tube to Tube Unions
SCM8-6MO-NSK
SCM8-825 8 mm Union 8 mm 8 mm N/A Alloy 825 Tube to Tube Unions
