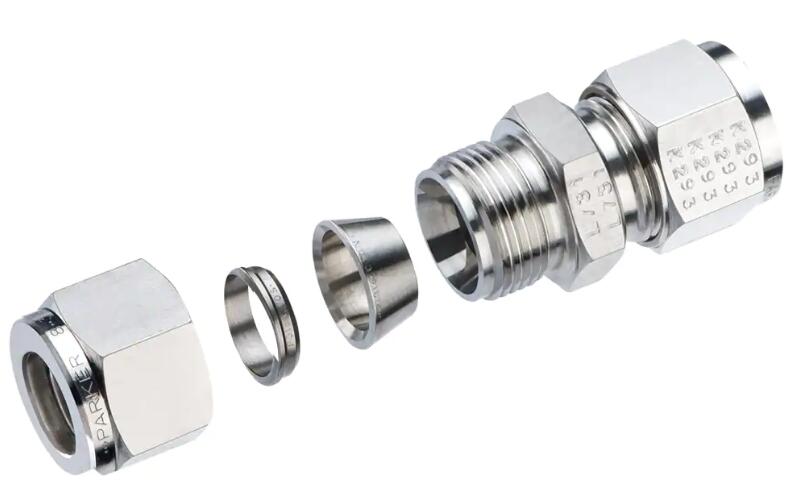

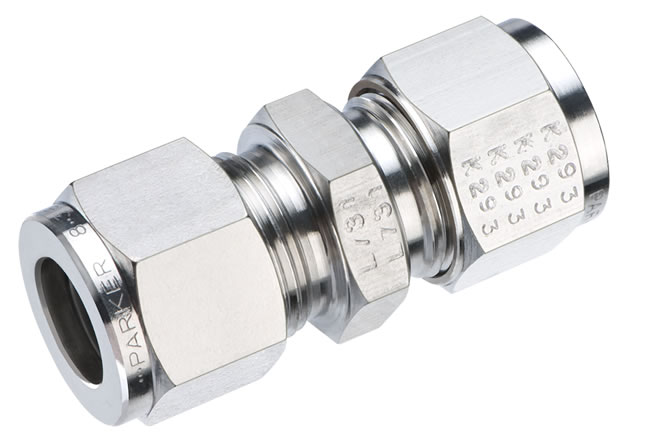

A-LOK系列双卡套接头
派克的A-LOK 两个插芯压缩管接头设计用于为指定两个插芯系统的仪器，过程和控制以及分析仪应用提供可靠的无泄漏连接。这些管件按最高质量标准制造，有各种尺寸，耐腐蚀材料和配置可供选择。作为标准，Parker的A-LOK 管接头由可热编码的316不锈钢制成。其他材料包括6Mo，合金825，合金625和合金C-276。直配件由冷轧棒料加工而成，而成形体则由紧密的锻件加工而成。该接头可用于外径为1/16英寸至外径2英寸的英制管道，以及公制尺寸为2 mm至外径25 mm的公制管道。派克的两个套圈压缩接头A-LOK?管接头设计用于过程仪表和工业应用中的无泄漏连接。它们提供多种材料，符合NORSOK M-650和EC79认证。Parker’s A-LOK two ferrule compression tube fittings are designed to provide reliable leak-free connections for instrumentation, process and control, and analyzer applications that specify a two ferrule system. Manufactured to the highest quality standards, these tube fittings are available in a broad range of sizes, corrosion resistant materials and configurations.As standard, Parker’s A-LOK tube fitting are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276. Straight fittings are machined from cold finished bar stock, while shaped bodies are machined from close grain forgings.The fittings are available for imperial pipe sizes from 1/16” through to 2” O.D., and for metric sizes from 2 mm through to 25 mm O.D.
Tube Fitting ,Two Ferrule Compression Fitting - A-LOK Series free pdf catalog
派克A-LOK系列双卡套接头 parker双卡套接头
双卡套接头-A-LOK 系列参数及介绍
双卡套接头-A-LOK系列
派克A-LOK双卡套接头为过程仪表控制和工业应用等提供无泄漏的可靠连接。多种材质可选。派克的A-LOK双卡套接头系列产品能够为仪器仪表，过程控制和分析行业等提供可靠的无泄漏密封连接。接头严格按照zui高质量标准制造，多种尺寸、耐腐蚀材料和结构可选。根据行业标准，派克的A-LOK管接头采用316不锈钢制造，其它材质如：6Mo合金，825合金，625合金和C-276合金可选。直通接头用冷加工工艺制造，而其他特殊形状管件通过细晶粒锻造工艺制成。
派克A-LOK系列双卡套接头
产品详情
品牌：派克parke
型号：派克A-LOK系列双卡套接头
类型：A-LOK系列双卡套接头
材质：不锈钢
连接形式：卡套式
双卡套接头-A-LOK系列
形状:NPT外螺纹接头，联合接头，三通联合接头，NPT外螺纹弯头，直角管接头，穿板接头，NPT内螺纹接头，NPT外螺纹管端接头，BSPP外螺纹直通接头，封口，37°扩口接头，堵头，BSPP表接头，NPT直管外螺纹三通接头，BSPP外螺纹直通接头（带ED密封）
连接1尺寸:3/4",1",1/8",3/8",1/2",3/8",1/16",1/4",6mm,12mm,1/2",10mm,5/8",3/4",1/4",20mm,8mm,5/16",25mm,16mm
连接2尺寸:3/4",1",1/8",3/8",1/2",3/8",N/A,1/4",1/2",10mm,12mm,6mm,1/4",5/8",3/4",1/16",5/16",20mm,25mm,8mm,16mm
连接3螺纹尺寸(in):N/A,3/8",1/2",1/4",3/4",1/4",3/4",1",3/8",1/2",10mm,12mm,20mm,25mm,6mm,8mm,5/8",5/16"
材料:316不锈钢，6Mo合金，825合金，625合金，C-276合金
卡套管-外螺纹接头，联合接头，接管接头，卡套管-内螺纹接头，卡套管转换接头，备件，37°扩口（AN）与A-LOK接头，卡套管焊接接头
派克双卡套接头parker仪表解决方案/美国派克仪表商
派克A-LOK?系列双卡套接头/parker双卡套接头
A-LOK?系列 - 双金属箍仪表管接头（可达15000 psi）
简介：
派克的A-LOK?双金属箍接头为发电行业带来优势。派克A-LOK接头可提供主动、可靠的连接，这已经通过全面性测试，并且凭借四十多年的制造经验，派克使A-LOK 成为仪表级管道的行业标准。
现成的不锈钢A-LOK 接头上带有加热编码，实现了可追踪性，适用于核电站以及其他关键应用。
特点和优势：
- 仪表级双金属箍管连接的工业标准
- 镀银螺纹减少磨损
- 使用Suparcase?的后金属箍防止晶间腐蚀，实现出色的密封并延长保质期
- 适用于各种管材和管壁厚度
用途：
- 工厂仪表控制台
- 连续排放监控(CEMS)
- 蒸汽排放管线
- 变送器连接
双卡套接头-A-LOK系列
市场：
- 半导体/微电子
- 化工
- 石油化工
- 运输
- 电力
- 核能
- 石油和天然气
- 研究实验室
功能/优点：
- 多种多样的配置样式；
管对公管管
对母管管
对管接头
端口接头
37?喇叭形（AN）至A-LOK
管对O型圈密封
管对焊接 系统分析
配件
带刺配件
- 多种耐腐蚀合金可选
- EC79批准用于氢气服务
- 派克Suparcase?表面处理工艺可实现出色的材料硬化
- 硬化的密封垫圈提供无泄漏的连接
- 镀银螺母可在化妆时提供抗胆性
应用范围：
- 仪表连接系统
- 分析装置
- 天然气/液化天然气管线
- 氢气服务
- 海上控制面板
- 传感管线
- Tube Fitting ,Two Ferrule Compression Fitting - A-LOK Series
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
10EE10-316 |
5/8" |
Union Elbow |
5/8" |
5/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
10ET10-316 |
5/8" |
Union Tee |
5/8" |
5/8" |
5/8" |
316 Stainless Steel |
Tube to Tube Unions |
10FBT8N-316 |
5/8" |
NPT Female Branch Tee |
5/8" |
5/8" |
1/2" |
316 Stainless Steel |
Tube to Female Pipe |
10FSC8N-316 |
5/8 |
NPT Male Connector |
|
|
|
316 Stainless Steel |
Tube to Male Pipe |
10MSC12N-316 |
5/8" |
NPT Male Connector |
5/8" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
10MSC8N-316 |
5/8" |
NPT Male Connector |
5/8" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
10MSC8N-B |
5/8" |
NPT Male Connector |
5/8" |
1/2" |
N/A |
Brass |
Tube to Male Pipe |
10MSEL8N-316 |
|
|
|
|
|
|
|
10MSEL8N-B |
5/8" |
NPT Male Elbow |
5/8" |
1/2" |
N/A |
Brass |
Tube to Male Pipe |
10NU10-B |
5/8" |
Tube Nut |
5/8" |
N/A |
N/A |
Brass |
Components |
10SC10-316 |
5/8" |
Union |
5/8" |
5/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
12-12-6 JLZ-SS |
3/4" |
Drop Size Tee |
3/4" |
3/4" |
3/8" |
316 Stainless Steel |
Tube to Tube Unions |
12-12-8 JLZ-SS |
3/4" |
Drop Size Tee |
3/4" |
3/4" |
1/2" |
316 Stainless Steel |
Tube to Tube Unions |
12BC12-316 |
3/4" |
Bulkhead Union |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
12BLEN12-316 |
3/4" |
Cap |
3/4" |
N/A |
N/A |
316 Stainless Steel |
Components |
12BLP12-316 |
|
|
|
|
|
|
|
12ECR12-316 |
3/4" |
Union Cross |
3/4" |
N/A |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
12EE12-316 |
3/4" |
Union Elbow |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
12EE12-625 |
3/4" |
Union Elbow |
3/4" |
3/4" |
N/A |
Alloy 625 |
Tube to Tube Unions |
12EE12-6MO |
3/4" |
Union Elbow |
3/4" |
3/4" |
N/A |
6Mo |
Tube to Tube Unions |
12EE12-6MO-NSK |
|
|
|
|
|
|
|
12EE12-825 |
3/4" |
Union Elbow |
3/4" |
3/4" |
N/A |
Alloy 825 |
Tube to Tube Unions |
12EE12-NNR |
|
|
|
|
|
|
|
12ET12-316 |
3/4" |
Union Tee |
3/4" |
3/4" |
3/4" |
316 Stainless Steel |
Tube to Tube Unions |
12ET12-625 |
3/4" |
Union Tee |
3/4" |
3/4" |
3/4" |
Alloy 625 |
Tube to Tube Unions |
12ET12-6MO |
3/4" |
Union Tee |
3/4" |
3/4" |
3/4" |
6Mo |
Tube to Tube Unions |
12ET12-6MO-NSK |
|
|
|
|
|
|
|
12ET12-825 |
3/4" |
Union Tee |
3/4" |
3/4" |
3/4" |
Alloy 825 |
Tube to Tube Unions |
12ET12-NNR |
|
|
|
|
|
|
|
12FBT12N-316 |
3/4" |
NPT Female Branch Tee |
3/4" |
3/4" |
3/4" |
316 Stainless Steel |
Tube to Female Pipe |
12FEL12N-316 |
3/4" |
NPT Female Elbow |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
12FEL8N-316 |
3/4" |
NPT Female Elbow |
3/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
12FSC12N-316 |
3/4" |
Gauge Connector |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
12FSC8N-316 |
3/4" |
Gauge Connector |
3/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
12M5SEL12-316 |
3/4" |
SAE Straight Thread Elbow |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to O-Ring Seal |
12MA12N-316 |
3/4" |
NPT Tube End Male Adapter |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Port Connectors |
12MRT12N-316 |
3/4" |
NPT Male Run Tee |
3/4" |
3/4" |
3/4" |
316 Stainless Steel |
Tube to Male Pipe |
12MSC12N-316 |
3/4" |
NPT Male Connector |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
12MSC12N-625 |
3/4" |
NPT Male Connector |
3/4" |
3/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
12MSC12N-6MO |
3/4" |
NPT Male Connector |
3/4" |
3/4" |
N/A |
6Mo |
Tube to Male Pipe |
12MSC12N-6MO-NSK |
|
|
|
|
|
|
|
12MSC12N-825 |
3/4" |
NPT Male Connector |
3/4" |
3/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
12MSC12N-NNR |
|
|
|
|
|
|
|
12MSC16N-316 |
3/4" |
NPT Male Connector |
3/4" |
1" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
12MSC8N-316 |
|
|
|
|
|
|
|
12MSEL12N-316 |
3/4" |
NPT Male Elbow |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
12MSEL8N-316 |
3/4" |
NPT Male Elbow |
3/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
12NU12-316 |
3/4" |
Tube Nut |
3/4" |
N/A |
N/A |
316 Stainless Steel |
Components |
12PC12-316 |
3/4" |
Port Connector |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Port Connectors |
12RU8-316 |
3/4" |
Reducing Union |
3/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
-
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
12SC12-316 |
3/4" |
Union |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
12SC12-625 |
3/4" |
Union |
3/4" |
3/4" |
N/A |
Alloy 625 |
Tube to Tube Unions |
12SC12-6MO |
3/4" |
Union |
3/4" |
3/4" |
N/A |
6Mo |
Tube to Tube Unions |
12SC12-6MO-NSK |
|
|
|
|
|
|
|
12SC12-825 |
3/4" |
Union |
3/4" |
3/4" |
N/A |
Alloy 825 |
Tube to Tube Unions |
12SC12-NNR |
|
|
|
|
|
|
|
12TUR8-316 |
3/4" |
Tube End Reducer |
3/4" |
1/2" |
N/A |
316 Stainless Steel |
Port Connectors |
12XASC12-316 |
3/4" |
37 Flare to Compression |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
37° Flare (AN) to A-LOK? |
16-1 ZHLW2-6MO |
1" |
Socket Weld Connector |
1" |
1" |
N/A |
6Mo |
Tube to Welded Systems |
16-1 ZHLW2-6MO-NSK |
|
|
|
|
|
|
|
16BC16-316 |
1" |
Bulkhead Union |
1" |
1" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
16BLEN16-316 |
1" |
Cap |
1" |
N/A |
N/A |
316 Stainless Steel |
Components |
16EE16-316 |
1" |
Union Elbow |
1" |
1" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
16EE16-625 |
1" |
Union Elbow |
1" |
1" |
N/A |
Alloy 625 |
Tube to Tube Unions |
16EE16-6MO |
1" |
Union Elbow |
1" |
1" |
N/A |
6Mo |
Tube to Tube Unions |
16EE16-6MO-NSK |
|
|
|
|
|
|
|
16EE16-825 |
1" |
Union Elbow |
1" |
1" |
N/A |
Alloy 825 |
Tube to Tube Unions |
16EE16-NNR |
|
|
|
|
|
|
|
16ET16-316 |
1" |
Union Tee |
1" |
1" |
1" |
316 Stainless Steel |
Tube to Tube Unions |
16ET16-625 |
1" |
Union Tee |
1" |
1" |
1" |
Alloy 625 |
Tube to Tube Unions |
16ET16-6MO |
1" |
Union Tee |
1" |
1" |
1" |
6Mo |
Tube to Tube Unions |
16ET16-6MO-NSK |
|
|
|
|
|
|
|
16ET16-825 |
1" |
Union Tee |
1" |
1" |
1" |
Alloy 825 |
Tube to Tube Unions |
16ET16-NNR |
|
|
|
|
|
|
|
16ET16-S |
1" |
Union Tee |
1" |
1" |
1" |
Steel |
Tube to Tube Unions |
16FSC16N-316 |
1" |
NPT Female Connector |
1" |
1" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
16FSC16N-625 |
1" |
NPT Female Connector |
1" |
1" |
N/A |
Alloy 625 |
Tube to Female Pipe |
16FSC16N-6MO |
1" |
NPT Female Connector |
1" |
1" |
N/A |
6Mo |
Tube to Female Pipe |
16FSC16N-6MO-NSK |
|
|
|
|
|
|
|
16FSC16N-825 |
1" |
NPT Female Connector |
1" |
1" |
N/A |
Alloy 825 |
Tube to Female Pipe |
16FSC16N-NNR |
|
|
|
|
|
|
|
16M1SC16-316 |
1" |
Tube Connector to SAE |
1" |
1" |
N/A |
316 Stainless Steel |
Port Connectors |
16MA16N-316 |
1" |
NPT Tube End Male Adapter |
1" |
1" |
N/A |
316 Stainless Steel |
Port Connectors |
16MSC12N-316 |
1" |
NPT Male Connector |
1" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
16MSC16N-316 |
1" |
NPT Male Connector |
1" |
1" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
16MSC16N-625 |
1" |
NPT Male Connector |
1" |
1" |
N/A |
Alloy 625 |
Tube to Male Pipe |
16MSC16N-6MO |
1" |
NPT Male Connector |
1" |
1" |
N/A |
6Mo |
Tube to Male Pipe |
16MSC16N-6MO-NSK |
|
|
|
|
|
|
|
16MSC16N-825 |
1" |
NPT Male Connector |
1" |
1" |
N/A |
Alloy 825 |
Tube to Male Pipe |
16MSC16N-NNR |
|
|
|
|
|
|
|
16MSC16N-S |
1" |
NPT Male Connector |
1" |
1" |
N/A |
Steel |
Tube to Male Pipe |
16MSEL16N-316 |
1" |
NPT Male Elbow |
1" |
1" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
16MSEL16N-625 |
1" |
NPT Male Elbow |
1" |
1" |
N/A |
Alloy 625 |
Tube to Male Pipe |
16MSEL16N-6MO |
1" |
NPT Male Elbow |
1" |
1" |
N/A |
6Mo |
Tube to Male Pipe |
16MSEL16N-6MO-NSK |
|
|
|
|
|
|
|
16MSEL16N-825 |
1" |
NPT Male Elbow |
1" |
1" |
N/A |
Alloy 825 |
Tube to Male Pipe |
16MSEL16N-NNR |
|
|
|
|
|
|
|
16NU16-316 |
1" |
Tube Nut |
1" |
N/A |
N/A |
316 Stainless Steel |
Components |
16RU12-316 |
1" |
Reducing Union |
1" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
16RU8-316 |
1" |
Reducing Union |
1" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
-
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
16SC16-316 |
1" |
Union |
1" |
1" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
16SC16-625 |
1" |
Union |
1" |
1" |
N/A |
Alloy 625 |
Tube to Tube Unions |
16SC16-6MO |
1" |
Union |
1" |
1" |
N/A |
6Mo |
Tube to Tube Unions |
16SC16-6MO-NSK |
|
|
|
|
|
|
|
16SC16-825 |
1" |
Union |
1" |
1" |
N/A |
Alloy 825 |
Tube to Tube Unions |
16SC16-NNR |
|
|
|
|
|
|
|
16XASC16-316 |
1" |
37 Flare to Compression |
1" |
1" |
N/A |
316 Stainless Steel |
37° Flare (AN) to A-LOK? |
1BF1-316 |
1/16" |
Back Ferrule |
1/16" |
N/A |
N/A |
316 Stainless Steel |
Components |
1FF1-316 |
1/16" |
Front Ferrule |
1/16" |
N/A |
N/A |
316 Stainless Steel |
Components |
1MSC1N-316 |
1/16" |
NPT Male Connector |
1/16" |
1/16" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
1MSC2N-316 |
1/16" |
NPT Male Connector |
1/16" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
1SC1-316 |
1/16" |
Union |
1/16" |
1/16" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
2BC2-316 |
1/8" |
Bulkhead Union |
1/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
2BF2-316 |
1/8" |
Back Ferrule |
1/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
2BLP2-316 |
|
|
|
|
|
|
|
2ECR2-316 |
1/8" |
Union Cross |
1/8" |
N/A |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
2ET2-316 |
|
|
|
|
|
|
|
2FF2-316 |
1/8" |
Front Ferrule |
1/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
2FSC4N-316 |
1/8" |
Gauge Connector |
1/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
2MSC1N-316 |
1/8" |
NPT Male Connector |
1/8" |
1/16" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
2MSC2N-316 |
1/8" |
NPT Male Connector |
1/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
2MSC2N-B |
1/8" |
NPT Male Connector |
1/8" |
1/8" |
N/A |
Brass |
Tube to Male Pipe |
2MSC4N-316 |
1/8" |
NPT Male Connector |
1/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
2MSEL2N-316 |
1/8" |
NPT Male Elbow |
1/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
2MSEL4N-316 |
|
|
|
|
|
|
|
2MTC2N-316 |
1/8" |
Thermocouple Connector |
1/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
2MTC4N-316 |
1/8" |
Thermocouple Connector |
1/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
2NU2-316 |
1/8" |
Tube Nut |
1/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
2RU1-316 |
1/8" |
Reducing Union |
1/8" |
1/16" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
2SC2-316 |
1/8" |
Union |
1/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
2TUR1-316 |
1/8" |
Tube End Reducer |
1/8" |
1/16" |
N/A |
316 Stainless Steel |
Port Connectors |
2TUR4-316 |
1/8" |
Tube End Reducer |
1/8" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
2XASC2-316 |
1/8" |
37 Flare to Compression |
1/8" |
1/8" |
N/A |
316 Stainless Steel |
37° Flare (AN) to A-LOK? |
3MSC2N-316 |
|
|
|
|
|
|
|
4BC4-316 |
1/4" |
Bulkhead Union |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
4BC4-B |
1/4" |
Bulkhead Union |
1/4" |
1/4" |
N/A |
Brass |
Tube to Tube Unions |
4BF4-316 |
1/4" |
Back Ferrule |
1/4" |
N/A |
N/A |
316 Stainless Steel |
Components |
4BLEN4-316 |
1/4" |
Cap |
1/4" |
N/A |
N/A |
316 Stainless Steel |
Components |
4BLP4-316 |
|
|
|
|
|
|
|
4ECR4-316 |
|
|
|
|
|
|
|
4EE4-316 |
1/4" |
Union Elbow |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
4EE4-625 |
1/4" |
Union Elbow |
1/4" |
1/4" |
N/A |
Alloy 625 |
Tube to Tube Unions |
4EE4-6MO |
1/4" |
Union Elbow |
1/4" |
1/4" |
N/A |
6Mo |
Tube to Tube Unions |
4EE4-6MO-NSK |
|
|
|
|
|
|
|
4EE4-825 |
1/4" |
Union Elbow |
1/4" |
1/4" |
N/A |
Alloy 825 |
Tube to Tube Unions |
4EE4-B |
1/4" |
Union Elbow |
1/4" |
1/4" |
N/A |
Brass |
Tube to Tube Unions |
4EE4-NNR |
|
|
|
|
|
|
|
4ET4-316 |
1/4" |
Union Tee |
1/4" |
1/4" |
1/4" |
316 Stainless Steel |
Tube to Tube Unions |
4ET4-625 |
1/4" |
Union Tee |
1/4" |
1/4" |
1/4" |
Alloy 625 |
Tube to Tube Unions |
4ET4-6MO |
1/4" |
Union Tee |
1/4" |
1/4" |
1/4" |
6Mo |
Tube to Tube Unions |
-
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
4ET4-6MO-NSK |
|
|
|
|
|
|
|
4ET4-825 |
1/4" |
Union Tee |
1/4" |
1/4" |
1/4" |
Alloy 825 |
Tube to Tube Unions |
4ET4-B |
1/4" |
Union Tee |
1/4" |
1/4" |
1/4" |
Brass |
Tube to Tube Unions |
4ET4-NNR |
|
|
|
|
|
|
|
4FA4N-316 |
1/4" |
NPT Tube End Female Adapter |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
4FBC4N-316 |
1/4" |
Female Bulkhead Connector |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4FBT4N-316 |
1/4" |
NPT Female Branch Tee |
1/4" |
1/4" |
1/4" |
316 Stainless Steel |
Tube to Female Pipe |
4FEL2N-316 |
1/4" |
NPT Female Elbow |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4FEL2N-B |
1/4" |
NPT Female Elbow |
1/4" |
1/8" |
N/A |
Brass |
Tube to Female Pipe |
4FEL4N-316 |
1/4" |
NPT Female Elbow |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4FEL8N-316 |
1/4" |
NPT Female Elbow |
1/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4FF4-316 |
1/4" |
Front Ferrule |
1/4" |
N/A |
N/A |
316 Stainless Steel |
Components |
4FF4-B |
1/4" |
Front Ferrule |
1/4" |
N/A |
N/A |
Brass |
Components |
4FRT4N-316 |
1/4" |
NPT Female Run Tee |
1/4" |
1/4" |
1/4" |
316 Stainless Steel |
Tube to Female Pipe |
4FSC2N-316 |
1/4" |
NPT Female Connector |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4FSC4N-316 |
|
|
|
|
|
|
|
4FSC6N-316 |
1/4" |
NPT Female Connector |
1/4" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4FSC6N-B |
1/4" |
NPT Female Connector |
1/4" |
3/8" |
N/A |
Brass |
Tube to Female Pipe |
4FSC8N-316 |
1/4" |
NPT Female Connector |
1/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4M1SC4-316 |
1/4" |
Tube Connector to SAE |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
4M5SEL4-316 |
1/4" |
SAE Straight Thread Elbow |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to O-Ring Seal |
4MA2N-316 |
1/4" |
NPT Tube End Male Adapter |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Port Connectors |
4MA4N-316 |
1/4" |
NPT Tube End Male Adapter |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
4MBC2N-316 |
1/4" |
Male Bulkhead Connector |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MBC4N-316 |
1/4" |
Male Bulkhead Connector |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MBT2N-316 |
|
|
|
|
|
|
|
4MBT4N-316 |
1/4" |
NPT Male Branch Tee |
1/4" |
1/4" |
1/4" |
316 Stainless Steel |
Tube to Male Pipe |
4MRT4N-316 |
1/4" |
NPT Male Run Tee |
1/4" |
1/4" |
1/4" |
316 Stainless Steel |
Tube to Male Pipe |
4MRT4N-625 |
1/4" |
NPT Male Run Tee |
1/4" |
1/4" |
1/4" |
Alloy 625 |
Tube to Male Pipe |
4MRT4N-6MO |
1/4" |
NPT Male Run Tee |
1/4" |
1/4" |
1/4" |
6Mo |
Tube to Male Pipe |
4MRT4N-6MO-NSK |
|
|
|
|
|
|
|
4MRT4N-825 |
1/4" |
NPT Male Run Tee |
1/4" |
1/4" |
1/4" |
Alloy 825 |
Tube to Male Pipe |
4MRT4N-NNR |
|
|
|
|
|
|
|
4MSC2N-316 |
1/4" |
NPT Male Connector |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MSC2N-B |
1/4" |
NPT Male Connector |
1/4" |
1/8" |
N/A |
Brass |
Tube to Male Pipe |
4MSC4N-316 |
1/4" |
NPT Male Connector |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MSC4N-625 |
1/4" |
NPT Male Connector |
1/4" |
1/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
4MSC4N-6MO |
1/4" |
NPT Male Connector |
1/4" |
1/4" |
N/A |
6Mo |
Tube to Male Pipe |
4MSC4N-6MO-NSK |
|
|
|
|
|
|
|
4MSC4N-825 |
1/4" |
NPT Male Connector |
1/4" |
1/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
4MSC4N-B |
|
|
|
|
|
|
|
4MSC4N-NNR |
|
|
|
|
|
|
|
4MSC6N-316 |
|
|
|
|
|
|
|
4MSC6N-B |
|
|
|
|
|
|
|
4MSC8N-316 |
1/4" |
NPT Male Connector |
1/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MSC8N-625 |
1/4" |
NPT Male Connector |
1/4" |
1/2" |
N/A |
Alloy 625 |
Tube to Male Pipe |
4MSC8N-6MO |
1/4" |
NPT Male Connector |
1/4" |
1/2" |
N/A |
6Mo |
Tube to Male Pipe |
4MSC8N-6MO-NSK |
|
|
|
|
|
|
|
4MSC8N-825 |
1/4" |
NPT Male Connector |
1/4" |
1/2" |
N/A |
Alloy 825 |
Tube to Male Pipe |
4MSC8N-NNR |
|
|
|
|
|
|
|
-
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
4MSEL2N-316 |
|
|
|
|
|
|
|
4MSEL2N-B |
1/4" |
NPT Male Elbow |
1/4" |
1/8" |
N/A |
Brass |
Tube to Male Pipe |
4MSEL4N-316 |
1/4" |
NPT Male Elbow |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MSEL4N-625 |
1/4" |
NPT Male Elbow |
1/4" |
1/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
4MSEL4N-6MO |
1/4" |
NPT Male Elbow |
1/4" |
1/4" |
N/A |
6Mo |
Tube to Male Pipe |
4MSEL4N-6MO-NSK |
|
|
|
|
|
|
|
4MSEL4N-825 |
1/4" |
NPT Male Elbow |
1/4" |
1/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
4MSEL4N-B |
1/4" |
NPT Male Elbow |
1/4" |
1/4" |
N/A |
Brass |
Tube to Male Pipe |
4MSEL4N-NNR |
|
|
|
|
|
|
|
4MSEL4N-S |
1/4" |
NPT Male Elbow |
1/4" |
1/4" |
N/A |
Steel |
Tube to Male Pipe |
4MSEL6N-316 |
1/4" |
NPT Male Elbow |
1/4" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MSEL8N-316 |
1/4" |
NPT Male Elbow |
1/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MTC8N-316 |
1/4" |
Thermocouple Connector |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4NU4-316 |
1/4" |
Tube Nut |
1/4" |
N/A |
N/A |
316 Stainless Steel |
Components |
4PC4-316 |
1/4" |
Port Connector |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
4RU2-316 |
1/4" |
Reducing Union |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
4SC4-316 |
1/4" |
Union |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
4SC4-625 |
1/4" |
Union |
1/4" |
1/4" |
N/A |
Alloy 625 |
Tube to Tube Unions |
4SC4-6MO-NSK |
|
|
|
|
|
|
|
4SC4-825 |
1/4" |
Union |
1/4" |
1/4" |
N/A |
Alloy 825 |
Tube to Tube Unions |
4SC4-B |
1/4" |
Union |
1/4" |
1/4" |
N/A |
Brass |
Tube to Tube Unions |
4SC4-NNR |
|
|
|
|
|
|
|
4TUR2-316 |
1/4" |
Tube End Reducer |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Port Connectors |
5ET5-B |
5/16" |
Union Tee |
5/16" |
5/16" |
5/16" |
Brass |
Tube to Tube Unions |
5MSC4N-316 |
|
|
|
|
|
|
|
5MSEL4N-316 |
5/16" |
NPT Male Elbow |
5/16" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6-6-4 JLZ-SS |
3/8" |
Drop Size Tee |
3/8" |
3/8" |
1/4" |
316 Stainless Steel |
Tube to Tube Unions |
6BC6-316 |
3/8" |
Bulkhead Union |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
6BC6-625 |
3/8" |
Bulkhead Union |
3/8" |
3/8" |
N/A |
Alloy 625 |
Tube to Tube Unions |
6BC6-6MO |
3/8" |
Bulkhead Union |
3/8" |
3/8" |
N/A |
6Mo |
Tube to Tube Unions |
6BC6-6MO-NSK |
|
|
|
|
|
|
|
6BC6-825 |
3/8" |
Bulkhead Union |
3/8" |
3/8" |
N/A |
Alloy 825 |
Tube to Tube Unions |
6BC6-B |
3/8" |
Bulkhead Union |
3/8" |
3/8" |
N/A |
Brass |
Tube to Tube Unions |
6BC6-NNR |
|
|
|
|
|
|
|
6BF6-316 |
3/8" |
Back Ferrule |
3/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
6BLEN6-316 |
3/8" |
Cap |
3/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
6BLP6-316 |
|
|
|
|
|
|
|
6ECR6-316 |
3/8" |
Union Cross |
3/8" |
N/A |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
6EE6-316 |
3/8" |
Union Elbow |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
6EE6-625 |
3/8" |
Union Elbow |
3/8" |
3/8" |
N/A |
Alloy 625 |
Tube to Tube Unions |
6EE6-6MO |
3/8" |
Union Elbow |
3/8" |
3/8" |
N/A |
6Mo |
Tube to Tube Unions |
6EE6-6MO-NSK |
|
|
|
|
|
|
|
6EE6-825 |
3/8" |
Union Elbow |
3/8" |
3/8" |
N/A |
Alloy 825 |
Tube to Tube Unions |
6EE6-B |
3/8" |
Union Elbow |
3/8" |
3/8" |
N/A |
Brass |
Tube to Tube Unions |
6EE6-NNR |
|
|
|
|
|
|
|
6ET6-316 |
3/8" |
Union Tee |
3/8" |
3/8" |
3/8" |
316 Stainless Steel |
Tube to Tube |
6ET6-625 |
3/8" |
Union Tee |
3/8" |
3/8" |
3/8" |
Alloy 625 |
Tube to Tube |
6ET6-6MO |
3/8" |
Union Tee |
3/8" |
3/8" |
3/8" |
6Mo |
Tube to Tube |
6ET6-6MO-NSK |
|
|
|
|
|
|
|
6ET6-825 |
3/8" |
Union Tee |
3/8" |
3/8" |
3/8" |
Alloy 825 |
Tube to Tube |
-
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
6ET6-B |
3/8" |
Union Tee |
3/8" |
3/8" |
3/8" |
Brass |
Tube to Tube Unions |
6ET6-NNR |
|
|
|
|
|
|
|
6ET6-S |
3/8" |
Union Tee |
3/8" |
3/8" |
3/8" |
Steel |
Tube to Tube Unions |
6FBT4N-316 |
3/8" |
NPT Female Branch Tee |
3/8" |
3/8" |
1/4" |
316 Stainless Steel |
Tube to Female Pipe |
6FEL4N-316 |
3/8" |
NPT Female Elbow |
3/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
6FEL8N-316 |
3/8" |
NPT Female Elbow |
3/8" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
6FF6-316 |
3/8" |
Front Ferrule |
3/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
6FRT4N-316 |
3/8" |
NPT Female Run Tee |
3/8" |
3/8" |
1/4" |
316 Stainless Steel |
Tube to Female Pipe |
6FSC4N-316 |
|
|
|
|
|
|
|
6FSC6N-316 |
|
|
|
|
|
|
|
6FSC8N-316 |
3/8" |
Gauge Connector |
3/8" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
6M1SC6-316 |
3/8" |
Tube Connector to SAE |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Port Connectors |
6M5SEL6-316 |
3/8" |
SAE Straight Thread Elbow |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Tube to O-Ring Seal |
6MBT4N-316 |
3/8" |
NPT Male Branch Tee |
3/8" |
3/8" |
1/4" |
316 Stainless Steel |
Tube to Male Pipe |
6MBT6N-316 |
3/8" |
NPT Male Branch Tee |
3/8" |
3/8" |
3/8" |
316 Stainless Steel |
Tube to Male Pipe |
6MRT4N-316 |
3/8" |
NPT Male Run Tee |
3/8" |
3/8" |
1/4" |
316 Stainless Steel |
Tube to Male Pipe |
6MSC12N-316 |
3/8" |
NPT Male Connector |
3/8" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSC2N-316 |
3/8" |
NPT Male Connector |
3/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSC4N-316 |
3/8" |
NPT Male Connector |
3/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSC4N-625 |
3/8" |
NPT Male Connector |
3/8" |
1/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
6MSC4N-6MO |
3/8" |
NPT Male Connector |
3/8" |
1/4" |
N/A |
6Mo |
Tube to Male Pipe |
6MSC4N-6MO-NSK |
|
|
|
|
|
|
|
6MSC4N-825 |
3/8" |
NPT Male Connector |
3/8" |
1/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
6MSC4N-B |
3/8" |
NPT Male Connector |
3/8" |
1/4" |
N/A |
Brass |
Tube to Male Pipe |
6MSC4N-NNR |
|
|
|
|
|
|
|
6MSC4N-S |
3/8" |
NPT Male Connector |
3/8" |
1/4" |
N/A |
Steel |
Tube to Male Pipe |
6MSC6N-316 |
3/8" |
NPT Male Connector |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSC6N-625 |
3/8" |
NPT Male Connector |
3/8" |
3/8" |
N/A |
Alloy 625 |
Tube to Male Pipe |
6MSC6N-6MO |
3/8" |
NPT Male Connector |
3/8" |
3/8" |
N/A |
6Mo |
Tube to Male Pipe |
6MSC6N-6MO-NSK |
|
|
|
|
|
|
|
6MSC6N-825 |
3/8" |
NPT Male Connector |
3/8" |
3/8" |
N/A |
Alloy 825 |
Tube to Male Pipe |
6MSC6N-B |
3/8" |
NPT Male Connector |
3/8" |
3/8" |
N/A |
Brass |
Tube to Male Pipe |
6MSC6N-NNR |
3/8" |
NPT Male Connector |
3/8" |
3/8" |
N/A |
Alloy C-276 |
Tube to Male Pipe |
6MSC8N-316 |
3/8" |
NPT Male Connector |
3/8" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSC8N-625 |
3/8" |
NPT Male Connector |
3/8" |
1/2" |
N/A |
Alloy 625 |
Tube to Male Pipe |
6MSC8N-6MO |
3/8" |
NPT Male Connector |
3/8" |
1/2" |
N/A |
6Mo |
Tube to Male Pipe |
6MSC8N-6MO-NSK |
|
|
|
|
|
|
|
6MSC8N-825 |
3/8" |
NPT Male Connector |
3/8" |
1/2" |
N/A |
Alloy 825 |
Tube to Male Pipe |
6MSC8N-B |
3/8" |
NPT Male Connector |
3/8" |
1/2" |
N/A |
Brass |
Tube to Male Pipe |
6MSC8N-NNR |
|
|
|
|
|
|
|
6MSEL2N-316 |
3/8" |
NPT Male Elbow |
3/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSEL4N-316 |
3/8" |
NPT Male Elbow |
3/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSEL4N-625 |
3/8" |
NPT Male Elbow |
3/8" |
1/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
6MSEL4N-6MO |
3/8" |
NPT Male Elbow |
3/8" |
1/4" |
N/A |
6Mo |
Tube to Male Pipe |
6MSEL4N-6MO-NSK |
|
|
|
|
|
|
|
6MSEL4N-825 |
3/8" |
NPT Male Elbow |
3/8" |
1/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
6MSEL4N-B |
3/8" |
NPT Male Elbow |
3/8" |
1/4" |
N/A |
Brass |
Tube to Male Pipe |
6MSEL4N-NNR |
|
|
|
|
|
|
|
6MSEL4N-S |
3/8" |
NPT Male Elbow |
3/8" |
1/4" |
N/A |
Steel |
Tube to Male Pipe |
6MSEL6N-316 |
|
|
|
|
|
|
|
-
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
6MSEL6N-B |
3/8" |
NPT Male Elbow |
3/8" |
3/8" |
N/A |
Brass |
Tube to Male Pipe |
6MSEL6N-S |
3/8" |
NPT Male Elbow |
3/8" |
3/8" |
N/A |
Steel |
Tube to Male Pipe |
6MSEL8N-316 |
3/8" |
NPT Male Elbow |
3/8" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSEL8N-625 |
3/8" |
NPT Male Elbow |
3/8" |
1/2" |
N/A |
Alloy 625 |
Tube to Male Pipe |
6MSEL8N-6MO |
3/8" |
NPT Male Elbow |
3/8" |
1/2" |
N/A |
6Mo |
Tube to Male Pipe |
6MSEL8N-6MO-NSK |
|
|
|
|
|
|
|
6MSEL8N-825 |
3/8" |
NPT Male Elbow |
3/8" |
1/2" |
N/A |
Alloy 825 |
Tube to Male Pipe |
6MSEL8N-NNR |
|
|
|
|
|
|
|
6MSEL8N-S |
3/8" |
NPT Male Elbow |
3/8" |
1/2" |
N/A |
Steel |
Tube to Male Pipe |
6NU6-316 |
3/8" |
Tube Nut |
3/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
6P2TU6-316 |
3/8" |
Push Lok to Tube Adapter |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Port Connectors |
6PC6-316 |
3/8" |
Port Connector |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Port Connectors |
6RU4-316 |
3/8" |
Reducing Union |
3/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
6RU5-316 |
3/8" |
Reducing Union |
3/8" |
5/16" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
6SC6-316 |
3/8" |
Union |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
6SC6-625 |
3/8" |
Union |
3/8" |
3/8" |
N/A |
Alloy 625 |
Tube to Tube Unions |
6SC6-6MO |
3/8" |
Union |
3/8" |
3/8" |
N/A |
6Mo |
Tube to Tube Unions |
6SC6-6MO-NSK |
|
|
|
|
|
|
|
6SC6-825 |
3/8" |
Union |
3/8" |
3/8" |
N/A |
Alloy 825 |
Tube to Tube Unions |
6SC6-B |
|
|
|
|
|
|
|
6SC6-NNR |
|
|
|
|
|
|
|
6SC6-S |
3/8" |
Union |
3/8" |
3/8" |
N/A |
Steel |
Tube to Tube Unions |
6TUR4-316 |
3/8" |
Tube End Reducer |
3/8" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
6XASC3/8MP-316 |
3/8" |
37 Flare to Compression |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
37° Flare (AN) to A-LOK? |
6XASC3/8MP-625 |
3/8" |
37 Flare to Compression |
3/8" |
3/8" |
N/A |
Alloy 625 |
37° Flare (AN) to A-LOK? |
6XASC3/8MP-6MO |
3/8" |
37 Flare to Compression |
3/8" |
3/8" |
N/A |
6Mo |
37° Flare (AN) to A-LOK? |
6XASC3/8MP-6MO-NSK |
|
|
|
|
|
|
|
6XASC3/8MP-825 |
3/8" |
37 Flare to Compression |
3/8" |
3/8" |
N/A |
Alloy 825 |
37° Flare (AN) to A-LOK? |
6XASC3/8MP-NNR |
|
|
|
|
|
|
|
6XASC6-316 |
3/8" |
37 Flare to Compression |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
37° Flare (AN) to A-LOK? |
8 ALOK-316-SET |
1/2" |
Ferrule Set |
1/2" |
N/A |
N/A |
316 Stainless Steel |
Components |
8-8-4 JLZ-SS |
1/2" |
Drop Size Tee |
1/2" |
1/2" |
1/4" |
316 Stainless Steel |
Tube to Tube Unions |
8-8-6 JLZ-SS |
1/2" |
Drop Size Tee |
1/2" |
1/2" |
3/8" |
316 Stainless Steel |
Tube to Tube Unions |
8BC8-316 |
1/2" |
Bulkhead Union |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
8BC8-625 |
1/2" |
Bulkhead Union |
1/2" |
1/2" |
N/A |
Alloy 625 |
Tube to Tube Unions |
8BC8-6MO |
1/2" |
Bulkhead Union |
1/2" |
1/2" |
N/A |
6Mo |
Tube to Tube Unions |
8BC8-6MO-NSK |
|
|
|
|
|
|
|
8BC8-825 |
1/2" |
Bulkhead Union |
1/2" |
1/2" |
N/A |
Alloy 825 |
Tube to Tube Unions |
8BC8-NNR |
|
|
|
|
|
|
|
8BF8-316 |
1/2" |
Back Ferrule |
1/2" |
N/A |
N/A |
316 Stainless Steel |
Components |
8BLEN8-316 |
1/2" |
Cap |
1/2" |
N/A |
N/A |
316 Stainless Steel |
Components |
8BLEN8-625 |
1/2" |
Cap |
1/2" |
N/A |
N/A |
Alloy 625 |
Components |
8BLEN8-6MO |
1/2" |
Cap |
1/2" |
N/A |
N/A |
6Mo |
Components |
8BLEN8-6MO-NSK |
|
|
|
|
|
|
|
8BLEN8-6MONC |
|
|
|
|
|
|
|
8BLEN8-825 |
1/2" |
Cap |
1/2" |
N/A |
N/A |
Alloy 825 |
Components |
8BLEN8-NNR |
|
|
|
|
|
|
|
8BLP8-316 |
1/2" |
Plug |
1/2" |
N/A |
N/A |
316 Stainless Steel |
Components |
8BLP8-625 |
1/2" |
Plug |
1/2" |
N/A |
N/A |
Alloy 625 |
Components |
8BLP8-6MO |
1/2" |
Plug |
1/2" |
N/A |
N/A |
6Mo |
Components |
|
fcg.cnmec@parkerdistribution.com.cn
