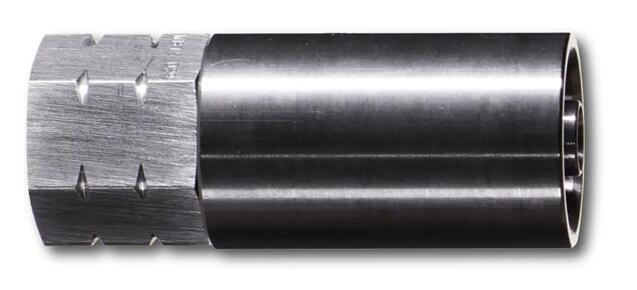

Crimped Thermoplastic UHP Hose Fittings, 8X Series

Parker Polyflex High Pressure 8X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for hydraulic hose types with working pressure from 42 up to 103.4 MPa





Parker Polyflex High Pressure 8X Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.



Crimped Thermoplastic UHP Hose Fittings, 8X Series



Markets:
- Industrial
- Oil & Gas
- Construction machinery
- Mining

Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.

Applications:
- High pressure applications where non-conductivity is required
- Construction and shipbuilding industry
- Industrial cleaning
- Media transfer
- Industrial hydraulics (high kink resistance and high flexibility for hydraulic tools, straightening benches, clamps)
- Hydraulic applications in mining environment
- Suitable for hydraulic hose types with working pressure from 42 up to 103.4 MPa (6090 up to 15000 psi)



Technical Specifications

Nominal Hose Inside Diameter: 4, 10, 12, 6, 8 mm
Hose I.D. (size): -25, -6, -8, -4, -5
Hose Inside Diameter: 5/32, 3/8, 1/2, 1/4, 5/16 inch
Connection Type: NPT, UNF, NPSM, Metric, BSP, UNF - LH
Length: 51, 59, 71, 76, 79, 60, 65, 67, 61, 70, 74, 77, 83, 62, 55, 57, 56, 64, 50, 81, 96, 95, 78, 85, 69, 87, 48, 63, 49, 52, 54, 58, 108,2, 59,5 mm, 2, 2,3, 2,8, 3, 3,1, 2,4, 2,6, 2,9, 3,3, 2,2, 2,5, 3,2, 3,8, 3,7, 2,7, 3,4, 1,9, 2,1, 4,3 inch
Maximum Operating Pressure: 2, 2,3, 2,8, 3, 3,1, 2,4, 2,6, 2,9, 3,3, 2,2, 2,5, 3,2, 3,8, 3,7, 2,7, 3,4, 1,9, 2,1, 4,3 psi
Shape: Straight, 45° Elbow, 90° Elbow



Crimped Thermoplastic UHP Hose Fittings, 8X Series 型号

Part Maximum Working Pressure (MPa) Hose I.D. (mm) Fitting Type Connection Thread Size (inch) Connection Thread Size (mm) Style Material
1018X-2-025 75 4 1 1/8 NA NPT male Carbon steel, zinc plated
1018X-2-04 103.4 6.4 1 1/8 NA National Pipe Tapered (NPT) male Carbon steel, zinc plated
1018X-4-025 75 4 1 1/4 NA NPT male Carbon steel, zinc plated
1018X-4-04 103.4 6.4 1 1/4 NA National Pipe Tapered (NPT) male Carbon steel, zinc plated
1018X-4-04C 103.4 6.4 1 1/4 NA National Pipe Tapered (NPT) male Stainless steel
1018X-4-04ZE 103.4 6.4 1 1/4 NA National Pipe Tapered (NPT) male Carbon steel, zinc plated
1018X-6-04 103.4 6.4 1 3/8 NA National Pipe Tapered (NPT) male Carbon steel, zinc plated
1018X-6-04C 103.4 6.4 1 3/8 NA National Pipe Tapered (NPT) male Stainless steel
1018X-6-04ZE 103.4 6.4 1 3/8 NA National Pipe Tapered (NPT) male Carbon steel, zinc plated
1018X-6-05 103.4 7.9 1 3/8 NA National Pipe Tapered (NPT) male Carbon steel, zinc plated
1018X-6-05C 103.4 7.9 1 3/8 NA National Pipe Tapered (NPT) male Stainless steel
1018X-6-06 103.4 9.5 1 3/8 NA NPT male Carbon steel, zinc plated
1018X-6-06C 103.4 9.5 1 3/8 NA National Pipe Tapered (NPT) male Stainless steel
1018X-8-06 103.4 9.5 1 1/2 NA NPT male Carbon steel, zinc plated
1018X-8-06C 103.4 9.5 1 1/2 NA National Pipe Tapered (NPT) male Stainless steel
1018X-8-08 103.4 12.7 1 1/2 NA NPT male Carbon steel, zinc plated
1018X-8-08C 103.4 12.7 1 1/2 NA National Pipe Tapered (NPT) male Stainless steel
1058X-4-04 80 6.4 5 7/16 - 20 NA UNF male with O-ring Special materials
1058X-6-04 80 6.4 5 9/16 - 18 NA UNF male with O-ring Special materials
1068X-10-08 69 12.7 6 7/8 - 14 NA JIC female swivel Carbon steel, zinc plated, C: Stainless steel
1068X-4-04 69 6.4 6 7/16 - 20 NA JIC female swivel Carbon steel, zinc plated, C: Stainless steel
1068X-4-04C 69 6.4 6 7/16 - 20 NA JIC female swivel Stainless steel
1068X-5-04 80 6.4 6 1/2 - 20 NA JIC female swivel Carbon steel, zinc plated, C: Stainless steel
1068X-5-04C 80 6.4 6 1/2 - 20 NA JIC female swivel Stainless steel
1068X-6-04 80 6.4 6 9/16 - 18 NA JIC female swivel Carbon steel, zinc plated, C: Stainless steel
1068X-6-04C 80 6.4 6 9/16 - 18 NA JIC female swivel Stainless steel
1068X-6-05 69 7.9 6 9/16 - 18 NA JIC female swivel Carbon steel, zinc plated, C: Stainless steel
1068X-6-05C 69 7.9 6 9/16 - 18 NA JIC female swivel Stainless steel
1068X-6-06 69 9.5 6 9/16 - 18 NA JIC female swivel Carbon steel, zinc plated, C: Stainless steel
1068X-6-06C 69 9.5 6 9/16 - 18 NA JIC female swivel Stainless steel
1068X-8-06 69 9.5 6 3/4 - 16 NA JIC female swivel Carbon steel, zinc plated, C: Stainless steel
1068X-8-06C 69 NA 6 3/4 - 16 NA JIC female swivel fitting Stainless steel
1068X-8-08 69 12.7 6 3/4 - 16 NA JIC female swivel Carbon steel, zinc plated, C: Stainless steel
1068X-8-08C 69 12.7 6 3/4 - 16 NA JIC female swivel Stainless steel
1078X-4-04 80 6.4 7 1/4 - 18 NA NPSM female swivel Carbon steel, zinc plated
1078X-4-04C2W 80 6.4 7 1/4 - 18 NA NPSM female swivel Stainless steel nipple
1078X-6-06 57.5 9.5 7 3/8 - 18 NA NPSM female swivel Carbon steel, zinc plated
1078X-6-06C2W 57.5 9.5 7 3/8 - 18 NA NPSM female swivel Carbon steel, zinc plated stainless steel nipple (material 1.4301)
1078X-8-08 55 12.7 7 1/2 - 14 NA NPSM female swivel Carbon steel, zinc plated
10C8X-12-06 63 9.5 0C NA 20x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
10C8X-14-06 63 9.5 0C NA 22x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
10C8X-16-08 63 12.7 0C NA 24x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
11C8X-14-06 63 9.5 1C NA 22x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
11C8X-16-08 63 12.7 1C NA 24x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
13B8X-4-025 75 4 3B 1/4 NA BSP male Carbon steel, zinc plated
13B8X-4-04 80 6.4 3B 1/4 NA BSP male Carbon steel, zinc plated
13B8X-6-04 80 6.4 3B 3/8 NA BSP male Carbon steel, zinc plated
13B8X-6-05 62.5 7.9 3B 3/8 NA BSP male Carbon steel, zinc plated
13B8X-6-06 57.5 9.5 3B 3/8 NA BSP male Carbon steel, zinc plated
13B8X-8-06 57.5 9.5 3B 1/2 NA BSP male Carbon steel, zinc plated
13B8X-8-08 55 12.7 3B 1/2 NA BSP male Carbon steel, zinc plated
1928X-4-025 75 4 92 1/4 NA BSP female swivel (60° cone) Carbon steel, zinc plated
1928X-4-04 80 6.4 92 1/4 NA BSP female swivel (60° cone) Carbon steel, zinc plated
1928X-4-04C 80 6.4 92 1/4 NA BSP female swivel (60° cone) Stainless steel
1928X-6-06 57.5 9.5 92 3/8 NA BSP female swivel (60° cone) Carbon steel, zinc plated
1928X-6-06C 57.5 9.5 92 3/8 NA BSP female swivel (60° cone) Stainless steel
1928X-8-06 57.5 9.5 92 1/2 NA BSP female swivel (60° cone) Carbon steel, zinc plated
1928X-8-06C 57.5 9.5 92 1/2 NA BSP female swivel (60° cone) Stainless steel
1928X-8-08 55 12.7 92 1/2 NA BSP female swivel (60° cone) Carbon steel, zinc plated
1AY8X-6-04 80 6.4 AY 9/16 - 18 NA Type ?M? female swivel Carbon steel, zinc plated
1AY8X-6-04C 103.5 NA AY 9/16 - 18 NA Type ?M? female swivel fitting Stainless steel
1C38X-12-06 57.5 9.5 C3 NA 18x1.5 Metric female swivel light series Carbon steel, zinc plated
1C38X-15-08 55 12.7 C3 NA 22x1.5 Metric female swivel light series Carbon steel, zinc plated
1C68X-16-08 55 12.7 C6 NA 24x1.5 Metric female swivel heavy series Carbon steel, zinc plated
1C98X-10-04 80 6.4 C9 NA 18x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
1C98X-10-04C 80 6.4 C9 NA 18x1.5 Metric female swivel heavy series with O-ring Stainless steel
1C98X-12-04 80 6.4 C9 NA 20x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
1C98X-12-05 63 7.9 C9 NA 20x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
1C98X-12-06 63 9.5 C9 NA 20x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
1C98X-12-06C 63 9.5 C9 NA 20x1.5 Metric female swivel heavy series with O-ring Stainless steel
1C98X-14-06 63 9.5 C9 NA 22x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
1C98X-14-06C 63 9.5 C9 NA 22x1.5 Metric female swivel heavy series with O-ring Stainless steel
1C98X-16-08 63 12.7 C9 NA 24x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
1C98X-8-025 75 4 C9 NA 16x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
1C98X-8-025C 75 4 C9 NA 16x1.5 Metric female swivel heavy series with O-ring Stainless steel
1C98X-8-04 80 6.4 C9 NA 16x1.5 Metric female swivel heavy series with O-ring Carbon steel, zinc plated
1C98X-8-04C 69 6.4 C9 NA 16x1.5 Metric female swivel heavy series with O-ring Stainless steel
1D28X-14-06 63 9.5 D2 NA 22x1.5 Metric male heavy series Carbon steel, zinc plated
1D28X-16-08 63 12.7 D2 NA 24x1.5 Metric male heavy series Carbon steel, zinc plated
1D98X-4-04 80 6.4 D9 1/4 NA BSP male Carbon steel, zinc plated
1D98X-4-04C 80 6.4 D9 1/4 NA BSP male Stainless steel
1D98X-6-04 80 6.4 D9 3/8 NA BSP male Carbon steel, zinc plated
1D98X-6-06 575 9.5 D9 3/8 NA BSP male Carbon steel, zinc plated
1U08X-4-04 80 6.4 U0 1/4 NA BSP female swivel (ballnose) Carbon steel, zinc plated
1U08X-4-04C2W 80 6.4 U0 1/4 NA BSP female swivel (ballnose) Stainless steel nipple
1U08X-6-04 80 6.4 U0 3/8 NA BSP female swivel (ballnose) Carbon steel, zinc plated
1U08X-6-04C2W 80 6.4 U0 3/8 NA BSP female swivel (ballnose) Stainless steel nipple
1U08X-6-05 62.5 7.9 U0 3/8 NA BSP female swivel (ballnose) Carbon steel, zinc plated
1U08X-6-06 57.5 9.5 U0 3/8 NA BSP female swivel (ballnose) Carbon steel, zinc plated
1U08X-8-06 53.5 9.5 U0 1/2 NA BSP female swivel (ballnose) Carbon steel, zinc plated
1U08X-8-06C2W 53.5 9.5 U0 1/2 NA BSP female swivel (ballnose) Stainless steel nipple
1U08X-8-08 55 12.7 U0 1/2 NA BSP female swivel (ballnose) Carbon steel, zinc plated
1Y28X-6-04C 138 NA Y2 3/8 - 24 NA Medium pressure tube nipple Stainless steel
