Hose Fittings

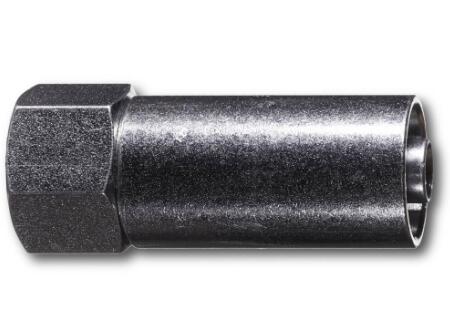

Crimped Thermoplastic Hydraulic Hose Fittings, 9X Series

Parker 9X Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for hose type 2370N.





Parker 9X Fittings are designed to perfectly connect with the respective Parker hoses, ensuring an ideal combination. Our hose assemblies serve our customers needs reliably and efficiently.



Markets:
- Industrial
- Material handling

Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.

Applications:
- Mobile hydraulics
- Industrial hydraulics
- Industrial gases
- Media transfer due to the polyamide core tube
- High pressure paint spray
- Suitable for 2370N hose type with working pressure from 25 up to 63 MPa (3625 up to 9140 psi)





Technical Specifications

Nominal Hose Inside Diameter: DN10, 12
Hose I.D. (size): -6, -8, 6
Hose Inside Diameter: 3/8, 1/2 inch
Tube Outside Diameter: NA, 14, 16, 12, 15 mm, NA
Length: 59, 62, 81, 96, 75, 71, 85, 60, 63, 48, 51, 78, 74 mm, 2,3, 2,4, 3,2, 3,8, 3, 2,8, 3,3, 2,5, 1,9, 2, 3,1, 2,9 inch
Fitting Type: 06, 0C, 1C, 92, C3, C9, D2
Materials of Construction: Galvanised steel



Crimped Thermoplastic Hydraulic Hose Fittings, 9X Series 型号

Part Maximum Working Pressure (MPa) Style Hose I.D. (mm) Shape Connection Thread Size (inch) Connection Thread Size (mm) Thread Type
1069X-10-08 34.5 SAE (JIC) 37° female swivel 12.7 Straight 7/8 - 14 NA UNF
1069X-6-06 34.5 SAE (JIC) 37° female swivel 9.5 Straight 9/16 - 18 NA UNF
1069X-8-06 34.5 SAE (JIC) 37° female swivel 9.5 Straight 3/4 - 16 NA UNF
10C9X-14-06 63 Metric female swivel 24° with O-ring 9.5 45° Elbow NA 22x1.5 Metric
10C9X-16-08 42 Metric female swivel 24° with O-ring 12.7 45° Elbow NA 24x1.5 Metric
11C9X-12-06 63 Metric female swivel 24° with O-ring 9.5 90° Elbow NA 20x1,5 Metric
11C9X-14-06 63 Metric female swivel 24° with O-ring 9.5 90° Elbow NA 22x1.5 Metric
11C9X-16-08 42 Metric female swivel 24° with O-ring 12.7 90° Elbow NA 24x1.5 Metric
1929X-6-06 55 BSP female swivel 60° cone 9.5 Straight 3/8 NA BSP
1929X-8-08 43 BSP female swivel 60° cone 12.7 Straight 1/2 NA BSP
1C39X-12-06 25 Metric female swivel 24°/60° 9.5 Straight NA 18x1.5 Metric
1C39X-15-08 25 Metric female swivel 24°/60° 12.7 Straight NA 22x1.5 Metric
1C99X-12-06 63 Metric female swivel 24° with O-ring 9.5 Straight NA 20x1.5 Metric
1C99X-14-06 63 Metric female swivel 24° with O-ring 9.5 Straight NA 22x1.5 Metric
1C99X-16-08 42 Metric female swivel 24° with O-ring 12.7 Straight NA 24x1.5 Metric
1D29X-14-06 63 Metric male 24° 9.5 Straight NA 22x1.5 Metric
1D29X-16-08 42 Metric male 24° 12.7 Straight NA 24x1.5 Metric
