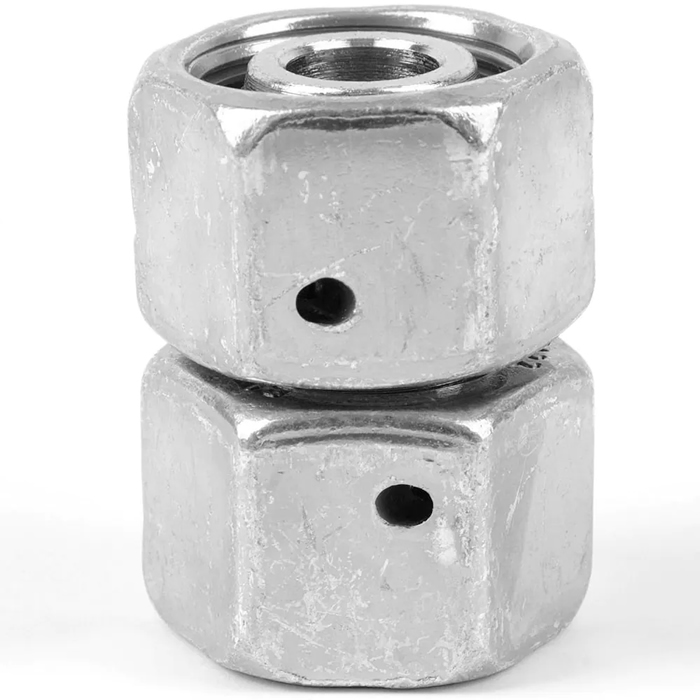

Ermeto DIN swivel to swivel high pressure hydraulic tube fittings
Parker 派克Ermeto DIN 可调向旋转高压液压管接头
Parker 派克Ermeto DIN 可调向高压液压管接头的主要功能是连接 2 根管子或软管。这种广泛的配件有无铬 (VI) 表面的钢和不锈钢。Ermeto DIN旋转对旋转高压液压管接头的主要功能是连接2根相同或不同直径的管子或软管。范围广泛的 Ermeto DIN 旋转到旋转高压液压管接头，GZ 和 GZR 型，提供无铬 (VI) 表面的钢和不锈钢版本。Parker 派克Ermeto DIN 可调向旋转高压液压管接头适用于一般液压应用。Parker 派克Ermeto DIN 可调向旋转高压液压管接头特性/优点：- 高耐腐蚀性：不含六价铬的表面处理使白锈的平均耐腐蚀性能超过 500 小时。此属性可延长配件的生命周期。- 不锈钢表面：Ermeto DIN 旋转对旋转高压液压管接头，不锈钢版本，对腐蚀性介质和环境影响具有高耐腐蚀性，并且比钢具有更高的耐温性。这些功能扩展了应用范围。- 高压：Ermeto DIN 可调向高压液压管接头具有高达 800 bar（S 系列）和 500 bar（L 系列）的压力等级，因此该接头可用于广泛的应用。
Parker 派克Ermeto DIN 可调向旋转高压液压管接头
Ermeto DIN swivel to swivel high pressure hydraulic tube fittings
市场：
- 汽车
- 国防
- 能源
- 环境
- 工业
- 基础设施
- 机床
- 材料处理
- 移动
- 石油和天然气
- 发电
- 过程
- 运输
- 水
应用：
- 适用于一般液压应用。
特性/优点：
- 高耐腐蚀性：不含六价铬的表面处理使白锈的平均耐腐蚀性能超过 500 小时。此属性可延长配件的生命周期。
- 不锈钢表面：Ermeto DIN 旋转对旋转高压液压管接头，不锈钢版本，对腐蚀性介质和环境影响具有高耐腐蚀性，并且比钢具有更高的耐温性。这些功能扩展了应用范围。
- 高压：Ermeto DIN 可调向高压液压管接头具有高达 800 bar（S 系列）和 500 bar（L 系列）的压力等级，因此该接头可用于广泛的应用。
The main function of Ermeto DIN swivel-to-swivel high pressure hydraulic tube fittings is the connection of 2 tubes or hoses with the same or different diameters. This broad range of Ermeto DIN swivel-to-swivel high pressure hydraulic tube fittings, types GZ and GZR is available in steel with Cr(VI)-free surfaces and in a stainless steel version.
The main function of Ermeto DIN swivel-to-swivel high pressure hydraulic tube fittings is the connection of 2 tubes or hoses. This broad range of fittings is available in steel with Cr(VI)-free surfaces and in stainless steel.
| Connection 1 Tube Outside Diameter: |
06-42 mm |
| Connection 2 Tube Outside Diameter: |
06-42 mm |
| Connection 1 Size: |
EO 24° DKO swivel |
| Connection 2 Size: |
EO 24° DKO swivel |
| Product Series: |
Light, Heavy, Light/Heavy, Heavy/Light |
| Shape: |
Swivel nut straight, Swivel nut straight reducer |
| Tube Outside Diameter: |
6-42 mm |
| Maximum Operating Temperature: |
+250 Steel, +400 Stainless Steel °C, +482 Steel, +752 Stainless Steel °F |
| Maximum Operating Pressure: |
160-800 bar, 16-80 MPa, 2321-11603 psi |
| Minimum Operating Temperature: |
-40 (Steel); -60 (Stainless Steel) °C, -40 Steel, -76 Stainless Steel °F |
|
| Application: |
Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation |
| Connection Type: |
Bite Type, Soft Seal Bite Type |
| Specifications Met: |
DIN ISO 8434 |
| Materials of Construction: |
Steel zinc plated (CrVI-free), Stainless steel |
Markets:
- Automotive
- Defence
- Energy
- Environment
- Industrial
- Infrastructure
- Machine Tools
- Materials Handling
- Mobile
- Oil and Gas
- Power Generation
- Process
- Transportation
- Water
Applications:
- Suitable for general hydraulic applications.
Features/ benefits:
- High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fittings.
- Stainless steel surface: Ermeto DIN swivel-to-swivel high pressure hydraulic tube fittings , stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications.
- High pressure: Ermeto DIN swivel-to-swivel high pressure hydraulic tube fittings have pressure ratings of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications.
Related Documents
Communities, Blogs, and Industry Links
ACS
Literature and Reference Materials
CAT-4100-UK - Industrial Tube Fittings
Compliance, Certifications, & Safety
ISO 9001:2015 EN Locations WB, SH, AUG and PL--12 100 36356 TMS
ISO 9001:2015 Zertifikat für Location Schlo?-Holte--12 100 36356/02
ISO 9001:2015 Zertifikat für Location Siechnice--12 100 36356/04
ISO 9001:2015 Zertifikat für Location Windelsbleiche--12 100 36356/01
Ermeto DIN swivel to swivel high pressure hydraulic tube fittings
Part |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Shape |
Fitting Material |
GZ06L71 |
Light |
24° DKO swivel |
24° DKO swivel |
6 |
6 |
Swivel nut straight |
Stainless steel |
GZ06LCF |
Light |
24° DKO swivel |
24° DKO swivel |
6 |
6 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ06S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
6 |
6 |
Swivel nut straight |
Stainless steel |
GZ06SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
6 |
6 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ08L71 |
Light |
24° DKO swivel |
24° DKO swivel |
8 |
8 |
Swivel nut straight |
Stainless steel |
GZ08LCF |
Light |
24° DKO swivel |
24° DKO swivel |
8 |
8 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ08S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
8 |
8 |
Swivel nut straight |
Stainless steel |
GZ08SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
8 |
8 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ10L71 |
Light |
24° DKO swivel |
24° DKO swivel |
10 |
10 |
Swivel nut straight |
Stainless steel |
GZ10LCF |
Light |
24° DKO swivel |
24° DKO swivel |
10 |
10 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ10S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
10 |
10 |
Swivel nut straight |
Stainless steel |
GZ10SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
10 |
10 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ12L71 |
Light |
24° DKO swivel |
24° DKO swivel |
12 |
12 |
Swivel nut straight |
Stainless steel |
GZ12LCF |
Light |
24° DKO swivel |
24° DKO swivel |
12 |
12 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ12S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
12 |
12 |
Swivel nut straight |
Stainless steel |
GZ12SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
12 |
12 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ14S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
14 |
14 |
Swivel nut straight |
Stainless steel |
GZ14SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
14 |
14 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ15L71 |
Light |
24° DKO swivel |
24° DKO swivel |
15 |
15 |
Swivel nut straight |
Stainless steel |
GZ15LCF |
Light |
24° DKO swivel |
24° DKO swivel |
15 |
15 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ16S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
16 |
16 |
Swivel nut straight |
Stainless steel |
GZ16SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
16 |
16 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ18L71 |
Light |
24° DKO swivel |
24° DKO swivel |
18 |
18 |
Swivel nut straight |
Stainless steel |
GZ18LCF |
Light |
24° DKO swivel |
24° DKO swivel |
18 |
18 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ20S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
20 |
20 |
Swivel nut straight |
Stainless steel |
GZ20SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
20 |
20 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ22L71 |
Light |
24° DKO swivel |
24° DKO swivel |
22 |
22 |
Swivel nut straight |
Stainless steel |
GZ22LCF |
Light |
24° DKO swivel |
24° DKO swivel |
22 |
22 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ25S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
25 |
25 |
Swivel nut straight |
Stainless steel |
GZ25SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
25 |
25 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ28L71 |
Light |
24° DKO swivel |
24° DKO swivel |
28 |
28 |
Swivel nut straight |
Stainless steel |
GZ28LCF |
Light |
24° DKO swivel |
24° DKO swivel |
28 |
28 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ30S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
30 |
30 |
Swivel nut straight |
Stainless steel |
GZ30SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
30 |
30 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ35L71 |
Light |
24° DKO swivel |
24° DKO swivel |
35 |
35 |
Swivel nut straight |
Stainless steel |
GZ35LCF |
Light |
24° DKO swivel |
24° DKO swivel |
35 |
35 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ38S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
38 |
38 |
Swivel nut straight |
Stainless steel |
GZ38SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
38 |
38 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZ42L71 |
Light |
24° DKO swivel |
24° DKO swivel |
42 |
42 |
Swivel nut straight |
Stainless steel |
GZ42LCF |
Light |
24° DKO swivel |
24° DKO swivel |
42 |
42 |
Swivel nut straight |
Steel, Chromium-6 Free |
GZR06L/06SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
6 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR08/06LCF |
Light |
24° DKO swivel |
24° DKO swivel |
8 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR08/06SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
8 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR08L/08SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
8 |
8 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR10/06SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
10 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR10/08LCF |
Light |
24° DKO swivel |
24° DKO swivel |
10 |
8 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR10/08SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
10 |
8 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR10/106LCF |
Light |
24° DKO swivel |
24° DKO swivel |
10 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR10L/10SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
10 |
10 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR12/06LCF |
Light |
24° DKO swivel |
24° DKO swivel |
12 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
Part |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Shape |
Fitting Material |
GZR12/06SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
12 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR12/08LCF |
Light |
24° DKO swivel |
24° DKO swivel |
12 |
8 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR12/08SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
12 |
8 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR12/10LCF |
Light |
24° DKO swivel |
24° DKO swivel |
12 |
10 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR12/10SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
12 |
10 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR12L/12S |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
12 |
12 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR15/08LCF |
Light |
24° DKO swivel |
24° DKO swivel |
15 |
8 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR15/10LCF |
Light |
24° DKO swivel |
24° DKO swivel |
15 |
10 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR15/12LCF |
Light |
24° DKO swivel |
24° DKO swivel |
15 |
12 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR16/10SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
16 |
10 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR16/12SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
16 |
12 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR16S/15LCF |
Heavy/Light |
24° DKO swivel |
24° DKO swivel |
16 |
15 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR18/10LCF |
Light |
24° DKO swivel |
24° DKO swivel |
18 |
10 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR18/12LCF |
Light |
24° DKO swivel |
24° DKO swivel |
18 |
12 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR18/15LCF |
Light |
24° DKO swivel |
24° DKO swivel |
18 |
15 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR18L/16SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
18 |
16 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR20/12SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
20 |
12 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR20/16SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
20 |
16 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR20S/18LCF |
Heavy/Light |
24° DKO swivel |
24° DKO swivel |
20 |
18 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR22/12LCF |
Light |
24° DKO swivel |
24° DKO swivel |
22 |
12 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR22/15LCF |
Light |
24° DKO swivel |
24° DKO swivel |
22 |
15 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR22/18LCF |
Light |
24° DKO swivel |
24° DKO swivel |
22 |
18 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR22L/20SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
22 |
20 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR25/16SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
25 |
16 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR25S/22LCF |
Heavy/Light |
24° DKO swivel |
24° DKO swivel |
25 |
22 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR28/15LCF |
Light |
24° DKO swivel |
24° DKO swivel |
28 |
15 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR28/18LCF |
Light |
24° DKO swivel |
24° DKO swivel |
28 |
18 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR28/22LCF |
Light |
24° DKO swivel |
24° DKO swivel |
28 |
22 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR28L/25SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
28 |
25 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR30/16SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
30 |
16 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR30/20SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
30 |
20 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR30/25SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
30 |
25 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR30S/28LCF |
Heavy/Light |
24° DKO swivel |
24° DKO swivel |
30 |
28 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR35/18LCF |
Light |
24° DKO swivel |
24° DKO swivel |
35 |
18 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR35/22LCF |
Light |
24° DKO swivel |
24° DKO swivel |
35 |
22 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR35/28LCF |
Light |
24° DKO swivel |
24° DKO swivel |
35 |
28 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR35L/30S |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
35 |
30 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR38/20SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
38 |
20 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR38/25SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
38 |
25 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR38/30SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
38 |
30 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR38S/35LCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
38 |
35 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR42/22LCF |
Light |
24° DKO swivel |
24° DKO swivel |
42 |
22 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR42/28LCF |
Light |
24° DKO swivel |
24° DKO swivel |
42 |
28 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR42/35LCF |
Light |
24° DKO swivel |
24° DKO swivel |
42 |
35 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
GZR42L/38SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
42 |
38 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
|
fcg.cnmec@parkerdistribution.com.cn
