PL Nickel-Plated Brass Spigot Fittings

This range of Parker Legris has a sealing system which guarantees excellent sealing and full flow.
PL fittings for flexible tubing are fully re-usable. They provide excellent compatibility with a wide variety of fluids.





This range of Parker Legris has a sealing system which guarantees excellent sealing and full flow.

PL fittings for flexible tubing are fully re-usable. They provide excellent compatibility with a wide variety of fluids.

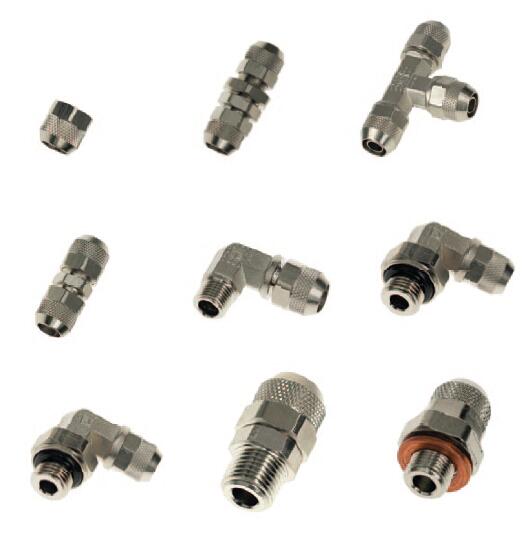

PL Nickel-Plated Brass Spigot Fittings



Features/Benefits:

- Rapid Assembly

- Nut design allows hand tightening with soft tubing (PU, Pe etc.)
- Quick to assemble and disassemble
- Compatible with all flexible tubes of hardness up to 90 shore A (polyurethane, polyamide, polyethylene, fluoropolymers, etc.)
- Mechanical stop on the body to prevent overtightening

- Performance

- Special spigot design ensures full flow and excellent tensile performance
- Reliable direct sealing system without the use of a seal or olive
- Low and medium pressure
- Nickel-plated for increased corrosion resistance


Markets:

- Food and Beverage
- Coating / Ink / Paint
- Miscellaneous Manufacturing
- Industrial Chemical Processing
- Lab / Diagnostic
- Rail

Applications:

- Low Pressure Pneumatic Machinery Equipment
- Suitable for Very Low and High Temperatures


Product Types:

- Stud Fitting, Male NPT Thread
- Stud Fitting, Male BSPT Thread
- Stud Fitting, Male BSPP Thread
- Stud Fitting, Male Metric Straight Thread
- Stud Elbow, Male NPT Thread
- Stud Elbow, Male BSPT Thread
- Stud Elbow, Male BSPP Thread
- Stud Elbow, Male Metric Straight Thread
- Stud Run Tee, Male NPT Thread
- Stud Run Tee, Male BSPT Thread
- Stud Branch Tee, Male NPT Thread
- Branch Tee, Male BSPT Thread
- Single Banjo, Male BSPP Thread
- Equal Tube-to-Tube Connector
- Equal Tee
- Equal Bulkhead Connector
- Nut

Technical Characteristics:

- Fluids: Compressed air, other fluids: contacts us
- Materials: nickel-plated brass, silicone free
- Pressure: Vacuum to 40 bar
- Temperature: -40°C to +100°C

Technologies:

- Compression fittings
- Connects to flexible tubing
- Pneumatic fittings
- Spigot fitting
- Stud fitting



Technical Specifications

Minimum Operating Temperature: -40 °C, -40 °F
Maximum Operating Pressure: 4 MPa, 40 bar, 580 psi
Maximum Operating Temperature: 100 °C, 212 °F
Tube Outside Diameter: 4 to 12 mm
Tube Inside Diameter: 2,7 to 10 mm
Connection Type: Compression
Application: Food & Beverage, Pneumatics, Automotive Process, Chemical Transfert, Compressed Air/Inert Gas, Vaccum
Materials of Construction: Nickel Plated Brass, Rubber
Shape: Straight, 90°, Tee
Weight: 0,009 to 0,096 kg



PL Nickel-Plated Brass Spigot Fittings型号

Part Shape Connection 1 Thread Style Connection 1 Thread Size (metric) Connection 1 Tube O.D. (mm)
BPL10M Brass nut na M13x1 7.5x10
BPL4M Brass nut na M6x0.75 2.7x4
BPL6M Brass nut na M9x0.75 4x6
BPL8M Brass nut na M11x0.75 6x8
C3BPL10/12-3/8 Male stud elbow fixed 90° thread BSPT R3/8 10x12
C3BPL11/14-3/8 Male stud elbow fixed 90° thread BSPT R3/8 11x14
C3BPL2.7/4-1/8 Male stud elbow fixed 90° thread BSPT R1/8 2.7x4
C3BPL4/6-1/4 Male stud elbow fixed 90° thread BSPT R1/4 4x6
C3BPL4/6-1/8 Male stud elbow fixed 90° thread BSPT R1/8 4x6
C3BPL6/8-1/4 Male stud elbow fixed 90° thread BSPT R1/4 6x8
C3BPL6/8-1/8 Male stud elbow fixed 90° thread BSPT R1/8 6x8
C3BPL6/8-3/8 Male stud elbow fixed 90° thread BSPT R3/8 6x8
C3BPL7.5/10-1/4 Male stud elbow fixed 90° thread BSPT R1/4 7.5x10
C3BPL7.5/10-3/8 Male stud elbow fixed 90° thread BSPT R3/8 7.5x10
C3BPL8/10-1/4 Male stud elbow fixed 90° thread BSPT R1/4 8x10
C3BPL8/10-3/8 Male stud elbow fixed 90° thread BSPT R3/8 8x10
C4BPL6/8-1/4 Male stud elbow adjustable 90° thread BSPP G1/4 6x8
C8BPL6/8M10 Male stud elbow adjustable 90° thread Metric M10x1 6x8
C8BPL6/8M12 Male stud elbow adjustable 90° thread Metric M12x1 6x8
COR4BPL4/6-1/4 Male stud single banjo thread BSPP G1/4 4x6
COR4BPL4/6-1/8 Male stud single banjo thread BSPP G1/8 4x6
COR4BPL6/8-1/8 Male stud single banjo thread BSPP G1/8 6x8
F3BPL10/12-3/8 Male stud fitting thread BSPT R3/8 10x12
F3BPL11/14-3/8 Male stud fitting thread BSPT R3/8 11x14
F3BPL2.7/4-1/8 Male stud fitting thread BSPT R1/8 2.7x4
F3BPL4/6-1/4 Male stud fitting thread BSPT R1/4 4x6
F3BPL4/6-1/8 Male stud fitting thread BSPT R1/8 4x6
F3BPL6/8-1/4 Male stud fitting thread BSPT R1/4 6x8
F3BPL6/8-1/8 Male stud fitting thread BSPT R1/8 6x8
F3BPL6/8-3/8 Male stud fitting thread BSPT R3/8 6x8
F3BPL7.5/10-1/4 Male stud fitting thread BSPT R1/4 7.5x10
F3BPL7.5/10-3/8 Male stud fitting thread BSPT R3/8 7.5x10
F3BPL8/10-1/4 Male stud fitting thread BSPT R1/4 8x10
F3BPL8/10-3/8 Male stud fitting thread BSPT R3/8 8x10
F4BPL4/6-1/8 Male stud fitting thread BSPP G1/8 4x6
F4BPL6/8-1/4 Male stud fitting thread BSPP G1/4 6x8
F8BPL6/8M10 Male stud fitting thread Metric M10x1 6x8
F8BPL6/8M12 Male stud fitting thread Metric M12x1.25 6x8
HBPL10/12 Tube / tube connector na na 10x12
HBPL11/14 Tube / tube connector na na 11x14
HBPL2.7/4 Tube / tube connector na na 2.7x4
HBPL4/6 Tube / tube connector na na 4x6
HBPL6/8 Tube / tube connector na na 6x8
HBPL8/10 Tube / tube connector na na 8x10
JBPL4/6 Tee tube / tube na na 4x6
JBPL6/8 Tee tube / tube na na 6x8
JBPL7.5/10 Tee tube / tube na na 7.5x10
R3BLP6/8-1/4 Male stud run tee fixed thread BSPT R1/4 6x8
R3BPL4/6-1/4 Male stud run tee fixed thread BSPT R1/4 4x6
R3BPL4/6-1/8 Male stud run tee fixed thread BSPT R1/8 4x6
RBLP6/8-1/4 Male stud run tee fixed thread NPT NPT1/4 6x8
S3BLP6/8-1/4 Male stud branch tee fixed thread BSPT R1/4 6x8
S3BPL4/6-1/4 Male stud branch tee fixed thread BSPT R1/4 4x6
S3BPL4/6-1/8 Male stud branch tee fixed thread BSPT R1/8 4x6
S3BPL6/8-1/8 Male stud branch tee fixed thread BSPT R1/8 6x8
WBPL10/12 Bulkhead connector tube / tube na M15x1.25 10x12
WBPL4/6 Bulkhead connector tube / tube na M9x0.75 4x6
WBPL6/8 Bulkhead connector tube / tube na M11x0.75 6x8
WBPL8/10 Bulkhead connector tube / tube na M13x1 8x10
