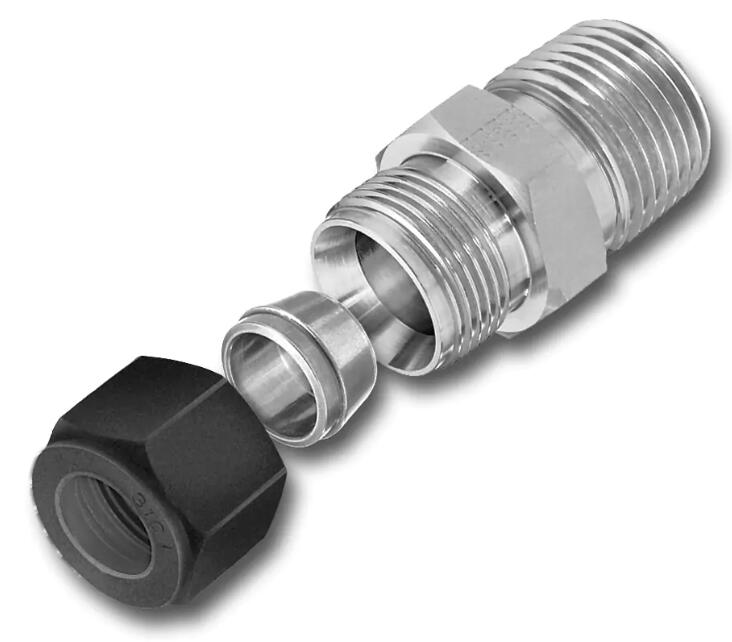

Parker 派克CPI系列单卡套接头
Parker CPI Series Single Ferrule Compression Fitting Tube Fitting

派克的 CPI 系列单卡套接头在过程仪表控制系统中能够提供有效的密封，良好的抗震、抗热循环性能。多种材质可选。派克的CPI单卡套接头为加工过程、电力和仪器仪表应用等行业提供无泄漏密封连接。单卡套结构使管接头组装十分方便，并且具有卓越的抗震性能。搒单卡套弹性变形为接头本体和紧固螺帽之间提供一个恒定张力。CPI管接头由316 不锈钢制备而成，其他材料还包括：6Mo合金，825合金，625合金 以及 C-276合金。直通接头用冷加工工艺制造，而其他形状接头通过细晶粒锻造工艺制得。该管接头适用于不同规格的管道，英制管外径从1/16” 到 2”，公制管外径从2mm 到 25mm。尺寸均按照行业高质量标准来控制。Parker’s single ferrule compression fittings, CPI? Tube Fittings are designed to effectively seal and also resist vibration and thermo-cycling conditions in process, and instrumentation system connections. Available in a wide range of material.



Parker CPI Series Single Ferrule Compression Fitting Tube Fitting
Parker 派克CPI系列单卡套接头

市场：

- 化工
- 石化
- 电力
- 核能
- 油气
- 制浆造纸

特征和优势：

- 单卡套提供简易安装
- 紧固螺母经二硫化钼涂层处理，提供低安装扭矩
- 派克的Suparcase? 表面处理硬化工艺使卡套具有卓越的抗腐蚀性能
- 硬化处理的卡套具有优异的性能

应用：
- 仪表风管线
- 伴热管线
- 过程控制管线



- Parker 派克CPI系列单卡套接头
Parker CPI Series Single Ferrule Compression Fitting Tube Fitting

部件号

管件尺寸

形状

连接 1 尺寸

连接 2 尺寸

连接 3 螺纹尺寸（英寸）

材料

形式

1 TZ-SS

1/16"

Ferrule

1/16"

N/A

N/A

316 Stainless Steel

Components

1-1 CBZ-S

1/16"

Male Elbow

1/16"

1/16"

N/A

Steel

Tube to Male Pipe

1-1 CBZ-SS

1/16"

Male Elbow

1/16"

1/16"

N/A

316 Stainless Steel

Tube to Male Pipe

1-1 EBZ-S

1/16"

Union Elbow

1/16"

1/16"

N/A

Steel

Tube to Tube Union

1-1 EBZ-SS

1/16"

Union Elbow

1/16"

1/16"

N/A

316 Stainless Steel

Tube to Tube Union

1-1 FBZ-S

1/16"

NPT Male Connector

1/16"

1/16"

N/A

Steel

Tube to Male Pipe

1-1 FBZ-SS

1/16"

NPT Male Connector

1/16"

1/16"

N/A

316 Stainless Steel

Tube to Male Pipe

1-1 FH2BZ-S

1/16"

NPT Male Bulkhead Connector

1/16"

1/16"

N/A

Steel

Tube to Male Pipe

1-1 FH2BZ-SS

1/16"

NPT Male Bulkhead Connector

1/16"

1/16"

N/A

316 Stainless Steel

Tube to Male Pipe

1-1 GBZ-S

1/16"

NPT Female Connector

1/16"

1/16"

N/A

Steel

Tube to Female Pipe

1-1 GBZ-SS

1/16"

NPT Female Connector

1/16"

1/16"

N/A

316 Stainless Steel

Tube to Female Pipe

1-1 HBZ-S

1/16"

Union

1/16"

1/16"

N/A

Steel

Tube to Tube Union

1-1 HBZ-SS

1/16"

Union

1/16"

1/16"

N/A

316 Stainless Steel

Tube to Tube Union

1-1 WBZ-S

1/16"

Bulkhead Union

1/16"

1/16"

N/A

Steel

Tube to Tube

1-1 WBZ-SS

1/16"

Bulkhead Union

1/16"

1/16"

N/A

316 Stainless Steel

Tube to Tube

1-1-1 JBZ-S

1/16"

Union Tee

1/16"

1/16"

1/16"

Steel

Tube to Tube Union

1-1-1 JBZ-SS

1/16"

Union Tee

1/16"

1/16"

1/16"

316 Stainless Steel

Tube to Tube Union

1-2 CBZ-S

1/16"

Male Elbow

1/16"

1/8"

N/A

Steel

Tube to Male Pipe

1-2 CBZ-SS

1/16"

Male Elbow

1/16"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

1-2 FBZ-S

1/16"

NPT Male Connector

1/16"

1/8"

N/A

Steel

Tube to Male Pipe

1-2 FBZ-SS

1/16"

NPT Male Connector

1/16"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

1-2 FH2BZ-S

1/16"

NPT Male Bulkhead Connector

1/16"

1/8"

N/A

Steel

Tube to Male Pipe

1-2 FH2BZ-SS

1/16"

NPT Male Bulkhead Connector

1/16"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

1-2 GBZ-S

1/16"

NPT Female Connector

1/16"

1/8"

N/A

Steel

Tube to Female Pipe

1-2 GBZ-SS

1/16"

NPT Female Connector

1/16"

1/8"

N/A

316 Stainless Steel

Tube to Female Pipe

1-4 FBZ-S

1/16"

NPT Male Connector

1/16"

1/4"

N/A

Steel

Tube to Male Pipe

1-4 FBZ-SS

1/16"

NPT Male Connector

1/16"

1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

10 BZ-B

5/8"

Tube Nut

5/8"

N/A

N/A

Brass

Components

10 KBZ-S

5/8"

Union Cross

5/8"

N/A

N/A

Steel

Tube to Tube Union

10 KBZ-SS

5/8"

Union Cross

5/8"

N/A

N/A

316 Stainless Steel

Tube to Tube Union

10-10 EBZ-S

5/8"

Union Elbow

5/8"

5/8"

N/A

Steel

Tube to Tube Union

10-10 EBZ-SS

5/8"

Union Elbow

5/8"

5/8"

N/A

316 Stainless Steel

Tube to Tube Union

10-10 HBZ-S

5/8"

Union

5/8"

5/8"

N/A

Steel

Tube to Tube Union

10-10 HBZ-SS

5/8"

Union

5/8"

5/8"

N/A

316 Stainless Steel

Tube to Tube Union

10-10 WBZ-S

5/8"

Bulkhead Union

5/8"

5/8"

N/A

Steel

Tube to Tube

10-10 WBZ-SS

5/8"

Bulkhead Union

5/8"

5/8"

N/A

316 Stainless Steel

Tube to Tube

10-10-10 JBZ-S

5/8"

Union Tee

5/8"

5/8"

5/8"

Steel

Tube to Tube Union

10-10-10 JBZ-SS

5/8"

Union Tee

5/8"

5/8"

5/8"

316 Stainless Steel

Tube to Tube Union

10-12 CBZ-S

5/8"

Male Elbow

5/8"

3/4"

N/A

Steel

Tube to Male Pipe

10-12 CBZ-SS

5/8"

Male Elbow

5/8"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe

10-12 FBZ-S

5/8"

NPT Male Connector

5/8"

3/4"

N/A

Steel

Tube to Male Pipe

10-12 FBZ-SS

5/8"

NPT Male Connector

5/8"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe

10-12 GBZ-S

5/8"

NPT Female Connector

5/8"

3/4"

N/A

Steel

Tube to Female Pipe

10-12 GBZ-SS

5/8"

NPT Female Connector

5/8"

3/4"

N/A

316 Stainless Steel

Tube to Female Pipe

10-6 CBZ-S

5/8"

Male Elbow

5/8"

3/8"

N/A

Steel

Tube to Male Pipe

10-6 CBZ-SS

5/8"

Male Elbow

5/8"

3/8"

N/A

316 Stainless Steel

Tube to Male Pipe

10-6 EBZ-S

5/8"

Drop Size Elbows

5/8"

3/8"

N/A

Steel

Tube to Tube

10-6 EBZ-SS

5/8"

Drop Size Elbows

5/8"

3/8"

N/A

316 Stainless Steel

Tube to Tube

10-6 FBZ-S

5/8"

NPT Male Connector

5/8"

3/8"

N/A

Steel

Tube to Male Pipe

10-6 FBZ-SS

5/8"

NPT Male Connector

5/8"

3/8"

N/A

316 Stainless Steel

Tube to Male Pipe

-

部件号

管件尺寸

形状

连接 1 尺寸

连接 2 尺寸

连接 3 螺纹尺寸（英寸）

材料

形式

10-6 FH2BZ-S

5/8"

NPT Male Bulkhead Connector

5/8"

3/8"

N/A

Steel

Tube to Male Pipe

10-6 FH2BZ-SS

5/8"

NPT Male Bulkhead Connector

5/8"

3/8"

N/A

316 Stainless Steel

Tube to Male Pipe

10-6 GBZ-S

5/8"

NPT Female Connector

5/8"

3/8"

N/A

Steel

Tube to Female Pipe

10-6 GBZ-SS

5/8"

NPT Female Connector

5/8"

3/8"

N/A

316 Stainless Steel

Tube to Female Pipe

10-6 HBZ-S

5/8"

Reducing Union

5/8"

3/8"

N/A

Steel

Tube to Tube

10-6 HBZ-SS

5/8"

Reducing Union

5/8"

3/8"

N/A

316 Stainless Steel

Tube to Tube

10-8 CBZ-S

5/8"

Male Elbow

5/8"

1/2"

N/A

Steel

Tube to Male Pipe

10-8 CBZ-SS

5/8"

Male Elbow

5/8"

1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

10-8 EBZ-S

5/8"

Drop Size Elbows

5/8"

1/2"

N/A

Steel

Tube to Tube

10-8 EBZ-SS

5/8"

Drop Size Elbows

5/8"

1/2"

N/A

316 Stainless Steel

Tube to Tube

10-8 FBZ-S

5/8"

NPT Male Connector

5/8"

1/2"

N/A

Steel

Tube to Male Pipe

10-8 FBZ-SS

5/8"

NPT Male Connector

5/8"

1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

10-8 FH2BZ-S

5/8"

NPT Male Bulkhead Connector

5/8"

1/2"

N/A

Steel

Tube to Male Pipe

10-8 FH2BZ-SS

5/8"

NPT Male Bulkhead Connector

5/8"

1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

10-8 GBZ-S

5/8"

NPT Female Connector

5/8"

1/2"

N/A

Steel

Tube to Female Pipe

10-8 GBZ-SS

5/8"

NPT Female Connector

5/8"

1/2"

N/A

316 Stainless Steel

Tube to Female Pipe

10-8 HBZ-S

5/8"

Reducing Union

5/8"

1/2"

N/A

Steel

Tube to Tube

10-8 HBZ-SS

5/8"

Reducing Union

5/8"

1/2"

N/A

316 Stainless Steel

Tube to Tube

12 FNZ-SS

3/4"

Plug

3/4"

N/A

N/A

316 Stainless Steel

Components

12 KBZ-S

3/4"

Union Cross

3/4"

N/A

N/A

Steel

Tube to Tube Union

12 KBZ-SS

3/4"

Union Cross

3/4"

N/A

N/A

316 Stainless Steel

Tube to Tube Union

12 PNBZ-SS

3/4"

Cap

3/4"

N/A

N/A

316 Stainless Steel

Components

12 TZ-SS

3/4"

Ferrule

3/4"

N/A

N/A

316 Stainless Steel

Components

12-10 HBZ-S

3/4"

Reducing Union

3/4"

5/8"

N/A

Steel

Tube to Tube

12-10 HBZ-SS

3/4"

Reducing Union

3/4"

5/8"

N/A

316 Stainless Steel

Tube to Tube

12-12 CBZ-B

3/4"

Male Elbow

3/4"

3/4"

N/A

Brass

Tube to Male Pipe

12-12 CBZ-S

3/4"

Male Elbow

3/4"

3/4"

N/A

Steel

Tube to Male Pipe

12-12 CBZ-SS

3/4"

Male Elbow

3/4"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe

12-12 EBZ-S

3/4"

Union Elbow

3/4"

3/4"

N/A

Steel

Tube to Tube Union

12-12 EBZ-SS

3/4"

Union Elbow

3/4"

3/4"

N/A

316 Stainless Steel

Tube to Tube Union

12-12 FBZ-B

3/4"

NPT Male Connector

3/4"

3/4"

N/A

Brass

Tube to Male Pipe

12-12 FBZ-S

3/4"

NPT Male Connector

3/4"

3/4"

N/A

Steel

Tube to Male Pipe

12-12 FBZ-SS

3/4"

NPT Male Connector

3/4"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe

12-12 FH2BZ-S

3/4"

NPT Male Bulkhead Connector

3/4"

3/4"

N/A

Steel

Tube to Male Pipe

12-12 FH2BZ-SS

3/4"

NPT Male Bulkhead Connector

3/4"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe

12-12 GBZ-S

3/4"

NPT Female Connector

3/4"

3/4"

N/A

Steel

Tube to Female Pipe

12-12 GBZ-SS

3/4"

NPT Female Connector

3/4"

3/4"

N/A

316 Stainless Steel

Tube to Female Pipe

12-12 HBZ-B

3/4"

Union

3/4"

3/4"

N/A

Brass

Tube to Tube Union

12-12 HBZ-S

3/4"

Union

3/4"

3/4"

N/A

Steel

Tube to Tube Union

12-12 HBZ-SS

3/4"

Union

3/4"

3/4"

N/A

316 Stainless Steel

Tube to Tube Union

12-12 WBZ-S

3/4"

Bulkhead Union

3/4"

3/4"

N/A

Steel

Tube to Tube

12-12 WBZ-SS

3/4"

Bulkhead Union

3/4"

3/4"

N/A

316 Stainless Steel

Tube to Tube

12-12-12 JBZ-S

3/4"

Union Tee

3/4"

3/4"

3/4"

Steel

Tube to Tube Union

12-12-12 JBZ-SS

3/4"

Union Tee

3/4"

3/4"

3/4"

316 Stainless Steel

Tube to Tube Union

12-12-12 OBZ-SS

3/4"

Female Branch Tee

3/4"

3/4"

3/4"

316 Stainless Steel

Tube to Female Pipe

12-16 FBZ-S

3/4"

NPT Male Connector

3/4"

1"

N/A

Steel

Tube to Male Pipe

12-16 FBZ-SS

3/4"

NPT Male Connector

3/4"

1"

N/A

316 Stainless Steel

Tube to Male Pipe

12-4 EBZ-S

3/4"

Drop Size Elbows

3/4"

1/4"

N/A

Steel

Tube to Tube

12-4 EBZ-SS

3/4"

Drop Size Elbows

3/4"

1/4"

N/A

316 Stainless Steel

Tube to Tube

12-4 HBZ-S

3/4"

Reducing Union

3/4"

1/4"

N/A

Steel

Tube to Tube

-

部件号

管件尺寸

形状

连接 1 尺寸

连接 2 尺寸

连接 3 螺纹尺寸（英寸）

材料

形式

12-4 HBZ-SS

3/4"

Reducing Union

3/4"

1/4"

N/A

316 Stainless Steel

Tube to Tube

12-6 EBZ-S

3/4"

Drop Size Elbows

3/4"

3/8"

N/A

Steel

Tube to Tube

12-6 EBZ-SS

3/4"

Drop Size Elbows

3/4"

3/8"

N/A

316 Stainless Steel

Tube to Tube

12-6 HBZ-S

3/4"

Reducing Union

3/4"

3/8"

N/A

Steel

Tube to Tube

12-6 HBZ-SS

3/4"

Reducing Union

3/4"

3/8"

N/A

316 Stainless Steel

Tube to Tube

12-8 CBZ-S

3/4"

Male Elbow

3/4"

1/2"

N/A

Steel

Tube to Male Pipe

12-8 CBZ-SS

3/4"

Male Elbow

3/4"

1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

12-8 EBZ-S

3/4"

Drop Size Elbows

3/4"

1/2"

N/A

Steel

Tube to Tube

12-8 EBZ-SS

3/4"

Drop Size Elbows

3/4"

1/2"

N/A

316 Stainless Steel

Tube to Tube

12-8 FBZ-S

3/4"

NPT Male Connector

3/4"

1/2"

N/A

Steel

Tube to Male Pipe

12-8 FBZ-SS

3/4"

NPT Male Connector

3/4"

1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

12-8 FH2BZ-S

3/4"

NPT Male Bulkhead Connector

3/4"

1/2"

N/A

Steel

Tube to Male Pipe

12-8 FH2BZ-SS

3/4"

NPT Male Bulkhead Connector

3/4"

1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

12-8 GBZ-S

3/4"

NPT Female Connector

3/4"

1/2"

N/A

Steel

Tube to Female Pipe

12-8 GBZ-SS

3/4"

NPT Female Connector

3/4"

1/2"

N/A

316 Stainless Steel

Tube to Female Pipe

12-8 HBZ-S

3/4"

Reducing Union

3/4"

1/2"

N/A

Steel

Tube to Tube

12-8 HBZ-SS

3/4"

Reducing Union

3/4"

1/2"

N/A

316 Stainless Steel

Tube to Tube

14 KBZ-S

7/8"

Union Cross

7/8"

N/A

N/A

Steel

Tube to Tube Union

14 KBZ-SS

7/8"

Union Cross

7/8"

N/A

N/A

316 Stainless Steel

Tube to Tube Union

14-12 CBZ-S

7/8"

Male Elbow

7/8"

3/4"

N/A

Steel

Tube to Male Pipe

14-12 CBZ-SS

7/8"

Male Elbow

7/8"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe

14-12 FBZ-S

7/8"

NPT Male Connector

7/8"

3/4"

N/A

Steel

Tube to Male Pipe

14-12 FBZ-SS

7/8"

NPT Male Connector

7/8"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe

14-12 FH2BZ-S

7/8"

NPT Male Bulkhead Connector

7/8"

3/4"

N/A

Steel

Tube to Male Pipe

14-12 FH2BZ-SS

7/8"

NPT Male Bulkhead Connector

7/8"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe

14-12 GBZ-S

7/8"

NPT Female Connector

7/8"

3/4"

N/A

Steel

Tube to Female Pipe

14-12 GBZ-SS

7/8"

NPT Female Connector

7/8"

3/4"

N/A

316 Stainless Steel

Tube to Female Pipe

14-14 EBZ-S

7/8"

Union Elbow

7/8"

7/8"

N/A

Steel

Tube to Tube Union

14-14 EBZ-SS

7/8"

Union Elbow

7/8"

7/8"

N/A

316 Stainless Steel

Tube to Tube Union

14-14 HBZ-S

7/8"

Union

7/8"

7/8"

N/A

Steel

Tube to Tube Union

14-14 HBZ-SS

7/8"

Union

7/8"

7/8"

N/A

316 Stainless Steel

Tube to Tube Union

14-14 WBZ-S

7/8"

Bulkhead Union

7/8"

7/8"

N/A

Steel

Tube to Tube

14-14 WBZ-SS

7/8"

Bulkhead Union

7/8"

7/8"

N/A

316 Stainless Steel

Tube to Tube

14-14-14 JBZ-S

7/8"

Union Tee

7/8"

7/8"

7/8"

Steel

Tube to Tube Union

14-14-14 JBZ-SS

7/8"

Union Tee

7/8"

7/8"

7/8"

316 Stainless Steel

Tube to Tube Union

14-16 FBZ-S

7/8"

NPT Male Connector

7/8"

1"

N/A

Steel

Tube to Male Pipe

14-16 FBZ-SS

7/8"

NPT Male Connector

7/8"

1"

N/A

316 Stainless Steel

Tube to Male Pipe

14-4 EBZ-S

7/8"

Drop Size Elbows

7/8"

1/4"

N/A

Steel

Tube to Tube

14-4 EBZ-SS

7/8"

Drop Size Elbows

7/8"

1/4"

N/A

316 Stainless Steel

Tube to Tube

16 KBZ-S

1"

Union Cross

1"

N/A

N/A

Steel

Tube to Tube Union

16 KBZ-SS

1"

Union Cross

1"

N/A

N/A

316 Stainless Steel

Tube to Tube Union

16-1 Z3HCZ7-S

1"

Column End Fitting Low Internal Volume

1"

1/16"

N/A

Steel

Analytical Fittings

16-1 Z3HCZ7-SS

1"

Column End Fitting Low Internal Volume

1"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

16-12 CBZ-S

1"

Male Elbow

1"

3/4"

N/A

Steel

Tube to Male Pipe

16-12 CBZ-SS

1"

Male Elbow

1"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe

16-12 EBZ-S

1"

Drop Size Elbows

1"

3/4"

N/A

Steel

Tube to Tube

16-12 EBZ-SS

1"

Drop Size Elbows

1"

3/4"

N/A

316 Stainless Steel

Tube to Tube

16-12 FBZ-S

1"

NPT Male Connector

1"

3/4"

N/A

Steel

Tube to Male Pipe

16-12 FBZ-SS

1"

NPT Male Connector

1"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe

16-12 FH2BZ-S

1"

NPT Male Bulkhead Connector

1"

3/4"

N/A

Steel

Tube to Male Pipe

-

部件号

管件尺寸

形状

连接 1 尺寸

连接 2 尺寸

连接 3 螺纹尺寸（英寸）

材料

形式

16-12 FH2BZ-SS

1"

NPT Male Bulkhead Connector

1"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe

16-12 GBZ-S

1"

NPT Female Connector

1"

3/4"

N/A

Steel

Tube to Female Pipe

16-12 GBZ-SS

1"

NPT Female Connector

1"

3/4"

N/A

316 Stainless Steel

Tube to Female Pipe

16-12 HBZ-S

1"

Reducing Union

1"

3/4"

N/A

Steel

Tube to Tube

16-12 HBZ-SS

1"

Reducing Union

1"

3/4"

N/A

316 Stainless Steel

Tube to Tube

16-16 CBZ-S

1"

Male Elbow

1"

1"

N/A

Steel

Tube to Male Pipe

16-16 CBZ-SS

1"

Male Elbow

1"

1"

N/A

316 Stainless Steel

Tube to Male Pipe

16-16 EBZ-S

1"

Union Elbow

1"

1"

N/A

Steel

Tube to Tube Union

16-16 EBZ-SS

1"

Union Elbow

1"

1"

N/A

316 Stainless Steel

Tube to Tube Union

16-16 FBZ-S

1"

NPT Male Connector

1"

1"

N/A

Steel

Tube to Male Pipe

16-16 FBZ-SS

1"

NPT Male Connector

1"

1"

N/A

316 Stainless Steel

Tube to Male Pipe

16-16 FH2BZ-S

1"

NPT Male Bulkhead Connector

1"

1"

N/A

Steel

Tube to Male Pipe

16-16 FH2BZ-SS

1"

NPT Male Bulkhead Connector

1"

1"

N/A

316 Stainless Steel

Tube to Male Pipe

16-16 GBZ-S

1"

NPT Female Connector

1"

1"

N/A

Steel

Tube to Female Pipe

16-16 GBZ-SS

1"

NPT Female Connector

1"

1"

N/A

316 Stainless Steel

Tube to Female Pipe

16-16 HBZ-S

1"

Union

1"

1"

N/A

Steel

Tube to Tube Union

16-16 HBZ-SS

1"

Union

1"

1"

N/A

316 Stainless Steel

Tube to Tube Union

16-16 WBZ-S

1"

Bulkhead Union

1"

1"

N/A

Steel

Tube to Tube

16-16 WBZ-SS

1"

Bulkhead Union

1"

1"

N/A

316 Stainless Steel

Tube to Tube

16-16-16 JBZ-S

1"

Union Tee

1"

1"

1"

Steel

Tube to Tube Union

16-16-16 JBZ-SS

1"

Union Tee

1"

1"

1"

316 Stainless Steel

Tube to Tube Union

16-8 EBZ-S

1"

Drop Size Elbows

1"

1/2"

N/A

Steel

Tube to Tube

16-8 EBZ-SS

1"

Drop Size Elbows

1"

1/2"

N/A

316 Stainless Steel

Tube to Tube

16-8 FBZ-S

1"

NPT Male Connector

1"

1/2"

N/A

Steel

Tube to Male Pipe

16-8 FBZ-SS

1"

NPT Male Connector

1"

1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

16-8 HBZ-S

1"

Reducing Union

1"

1/2"

N/A

Steel

Tube to Tube

16-8 HBZ-SS

1"

Reducing Union

1"

1/2"

N/A

316 Stainless Steel

Tube to Tube

2 BZ-SS

1/8"

Tube Nut

1/8"

N/A

N/A

316 Stainless Steel

Components

2 FNZ-SS

1/8"

Plug

1/8"

N/A

N/A

316 Stainless Steel

Components

2 KBZ-S

1/8"

Union Cross

1/8"

N/A

N/A

Steel

Tube to Tube Union

2 KBZ-SS

1/8"

Union Cross

1/8"

N/A

N/A

316 Stainless Steel

Tube to Tube Union

2 TZ-SS

1/8"

Ferrule

1/8"

N/A

N/A

316 Stainless Steel

Components

2-1 CBZ-S

1/8"

Male Elbow

1/8"

1/16"

N/A

Steel

Tube to Male Pipe

2-1 CBZ-SS

1/8"

Male Elbow

1/8"

1/16"

N/A

316 Stainless Steel

Tube to Male Pipe

2-1 FBZ-S

1/8"

NPT Male Connector

1/8"

1/16"

N/A

Steel

Tube to Male Pipe

2-1 FBZ-SS

1/8"

NPT Male Connector

1/8"

1/16"

N/A

316 Stainless Steel

Tube to Male Pipe

2-1 HBZ-S

1/8"

Reducing Union

1/8"

1/16"

N/A

Steel

Tube to Tube

2-1 HBZ-SS

1/8"

Reducing Union

1/8"

1/16"

N/A

316 Stainless Steel

Tube to Tube

2-1 Z2HCZ-S

1/8"

Column End Fitting with Frit

1/8"

1/16"

N/A

Steel

Analytical Fittings

2-1 Z2HCZ-SS

1/8"

Column End Fitting with Frit

1/8"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

2-1 Z2HCZ7-S

1/8"

Column End Fitting Low Internal Volume with Frit

1/8"

1/16"

N/A

Steel

Analytical Fittings

2-1 Z2HCZ7-SS

1/8"

Column End Fitting Low Internal Volume with Frit

1/8"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

2-1 ZHCZ-S

1/8"

Column End Fitting (without Frit)

1/8"

1/16"

N/A

Steel

Analytical Fittings

2-1 ZHCZ-SS

1/8"

Column End Fitting (without Frit)

1/8"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

2-1 ZHCZ7-S

1/8"

Column End Fitting Low Internal Volume (without Frit)

1/8"

1/16"

N/A

Steel

Analytical Fittings

2-1 ZHCZ7-SS

1/8"

Column End Fitting Low Internal Volume (without Frit)

1/8"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

2-2 CBZ-S

1/8"

Male Elbow

1/8"

1/8"

N/A

Steel

Tube to Male Pipe

2-2 CBZ-SS

1/8"

Male Elbow

1/8"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

2-2 EBZ-S

1/8"

Union Elbow

1/8"

1/8"

N/A

Steel

Tube to Tube Union

2-2 EBZ-SS

1/8"

Union Elbow

1/8"

1/8"

N/A

316 Stainless Steel

Tube to Tube Union

-

部件号

管件尺寸

形状

连接 1 尺寸

连接 2 尺寸

连接 3 螺纹尺寸（英寸）

材料

形式

2-2 FBZ-S

1/8"

NPT Male Connector

1/8"

1/8"

N/A

Steel

Tube to Male Pipe

2-2 FBZ-SS

1/8"

NPT Male Connector

1/8"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

2-2 FH2BZ-S

1/8"

NPT Male Bulkhead Connector

1/8"

1/8"

N/A

Steel

Tube to Male Pipe

2-2 FH2BZ-SS

1/8"

NPT Male Bulkhead Connector

1/8"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

2-2 GBZ-B

1/8"

NPT Female Connector

1/8"

1/8"

N/A

Brass

Tube to Female Pipe

2-2 GBZ-S

1/8"

NPT Female Connector

1/8"

1/8"

N/A

Steel

Tube to Female Pipe

2-2 GBZ-SS

1/8"

NPT Female Connector

1/8"

1/8"

N/A

316 Stainless Steel

Tube to Female Pipe

2-2 HBZ-S

1/8"

Union

1/8"

1/8"

N/A

Steel

Tube to Tube Union

2-2 HBZ-SS

1/8"

Union

1/8"

1/8"

N/A

316 Stainless Steel

Tube to Tube Union

2-2 WBZ-S

1/8"

Bulkhead Union

1/8"

1/8"

N/A

Steel

Tube to Tube

2-2 WBZ-SS

1/8"

Bulkhead Union

1/8"

1/8"

N/A

316 Stainless Steel

Tube to Tube

2-2-2 JBZ-S

1/8"

Union Tee

1/8"

1/8"

1/8"

Steel

Tube to Tube Union

2-2-2 JBZ-SS

1/8"

Union Tee

1/8"

1/8"

1/8"

316 Stainless Steel

Tube to Tube Union

2-2-2 OBZ-B

1/8"

Female Branch Tee

1/8"

1/8"

1/8"

Brass

Tube to Female Pipe

2-2-2 SBZ-SS

1/8"

Male Branch Tee

1/8"

1/8"

1/8"

316 Stainless Steel

Tube to Male Pipe

2-4 CBZ-B

1/8"

Male Elbow

1/8"

1/4"

N/A

Brass

Tube to Male Pipe

2-4 CBZ-S

1/8"

Male Elbow

1/8"

1/4"

N/A

Steel

Tube to Male Pipe

2-4 CBZ-SS

1/8"

Male Elbow

1/8"

1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

2-4 FBZ-S

1/8"

NPT Male Connector

1/8"

1/4"

N/A

Steel

Tube to Male Pipe

2-4 FBZ-SS

1/8"

NPT Male Connector

1/8"

1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

2-4 GBZ-S

1/8"

NPT Female Connector

1/8"

1/4"

N/A

Steel

Tube to Female Pipe

2-4 GBZ-SS

1/8"

NPT Female Connector

1/8"

1/4"

N/A

316 Stainless Steel

Tube to Female Pipe

2-4 WBZ-S

1/8"

Bulkhead Union

1/8"

1/4"

N/A

Steel

Tube to Tube

2-4 WBZ-SS

1/8"

Bulkhead Union

1/8"

1/4"

N/A

316 Stainless Steel

Tube to Tube

2-6 FBZ-S

1/8"

NPT Male Connector

1/8"

3/8"

N/A

Steel

Tube to Male Pipe

2-6 FBZ-SS

1/8"

NPT Male Connector

1/8"

3/8"

N/A

316 Stainless Steel

Tube to Male Pipe

2-8 FBZ-S

1/8"

NPT Male Connector

1/8"

1/2"

N/A

Steel

Tube to Male Pipe

2-8 FBZ-SS

1/8"

NPT Male Connector

1/8"

1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

20-20 CBZ-S

1-1/4"

Male Elbow

1-1/4"

1-1/4"

N/A

Steel

Tube to Male Pipe

20-20 CBZ-SS

1-1/4"

Male Elbow

1-1/4"

1-1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

20-20 EBZ-S

1-1/4"

Union Elbow

1-1/4"

1-1/4"

N/A

Steel

Tube to Tube Union

20-20 EBZ-SS

1-1/4"

Union Elbow

1-1/4"

1-1/4"

N/A

316 Stainless Steel

Tube to Tube Union

20-20 FBZ-S

1-1/4"

NPT Male Connector

1-1/4"

1-1/4"

N/A

Steel

Tube to Male Pipe

20-20 FBZ-SS

1-1/4"

NPT Male Connector

1-1/4"

1-1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

20-20 GBZ-S

1-1/4"

NPT Female Connector

1-1/4"

1-1/4"

N/A

Steel

Tube to Female Pipe

20-20 GBZ-SS

1-1/4"

NPT Female Connector

1-1/4"

1-1/4"

N/A

316 Stainless Steel

Tube to Female Pipe

20-20 HBZ-S

1-1/4"

Union

1-1/4"

1-1/4"

N/A

Steel

Tube to Tube Union

20-20 HBZ-SS

1-1/4"

Union

1-1/4"

1-1/4"

N/A

316 Stainless Steel

Tube to Tube Union

20-20-20 JBZ-S

1-1/4"

Union Tee

1-1/4"

1-1/4"

1-1/4"

Steel

Tube to Tube Union

20-20-20 JBZ-SS

1-1/4"

Union Tee

1-1/4"

1-1/4"

1-1/4"

316 Stainless Steel

Tube to Tube Union

24-24 CBZ-S

1-1/2"

Male Elbow

1-1/2"

1-1/2"

N/A

Steel

Tube to Male Pipe

24-24 CBZ-SS

1-1/2"

Male Elbow

1-1/2"

1-1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

24-24 EBZ-S

1-1/2"

Union Elbow

1-1/2"

1-1/2"

N/A

Steel

Tube to Tube Union

24-24 EBZ-SS

1-1/2"

Union Elbow

1-1/2"

1-1/2"

N/A

316 Stainless Steel

Tube to Tube Union

24-24 FBZ-S

1-1/2"

NPT Male Connector

1-1/2"

1-1/2"

N/A

Steel

Tube to Male Pipe

24-24 FBZ-SS

1-1/2"

NPT Male Connector

1-1/2"

1-1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

24-24 GBZ-S

1-1/2"

NPT Female Connector

1-1/2"

1-1/2"

N/A

Steel

Tube to Female Pipe

24-24 GBZ-SS

1-1/2"

NPT Female Connector

1-1/2"

1-1/2"

N/A

316 Stainless Steel

Tube to Female Pipe

24-24 HBZ-S

1-1/2"

Union

1-1/2"

1-1/2"

N/A

Steel

Tube to Tube Union

24-24 HBZ-SS

1-1/2"

Union

1-1/2"

1-1/2"

N/A

316 Stainless Steel

Tube to Tube Union

-

部件号

管件尺寸

形状

连接 1 尺寸

连接 2 尺寸

连接 3 螺纹尺寸（英寸）

材料

形式

24-24-24 JBZ-S

1-1/2"

Union Tee

1-1/2"

1-1/2"

1-1/2"

Steel

Tube to Tube Union

24-24-24 JBZ-SS

1-1/2"

Union Tee

1-1/2"

1-1/2"

1-1/2"

316 Stainless Steel

Tube to Tube Union

3 BZ-B

3/16"

Tube Nut

3/16"

N/A

N/A

Brass

Components

3 KBZ-S

3/16"

Union Cross

3/16"

N/A

N/A

Steel

Tube to Tube Union

3 KBZ-SS

3/16"

Union Cross

3/16"

N/A

N/A

316 Stainless Steel

Tube to Tube Union

3 TZ-B

3/16"

Ferrule

3/16"

N/A

N/A

Brass

Components

3-1 FBZ-S

3/16"

NPT Male Connector

3/16"

1/16"

N/A

Steel

Tube to Male Pipe

3-1 FBZ-SS

3/16"

NPT Male Connector

3/16"

1/16"

N/A

316 Stainless Steel

Tube to Male Pipe

3-1 HBZ-S

3/16"

Reducing Union

3/16"

1/16"

N/A

Steel

Tube to Tube

3-1 HBZ-SS

3/16"

Reducing Union

3/16"

1/16"

N/A

316 Stainless Steel

Tube to Tube

3-2 CBZ-S

3/16"

Male Elbow

3/16"

1/8"

N/A

Steel

Tube to Male Pipe

3-2 CBZ-SS

3/16"

Male Elbow

3/16"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

3-2 EBZ-S

3/16"

Drop Size Elbows

3/16"

1/8"

N/A

Steel

Tube to Tube

3-2 EBZ-SS

3/16"

Drop Size Elbows

3/16"

1/8"

N/A

316 Stainless Steel

Tube to Tube

3-2 FBZ-S

3/16"

NPT Male Connector

3/16"

1/8"

N/A

Steel

Tube to Male Pipe

3-2 FBZ-SS

3/16"

NPT Male Connector

3/16"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

3-2 FH2BZ-S

3/16"

NPT Male Bulkhead Connector

3/16"

1/8"

N/A

Steel

Tube to Male Pipe

3-2 FH2BZ-SS

3/16"

NPT Male Bulkhead Connector

3/16"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

3-2 FH4BZ-SS

3/16"

Thermocouple Connector

3/16"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

3-2 GBZ-S

3/16"

NPT Female Connector

3/16"

1/8"

N/A

Steel

Tube to Female Pipe

3-2 GBZ-SS

3/16"

NPT Female Connector

3/16"

1/8"

N/A

316 Stainless Steel

Tube to Female Pipe

3-2 HBZ-S

3/16"

Reducing Union

3/16"

1/8"

N/A

Steel

Tube to Tube

3-2 HBZ-SS

3/16"

Reducing Union

3/16"

1/8"

N/A

316 Stainless Steel

Tube to Tube

3-3 EBZ-S

3/16"

Union Elbow

3/16"

3/16"

N/A

Steel

Tube to Tube Union

3-3 EBZ-SS

3/16"

Union Elbow

3/16"

3/16"

N/A

316 Stainless Steel

Tube to Tube Union

3-3 HBZ-S

3/16"

Union

3/16"

3/16"

N/A

Steel

Tube to Tube Union

3-3 HBZ-SS

3/16"

Union

3/16"

3/16"

N/A

316 Stainless Steel

Tube to Tube Union

3-3 WBZ-S

3/16"

Bulkhead Union

3/16"

3/16"

N/A

Steel

Tube to Tube

3-3 WBZ-SS

3/16"

Bulkhead Union

3/16"

3/16"

N/A

316 Stainless Steel

Tube to Tube

3-3-3 JBZ-B

3/16"

Union Tee

3/16"

3/16"

3/16"

Brass

Tube to Tube Union

3-3-3 JBZ-S

3/16"

Union Tee

3/16"

3/16"

3/16"

Steel

Tube to Tube Union

3-3-3 JBZ-SS

3/16"

Union Tee

3/16"

3/16"

3/16"

316 Stainless Steel

Tube to Tube Union

3-4 CBZ-S

3/16"

Male Elbow

3/16"

1/4"

N/A

Steel

Tube to Male Pipe

3-4 CBZ-SS

3/16"

Male Elbow

3/16"

1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

3-4 FBZ-S

3/16"

NPT Male Connector

3/16"

1/4"

N/A

Steel

Tube to Male Pipe

3-4 FBZ-SS

3/16"

NPT Male Connector

3/16"

1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

3-4 GBZ-S

3/16"

NPT Female Connector

3/16"

1/4"

N/A

Steel

Tube to Female Pipe

3-4 GBZ-SS

3/16"

NPT Female Connector

3/16"

1/4"

N/A

316 Stainless Steel

Tube to Female Pipe

32-32 CBZ-S

2"

Male Elbow

2"

2"

N/A

Steel

Tube to Male Pipe

32-32 CBZ-SS

2"

Male Elbow

2"

2"

N/A

316 Stainless Steel

Tube to Male Pipe

32-32 EBZ-S

2"

Union Elbow

2"

2"

N/A

Steel

Tube to Tube Union

32-32 EBZ-SS

2"

Union Elbow

2"

2"

N/A

316 Stainless Steel

Tube to Tube Union

32-32 FBZ-S

2"

NPT Male Connector

2"

2"

N/A

Steel

Tube to Male Pipe

32-32 FBZ-SS

2"

NPT Male Connector

2"

2"

N/A

316 Stainless Steel

Tube to Male Pipe

32-32 GBZ-S

2"

NPT Female Connector

2"

2"

N/A

Steel

Tube to Female Pipe

32-32 GBZ-SS

2"

NPT Female Connector

2"

2"

N/A

316 Stainless Steel

Tube to Female Pipe

32-32 HBZ-S

2"

Union

2"

2"

N/A

Steel

Tube to Tube Union

32-32 HBZ-SS

2"

Union

2"

2"

N/A

316 Stainless Steel

Tube to Tube Union

32-32-32 JBZ-S

2"

Union Tee

2"

2"

2"

Steel

Tube to Tube Union

32-32-32 JBZ-SS

2"

Union Tee

2"

2"

2"

316 Stainless Steel

Tube to Tube Union

-

部件号

管件尺寸

形状

连接 1 尺寸

连接 2 尺寸

连接 3 螺纹尺寸（英寸）

材料

形式

4 BZ-B

1/4"

Tube Nut

1/4"

N/A

N/A

Brass

Components

4 BZ-SS

1/4"

Tube Nut

1/4"

N/A

N/A

316 Stainless Steel

Components

4 FNZ-B

1/4"

Plug

1/4"

N/A

N/A

Brass

Components

4 FNZ-SS

1/4"

Plug

1/4"

N/A

N/A

316 Stainless Steel

Components

4 KBZ-S

1/4"

Union Cross

1/4"

N/A

N/A

Steel

Tube to Tube Union

4 KBZ-SS

1/4"

Union Cross

1/4"

N/A

N/A

316 Stainless Steel

Tube to Tube Union

4 PNBZ-SS

1/4"

Cap

1/4"

N/A

N/A

316 Stainless Steel

Components

4 TIZ .125-SS

1/4"

Insert

1/4"

N/A

N/A

316 Stainless Steel

Components

4 TZ-B

1/4"

Ferrule

1/4"

N/A

N/A

Brass

Components

4 TZ-SS

1/4"

Ferrule

1/4"

N/A

N/A

316 Stainless Steel

Components

4-1 CBZ-S

1/4"

Male Elbow

1/4"

1/16"

N/A

Steel

Tube to Male Pipe

4-1 CBZ-SS

1/4"

Male Elbow

1/4"

1/16"

N/A

316 Stainless Steel

Tube to Male Pipe

4-1 FBZ-S

1/4"

NPT Male Connector

1/4"

1/16"

N/A

Steel

Tube to Male Pipe

4-1 FBZ-SS

1/4"

NPT Male Connector

1/4"

1/16"

N/A

316 Stainless Steel

Tube to Male Pipe

4-1 HBZ-S

1/4"

Reducing Union

1/4"

1/16"

N/A

Steel

Tube to Tube

4-1 HBZ-SS

1/4"

Reducing Union

1/4"

1/16"

N/A

316 Stainless Steel

Tube to Tube

4-1 Z2HCZ-S

1/4"

Column End Fitting with Frit

1/4"

1/16"

N/A

Steel

Analytical Fittings

4-1 Z2HCZ-SS

1/4"

Column End Fitting with Frit

1/4"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

4-1 Z2HCZ7-S

1/4"

Column End Fitting Low Internal Volume with Frit

1/4"

1/16"

N/A

Steel

Analytical Fittings

4-1 Z2HCZ7-SS

1/4"

Column End Fitting Low Internal Volume with Frit

1/4"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

4-1 Z3HCZ7-S

1/4"

Column End Fitting Low Internal Volume

1/4"

1/16"

N/A

Steel

Analytical Fittings

4-1 Z3HCZ7-SS

1/4"

Column End Fitting Low Internal Volume

1/4"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

4-1 ZHCZ-S

1/4"

Column End Fitting (without Frit)

1/4"

1/16"

N/A

Steel

Analytical Fittings

4-1 ZHCZ-SS

1/4"

Column End Fitting (without Frit)

1/4"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

4-1 ZHCZ7-S

1/4"

Column End Fitting Low Internal Volume (without Frit)

1/4"

1/16"

N/A

Steel

Analytical Fittings

4-1 ZHCZ7-SS

1/4"

Column End Fitting Low Internal Volume (without Frit)

1/4"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

4-12 FBZ-S

1/4"

NPT Male Connector

1/4"

3/4"

N/A

Steel

Tube to Male Pipe

4-12 FBZ-SS

1/4"

NPT Male Connector

1/4"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe

4-2 CBZ-B

1/4"

Male Elbow

1/4"

1/8"

N/A

Brass

Tube to Male Pipe

4-2 CBZ-S

1/4"

Male Elbow

1/4"

1/8"

N/A

Steel

Tube to Male Pipe

4-2 CBZ-SS

1/4"

Male Elbow

1/4"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

4-2 EBZ-S

1/4"

Drop Size Elbows

1/4"

1/8"

N/A

Steel

Tube to Tube

4-2 EBZ-SS

1/4"

Drop Size Elbows

1/4"

1/8"

N/A

316 Stainless Steel

Tube to Tube

4-2 FBZ-B

1/4"

NPT Male Connector

1/4"

1/8"

N/A

Brass

Tube to Male Pipe

4-2 FBZ-S

1/4"

NPT Male Connector

1/4"

1/8"

N/A

Steel

Tube to Male Pipe

4-2 FBZ-SS

1/4"

NPT Male Connector

1/4"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

4-2 FH2BZ-S

1/4"

NPT Male Bulkhead Connector

1/4"

1/8"

N/A

Steel

Tube to Male Pipe

4-2 FH2BZ-SS

1/4"

NPT Male Bulkhead Connector

1/4"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

4-2 GBZ-S

1/4"

NPT Female Connector

1/4"

1/8"

N/A

Steel

Tube to Female Pipe

4-2 GBZ-SS

1/4"

NPT Female Connector

1/4"

1/8"

N/A

316 Stainless Steel

Tube to Female Pipe

4-2 HBZ-S

1/4"

Reducing Union

1/4"

1/8"

N/A

Steel

Tube to Tube

4-2 HBZ-SS

1/4"

Reducing Union

1/4"

1/8"

N/A

316 Stainless Steel

Tube to Tube

4-2 WBZ-S

1/4"

Bulkhead Union

1/4"

1/8"

N/A

Steel

Tube to Tube

4-2 WBZ-SS

1/4"

Bulkhead Union

1/4"

1/8"

N/A

316 Stainless Steel

Tube to Tube

4-2-4 RBZ-SS

1/4"

Male Run Tee

1/4"

1/8"

1/4"

316 Stainless Steel

Tube to Male Pipe

4-3 HBZ-S

1/4"

Reducing Union

1/4"

3/16"

N/A

Steel

Tube to Tube

4-3 HBZ-SS

1/4"

Reducing Union

1/4"

3/16"

N/A

316 Stainless Steel

Tube to Tube

4-4 CBZ-B

1/4"

Male Elbow

1/4"

1/4"

N/A

Brass

Tube to Male Pipe

4-4 CBZ-S

1/4"

Male Elbow

1/4"

1/4"

N/A

Steel

Tube to Male Pipe

4-4 CBZ-SS

1/4"

Male Elbow

1/4"

1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

-

部件号

管件尺寸

形状

连接 1 尺寸

连接 2 尺寸

连接 3 螺纹尺寸（英寸）

材料

形式

4-4 DBZ-SS

1/4"

Female Elbow

1/4"

1/4"

N/A

316 Stainless Steel

Tube to Female Pipe

4-4 EBZ-S

1/4"

Union Elbow

1/4"

1/4"

N/A

Steel

Tube to Tube Union

4-4 EBZ-SS

1/4"

Union Elbow

1/4"

1/4"

N/A

316 Stainless Steel

Tube to Tube Union

4-4 FBZ-B

1/4"

NPT Male Connector

1/4"

1/4"

N/A

Brass

Tube to Male Pipe

4-4 FBZ-S

1/4"

NPT Male Connector

1/4"

1/4"

N/A

Steel

Tube to Male Pipe

4-4 FBZ-SS

1/4"

NPT Male Connector

1/4"

1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

4-4 FH2BZ-S

1/4"

NPT Male Bulkhead Connector

1/4"

1/4"

N/A

Steel

Tube to Male Pipe

4-4 FH2BZ-SS

1/4"

NPT Male Bulkhead Connector

1/4"

1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

4-4 GBZ-S

1/4"

NPT Female Connector

1/4"

1/4"

N/A

Steel

Tube to Female Pipe

4-4 GBZ-SS

1/4"

NPT Female Connector

1/4"

1/4"

N/A

316 Stainless Steel

Tube to Female Pipe

4-4 HBZ-B

1/4"

Union

1/4"

1/4"

N/A

Brass

Tube to Tube Union

4-4 HBZ-S

1/4"

Union

1/4"

1/4"

N/A

Steel

Tube to Tube Union

4-4 HBZ-SS

1/4"

Union

1/4"

1/4"

N/A

316 Stainless Steel

Tube to Tube Union

4-4 T2HF-SS

1/4"

Tube End Adapter

1/4"

1/4"

N/A

316 Stainless Steel

Port Connectors

4-4 WBZ-B

1/4"

Bulkhead Union

1/4"

1/4"

N/A

Brass

Tube to Tube

4-4 WBZ-S

1/4"

Bulkhead Union

1/4"

1/4"

N/A

Steel

Tube to Tube

4-4 WBZ-SS

1/4"

Bulkhead Union

1/4"

1/4"

N/A

316 Stainless Steel

Tube to Tube

4-4-4 JBZ-B

1/4"

Union Tee

1/4"

1/4"

1/4"

Brass

Tube to Tube Union

4-4-4 JBZ-S

1/4"

Union Tee

1/4"

1/4"

1/4"

Steel

Tube to Tube Union

4-4-4 JBZ-SS

1/4"

Union Tee

1/4"

1/4"

1/4"

316 Stainless Steel

Tube to Tube Union

4-4-4 OBZ-SS

1/4"

Female Branch Tee

1/4"

1/4"

1/4"

316 Stainless Steel

Tube to Female Pipe

4-4-4 RBZ-SS

1/4"

Male Run Tee

1/4"

1/4"

1/4"

316 Stainless Steel

Tube to Male Pipe

4-6 CBZ-S

1/4"

Male Elbow

1/4"

3/8"

N/A

Steel

Tube to Male Pipe

4-6 CBZ-SS

1/4"

Male Elbow

1/4"

3/8"

N/A

316 Stainless Steel

Tube to Male Pipe

4-6 FBZ-S

1/4"

NPT Male Connector

1/4"

3/8"

N/A

Steel

Tube to Male Pipe

4-6 FBZ-SS

1/4"

NPT Male Connector

1/4"

3/8"

N/A

316 Stainless Steel

Tube to Male Pipe

4-6 FH2BZ-S

1/4"

NPT Male Bulkhead Connector

1/4"

3/8"

N/A

Steel

Tube to Male Pipe

4-6 FH2BZ-SS

1/4"

NPT Male Bulkhead Connector

1/4"

3/8"

N/A

316 Stainless Steel

Tube to Male Pipe

4-6 GBZ-S

1/4"

NPT Female Connector

1/4"

3/8"

N/A

Steel

Tube to Female Pipe

4-6 GBZ-SS

1/4"

NPT Female Connector

1/4"

3/8"

N/A

316 Stainless Steel

Tube to Female Pipe

4-8 CBZ-S

1/4"

Male Elbow

1/4"

1/2"

N/A

Steel

Tube to Male Pipe

4-8 CBZ-SS

1/4"

Male Elbow

1/4"

1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

4-8 FBZ-B

1/4"

NPT Male Connector

1/4"

1/2"

N/A

Brass

Tube to Male Pipe

4-8 FBZ-S

1/4"

NPT Male Connector

1/4"

1/2"

N/A

Steel

Tube to Male Pipe

4-8 FBZ-SS

1/4"

NPT Male Connector

1/4"

1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

4-8 FH2BZ-S

1/4"

NPT Male Bulkhead Connector

1/4"

1/2"

N/A

Steel

Tube to Male Pipe

4-8 FH2BZ-SS

1/4"

NPT Male Bulkhead Connector

1/4"

1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

4-8 GBZ-S

1/4"

NPT Female Connector

1/4"

1/2"

N/A

Steel

Tube to Female Pipe

4-8 GBZ-SS

1/4"

NPT Female Connector

1/4"

1/2"

N/A

316 Stainless Steel

Tube to Female Pipe

5 KBZ-S

5/16"

Union Cross

5/16"

N/A

N/A

Steel

Tube to Tube Union

5 KBZ-SS

5/16"

Union Cross

5/16"

N/A

N/A

316 Stainless Steel

Tube to Tube Union

5-2 CBZ-S

5/16"

Male Elbow

5/16"

1/8"

N/A

Steel

Tube to Male Pipe

5-2 CBZ-SS

5/16"

Male Elbow

5/16"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

5-2 EBZ-S

5/16"

Drop Size Elbows

5/16"

1/8"

N/A

Steel

Tube to Tube

5-2 EBZ-SS

5/16"

Drop Size Elbows

5/16"

1/8"

N/A

316 Stainless Steel

Tube to Tube

5-2 FBZ-S

5/16"

NPT Male Connector

5/16"

1/8"

N/A

Steel

Tube to Male Pipe

5-2 FBZ-SS

5/16"

NPT Male Connector

5/16"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

5-2 FH2BZ-S

5/16"

NPT Male Bulkhead Connector

5/16"

1/8"

N/A

Steel

Tube to Male Pipe

5-2 FH2BZ-SS

5/16"

NPT Male Bulkhead Connector

5/16"

1/8"

N/A

316 Stainless Steel

Tube to Male Pipe

5-2 GBZ-S

5/16"

NPT Female Connector

5/16"

1/8"

N/A

Steel

Tube to Female Pipe

-

部件号

管件尺寸

形状

连接 1 尺寸

连接 2 尺寸

连接 3 螺纹尺寸（英寸）

材料

形式

5-2 GBZ-SS

5/16"

NPT Female Connector

5/16"

1/8"

N/A

316 Stainless Steel

Tube to Female Pipe

5-2 HBZ-S

5/16"

Reducing Union

5/16"

1/8"

N/A

Steel

Tube to Tube

5-2 HBZ-SS

5/16"

Reducing Union

5/16"

1/8"

N/A

316 Stainless Steel

Tube to Tube

5-4 CBZ-S

5/16"

Male Elbow

5/16"

1/4"

N/A

Steel

Tube to Male Pipe

5-4 CBZ-SS

5/16"

Male Elbow

5/16"

1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

5-4 EBZ-S

5/16"

Drop Size Elbows

5/16"

1/4"

N/A

Steel

Tube to Tube

5-4 EBZ-SS

5/16"

Drop Size Elbows

5/16"

1/4"

N/A

316 Stainless Steel

Tube to Tube

5-4 FBZ-S

5/16"

NPT Male Connector

5/16"

1/4"

N/A

Steel

Tube to Male Pipe

5-4 FBZ-SS

5/16"

NPT Male Connector

5/16"

1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

5-4 FH2BZ-S

5/16"

NPT Male Bulkhead Connector

5/16"

1/4"

N/A

Steel

Tube to Male Pipe

5-4 FH2BZ-SS

5/16"

NPT Male Bulkhead Connector

5/16"

1/4"

N/A

316 Stainless Steel

Tube to Male Pipe

5-4 GBZ-S

5/16"

NPT Female Connector

5/16"

1/4"

N/A

Steel

Tube to Female Pipe

5-4 GBZ-SS

5/16"

NPT Female Connector

5/16"

1/4"

N/A

316 Stainless Steel

Tube to Female Pipe

5-4 HBZ-S

5/16"

Reducing Union

5/16"

1/4"

N/A

Steel

Tube to Tube

5-4 HBZ-SS

5/16"

Reducing Union

5/16"

1/4"

N/A

316 Stainless Steel

Tube to Tube

5-5 EBZ-S

5/16"

Union Elbow

5/16"

5/16"

N/A

Steel

Tube to Tube Union

5-5 EBZ-SS

5/16"

Union Elbow

5/16"

5/16"

N/A

316 Stainless Steel

Tube to Tube Union

5-5 HBZ-S

5/16"

Union

5/16"

5/16"

N/A

Steel

Tube to Tube Union

5-5 HBZ-SS

5/16"

Union

5/16"

5/16"

N/A

316 Stainless Steel

Tube to Tube Union

5-5 WBZ-S

5/16"

Bulkhead Union

5/16"

5/16"

N/A

Steel

Tube to Tube

5-5 WBZ-SS

5/16"

Bulkhead Union

5/16"

5/16"

N/A

316 Stainless Steel

Tube to Tube

5-5-5 JBZ-S

5/16"

Union Tee

5/16"

5/16"

5/16"

Steel

Tube to Tube Union

5-5-5 JBZ-SS

5/16"

Union Tee

5/16"

5/16"

5/16"

316 Stainless Steel

Tube to Tube Union

5-6 FBZ-S

5/16"

NPT Male Connector

5/16"

3/8"

N/A

Steel

Tube to Male Pipe

5-6 FBZ-SS

5/16"

NPT Male Connector

5/16"

3/8"

N/A

316 Stainless Steel

Tube to Male Pipe

5-6 GBZ-S

5/16"

NPT Female Connector

5/16"

3/8"

N/A

Steel

Tube to Female Pipe

5-6 GBZ-SS

5/16"

NPT Female Connector

5/16"

3/8"

N/A

316 Stainless Steel

Tube to Female Pipe

5-8 FBZ-S

5/16"

NPT Male Connector

5/16"

1/2"

N/A

Steel

Tube to Male Pipe

5-8 FBZ-SS

5/16"

NPT Male Connector

5/16"

1/2"

N/A

316 Stainless Steel

Tube to Male Pipe

6 BZ-SS

3/8"

Tube Nut

3/8"

N/A

N/A

316 Stainless Steel

Components

6 FNZ-SS

3/8"

Plug

3/8"

N/A

N/A

316 Stainless Steel

Components

6 KBZ-S

3/8"

Union Cross

3/8"

N/A

N/A

Steel

Tube to Tube Union

6 KBZ-SS

3/8"

Union Cross

3/8"

N/A

N/A

316 Stainless Steel

Tube to Tube Union

6 PNBZ-SS

3/8"

Cap

3/8"

N/A

N/A

316 Stainless Steel

Components

6 TIZ .250-SS

3/8"

Insert

3/8"

N/A

N/A

316 Stainless Steel

Components

6 TZ-SS

3/8"

Ferrule

3/8"

N/A

N/A

316 Stainless Steel

Components

6-1 HBZ-S

3/8"

Reducing Union

3/8"

1/16"

N/A

Steel

Tube to Tube

6-1 HBZ-SS

3/8"

Reducing Union

3/8"

1/16"

N/A

316 Stainless Steel

Tube to Tube

6-1 Z2HCZ-S

3/8"

Column End Fitting with Frit

3/8"

1/16"

N/A

Steel

Analytical Fittings

6-1 Z2HCZ-SS

3/8"

Column End Fitting with Frit

3/8"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

6-1 Z2HCZ7-S

3/8"

Column End Fitting Low Internal Volume with Frit

3/8"

1/16"

N/A

Steel

Analytical Fittings

6-1 Z2HCZ7-SS

3/8"

Column End Fitting Low Internal Volume with Frit

3/8"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

6-1 Z3HCZ7-S

3/8"

Column End Fitting Low Internal Volume

3/8"

1/16"

N/A

Steel

Analytical Fittings

6-1 Z3HCZ7-SS

3/8"

Column End Fitting Low Internal Volume

3/8"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

6-1 ZHCZ-S

3/8"

Column End Fitting (without Frit)

3/8"

1/16"

N/A

Steel

Analytical Fittings

6-1 ZHCZ-SS

3/8"

Column End Fitting (without Frit)

3/8"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

6-1 ZHCZ7-S

3/8"

Column End Fitting Low Internal Volume (without Frit)

3/8"

1/16"

N/A

Steel

Analytical Fittings

6-1 ZHCZ7-SS

3/8"

Column End Fitting Low Internal Volume (without Frit)

3/8"

1/16"

N/A

316 Stainless Steel

Analytical Fittings

6-12 CBZ-S

3/8"

Male Elbow

3/8"

3/4"

N/A

Steel

Tube to Male Pipe

6-12 CBZ-SS

3/8"

Male Elbow

3/8"

3/4"

N/A

316 Stainless Steel

Tube to Male Pipe





美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
