派克PTC空气制动DOT复合材料和黄铜按钮连接件
Parker Fittings接头 - Pneumatic Fittings

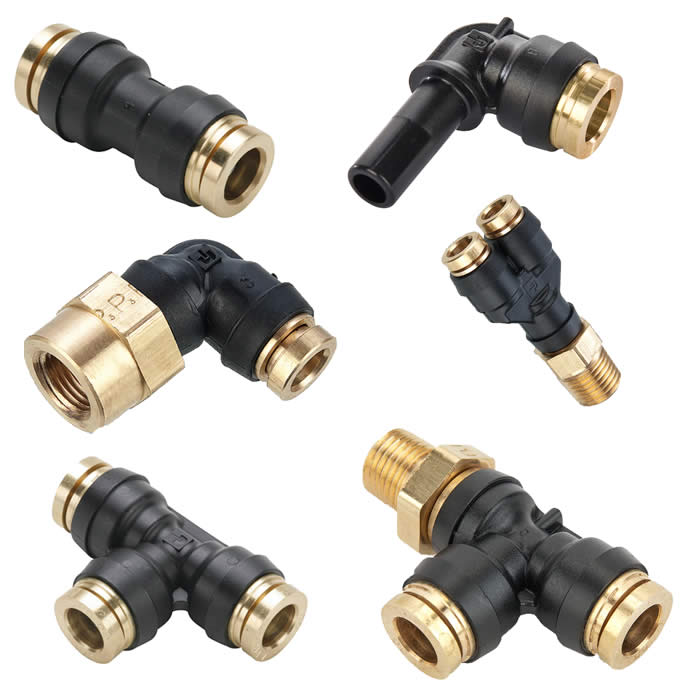

Air Brake D.O.T. composite push-to-connect fittings, PTC

派克的PTC接头是一种即插即用的接头，提供复合材料和黄铜两种材料，符合DOT和SAE规范。推入式连接件与压缩式连接件相比，减少了组装时间。Parker's PTC fitting is a composite push-to-connect air brake fitting that meets D.O.T. and SAE specifications and reduces assembly time versus compression style fittings. Being the world's leader in leak-resistant connection technologies Parker's PTC D.O.T. fitting is a composite push-to-connect air brake fitting that meets SAE and D.O.T. specifications. Engineered to meet the demands of all truck/trailer, mobile and rail systems worldwide, Parker's quick connect push-in air fittings reduce assembly time versus compression style fittings by 90%. The composite body is strong, lightweight and impact resistant. The innovative collet design ensures positive grip on the tubing, and the rigid stainless-steel tube support stays in place for ease of proper assembly.



Air Brake D.O.T. composite push-to-connect fittings, PTC



Use with the following Parker Parflex Division tubing.
- SAE J844 Type A & B Tubing

Markets:
- Heavy duty truck
- Trailer
- Mobile
- Rail

Features and Benefits:
- D.O.T. quick connect push-in fittings for repairing truck and trailer air brake lines
- For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm machinery implements
- Use in secondary air applications such as pneumatic doors for rail, air seats, shock absorbers and in cab instruments
- Meets performance requirements of D.O.T. FMVSS 571.106, SAE J1131 and SAE J2494-3
- Stainless-steel tube support assures maximum flow and performance requirements of SAE J2494-3
- Composite body - strong, lightweight, compact and impact resistant
- Composite body can be rotated after assembly to align shaped fittings for proper orientation
- All threads per SAE J476
- PTC fittings reduce assembly time over compression style fittings by 90%
- Quick connect push-in fitting for leak-resistant proof tube connections
- D.O.T. approved air brake fitting for servicing nylon brake and secondary air lines
- Quick connecting push-in fittings for servicing work by fleets, repair shops and farm machinery implement dealers

Applications:
- Air brakes
- Air tanks
- Air ride
- Sliders
- Tire inflation
- Primary & secondary air lines
- Cab controls

Custom configurations and sizes are available upon request. Contact us for additional information.



Technical Specifications

Application: Air Brakes, Air Brake, Air Ride, Sliders, Tire Inflation, Primary/Secondary Air Lines and Cab Controls
Connection Type: Push-to-Connect, Thread and Plug-In, NPTF
Shape: Various
Materials of Construction: Composite
Minimum Operating Temperature: -40 °F, -40 °C
Maximum Operating Temperature: 200 °F, 93 °C
Maximum Operating Pressure: 250 psi, 17 bar
Tube Material: J844 Type A & B Nylon Tubing, Stainless Steel
Collet Material: Brass
O-Ring Material: Buna N
Specifications Met: DOT FMVSS 571.106, SAE J1131, SAE J2494-3

Air Brake D.O.T. composite push-to-connect fittings, PTC 型号

Part Shape Style Connection 1 Tube O.D. (inch) Connection 1 Style Connection 2 Tube O.D. (inch) Connection 2 Thread Size (inch) Connection 2 Thread Size (mm) Connection 2 Style Connection 3 Tube O.D. (inch) Connection 3 Style Sealant Option
24M-4-4 Manifold Tube to Tube 2020/1/4 Push-to-Connect 1/4 na na Push-to-Connect na na None
32PTC-10 Union Tube to Tube 2020/5/8 Push-to-Connect 5/8 na na Push-to-Connect na na None
32PTC-12 Union Tube to Tube 2020/3/4 Push-to-Connect 3/4 na na Push-to-Connect na na None
32PTC-4 Union Tube to Tube 2020/1/4 Push-to-Connect 1/4 na na Push-to-Connect na na None
32PTC-6 Union Tube to Tube 2020/3/8 Push-to-Connect 3/8 na na Push-to-Connect na na None
32PTC-8 Union Tube to Tube 2020/1/2 Push-to-Connect 1/2 na na Push-to-Connect na na None
362PTC-4 Union Y Tube to Tube 2020/1/4 Push-to-Connect 1/4 na na Push-to-Connect na na None
362PTC-6 Union Y Tube to Tube 2020/3/8 Push-to-Connect 3/8 na na Push-to-Connect na na None
362PTC-8 Union Y Tube to Tube 2020/1/2 Push-to-Connect 1/2 na na Push-to-Connect na na None
364PTC-10 Tee Tube to Tube 2020/5/8 Push-to-Connect 5/8 na na Push-to-Connect na na None
364PTC-4 Tee Tube to Tube 1/4 Push-to-Connect 2020/1/4 na na Push-to-Connect na na None
364PTC-6 Tee Tube to Tube 3/8 Push-to-Connect 2020/3/8 na na Push-to-Connect na na None
364PTC-6-6-4 Union Tee Tube to Tube 2020/3/8 Push-to-Connect 2020/3/8 na na Push-to-Connect 1/4 Push-to-Connect None
364PTC-8 Tee Tube to Tube 2020/1/2 Push-to-Connect 2020/1/2 na na Push-to-Connect na na None
365PTC-6 90° Elbow Tube to Tube 2020/3/8 Push-to-Connect 2020/3/8 na na Push-to-Connect na na None
365PTC-8 90° Elbow Tube to Tube 2020/1/2 Push-to-Connect 2020/1/2 na na Push-to-Connect na na None
368PTC-4-2 Y Connector Tube to Pipe 1/4 Push-to-Connect na 1/8 na Male Pipe na na None
368PTC-4-4 Y Connector Tube to Pipe 1/4 Push-to-Connect na 1/4 na Male Pipe na na None
368PTC-6-4 Y Connector Tube to Pipe 3/8 Push-to-Connect na 1/4 na Male Pipe na na None
369PTC-10-6 90° Elbow Tube to Pipe 5/8 Push-to-Connect na 3/8 na Male Pipe na na None
369PTC-10-8 90° Elbow Tube to Pipe 5/8 Push-to-Connect na 1/2 na Male Pipe na na None
369PTC-12-12 90° Elbow Tube to Pipe 3/4 Push-to-Connect na 3/4 na Male Pipe na na None
369PTC-12-8 90° Elbow Tube to Pipe 3/4 Push-to-Connect na 1/2 na Male Pipe na na None
369PTC-4-2 90° Elbow Tube to Pipe 1/4 Push-to-Connect na 1/8 na Male Pipe na na None
369PTC-4-4 90° Elbow Tube to Pipe 1/4 Push-to-Connect na 1/4 na Male Pipe na na None
369PTC-4-6 90° Elbow Tube to Pipe 1/4 Push-to-Connect na 3/8 na Male Pipe na na None
369PTC-6-2 90° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/8 na Male Pipe na na None
369PTC-6-4 90° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/4 na Male Pipe na na None
369PTC-6-6 90° Elbow Tube to Pipe 3/8 Push-to-Connect na 3/8 na Male Pipe na na None
369PTC-6-8 90° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/2 na Male Pipe na na None
369PTC-8-4 90° Elbow Tube to Pipe 1/2 Push-to-Connect na 1/4 na Male Pipe na na None
369PTC-8-6 90° Elbow Tube to Pipe 1/2 Push-to-Connect na 3/8 na Male Pipe na na None
369PTC-8-8 90° Elbow Tube to Pipe 1/2 Push-to-Connect na 1/2 na Male Pipe na na None
369PTCR-10-6 90° Elbow Tube to Pipe 5/8 Push-to-Connect na 3/8 na Male Pipe na na None
369PTCR-10-8 90° Elbow Tube to Pipe 5/8 Push-to-Connect na 1/2 na Male Pipe na na None
369PTCR-12-8 90° Elbow Tube to Pipe 3/4 Push-to-Connect na 1/2 na Male Pipe na na None
369PTCR-4-2 90° Elbow Tube to Pipe 1/4 Push-to-Connect na 1/8 na Male Pipe na na None
369PTCR-4-4 90° Elbow Tube to Pipe 1/4 Push-to-Connect na 1/4 na Male Pipe na na None
369PTCR-4-6 90° Elbow Tube to Pipe 1/4 Push-to-Connect na 3/8 na Male Pipe na na None
369PTCR-6-2 90° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/8 na Male Pipe na na None
369PTCR-6-4 90° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/4 na Male Pipe na na None
369PTCR-6-6 90° Elbow Tube to Pipe 3/8 Push-to-Connect na 3/8 na Male Pipe na na None
369PTCR-6-8 90° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/2 na Male Pipe na na None
369PTCR-8-4 90° Elbow Tube to Pipe 1/2 Push-to-Connect na 1/4 na Male Pipe na na None
369PTCR-8-6 90° Elbow Tube to Pipe 1/2 Push-to-Connect na 3/8 na Male Pipe na na None
369PTCR-8-8 90° Elbow Tube to Pipe 1/2 Push-to-Connect na 1/2 na Male Pipe na na None
369PTCSP-10-8 Plug-in 90° Elbow Tube to Plug-in Stem 5/8 Push-to-Connect 1/2 na na Plug-in Stem na na None
369PTCSP-4-4 Plug-in 90° Elbow Tube to Plug-in Stem 1/4 Push-to-Connect 1/4 na na Plug-in Stem na na None
369PTCSP-4-6 Plug-in 90° Elbow Tube to Plug-in Stem 1/4 Push-to-Connect 3/8 na na Plug-in Stem na na None
369PTCSP-6-4 Plug-in 90° Elbow Tube to Plug-in Stem 3/8 Push-to-Connect 1/4 na na Plug-in Stem na na None
369PTCSP-6-6 Plug-in 90° Elbow Tube to Plug-in Stem 3/8 Push-to-Connect 3/8 na na Plug-in Stem na na None
369PTCSP-6-8 Plug-in 90° Elbow Tube to Plug-in Stem 3/8 Push-to-Connect 1/2 na na Plug-in Stem na na None
369PTCSP-8-4 Plug-in 90° Elbow Tube to Plug-in Stem 1/2 Push-to-Connect 1/4 na na Plug-in Stem na na None
369PTCSP-8-8 Plug-in 90° Elbow Tube to Plug-in Stem 1/2 Push-to-Connect 1/2 na na Plug-in Stem na na None
370PTC-4-2 90° Elbow Tube to Female Pipe 1/4 Push-to-Connect na 1/8 na Female Pipe na na None
370PTC-4-4 90° Elbow Tube to Female Pipe 1/4 Push-to-Connect na 1/4 na Female Pipe na na None
370PTC-6-2 90° Elbow Tube to Female Pipe 3/8 Push-to-Connect na 1/8 na Female Pipe na na None
370PTC-6-4 90° Elbow Tube to Female Pipe 3/8 Push-to-Connect na 1/4 na Female Pipe na na None
370PTC-6-6 90° Elbow Tube to Female Pipe 3/8 Push-to-Connect na 3/8 na Female Pipe na na None
370PTC-8-6 90° Elbow Tube to Female Pipe 1/2 Push-to-Connect na 3/8 na Female Pipe na na None
370PTC-8-8 90° Elbow Tube to Female Pipe 1/2 Push-to-Connect na 1/2 na Female Pipe na na None
370PTCR-4-2 90° Elbow Tube to Female Pipe 1/4 Push-to-Connect na 1/8 na Female Pipe na na None
370PTCR-4-4 90° Elbow Tube to Female Pipe 1/4 Push-to-Connect na 1/4 na Female Pipe na na None
370PTCR-6-2 90° Elbow Tube to Female Pipe 3/8 Push-to-Connect na 1/8 na Female Pipe na na None
370PTCR-6-4 90° Elbow Tube to Female Pipe 3/8 Push-to-Connect na 1/4 na Female Pipe na na None
370PTCR-6-6 90° Elbow Tube to Female Pipe 3/8 Push-to-Connect na 3/8 na Female Pipe na na None
370PTCR-8-6 90° Elbow Tube to Female Pipe 1/2 Push-to-Connect na 3/8 na Female Pipe na na None
370PTCR-8-8 90° Elbow Tube to Female Pipe 1/2 Push-to-Connect na 1/2 na Female Pipe na na None
371PTC-10-8 Run Tee Tube to Pipe 5/8 Push-to-Connect na 1/2 na Male Pipe na na None
371PTC-4-2 Run Tee Tube to Pipe 1/4 Push-to-Connect na 1/8 na Male Pipe na na None
371PTC-4-4 Run Tee Tube to Pipe 1/4 Push-to-Connect na 1/4 na Male Pipe na na None
371PTC-4-6 Run Tee Tube to Pipe 1/4 Push-to-Connect na 3/8 na Male Pipe na na None
371PTC-6-4 Run Tee Tube to Pipe 3/8 Push-to-Connect na 1/4 na Male Pipe na na None
371PTC-6-4-4 Run Tee Tube to Pipe 3/8 Push-to-Connect na 1/4 na Push-to-Connect 1/4 Male Pipe None
371PTC-6-6 Run Tee Tube to Pipe 3/8 Push-to-Connect na 3/8 na Male Pipe na na None
371PTC-8-4 Run Tee Tube to Pipe 1/2 Push-to-Connect na 1/4 na Male Pipe na na None
371PTC-8-6 Run Tee Tube to Pipe 1/2 Push-to-Connect na 3/8 na Male Pipe na na None
371PTC-8-8 Run Tee Tube to Pipe 1/2 Push-to-Connect na 1/2 na Male Pipe na na None
371PTCR-10-8 Run Tee Tube to Pipe 5/8 Push-to-Connect na 1/2 na Male Pipe na na None
371PTCR-4-2 Run Tee Tube to Pipe 1/4 Push-to-Connect na 1/8 na Male Pipe na na None
371PTCR-4-4 Run Tee Tube to Pipe 1/4 Push-to-Connect na 1/4 na Male Pipe na na None
371PTCR-6-4 Run Tee Tube to Pipe 3/8 Push-to-Connect na 1/4 na Male Pipe na na None
371PTCR-6-6 Run Tee Tube to Pipe 3/8 Push-to-Connect na 3/8 na Male Pipe na na None
371PTCR-8-4 Run Tee Tube to Pipe 1/2 Push-to-Connect na 1/4 na Male Pipe na na None
371PTCR-8-6 Run Tee Tube to Pipe 1/2 Push-to-Connect na 3/8 na Male Pipe na na None
371PTCR-8-8 Run Tee Tube to Pipe 1/2 Push-to-Connect na 1/2 na Male Pipe na na None
371PTCSP-4-4 Plug-in Run Tee Tube to Plug-in Stem 1/4 Push-to-Connect 1/4 na na Plug-in Stem na na None
371PTCSP-4-6 Plug-in Run Tee Tube to Plug-in Stem 1/4 Push-to-Connect 3/8 na na Plug-in Stem na na None
371PTCSP-6-4 Plug-in Run Tee Tube to Plug-in Stem 3/8 Push-to-Connect 1/4 na na Plug-in Stem na na None
371PTCSP-6-4-6 Plug-in Run Tee Tube to Plug-in Stem 3/8 Push-to-Connect 1/4 na na Push-to-Connect 3/8 Plug-in Stem None
371PTCSP-6-6 Plug-in Run Tee Tube to Plug-in Stem 3/8 Push-to-Connect 3/8 na na Plug-in Stem na na None
371PTCSP-8-4-8 Plug-in Run Tee Tube to Plug-in Stem 1/2 Push-to-Connect 1/4 na na Push-to-Connect 1/2 Plug-in Stem None
372PTC-10-8 Branch Tee Tube to Pipe 5/8 Push-to-Connect na 1/2 na Male Pipe na na None
372PTC-4-2 Branch Tee Tube to Pipe 1/4 Push-to-Connect na 1/8 na Male Pipe na na None
372PTC-4-4 Branch Tee Tube to Pipe 1/4 Push-to-Connect na 1/4 na Male Pipe na na None
372PTC-4-6 Branch Tee Tube to Pipe 1/4 Push-to-Connect na 3/8 na Male Pipe na na None
372PTC-6-2 Branch Tee Tube to Pipe 3/8 Push-to-Connect na 1/8 na Male Pipe na na None
372PTC-6-4 Branch Tee Tube to Pipe 3/8 Push-to-Connect na 1/4 na Male Pipe na na None
372PTC-6-6 Branch Tee Tube to Pipe 3/8 Push-to-Connect na 3/8 na Male Pipe na na None
372PTC-8-4 Branch Tee Tube to Pipe 1/2 Push-to-Connect na 1/4 na Male Pipe na na None
372PTC-8-4-8 Branch Tee Tube to Pipe 1/2 Push-to-Connect 1/4 na na Push-to-Connect 1/2 Male Pipe None
372PTC-8-6 Branch Tee Tube to Pipe 1/2 Push-to-Connect na 3/8 na Male Pipe na na None
372PTC-8-8 Branch Tee Tube to Pipe 1/2 Push-to-Connect na 1/2 na Male Pipe na na None
372PTCR-10-8 Branch Tee Tube to Pipe 5/8 Push-to-Connect na 1/2 na Male Pipe na na None
372PTCR-4-2 Branch Tee Tube to Pipe 1/4 Push-to-Connect na 1/8 na Male Pipe na na None
372PTCR-4-4 Branch Tee Tube to Pipe 1/4 Push-to-Connect na 1/4 na Male Pipe na na None
372PTCR-6-2 Branch Tee Tube to Pipe 3/8 Push-to-Connect na 1/8 na Male Pipe na na None
372PTCR-6-4 Branch Tee Tube to Pipe 3/8 Push-to-Connect na 1/4 na Male Pipe na na None
372PTCR-6-6 Branch Tee Tube to Pipe 3/8 Push-to-Connect na 3/8 na Male Pipe na na None
372PTCR-8-4 Branch Tee Tube to Pipe 1/2 Push-to-Connect na 1/4 na Male Pipe na na None
372PTCR-8-6 Branch Tee Tube to Pipe 1/2 Push-to-Connect na 3/8 na Male Pipe na na None
372PTCR-8-8 Branch Tee Tube to Pipe 1/2 Push-to-Connect na 1/2 na Male Pipe na na None
372PTCSP-4-4 Plug-in Branch Tee Tube to Plug-in Stem 1/4 Push-to-Connect 1/4 na na Plug-in Stem na na None
372PTCSP-4-6 Plug-in Branch Tee Tube to Plug-in Stem 1/4 Push-to-Connect 3/8 na na Plug-in Stem na na None
372PTCSP-6-4 Plug-in Branch Tee Tube to Plug-in Stem 3/8 Push-to-Connect 1/4 na na Plug-in Stem na na None
372PTCSP-6-6 Plug-in Branch Tee Tube to Plug-in Stem 3/8 Push-to-Connect 3/8 na na Plug-in Stem na na None
377PTC-4-4 Tee Tube to Female Pipe 1/4 Push-to-Connect na 1/4 na Male Pipe na na None
379PTC-10-6 45° Elbow Tube to Pipe 5/8 Push-to-Connect na 3/8 na Male Pipe na na None
379PTC-10-8 45° Elbow Tube to Pipe 5/8 Push-to-Connect na 1/2 na Male Pipe na na None
379PTC-12-12 45° Elbow Tube to Pipe 3/4 Push-to-Connect na 3/4 na Male Pipe na na None
379PTC-12-8 45° Elbow Tube to Pipe 3/4 Push-to-Connect na 1/2 na Male Pipe na na None
379PTC-4-2 45° Elbow Tube to Pipe 1/4 Push-to-Connect na 1/8 na Male Pipe na na None
379PTC-4-4 45° Elbow Tube to Pipe 1/4 Push-to-Connect na 1/4 na Male Pipe na na None
379PTC-4-6 45° Elbow Tube to Pipe 1/4 Push-to-Connect na 3/8 na Male Pipe na na None
379PTC-6-2 45° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/8 na Male Pipe na na None
379PTC-6-4 45° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/4 na Male Pipe na na None
379PTC-6-6 45° Elbow Tube to Pipe 3/8 Push-to-Connect na 3/8 na Male Pipe na na None
379PTC-6-8 45° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/2 na Male Pipe na na None
379PTC-8-4 45° Elbow Tube to Pipe 1/2 Push-to-Connect na 1/4 na Male Pipe na na None
379PTC-8-6 45° Elbow Tube to Pipe 1/2 Push-to-Connect na 3/8 na Male Pipe na na None
379PTC-8-8 45° Elbow Tube to Pipe 1/2 Push-to-Connect na 1/2 na Male Pipe na na None
379PTCR-10-6 45° Elbow Tube to Pipe 5/8 Push-to-Connect na 3/8 na Male Pipe na na None
379PTCR-10-8 45° Elbow Tube to Pipe 5/8 Push-to-Connect na 1/2 na Male Pipe na na None
379PTCR-12-8 45° Elbow Tube to Pipe 3/4 Push-to-Connect na 1/2 na Male Pipe na na None
379PTCR-4-2 45° Elbow Tube to Pipe 1/4 Push-to-Connect na 1/8 na Male Pipe na na None
379PTCR-4-4 45° Elbow Tube to Pipe 1/4 Push-to-Connect na 1/4 na Male Pipe na na None
379PTCR-6-2 45° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/8 na Male Pipe na na None
379PTCR-6-4 45° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/4 na Male Pipe na na None
379PTCR-6-6 45° Elbow Tube to Pipe 3/8 Push-to-Connect na 3/8 na Male Pipe na na None
379PTCR-6-8 45° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/2 na Male Pipe na na None
379PTCR-8-4 45° Elbow Tube to Pipe 1/2 Push-to-Connect na 1/4 na Male Pipe na na None
379PTCR-8-6 45° Elbow Tube to Pipe 1/2 Push-to-Connect na 3/8 na Male Pipe na na None
379PTCR-8-8 45° Elbow Tube to Pipe 1/2 Push-to-Connect na 1/2 na Male Pipe na na None
37PTCSP-10-8 Plug-in Adapter Tube to Plug-in Stem 5/8 Push-to-Connect 1/2 na na Plug-in Stem na na None
37PTCSP-4-6 Plug-in Adapter Tube to Plug-in Stem 1/4 Push-to-Connect 3/8 na na Plug-in Stem na na None
37PTCSP-6-4 Plug-in Adapter Tube to Plug-in Stem 3/8 Push-to-Connect 1/4 na na Plug-in Stem na na None
62PTC-8 Union Tube to Tube 1/2 Tube 1/2 na na Tube na na None
62PTCBH-8 Bulkhead Tube to Tube 1/2 Push-to-Connect 1/8 na na Push-to-Connect na na na
62PTCBHR-8 Retaining Ring Bulkhead Tube to Tube 1/2 Push-to-Connect 1/8 na na Push-to-Connect na na na
66PTC-4-2 Connector Tube to Female Pipe 1/4 Push-to-Connect na 1/8 na NPTF na na None
66PTC-4-4 Connector Tube to Female Pipe 1/4 Push-to-Connect na 1/4 na NPTF na na None
66PTC-6-2 Connector Tube to Female Pipe 3/8 Push-to-Connect na 1/8 na NPTF na na None
66PTC-6-4 Connector Tube to Female Pipe 3/8 Push-to-Connect na 1/4 na NPTF na na None
66PTC-6-6 Connector Tube to Female Pipe 3/8 Push-to-Connect na 3/8 na NPTF na na None
66PTC-8-4 Connector Tube to Female Pipe 1/2 Push-to-Connect na 1/4 na NPTF na na None
66PTC-8-6 Connector Tube to Female Pipe 1/2 Push-to-Connect na 3/8 na NPTF na na None
66PTC-8-8 Connector Tube to Female Pipe 1/2 Push-to-Connect na 1/2 na NPTF na na None
66PTCBH-4-4 Bulkhead Tube to Female Pipe 1/4 Push-to-Connect na 1/4 na NPTF na na na
66PTCBH-8-8 Bulkhead Tube to Female Pipe 1/2 Push-to-Connect na 1/2 na NPTF na na na
68PTC-10-6 Connector Tube to Pipe 5/8 Push-to-Connect na 3/8 na NPTF na na None
68PTC-10-8 Connector Tube to Pipe 5/8 Push-to-Connect na 1/2 na NPTF na na None
68PTC-12-8 Connector Tube to Pipe 3/4 Push-to-Connect na 1/2 na NPTF na na None
68PTC-4-2 Connector Tube to Pipe 1/4 Push-to-Connect na 1/8 na NPTF na na None
68PTC-4-4 Connector Tube to Pipe 1/4 Push-to-Connect na 1/4 na NPTF na na None
68PTC-4-6 Connector Tube to Pipe 1/4 Push-to-Connect na 3/8 na NPTF na na None
68PTC-4-M12 Connector Tube to Metric Thread 1/4 Push-to-Connect n/a n/a M12x1.5 Metric n/a n/a na
68PTC-4-M16 Connector Tube to Metric Thread 1/4 Push-to-Connect n/a n/a M16x1.5 Metric n/a n/a n/a
68PTC-6-2 Connector Tube to Pipe 3/8 Push-to-Connect na 1/8 na NPTF na na None
68PTC-6-4 Connector Tube to Pipe 3/8 Push-to-Connect na 1/4 na NPTF na na None
68PTC-6-6 Connector Tube to Pipe 3/8 Push-to-Connect na 3/8 na NPTF na na None
68PTC-6-8 Connector Tube to Pipe 3/8 Push-to-Connect na 1/2 na NPTF na na None
68PTC-8-4 Connector Tube to Pipe 1/2 Push-to-Connect na 1/4 na NPTF na na None
68PTC-8-6 Connector Tube to Pipe 1/2 Push-to-Connect na 3/8 na NPTF na na None
68PTC-8-8 Connector Tube to Pipe 1/2 Push-to-Connect na 1/2 na NPTF na na None
68PTC-8-M12 Connector Tube to Metric Thread 1/2 Push-to-Connect n/a n/a M12x1.5 Metric n/a n/a na
68PTC-8-M16 Connector Tube to Metric Thread 1/2 Push-to-Connect n/a n/a M16x1.5 Metric n/a n/a n/a
68PTC-8-M22 Connector Tube to Metric Thread 1/2 Push-to-Connect n/a n/a M22x1.5 Metric n/a n/a n/a
68PTCBH-8-8 Bulkhead Male Tube to Pipe 1/2 Push-to-Connect na 1/2 na NPTF na na na
VS369PTCR-4-2 90° Elbow Tube to Pipe 1/4 Push-to-Connect na 1/8 na Male Pipe na na Vibra-Seal
VS369PTCR-4-4 90° Elbow Tube to Pipe 1/4 Push-to-Connect na 1/4 na Male Pipe na na Vibra-Seal
VS369PTCR-6-4 90° Elbow Tube to Pipe 3/8 Push-to-Connect na 1/4 na Male Pipe na na Vibra-Seal
VS379PTCR-4-2 45° Elbow Tube to Pipe 1/4 Push-to-Connect na 1/8 na Male Pipe na na Vibra-Seal
VS379PTCR-4-4 45° Elbow Tube to Pipe 1/4 Push-to-Connect na 1/4 na Male Pipe na na Vibra-Seal
VS68PTC-4-2 Connector Tube to Pipe 1/4 Push-to-Connect na 1/8 na NPTF na na Vibra-Seal
VS68PTC-4-4 Connector Tube to Pipe 1/4 Push-to-Connect na 1/4 na NPTF na na Vibra-Seal
VS68PTC-4-6 Connector Tube to Pipe 1/4 Push-to-Connect na 3/8 na NPTF na na Vibra-Seal









美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
