Parker air brake AB fittings 空气制动器DOT压缩式AB接头 - Parker Fittings接头
Compression Fittings

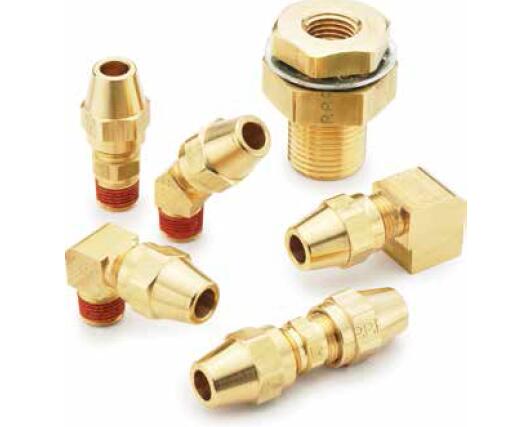

Air Brake D.O.T. compression style fittings, AB

派克的空气制动AB接头是用于铜制空气制动管路的经济型压缩式接头。AB配件满足SAE J246的功能要求和DOT FMVSS571.106的性能要求。作为无泄漏技术的全球领导者，派克的空气制动器-AB接头是用于铜制空气制动器管路的经济型压缩式接头。AB配件满足SAE J246的功能要求和DOT FMVSS571.106的性能要求。AB接头在所有外螺纹上均预先涂了螺纹密封剂。化学镀镍体可与生物柴油一起使用。与铜制空气制动管或以下派克Parflex Division管一起使用。





Parker's air brake AB fittings are economical compression style fittings
Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106. eing the world's leader in leak free technologies Parker's air brake - AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106. AB fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel.

Use with copper air brake tubing or the following Parker Parflex Division tubing.
- 1120 Nylon Air Brake Tubing (with a tube support)
- 1320 Quantum Elastomeric Air Brake Tubing (with a tube support)

与铜制空气制动管或以下派克Parflex Division管一起使用。
- 1120尼龙空气制动管（带管支架）
- 1320量子弹性空气制动管（带管支架）

市场：

- 重型卡车
- 拖车
- 移动式

特点与优势：

- 用于修理卡车和拖车空气制动管路的DOT压缩式配件
- 用于半卡车，拖车，公共汽车，移动设备和农具的空气制动系统
- 符合DOT FMVSS571.106性能
- 符合SAE J246的功能要求
- 所有黄铜空气制动装置
- 可重复使用
- 与空气制动系统中的铜管一起使用
- 预先施加的螺纹密封剂
应用：
- 铜空气制动管路
- 冷却液管路
- 燃油管路

可根据要求提供定制配置和尺寸。请与我们联系以获取更多信息。

Markets:

- Heavy duty truck
- Trailer
- Mobile

Features/Benefits:

- D.O.T. compression style fittings for repairing truck and trailer air brake lines
- For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
- Meets D.O.T. FMVSS571.106 performance
- Meets functional requirements of SAE J246
- All brass air brake fitting
- Reusable
- Use with copper tubing in air brake systems
- Pre-applied thread sealant
Applications:
- Copper air brake lines
- Coolant lines
- Fuel lines

Custom configurations and sizes are available upon request. Contact us for additional information.



Technical Specifications

Connection Type: Compression, Thread
Shape: Various
Minimum Operating Temperature: -65 °F, -53 °C
Maximum Operating Temperature: 250 °F, 121 °C
Maximum Operating Pressure: 400 psi, 27 bar
Tube Material: Annealed Copper
Application: Air Brake
Specifications Met: DOT FMVSS 571.106, SAE J246
Materials of Construction: Brass
Nut Material: Brass
Sleeve Material: BrassThread Sealant
Material: Vibra-Seal 516



Air Brake D.O.T. compression style fittings, AB型号

Part Shape Style Connection 1 Tube O.D. (inch) Connection 1 Style Connection 2 Thread Size (inch) Connection 2 Tube O.D. (inch) Connection 2 Style
264AB-10 Tee Tube to Tube 5/8 Compression na 5/8 Compression
264AB-4 Tee Tube to Tube 1/4 Compression na 1/4 Compression
264AB-6 Tee Tube to Tube 3/8 Compression na 3/8 Compression
264AB-8 Tee Tube to Tube 1/2 Compression na 1/2 Compression
265AB-10 90° Elbow Tube to Tube 5/8 Compression na 5/8 Compression
265AB-4 90° Elbow Tube to Tube 1/4 Compression na 1/4 Compression
265AB-6 90° Elbow Tube to Tube 3/8 Compression na 3/8 Compression
265AB-8 90° Elbow Tube to Tube 1/2 Compression na 1/2 Compression
270AB-10-8 90° Elbow Tube to Female Pipe 5/8 Compression 1/2 na Female Pipe
270AB-4-2 90° Elbow Tube to Female Pipe 1/4 Compression 1/8 na Female Pipe
270AB-4-4 90° Elbow Tube to Female Pipe 1/4 Compression 1/4 na Female Pipe
270AB-6-2 90° Elbow Tube to Female Pipe 3/8 Compression 1/8 na Female Pipe
270AB-6-4 90° Elbow Tube to Female Pipe 3/8 Compression 1/4 na Female Pipe
270AB-6-6 90° Elbow Tube to Female Pipe 3/8 Compression 3/8 na Female Pipe
270AB-8-6 90° Elbow Tube to Female Pipe 1/2 Compression 3/8 na Female Pipe
270AB-8-8 90° Elbow Tube to Female Pipe 1/2 Compression 1/2 na Female Pipe
60AB-10 Sleeve Tube 5/8 Compression na na na
60AB-12 Sleeve Tube 3/4 Compression na na na
60AB-4 Sleeve Tube 1/4 Compression na na na
60AB-6 Sleeve Tube 3/8 Compression na na na
60AB-8 Sleeve Tube 1/2 Compression na na na
61AB-10 Nut Tube 5/8 Compression na na na
61AB-12 Nut Tube 3/4 Compression na na na
61AB-4 Nut Tube 1/4 Compression na na na
61AB-6 Nut Tube 3/8 Compression na na na
61AB-8 Nut Tube 1/2 Compression na na na
62AB-10 Union Tube to Tube 5/8 Compression na 5/8 Compression
62AB-12 Union Tube to Tube 3/4 Compression na 3/4 Compression
62AB-4 Union Tube to Tube 1/4 Compression na 1/4 Compression
62AB-6 Union Tube to Tube 3/8 Compression na 3/8 Compression
62AB-8 Union Tube to Tube 1/2 Compression na 1/2 Compression
62ABH-4 Bulkhead Tube to Tube 1/4 Compression na 1/4 Compression
62ABH-6 Bulkhead Tube to Tube 3/8 Compression na 3/8 Compression
62ABH-8 Bulkhead Tube to Tube 1/2 Compression na 1/2 Compression
66AB-10-6 Connector Tube to Female Pipe 5/8 Compression 3/8 na Female Pipe
66AB-10-8 Connector Tube to Female Pipe 5/8 Compression 1/2 na Female Pipe
66AB-4-2 Connector Tube to Female Pipe 1/4 Compression 1/8 na Female Pipe
66AB-4-4 Connector Tube to Female Pipe 1/4 Compression 1/4 na Female Pipe
66AB-6-2 Connector Tube to Female Pipe 3/8 Compression 1/8 na Female Pipe
66AB-6-4 Connector Tube to Female Pipe 3/8 Compression 1/4 na Female Pipe
66AB-6-6 Connector Tube to Female Pipe 3/8 Compression 3/8 na Female Pipe
66AB-8-6 Connector Tube to Female Pipe 1/2 Compression 3/8 na Female Pipe
66AB-8-8 Connector Tube to Female Pipe 1/2 Compression 1/2 na Female Pipe
VS269AB-10-6 90° Elbow Tube to Pipe 5/8 Compression 3/8 na Male Pipe
VS269AB-10-8 90° Elbow Tube to Pipe 5/8 Compression 1/2 na Male Pipe
VS269AB-12-12 90° Elbow Tube to Pipe 3/4 Compression 3/4 na Male Pipe
VS269AB-12-8 90° Elbow Tube to Pipe 3/4 Compression 1/2 na Male Pipe
VS269AB-4-2 90° Elbow Tube to Pipe 1/4 Compression 1/8 na Male Pipe
VS269AB-4-4 90° Elbow Tube to Pipe 1/4 Compression 1/4 na Male Pipe
VS269AB-4-6 90° Elbow Tube to Pipe 1/4 Compression 3/8 na Male Pipe
VS269AB-6-2 90° Elbow Tube to Pipe 3/8 Compression 1/8 na Male Pipe
VS269AB-6-4 90° Elbow Tube to Pipe 3/8 Compression 1/4 na Male Pipe
VS269AB-6-6 90° Elbow Tube to Pipe 3/8 Compression 3/8 na Male Pipe
VS269AB-6-8 90° Elbow Tube to Pipe 3/8 Compression 1/2 na Male Pipe
VS269AB-8-4 90° Elbow Tube to Pipe 1/2 Compression 1/4 na Male Pipe
VS269AB-8-6 90° Elbow Tube to Pipe 1/2 Compression 3/8 na Male Pipe
VS269AB-8-8 90° Elbow Tube to Pipe 1/2 Compression 1/2 na Male Pipe
VS271AB-10-8 Run Tee Tube to Pipe 5/8 Compression 1/2 na Male Pipe
VS271AB-4-2 Run Tee Tube to Pipe 1/4 Compression 1/8 na Male Pipe
VS271AB-4-4 Run Tee Tube to Pipe 1/4 Compression 1/4 na Male Pipe
VS271AB-6-4 Run Tee Tube to Pipe 3/8 Compression 1/4 na Male Pipe
VS271AB-6-6 Run Tee Tube to Pipe 3/8 Compression 3/8 na Male Pipe
VS271AB-8-6 Run Tee Tube to Pipe 1/2 Compression 3/8 na Male Pipe
VS271AB-8-8 Run Tee Tube to Pipe 1/2 Compression 1/2 na Male Pipe
VS272AB-10-8 Branch Tee Tube to Pipe 5/8 Compression 1/2 na Male Pipe
VS272AB-4-2 Branch Tee Tube to Pipe 1/4 Compression 1/8 na Male Pipe
VS272AB-4-4 Branch Tee Tube to Pipe 1/4 Compression 1/4 na Male Pipe
VS272AB-6-2 Branch Tee Tube to Pipe 3/8 Compression 1/8 na Male Pipe
VS272AB-6-4 Branch Tee Tube to Pipe 3/8 Compression 1/4 na Male Pipe
VS272AB-6-6 Branch Tee Tube to Pipe 3/8 Compression 3/8 na Male Pipe
VS272AB-8-6 Branch Tee Tube to Pipe 1/2 Compression 3/8 na Male Pipe
VS272AB-8-8 Branch Tee Tube to Pipe 1/2 Compression 1/2 na Male Pipe
VS279AB-10-6 45° Elbow Tube to Pipe 5/8 Compression 3/8 na Male Pipe
VS279AB-10-8 45° Elbow Tube to Pipe 5/8 Compression 1/2 na Male Pipe
VS279AB-12-8 45° Elbow Tube to Pipe 3/4 Compression 1/2 na Male Pipe
VS279AB-4-2 45° Elbow Tube to Pipe 1/4 Compression 1/8 na Male Pipe
VS279AB-4-4 45° Elbow Tube to Pipe 1/4 Compression 1/4 na Male Pipe
VS279AB-6-2 45° Elbow Tube to Pipe 3/8 Compression 1/8 na Male Pipe
VS279AB-6-4 45° Elbow Tube to Pipe 3/8 Compression 1/4 na Male Pipe
VS279AB-6-6 45° Elbow Tube to Pipe 3/8 Compression 3/8 na Male Pipe
VS279AB-6-8 45° Elbow Tube to Pipe 3/8 Compression 1/2 na Male Pipe
VS279AB-8-6 45° Elbow Tube to Pipe 1/2 Compression 3/8 na Male Pipe
VS279AB-8-8 45° Elbow Tube to Pipe 1/2 Compression 1/2 na Male Pipe
VS68AB-10-6 Connector Tube to Pipe 5/8 Compression 3/8 na Male Pipe
VS68AB-10-8 Connector Tube to Pipe 5/8 Compression 1/2 na Male Pipe
VS68AB-12-12 Connector Tube to Pipe 3/4 Compression 3/4 na Male Pipe
VS68AB-12-8 Connector Tube to Pipe 3/4 Compression 1/2 na Male Pipe
VS68AB-4-2 Connector Tube to Pipe 1/4 Compression 1/8 na Male Pipe
VS68AB-4-4 Connector Tube to Pipe 1/4 Compression 1/4 na Male Pipe
VS68AB-4-6 Connector Tube to Pipe 1/4 Compression 3/8 na Male Pipe
VS68AB-6-2 Connector Tube to Pipe 3/8 Compression 1/8 na Male Pipe
VS68AB-6-4 Connector Tube to Pipe 3/8 Compression 1/4 na Male Pipe
VS68AB-6-6 Connector Tube to Pipe 3/8 Compression 3/8 na Male Pipe
VS68AB-6-8 Connector Tube to Pipe 3/8 Compression 1/2 na Male Pipe
VS68AB-8-4 Connector Tube to Pipe 1/2 Compression 1/4 na Male Pipe
VS68AB-8-6 Connector Tube to Pipe 1/2 Compression 3/8 na Male Pipe
VS68AB-8-8 Connector Tube to Pipe 1/2 Compression 1/2 na Male Pipe
