Parker Fittings接头 - Compression Fittings
Air Brake Hose End Fittings

Parker's air brake hose end fittings meets D.O.T. FMVSS 571.106 standards when used with SAE J1402 air brake hose. Parker's air brake hose fittings are field attachable fittings for use with Parker 271air brake hose. Easy to assemble and disassemble, air brake hose fittings meet D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose. Air brake hose fittings utilize a slotted sleeve for compression and positive grip.
Use Parker 271 air brake hose or SAE J1402 air brake hose with air brake hose fittings.

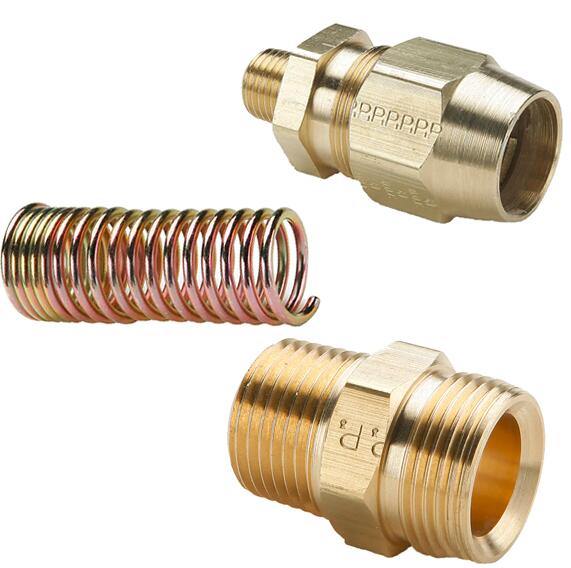

Air Brake Hose End Fittings



Markets:
- Heavy duty truck
- Trailer

Features/Benefits:
- All brass construction
- Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
- Easy to assemble & disassemble
- Slotted sleeve for compression and positive grip

Applications:
- Air lines from frame to axle

Custom configurations and sizes are available upon request. Contact us for additional information.



Technical Specifications

Connection Type: Hose, Thread
Shape: Various
Minimum Operating Temperature: -65 °F, -53.8 °C
Maximum Operating Temperature: 250 °F, 121 °C
Maximum Operating Pressure: 400 psi, 27.5 bar
Tube Material: Parker 271 Hose
Application: Air Brake
Specifications Met: DOT FMVSS 571.106, SAE J1402
Materials of Construction: Brass
Nut Material: Brass



Air Brake Hose End Fittings型号

Part Shape Style Connection 1 Hose I.D. (inch) Connection 1 Style Connection 2 Hose I.D. (inch) Connection 2 Thread Size (inch) Connection 2 Style
56RBSG-6 Spring Hose 3/8 Hose na na na
56RBSG-8 Spring Hose 1/2 Hose na na na
60RB-6 Sleeve Hose 3/8 Hose na na na
60RB-8 Sleeve Hose 1/2 Hose na na na
61RB-6 Nut Hose 3/8 Hose na na na
61RB-8 Nut Hose 1/2 Hose na na na
61RBSG-6 Spring Guard Nut Hose 3/8 Hose na na na
61RBSG-8 Spring Guard Nut Hose 1/2 Hose na na na
62RB-6 Union Hose to Hose 3/8 Hose 3/8 na Hose
62RB-8 Union Hose to Hose 1/2 Hose 1/2 na Hose
66RBSV-6-3/4 Connector Hose to Straight Thread 3/8 Hose na 3/4-20 Straight Thread
66RBSV-8-7/8 Connector Hose to Straight Thread 1/2 Hose na 7/8-20 Straight Thread
67RBSG-6 Hose Nut/Spring Guard Hose 3/8 Hose na na na
67RBSG-8 Hose Nut/Spring Guard Hose 1/2 Hose na na na
68RB-6-4 Connector Hose to Pipe 3/8 Hose na 1/4 Male Pipe
68RB-6-4B Connector Body Hose to Pipe 3/8 Hose na 1/4 Male Pipe
68RB-6-6 Connector Hose to Pipe 3/8 Hose na 3/8 Male Pipe
68RB-6-6B Connector Body Hose to Pipe 3/8 Hose na 3/8 Male Pipe
68RB-6-8 Connector Hose to Pipe 3/8 Hose na 1/2 Male Pipe
68RB-6-8B Connector Body Hose to Pipe 3/8 Hose na 1/2 Male Pipe
68RB-8-6 Connector Hose to Pipe 1/2 Hose na 3/8 Male Pipe
68RB-8-6B Connector Body Hose to Pipe 1/2 Hose na 3/8 Male Pipe
68RB-8-8 Connector Hose to Pipe 1/2 Hose na 1/2 Male Pipe
68RB-8-8B Connector Body Hose to Pipe 1/2 Hose na 1/2 Male Pipe
68RBSG-6-4 Connector with Spring Guard Hose to Pipe 3/8 Hose na 1/4 Male Pipe
68RBSG-6-6 Connector with Spring Guard Hose to Pipe 3/8 Hose na 3/8 Male Pipe
68RBSG-6-8 Connector with Spring Guard Hose to Pipe 3/8 Hose na 1/2 Male Pipe
68RBSG-8-6 Connector with Spring Guard Hose to Pipe 1/2 Hose na 3/8 Male Pipe
68RBSG-8-8 Connector with Spring Guard Hose to Pipe 1/2 Hose na 1/2 Male Pipe
76RB-3/4-4 Adapter Straight Thread to Pipe 3/4-20 Straight Thread na 1/4 Male Pipe
76RB-3/4-6 Adapter Straight Thread to Pipe 3/4-20 Straight Thread na 3/8 Male Pipe
76RB-7/8-6 Adapter Straight Thread to Pipe 7/8-20 Straight Thread na 3/8 Male Pipe
76RB-7/8-8 Adapter Straight Thread to Pipe 7/8-20 Straight Thread na 1/2 Male Pipe
