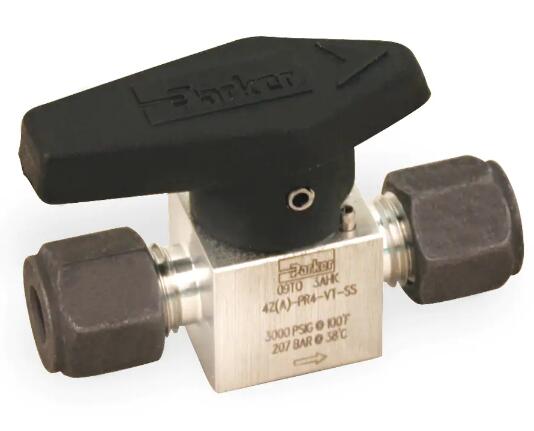

Parker PR 系列球阀、旋塞阀 Parker PR Series Plug Valves
Ball Valve, Plug Valve - PR Series | #2A-PR4-BNT-B

Parker 球阀 - Parker Ball Valves - Ball Valve, Plug Valve - PR Series

Parker 的 PR 系列旋塞阀在紧凑的棒料阀体中提供可靠的密封关闭、高流量和快速四分之一圈操作。该旋塞阀使用户能够在手动驱动期间进行节流。派克的 PR 系列旋塞阀采用紧凑、美观的封装，提供可靠的密封关闭、高流量和快速的直角回转操作。获得专利的防爆阀座设计可在通用旋塞阀中看不到的所有工作压力下提供可靠的密封技术。除了开-关驱动外，塞子设计还允许向前流量节流。可以选择多种阀座和密封材料，以在广泛的温度范围内实现介质兼容性和性能。压力平衡的大气密封件由 PTFE 环支撑，以提高其性能并延长循环寿命。

Ball Valve, Plug Valve - PR Series

市场：
- 石油和天然气
- 研究
- 化学
- 大学实验室
特点/优势：
- 获得专利的防爆阀座设计
- 压力高达 3,000 psig (207 bar) CWP
- 直角回转操作
- 可靠的简单设计
- 直通式
- 不锈钢和黄铜结构
- 腈、乙烯丙烯、碳氟化合物和高度氟化氟碳橡胶阀座和密封件
- 大气密封件上的 PTFE 支撑环
- 低操作扭矩
- 最小压降
- 节流能力
- 正手柄停止
- 带方向流指示的彩色编码抗断裂尼龙手柄
- 易于维修
- 100% 工厂测试
- 选项包括锁定装置、下游通风以及不锈钢和 T 形杆手柄

应用：
- 控制面板
- 研发实验室
- 特种气体系统
- 化学品输送
- 加油站

Parker's PR Series Plug Valves provide positive leak tight shut-off, high flow capacity, and quick quarter-turn operation in a compact, barstock body. This plug valve provides the user the ability to throttle during manual actuation. Parker's PR Series Plug Valves provide positive leak tight shut-off, high flow capacity, and quick quarter-turn operation in a compact attractive package. The patented blow-out resistant seat design offers reliable sealing technology at all operating pressures not seen in general purpose plug valves. In addition to on-off actuation, the plug design allows forward flow throttling. A broad selection of valve seats and seal materials may be chosen for media compatibility and performance over a broad range of temperatures. The pressure balanced atmospheric seals are backed by PTFE rings to enhance their performance and increase cycle life.

Markets:
- Oil and Gas
- Research
- Chemical
- University Labs
Features/Benefits:
- Patented blow-out resistant seat design
- Pressures up to 3,000 psig (207 bar) CWP
- Quarter-turn operation
- Reliable simple design
- Straight-through flow
- Stainless steel and brass construction
- Nitrile, ethylene propylene, fluorocarbon, and highly fluorinated fluorocarbon rubber seats and seals
- PTFE back-up rings on atmospheric seals
- Low operating torque
- Minimum pressure drop
- Throttling capability
- Positive handle stops
- Color coded fracture resistant nylon handles with directional flow indication
- Easy to service
- 100% factory tested
- Options include lock-out devices, downstream venting, and both stainless steel and T-bar handles


Applications:
- Control Panels
- R&D Labs
- Specialty Gas Systems
- Chemical delivery
- Fill stations

Technical Specifications

Ball Valve, Plug Valve - PR Series 型号
