Parker 球阀 - Parker Ball Valves
Ball Valve Series BVGL & BVGLOCK - Long Female Threads

Ball Valve Series BVGL & BVGLOCK - Long Female Threads | #BVG4-1L

BVGL＆BVGLOCK系列球阀具有镀镍黄铜阀体和镀铬黄铜阀球，并且为长内螺纹结构设计。派克的BVGL＆BVGL系列球阀按照DIN 2999 / ISO 228标准制造，带有长内螺纹。这使得该阀既可以与Prestolok和黄铜转换接头一起使用，也可以与派克的碳钢液压接头（例如Tiple-Lok，O-Lok，EO和BSPP锥螺纹接头）一起使用。

这些球阀配有防挤压杆，以防止在压力峰值时爆裂。阀杆由两个氟碳O形圈密封，以实现更大的安全性和性能。所有阀门均为全流量。这限制了流体通过阀门时所产生的湍流，从而将压降降至较低。

BVGLOCK球阀具有可锁定的手柄和PTFE填料压盖。BVGLOCK球阀符合欧洲指令DI 89/392 / CEE中有关电源隔离的要求，并符合DU Travail法规L233-5段中有关机器和材料的健康和安全要求。

Ball Valve Series BVGL & BVGLOCK - Long Female Threads

市场：
- 工业
- 交通运输
- 石油和加油站
- 化学

特点与优势：
- 镀镍黄铜主体
- 镀铬黄铜球
- PTFE阀座/密封
- 氟碳管密封

应用范围：
- 汽车
- 清洁工具

BVGL & BVGLOCK series ball valves feature a nickel plated brass body and a chrome plated brass ball and are manufactured with long female threads.

Parker's BVGL & BVGL series ball valves are manufactured with long female threads in accordance to DIN 2999/ISO 228. This enables the valves to be used with Prestolok and brass adaptors but also Parker's range of steel hydraulic fittings, e.g. Tiple-Lok, O-Lok, EO, and BSPP coned adaptors.

These ball valves are fitted with an anti extrusion stem to prevent blow out in the case of pressure peaks. The stem is sealed with two Fluorocarbon O-rings for maximum safety and performance. All valves are full-flow. This limits the turbulence created by the passage of fluid across the valve, minimizing pressure drop.

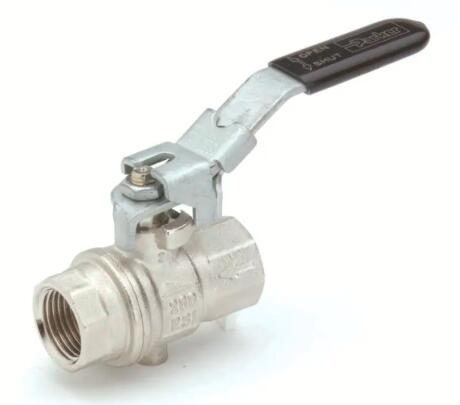

The BVGLOCK ball valves feature a lockable handle and a PTFE packing gland. The BVGLOCK ball valves meet the requirements of European directive DI 89/392/CEE relating to the isolation of power supply and to meet the health and safety requirements for machines and materials in paragraphs L233-5 of the code DU Travail.

Markets:
- Industrial
- Transportation
- Oil & Gas
- Chemical

Features/Benefits:
- Nickel plated brass body
- Chrome plated brass ball
- PTFE seats/seals
- Fluorocarbon stem seal

Applications:
- Automotive
- Cleaning Equipment

Technical Specifications

Ball Valve Series BVGL & BVGLOCK - Long Female Threads 型号
