Parker 6000 PSI B 系列球阀 | #1A-B2LJ-BP Parker 球阀 - Parker Ball Valves

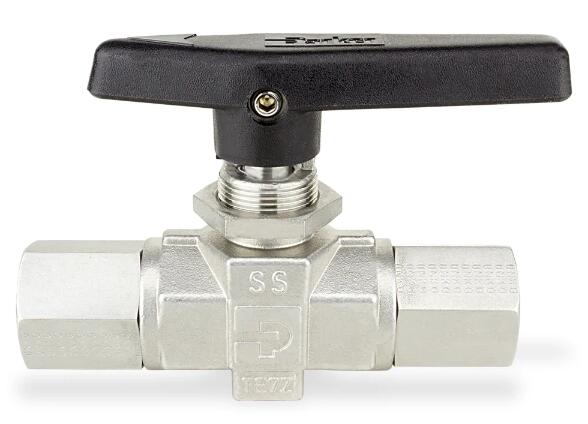

Ball Valve, 6000 PSI - B Series


Parker 的 B 系列球阀采用“自由浮动”球设计,可在过程中的各种压力和温度应用以及仪表应用中提供卓越的性能。Parker 的 B 系列球阀可提供手动、气动和电动驱动。它们提供对过程和仪表应用中使用的流体的快速开关控制。广泛选择的阀体、阀座和密封材料提供了广泛的压力(高达 6,000 PSI)和温度(高达 450F/232C)的阀门可以使用。Parker B 系列球阀采用“自由浮动”球设计,可在过程中的各种压力和温度应用以及仪表应用中提供卓越的性能。



Ball Valve, 6000 PSI - B Series





市场:
- 化工厂
- 炼油厂
- 发电厂
- 石化厂

特点/优点:
- 自由浮动球设计提供阀座磨损补偿。
- 有 316 不锈钢和黄铜可供选择。可应要求提供蒙乃尔? 合金 400 和哈氏合金? C-276 结构。
- 微精加工球提供可靠的密封。
- 直通流路,压降最小。
- 多种美国习惯和SI 端口。
- 90° 驱动。
- 面板安装。
- 可调节的 PTFE 阀杆密封可以保持在线。
- 手柄指示流向。
- 低操作扭矩。
- 正手柄停止。
- 颜色编码的手柄。
- 可选气动和电动驱动。
- 可选的活载聚四氟乙烯阀杆密封件。
- 可选的不可调节的 O 形环阀杆密封。
- 可选的上游和下游排水模型。
- 可选不锈钢和加长手柄。

应用:
- 分流
- 流量选择
- 快速填充系统
- 过程混合系统
- 仪表板
- 远程关闭(带驱动)








Parker's B Series ball valves, with a "free floating " ball design, offer superior performance in a variety of pressure and temperature applications in process, and instrumentation applications.Parker's B Series Ball Valves are available manually, pneumatically, and electrically actuated. They provide quick on-off control of fluids utilized in process and instrumentation applications. A broad selection of valve body, seat, and seal materials provide a wide range of pressures (up to 6,000 PSI) and temperatures (up to 450F/232C) at which the valve may be used.

Markets:
- Chemical Plants
- Refineries
- Power Plants
- Petrochemical Plants

Features/Benefits:
- Free floating ball design provides seat wear compensation.
- Available in 316 Stainless Steel and Brass. Monel? Alloy 400 and Hastelloy? C-276 construction available upon request.
- Micro-finished ball provides a positive seal.
- Straight through flow path for minimum pressure drop.
- Wide variety of US Customary and SI ports.
- 90° actuation.
- Panel mountable.
- Adjustable PTFE stem seal can be maintained in-line.
- Handle indicates flow direction.
- Low operating torques.
- Positive handle stops.
- Color coded handles.
- Optional pneumatic and electric actuation.
- Optional live-loaded PTFE stem seals.
- Optional non-adjustable O-ring stem seals.
- Optional upstream and downstream drain models.
- Optional stainless steel and extended handles.

Applications:
- Flow Diversion
- Flow Selection
- Quick Fill Systems
- Process Mixing Systems
- Instrument Panels
- Remote Shut Off (with Actuation)



Technical Specifications

Maximum Operating Pressure: 103,414 barg, 1,500, 6,000 bar
Maximum Operating Temperature: 232 °C, 450 °F
Minimum Operating Temperature: -54 °C, -65 °F
Materials of Construction: 316 Stainless Steel
Flow Rate: .93, 2.34, 6.42, 1.04, .70, .87, 3.62 Cv
Connection 1 Size: 1/8" - 3/8", NPT F, Two Ferrule Compression, NPT M, Single Ferrule Compression
Connection 2 Size: 1/8" - 3/8", NPT F, Two Ferrule Compression, NPT M, Single Ferrule Compression
Valve Type: 2 Way, 3 Way
Seat Material: PEEK, PTFE





Ball Valve, 6000 PSI - B Series 型号

Part Flow Capacity (Cv) Connection 1 Size Connection 2 Size Connection 3 Size (inch) Connection 1 Style Connection 2 Style Connection 3 Style
1A-B2LJ-BP 0.06 1/16" 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
1A-B2LJ-SSP 0.06 1/16" 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
1A-B2LJ2-BP 0.06 1/16" 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
1A-B2LJ2-SSP 0.06 1/16" 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
1A-B2XJ-BP 0.06 1/16" 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
1A-B2XJ-SSP 0.06 1/16" 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
1A-B2XJ2-BP 0.06 1/16" 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
1A-B2XJ2-SSP 0.06 1/16" 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
1Z-B2LJ-BP 0.06 1/16" 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
1Z-B2LJ-SSP 0.06 1/16" 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
1Z-B2LJ2-BP 0.06 1/16" 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
1Z-B2LJ2-SSP 0.06 1/16" 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
2A-B2XJ-BP 0.21 1/8" 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
2A-B2XJ-SSP 0.21 1/8" 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
2A-B2XJ2-BP 0.21 1/8" 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
2A-B2XJ2-SSP 0.21 1/8" 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
2F-B2LJ-BP 0.93 1/8" 1/8" 1/8" NPT F NPT F NPT F
2F-B2LJ-SSP 0.93 1/8" 1/8" 1/8" NPT F NPT F NPT F
2F-B2LJ2-BP 0.93 1/8" 1/8" 1/8" NPT F NPT F NPT F
2F-B2LJ2-SSP 0.93 1/8" 1/8" 1/8" NPT F NPT F NPT F
2F-B2XJ-BP 0.63 1/8" 1/8" 1/8" NPT F NPT F NPT F
2F-B2XJ-SSP 0.63 1/8" 1/8" 1/8" NPT F NPT F NPT F
2F-B2XJ2-BP 0.63 1/8" 1/8" 1/8" NPT F NPT F NPT F
2F-B2XJ2-SSP 0.63 1/8" 1/8" 1/8" NPT F NPT F NPT F
2M-B2LJ-BP 0.93 1/8" 1/8" 1/8" NPT M NPT M NPT M
2M-B2LJ-SSP 0.93 1/8" 1/8" 1/8" NPT M NPT M NPT M
2M-B2LJ2-BP 0.93 1/8" 1/8" 1/8" NPT M NPT M NPT M
2M-B2LJ2-SSP 0.93 1/8" 1/8" 1/8" NPT M NPT M NPT M
2M-B2XJ-BP 0.63 1/8" 1/8" 1/8" NPT M NPT M NPT M
2M-B2XJ-SSP 0.63 1/8" 1/8" 1/8" NPT M NPT M NPT M
2M-B2XJ2-BP 0.63 1/8" 1/8" 1/8" NPT M NPT M NPT M
2M-B2XJ2-SSP 0.63 1/8" 1/8" 1/8" NPT M NPT M NPT M
2Z-B2LJ-BP 0.21 1/8" 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
2Z-B2LJ-SSP 0.21 1/8" 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
2Z-B2LJ2-BP 0.21 1/8" 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
2Z-B2LJ2-SSP 0.21 1/8" 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
2Z-B2XJ-BP 0.21 1/8" 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
2Z-B2XJ-SSP 0.21 1/8" 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
2Z-B2XJ2-BP 0.21 1/8" 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
2Z-B2XJ2-SSP 0.21 1/8" 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4A-B2LJ-BP 0.93 1/4" 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
4A-B2LJ-SSP 0.93 1/4" 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
4A-B2LJ2-BP 0.93 1/4" 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
4A-B2LJ2-SSP 0.93 1/4" 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
4A-B2XJ-BP 0.63 1/4" 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
4A-B2XJ-SSP 0.63 1/4" 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
4A-B2XJ2-BP 0.63 1/4" 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
4A-B2XJ2-SSP 0.63 1/4" 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
4A-B6LJ2-BP 1.04 1/4" 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
4A-B6LJ2-SSP 1.04 1/4" 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
4A-B6XJ-BP 0.7 1/4" 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
4A-B6XJ-SSP 0.7 1/4" 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
4F-B6LJ2-BP 2.34 1/4" 1/4" 1/4" NPT F NPT F NPT F
4F-B6LJ2-SSP 2.34 1/4" 1/4" 1/4" NPT F NPT F NPT F
4M-B2LJ-BP 0.93 1/4" 1/4" 1/4" NPT M NPT M NPT M
4M-B2LJ-SSP 0.93 1/4" 1/4" 1/4" NPT M NPT M NPT M
4M-B2LJ2-BP 0.93 1/4" 1/4" 1/4" NPT M NPT M NPT M
4M-B2LJ2-SSP 0.93 1/4" 1/4" 1/4" NPT M NPT M NPT M
4M-B2XJ-BP 0.63 1/4" 1/4" 1/4" NPT M NPT M NPT M
4M-B2XJ-SSP 0.63 1/4" 1/4" 1/4" NPT M NPT M NPT M
4M-B2XJ2-BP 0.63 1/4" 1/4" 1/4" NPT M NPT M NPT M
4M-B2XJ2-SSP 0.63 1/4" 1/4" 1/4" NPT M NPT M NPT M
4M-B6LJ2-BP 2.34 1/4" 1/4" 1/4" NPT M NPT M NPT M
4M-B6LJ2-SSP 2.34 1/4" 1/4" 1/4" NPT M NPT M NPT M
4Z-B2LJ-BP 0.93 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B2LJ-SSP 0.93 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B2LJ2-BP 0.93 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B2LJ2-SSP 0.93 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B2XJ-BP 0.63 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B2XJ-SSP 0.63 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B2XJ2-BP 0.63 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B2XJ2-SSP 0.63 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B6LJ-BP 1.04 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B6LJ-SSP 1.04 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B6LJ2-BP 1.04 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B6LJ2-SSP 1.04 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B6XJ-BP 0.7 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
4Z-B6XJ-SSP 0.7 1/4" 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
6A-B6LJ2-BP 2.34 3/8" 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
6A-B6LJ2-SSP 2.34 3/8" 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
6A-B6XJ-BP 0.87 3/8" 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
6A-B6XJ-SSP 0.87 3/8" 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
6F-B8LJ2-BP 6.42 3/8" 3/8" 3/8" NPT F NPT F NPT F
6F-B8LJ2-SSP 6.42 3/8" 3/8" 3/8" NPT F NPT F NPT F
6M-B6LJ2-BP 2.34 3/8" 3/8" 3/8" NPT M NPT M NPT M
6M-B6LJ2-SSP 2.34 3/8" 3/8" 3/8" NPT M NPT M NPT M
6Z-B6LJ-BP 2.34 3/8" 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
6Z-B6LJ-SSP 2.34 3/8" 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
6Z-B6LJ2-BP 2.34 3/8" 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
6Z-B6LJ2-SSP 2.34 3/8" 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
6Z-B6XJ-BP 0.87 3/8" 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
6Z-B6XJ-SSP 0.87 3/8" 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
8A-B8LJ-BP 6.42 1/2" 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
8A-B8LJ-SSP 6.42 1/2" 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
8A-B8LJ2-BP 6.42 1/2" 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
8A-B8LJ2-SSP 6.42 1/2" 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
8A-B8XJ-BP 3.62 1/2" 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
8A-B8XJ-SSP 3.62 1/2" 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
8A-B8XJ2-BP 3.62 1/2" 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
8A-B8XJ2-SSP 3.62 1/2" 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Two Ferrule Compression
8F-B8LJ-BP 6.42 1/2" 1/2" 1/2" NPT F NPT F NPT F
8F-B8LJ-SSP 6.42 1/2" 1/2" 1/2" NPT F NPT F NPT F
8F-B8LJ2-BP 6.42 1/2" 1/2" 1/2" NPT F NPT F NPT F
8F-B8LJ2-SSP 6.42 1/2" 1/2" 1/2" NPT F NPT F NPT F
8M-B8LJ-BP 6.42 1/2" 1/2" 1/2" NPT M NPT M NPT M
8M-B8LJ-SSP 6.42 1/2" 1/2" 1/2" NPT M NPT M NPT M
8M-B8LJ2-BP 6.42 1/2" 1/2" 1/2" NPT M NPT M NPT M
8M-B8LJ2-SSP 6.42 1/2" 1/2" 1/2" NPT M NPT M NPT M
8Z-B8LJ-BP 6.42 1/2" 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
8Z-B8LJ-SSP 6.42 1/2" 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
8Z-B8LJ2-BP 6.42 1/2" 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
8Z-B8LJ2-SSP 6.42 1/2" 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
8Z-B8XJ-BP 3.62 1/2" 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
8Z-B8XJ-SSP 3.62 1/2" 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
8Z-B8XJ2-BP 3.62 1/2" 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
8Z-B8XJ2-SSP 3.62 1/2" 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Single Ferrule Compression
