Parker 球阀 - Parker Ball Valves
Ball Valves High Pressure Series

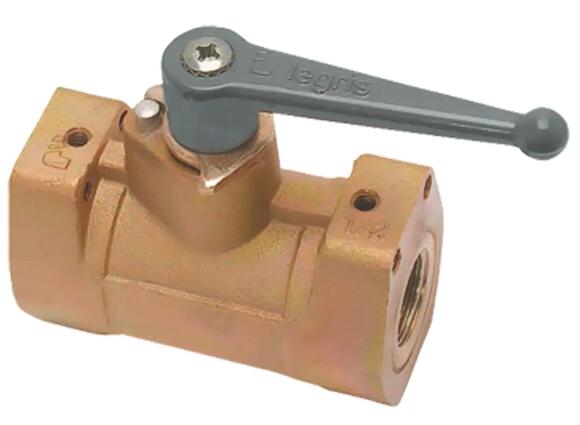

Ball Valves High Pressure Series | #4402 07 13
球阀高压系列| #4402 07 13

这些阀门适用于压力高达 300 bar 的应用。高性能材料和优质制造允许广泛的操作压力和温度。这些阀门适用于压力高达 300 bar 的应用。高性能材料和优质制造允许广泛的操作压力和温度。

特性/优点:

- 高压和安全

- 低压和高压下的良好密封
- 坚固的设计,具有安全、不可拆卸的入口和出口
- 锻造黄铜在严苛的使用条件下提供出色的长期强度
- 100% 泄漏测试在生产中
- 日期编码以保证质量和可追溯性

- 易于使用

- 用于穿隔板安装的固定螺钉
- 杠杆可以重新定位或用手轮替换
- 低操作扭矩

市场:

- 车辆装配设施
- 初级金属精炼和加工
- 服装
- 发电设备

应用:

- 允许/停止高压应用的压缩空气循环
- 适用于真空应用
- 深海潜水

技术:

- 工业阀门
- 高压阀门
- 高压球阀
- 压力调节阀
- 高压设备
- 调节阀
- 气动球阀
- 气动阀

技术特性:

- 流体:压缩空气
- 材料:zamak、PTFE、处理钢、抛光黄铜、NBR、重铬酸盐处理的镀锌黄铜、不锈钢、无硅
- 压力:真空至 300 巴
- 温度:-15°C 至 +80°C

法规:

- DI:97/23/EC(模块 PED A - 直径大于 25 毫米)
- DI:2006/42/EC(机械指令)
- DI:2002/95/EC (RoHS)
- RG:1907/2006 (REACH)

产品类型:

- 2/2 直插式高压球阀,BSPP 内螺纹

These valves are suitable for applications with pressures up to 300 bar. High performance materials and quality manufacturing allow for a wide range of operating pressures and temperatures. These valves are suitable for applications with pressures up to 300 bar. High performance materials and quality manufacturing allow for a wide range of operating pressures and temperatures.





Features/Benefits:

- High Pressure & Safety

- Good sealing at low and high pressure
- Robust design with secure, non-removable inlet and outlet ports
- Forged brass providing excellent long-term strength under severe conditions of use
- 100% leak-tested in production
- Date coding to guarantee quality and traceability

- Easy-to-Use

- Fixing screws for through-bulkhead mounting
- The lever may be repositioned or replaced with a handwheel
- Low operating torque

Markets:

- Vehicle Assembly Facilities
- Primary Metal Refining and Processing
- Wearing Apparel
- Power Generation Equipment

Applications:

- Allow/Stop Compressed Air Circulation for High Pressure Applications
- Suitable for Vacuum Applications
- Deep-Sea Diving

Technologies:

- Industrial valve
- High pressure valve
- High pressure ball valve
- Pressure regulator valve
- High pressure equipment
- Regulating valve
- Pneumatic ball valve
- Pneumatic valve

Technical Characteristics:

- Fluids: Compressed air
- Materials: zamak, PTFE, treated steel, polished brass, NBR, dichromate-treated zinc-plated brass, stainless steel, silicone free
- Pressure: Vacuum to 300 bar
- Temperature: -15°C to +80°C

Regulations:

- DI: 97/23/EC (module PED A - diameters greater than 25 mm)
- DI: 2006/42/EC (Machinery Directive)
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)

Product Types:

- 2/2 In-Line High Pressure Ball Valve, Female BSPP Thread







Technical Specifications

Ball Seal Material: NBR
Body Material: TREATED BRASS
Handle Type: ZAMAK
O-Ring Material: NBR
Stem Material: STAINLESS STEEL
Stem Seal Material: NBR
Maximum Operating Pressure: 300 bar
Minimum Operating Temperature: -15 °C
Maximum Operating Temperature: 80 °C
Quantity per Box: 2 to 5
Weight: 0,402 to 0,87 kg
Application: Automotive Process, Foundry, Forming, Machine Tools, Textile, Spectacle-Making Industry, Turbines, Deep-Sea Diving
Media: Compressed air
Specifications Met: DI: 97/23/EC (module PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH)
Shape: 2/2 in-line high pressure ball valve female
Product Type: High Pressure Series
Connection 1 Thread Size: BSPP





Ball Valves High Pressure Series 型号

Part Diameter Nominal (DN) Connection 1 Thread Size (metric)
4402 07 13 7 G1/4
4402 10 17 10 G3/8
4402 13 21 13 G1/2
