Parker Fittings 黄铜接头 Compression Fittings

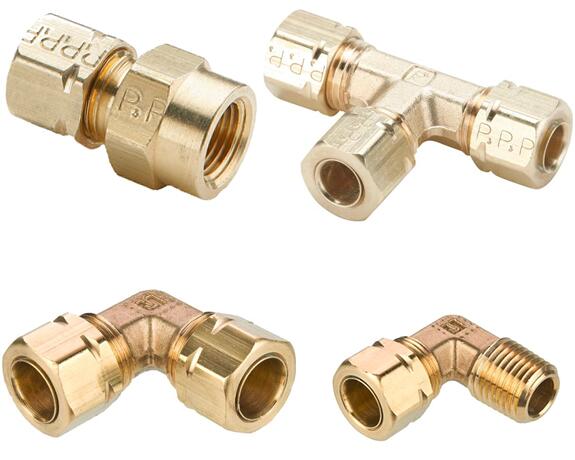

Brass Compression Fittings, Compress-Align

Parker 的 Compress-Align 接头无需扩口、焊接或其他管道准备工作。系留套筒始终朝向正确安装，安装前后可见以供检查。Parker 经济实惠的 Compress-Align 接头预装配有固定套筒，该套筒始终正确定向，以便更快地组装。固定套管在安装前后进行可见检查，套管的设计对齐以密封甚至不圆的管道。由于额定压力较高，Compress-Align 可用于许多使用扩口接头的区域，这意味着无需扩口、焊接或管道准备，从而加快安装速度。Compress-Align 机构可与标准压缩机构互换，因此减少了库存。
与铜、铝和以下 Parker Parflex Division 管一起使用。

Brass Compression Fittings, Compress-Align

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation. Parker's economical Compress-Align fittings are pre-assembled with a captive sleeve which is always oriented correctly for faster assembly. The captive sleeve gives a visible inspection before and after installation and the design of the sleeve aligns to seal even out-of-round tubing. Compress-Align can be used in many areas where flare fittings are used due to the higher pressure rating, meaning no flaring, soldering or tube preparation resulting in faster installation. Compress-Align bodies are interchangeable with standard compression bodies so inventory is decreased. Use with copper, aluminum and the following Parker Parflex Division tubing.

- 聚乙烯
- 尼龙
- 聚丙烯
- PTFE
- FEP
- PFA

市场：
- 工业
- 气动
- 包装
- 自动化
- 化工
- 压缩机
- 水过滤

特性/优点：
- 全黄铜结构
- 固定套筒
- 与标准压缩接头相比具有更高的工作压力
- 主体可与标准压缩体互换
- 经济
- 用手拧一圈扳手即可组装所有尺寸
- 1/8" 通过 1” 可用尺寸
- UL 列出易燃液体

应用：
- 空气管路
- 润滑管路
- 流体传输
- 化学品分配
- 冷却管路
- 机床

可根据要求提供定制配置和尺寸。联系我们获取更多信息。

- Polyethylene
- Nylon
- Polypropylene
- PTFE
- FEP
- PFA

Markets:
- Industrial
- Pneumatic
- Packaging
- Automation
- Chemical
- Compressors
- Water filtration

Features/Benefits:
- All brass construction
- Captive sleeve
- Higher working pressures versus standard compression fitting
- Bodies interchangeable with standard compression bodies
- Economical
- One wrench turn from finger tight for assembly for all sizes
- 1/8" through 1" sizes available
- U.L. listed for flammable liquids

Applications:
- Air lines
- Lubrication lines
- Fluid transfer
- Chemical dispensing
- Cooling lines
- Machine tool

Custom configurations and sizes are available upon request. Contact us for additional information.

Technical Specifications

Brass Compression Fittings, Compress-Align型号
