用于热塑性和软金属管的黄铜压缩配件 - Poly-Tite | #164P-4

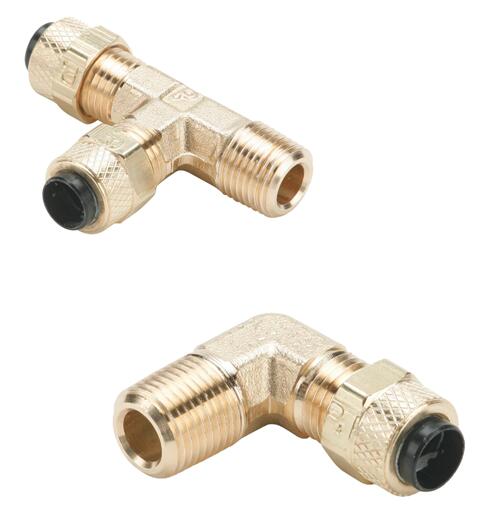

Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite
Parker Fittings接头 - Compression Fittings

Parker 的 Poly-Tite 接头提供了一种缩醛共聚物套管，该套管具有出色的弹性，可抵抗由压缩引起的蠕变和应力。Parker 的 Poly-Tite 接头旨在加快任何安装速度。阀体、螺母和套筒均已预先组装好，随时可以安装。乙缩醛共聚物套筒抵抗由压缩引起的蠕变和应力。黑色乙缩醛共聚物还可以抵抗紫外线的侵袭并具有出色的尺寸稳定性。Poly-Tite 螺母将在套管拧紧时围绕套管旋转，以防止塑料管扭曲和变弱。Poly-Tite 接头可以重复组装和拆卸。

与以下 Parker Parflex Division 管一起使用。

Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression. Parker's Poly-Tite fittings are designed to speed any installation. The body, nut and sleeve are furnished pre-assembled, ready for installation. The acetal copolymer sleeve resists creeping and stress caused from compression. The black acetal copolymer also resists ultra-violet ray attack and has excellent dimensional stability. Poly-Tite nuts will rotate around the sleeve as it tightens to prevent twisting and weakening of the plastic tubing. Poly-Tite fittings can be assembled and disassembled repeatly.

Use with the following Parker Parflex Division tubing.

- 聚乙烯
- 尼龙
- 聚丙烯
- 乙烯基

市场：
- 牙科
- 包装
- 洗车
- 印刷
- 机床

特性/优点：
- 设计用于热塑性管
- 在管支架中加工
- 黑色乙缩醛共聚物套管
- 黄铜套管可用于软金属管
- 滚花螺母便于手动拧紧
- 预组装接头
- 提供镀铬和不锈钢耦合器

应用：
- 气动回路
- 冷却液管路
- 测量
- 水管路

可根据要求提供定制配置和尺寸。联系我们获取更多信息。

- Polyethylene
- Nylon
- Polypropylene
- Vinyl

Markets:
- Dental
- Packaging
- Car Wash
- Printing
- Machine tools

Features/Benefits:
- Designed for use with thermoplastic tubing
- Machined in tube support
- Black acetal copolymer sleeve
- Brass sleeve available for soft metal tubing
- Knurled nut for ease of hand tightening
- Pre-assembled fitting
- Chrome plated and stainless steel couplers available

Applications:
- Pneumatic circuits
- Coolant lines
- Measuring
- Water lines

Custom configurations and sizes are available upon request. Contact us for additional information.

Technical Specifications
技术规格

• 形状： 球座
• 连接 2 样式： 压缩
• 连接 2 螺纹尺寸（英寸）： 呐
• 连接 1 管外径（英寸）： 1/4
• 连接 2 管外径（英寸）： 1/4
• 连接 1 样式： 压缩
• 风格： 管对管
• 最低工作温度： 0°F，-17°C
• 最高工作温度： 150°F，65°C
• 最大工作压力： 150 磅/平方英寸，10 巴
• 管材： 聚乙烯、尼龙、聚丙烯、乙烯基
• 应用： 牙科、包装、机床、洗车
• 机身材质： 黄铜
• 螺母材料： 黄铜
• 袖子材质： 黄铜，乙缩醛共聚物

Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.型号
