Parker Brass compression fittings Parker Fittings接头 Compression Fittings

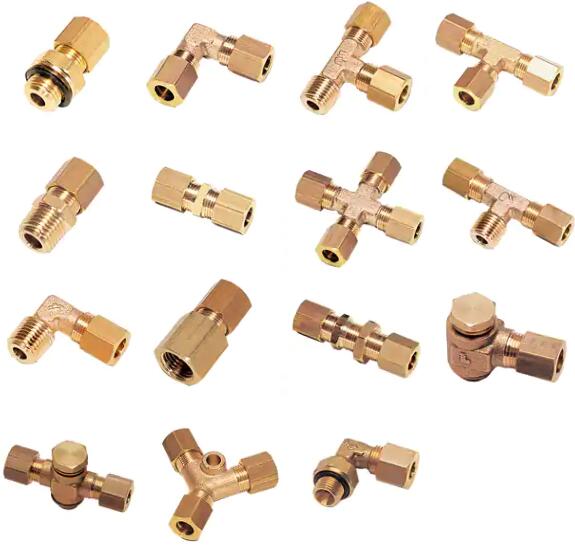

Brass Compression Fittings派克黄铜卡套接头



Parker 的压缩接头不需要扩口、焊接或其他组装所需的管道准备工作。提供锻件和挤压件 压缩配件满足 SAE J-512 的功能要求。Parker 的压缩配件经济实惠，提供挤压件和锻造件。这些压缩接头无需扩口、焊接、管道准备或特殊工具即可操作。压缩配件在可能需要偶尔拆卸或部分拆卸以进行维护的安装中特别有用，因为配件可以损坏和重新制作而不会影响接头的完整性。压缩配件也用于禁止使用热源，尤其是焊炬的情况。
与铜、铝和以下 Parker Parflex Division 管一起使用：

Parker Brass compression fittings Parker Fittings接头 Compression Fittings
Brass Compression Fittings派克黄铜卡套接头 Brass Compression Fittings



Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512 。arker's compression fittings are economical and offered in both extrusions and forgings. These compression fittings require no flaring, soldering, tube preparation or special tools to operate. Compression fittings are especially useful in installations that may require occasional disassembly or partial removal for maintenance since the fitting can be broken and remade without affecting the integrity of the joint. Compression fittings are also used in situations where a heat source, in particular a soldering torch, is prohibited. Use with copper, aluminum and the following Parker Parflex Division tubing:

- 聚乙烯
- 尼龙
- 聚丙烯

市场：
- 工业
- 包装
- 气动
- 印刷
- 压缩机
- 船舶

特点与优势：

- 全黄铜结构
- 经济
- 用于振动的长螺母
- UL 认证可燃液体
- 符合 SAE J-512
- 用于热塑性管的乙缩醛套管

应用：
- 空气管路
- 润滑管路
- 冷却管路
- 流体传输
- 水管路
- 汽车工艺

可根据要求提供定制配置和尺寸。联系我们获取更多信息。

- Polyethylene
- Nylon
- Polypropylene

Markets:
- Industrial
- Packaging
- Pneumatic
- Printing
- Compressors
- Marine

Features/Benefits:

- All brass construction
- Economical
- Long Nut for vibration
- UL listed for flammable liquid
- Meets SAE J-512
- Acetal sleeve for use with thermoplastic tubing

Applications:
- Air lines
- Lubrication lines
- Cooling lines
- Fluid transfer
- Water lines
- Automotive process

Custom configurations and sizes are available upon request. Contact us for additional information.



Technical Specifications

Tube Material: Copper, Brass, Steel, Polyamide, Copper, Aluminum, Thermoplastic
Nut Material: Brass
Sleeve Material: Brass, Brass, Acetal
Weight: 0.016 - 0.411 kg
Media: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants, Water, air, inert and non-combustible gasses
Specifications Met: SAE J-512, CNOMO: E07.21.115N (for robotic equipment in the automotive industry), DI: 97/23/EC (PED), RG: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), DI: 94/9/EC (ATEX), na
Maximum Operating Pressure: 229, 10, 7, 27, 20, 14, 5, 20.7 bar, 3335, 150, 100, 400, 300, 200, 20, 75 psi
Maximum Operating Temperature: 250, 200 °F, 121 °C
Minimum Operating Temperature: -40, -65 °F, -40, -54, -65 °C
Quantity per Box: 10, 5, 1
Application: Pneumatics, Cooling, Automotive Process, Lubrication, Fluid Transmission, Packaging, Industrial Machinery, Compressors, Machine Tools, Engine, Pumps, Purification



Brass Compression Fittings型号

Parts Body Material Connection 1 Thread Style Connection 1 Thread Size (metric) Connection 2 Tube O.D. (inch) Connection 2 Tube O.D. (mm) Shape Style O-Ring Material Thread Type
0101 04 10 39-FSC Brass BSPP G1/8 na 4 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 04 10-FSC Brass BSPP G1/8 na 4 Male stud fitting thread Tube to Male Pipe na BSPP
0101 04 19-FSC Brass Metric M5x0,8 na 4 Male stud fitting thread Tube to Male Pipe na Metric
0101 04 55-FSC Brass Metric M7x1 na 4 Male stud fitting thread Tube to Male Pipe na Metric
0101 04 56-FSC Brass Metric M8x1 na 4 Male stud fitting thread Tube to Male Pipe na Metric
0101 05 10 39-FSC Brass BSPP G1/8 na 5 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 05 10-FSC Brass BSPP G1/8 na 5 Male stud fitting thread Tube to Male Pipe na BSPP
0101 05 56-FSC Brass Metric M8x1 na 5 Male stud fitting thread Tube to Male Pipe na Metric
0101 05 60-FSC Brass Metric M10x1 na 5 Male stud fitting thread Tube to Male Pipe na Metric
0101 06 10 39-FSC Brass BSPP G1/8 na 6 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 06 10-FSC Brass BSPP G1/8 na 6 Male stud fitting thread Tube to Male Pipe na BSPP
0101 06 13 39-FSC Brass BSPP G1/4 na 6 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 06 13-FSC Brass BSPP G1/4 na 6 Male stud fitting thread Tube to Male Pipe na BSPP
0101 06 60-FSC Brass Metric M10x1 na 6 Male stud fitting thread Tube to Male Pipe na Metric
0101 06 62-FSC Brass Metric M10x1,5 na 6 Male stud fitting thread Tube to Male Pipe na Metric
0101 08 10 39-FSC Brass BSPP G1/8 na 8 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 08 10-FSC Brass BSPP G1/8 na 8 Male stud fitting thread Tube to Male Pipe na BSPP
0101 08 13 39-FSC Brass BSPP G1/4 na 8 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 08 13-FSC Brass BSPP G1/4 na 8 Male stud fitting thread Tube to Male Pipe na BSPP
0101 08 17 39-FSC Brass BSPP G3/8 na 8 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 08 17-FSC Brass BSPP G3/8 na 8 Male stud fitting thread Tube to Male Pipe na BSPP
0101 08 65-FSC Brass Metric M12x1 na 8 Male stud fitting thread Tube to Male Pipe na Metric
0101 08 66-FSC Brass Metric M12x1,25 na 8 Male stud fitting thread Tube to Male Pipe na Metric
0101 08 68-FSC Brass Metric M13x1,25 na 8 Male stud fitting thread Tube to Male Pipe na Metric
0101 10 13 39-FSC Brass BSPP G1/4 na 10 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 10 13-FSC Brass BSPP G1/4 na 10 Male stud fitting thread Tube to Male Pipe na BSPP
0101 10 17 39-FSC Brass BSPP G3/8 na 10 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 10 17-FSC Brass BSPP G3/8 na 10 Male stud fitting thread Tube to Male Pipe na BSPP
0101 10 70-FSC Brass Metric M14x1,25 na 10 Male stud fitting thread Tube to Male Pipe na Metric
0101 10 71-FSC Brass Metric M14x1,5 na 10 Male stud fitting thread Tube to Male Pipe na Metric
0101 10 74-FSC Brass Metric M16x1,25 na 10 Male stud fitting thread Tube to Male Pipe na Metric
0101 10 75-FSC Brass Metric M16x1,5 na 10 Male stud fitting thread Tube to Male Pipe na Metric
0101 10 78-FSC Brass Metric M18x1,5 na 10 Male stud fitting thread Tube to Male Pipe na Metric
0101 12 13 39-FSC Brass BSPP G1/4 na 12 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 12 13-FSC Brass BSPP G1/4 na 12 Male stud fitting thread Tube to Male Pipe na BSPP
0101 12 17 39-FSC Brass BSPP G3/8 na 12 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 12 17-FSC Brass BSPP G3/8 na 12 Male stud fitting thread Tube to Male Pipe na BSPP
0101 12 21 39-FSC Brass BSPP G1/2 na 12 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 12 21-FSC Brass BSPP G1/2 na 12 Male stud fitting thread Tube to Male Pipe na BSPP
0101 12 74-FSC Brass Metric M16x1,25 na 12 Male stud fitting thread Tube to Male Pipe na Metric
0101 12 75-FSC Brass Metric M16x1,5 na 12 Male stud fitting thread Tube to Male Pipe na Metric
0101 12 78-FSC Brass Metric M18x1,5 na 12 Male stud fitting thread Tube to Male Pipe na Metric
0101 14 17 39-FSC Brass BSPP G3/8 na 14 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 14 17-FSC Brass BSPP G3/8 na 14 Male stud fitting thread Tube to Male Pipe na BSPP
0101 14 21 39-FSC Brass BSPP G1/2 na 14 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 14 21-FSC Brass BSPP G1/2 na 14 Male stud fitting thread Tube to Male Pipe na BSPP
0101 14 78-FSC Brass Metric M18x1,5 na 14 Male stud fitting thread Tube to Male Pipe na Metric
0101 14 80-FSC Brass Metric M20x1,5 na 14 Male stud fitting thread Tube to Male Pipe na Metric
0101 15 17 39-FSC Brass BSPP G3/8 na 15 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 15 17-FSC Brass BSPP G3/8 na 15 Male stud fitting thread Tube to Male Pipe na BSPP
0101 15 21 39-FSC Brass BSPP G1/2 na 15 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 15 21-FSC Brass BSPP G1/2 na 15 Male stud fitting thread Tube to Male Pipe na BSPP
0101 15 78-FSC Brass Metric M18x1,5 na 15 Male stud fitting thread Tube to Male Pipe na Metric
0101 16 17 39-FSC Brass BSPP G3/8 na 16 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 16 17-FSC Brass BSPP G3/8 na 16 Male stud fitting thread Tube to Male Pipe na BSPP
0101 16 21 39-FSC Brass BSPP G1/2 na 16 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 16 21-FSC Brass BSPP G1/2 na 16 Male stud fitting thread Tube to Male Pipe na BSPP
0101 16 80-FSC Brass Metric M20x1,5 na 16 Male stud fitting thread Tube to Male Pipe na Metric
0101 16 82-FSC Brass Metric M22x1,5 na 16 Male stud fitting thread Tube to Male Pipe na Metric
0101 18 21 39-FSC Brass BSPP G1/2 na 18 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 18 21-FSC Brass BSPP G1/2 na 18 Male stud fitting thread Tube to Male Pipe na BSPP
0101 18 27 39-FSC Brass BSPP G3/4 na 18 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 18 27-FSC Brass BSPP G3/4 na 18 Male stud fitting thread Tube to Male Pipe na BSPP
0101 18 82-FSC Brass Metric M22x1,5 na 18 Male stud fitting thread Tube to Male Pipe na Metric
0101 18 83-FSC Brass Metric M24x1,5 na 18 Male stud fitting thread Tube to Male Pipe na Metric
0101 20 27 39-FSC Brass BSPP G3/4 na 20 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 20 27-FSC Brass BSPP G3/4 na 20 Male stud fitting thread Tube to Male Pipe na BSPP
0101 22 27 39-FSC Brass BSPP G3/4 na 22 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 22 27-FSC Brass BSPP G3/4 na 22 Male stud fitting thread Tube to Male Pipe na BSPP
0101 22 34 39-FSC Brass BSPP G1 na 22 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 22 34-FSC Brass BSPP G1 na 22 Male stud fitting thread Tube to Male Pipe na BSPP
0101 25 34 39-FSC Brass BSPP G1 na 25 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 25 34-FSC Brass BSPP G1 na 25 Male stud fitting thread Tube to Male Pipe na BSPP
0101 28 34 39-FSC Brass BSPP G1 na 28 Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 28 34-FSC Brass BSPP G1 na 28 Male stud fitting thread Tube to Male Pipe na BSPP
0102 04 00-FSC Brass na na na 4 90° Elbow Tube to Tube na na
0102 05 00-FSC Brass na na na 5 90° Elbow Tube to Tube na na
0102 06 00-FSC Brass na na na 6 90° Elbow Tube to Tube na na
0102 08 00-FSC Brass na na na 8 90° Elbow Tube to Tube na na
0102 10 00-FSC Brass na na na 10 90° Elbow Tube to Tube na na
0102 12 00-FSC Brass na na na 12 90° Elbow Tube to Tube na na
0102 14 00-FSC Brass na na na 14 90° Elbow Tube to Tube na na
0102 15 00-FSC Brass na na na 15 90° Elbow Tube to Tube na na
0102 16 00-FSC Brass na na na 16 90° Elbow Tube to Tube na na
0102 18 00-FSC Brass na na na 18 90° Elbow Tube to Tube na na
0102 20 00-FSC Brass na na na 20 90° Elbow Tube to Tube na na
0102 22 00-FSC Brass na na na 22 90° Elbow Tube to Tube na na
0102 25 00-FSC Brass na na na 25 90° Elbow Tube to Tube na na
0102 28 00-FSC Brass na na na 28 90° Elbow Tube to Tube na na
0103 04 10-FSC Brass BSPT R1/8 na 4 Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 06 10-FSC Brass BSPT R1/8 na 6 Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 06 13-FSC Brass BSPT R1/4 na 6 Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 08 13-FSC Brass BSPT R1/4 na 8 Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 08 17-FSC Brass BSPT R3/8 na 8 Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 10 13-FSC Brass BSPT R1/4 na 10 Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 12 13-FSC Brass BSPT R1/4 na 12 Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 14 17-FSC Brass BSPT R3/8 na 14 Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 14 21-FSC Brass BSPT R1/2 na 14 Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 15 21-FSC Brass BSPT R1/2 na 15 Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 16 17-FSC Brass BSPT R3/8 na 16 Male stud run tee fixed thread Tube to Male Pipe na BSPT



Part Body Material Connection 1 Tube O.D. (inch) Connection 1 Style Connection 1 Thread Style Connection 1 Thread Size (metric) Connection 2 Tube O.D. (inch) Connection 2 Tube O.D. (mm) Connection 2 Style Connection 2 Thread Size (inch) Connection 3 Tube O.D. (inch) Connection 3 Thread Size (inch) Shape Style O-Ring Material Thread Type
0101 04 10 39-FSC Brass na na BSPP G1/8 na 4 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 04 10-FSC Brass na na BSPP G1/8 na 4 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 04 19-FSC Brass na na Metric M5x0,8 na 4 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 04 55-FSC Brass na na Metric M7x1 na 4 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 04 56-FSC Brass na na Metric M8x1 na 4 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 05 10 39-FSC Brass na na BSPP G1/8 na 5 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 05 10-FSC Brass na na BSPP G1/8 na 5 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 05 56-FSC Brass na na Metric M8x1 na 5 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 05 60-FSC Brass na na Metric M10x1 na 5 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 06 10 39-FSC Brass na na BSPP G1/8 na 6 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 06 10-FSC Brass na na BSPP G1/8 na 6 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 06 13 39-FSC Brass na na BSPP G1/4 na 6 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 06 13-FSC Brass na na BSPP G1/4 na 6 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 06 60-FSC Brass na na Metric M10x1 na 6 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 06 62-FSC Brass na na Metric M10x1,5 na 6 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 08 10 39-FSC Brass na na BSPP G1/8 na 8 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 08 10-FSC Brass na na BSPP G1/8 na 8 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 08 13 39-FSC Brass na na BSPP G1/4 na 8 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 08 13-FSC Brass na na BSPP G1/4 na 8 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 08 17 39-FSC Brass na na BSPP G3/8 na 8 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 08 17-FSC Brass na na BSPP G3/8 na 8 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 08 65-FSC Brass na na Metric M12x1 na 8 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 08 66-FSC Brass na na Metric M12x1,25 na 8 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 08 68-FSC Brass na na Metric M13x1,25 na 8 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 10 13 39-FSC Brass na na BSPP G1/4 na 10 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 10 13-FSC Brass na na BSPP G1/4 na 10 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 10 17 39-FSC Brass na na BSPP G3/8 na 10 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 10 17-FSC Brass na na BSPP G3/8 na 10 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 10 70-FSC Brass na na Metric M14x1,25 na 10 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 10 71-FSC Brass na na Metric M14x1,5 na 10 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 10 74-FSC Brass na na Metric M16x1,25 na 10 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 10 75-FSC Brass na na Metric M16x1,5 na 10 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 10 78-FSC Brass na na Metric M18x1,5 na 10 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 12 13 39-FSC Brass na na BSPP G1/4 na 12 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 12 13-FSC Brass na na BSPP G1/4 na 12 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 12 17 39-FSC Brass na na BSPP G3/8 na 12 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 12 17-FSC Brass na na BSPP G3/8 na 12 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 12 21 39-FSC Brass na na BSPP G1/2 na 12 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 12 21-FSC Brass na na BSPP G1/2 na 12 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 12 74-FSC Brass na na Metric M16x1,25 na 12 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 12 75-FSC Brass na na Metric M16x1,5 na 12 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 12 78-FSC Brass na na Metric M18x1,5 na 12 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 14 17 39-FSC Brass na na BSPP G3/8 na 14 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 14 17-FSC Brass na na BSPP G3/8 na 14 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 14 21 39-FSC Brass na na BSPP G1/2 na 14 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 14 21-FSC Brass na na BSPP G1/2 na 14 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 14 78-FSC Brass na na Metric M18x1,5 na 14 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 14 80-FSC Brass na na Metric M20x1,5 na 14 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 15 17 39-FSC Brass na na BSPP G3/8 na 15 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 15 17-FSC Brass na na BSPP G3/8 na 15 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 15 21 39-FSC Brass na na BSPP G1/2 na 15 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 15 21-FSC Brass na na BSPP G1/2 na 15 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 15 78-FSC Brass na na Metric M18x1,5 na 15 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 16 17 39-FSC Brass na na BSPP G3/8 na 16 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 16 17-FSC Brass na na BSPP G3/8 na 16 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 16 21 39-FSC Brass na na BSPP G1/2 na 16 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 16 21-FSC Brass na na BSPP G1/2 na 16 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 16 80-FSC Brass na na Metric M20x1,5 na 16 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 16 82-FSC Brass na na Metric M22x1,5 na 16 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 18 21 39-FSC Brass na na BSPP G1/2 na 18 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 18 21-FSC Brass na na BSPP G1/2 na 18 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 18 27 39-FSC Brass na na BSPP G3/4 na 18 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 18 27-FSC Brass na na BSPP G3/4 na 18 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 18 82-FSC Brass na na Metric M22x1,5 na 18 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 18 83-FSC Brass na na Metric M24x1,5 na 18 na na na na Male stud fitting thread Tube to Male Pipe na Metric
0101 20 27 39-FSC Brass na na BSPP G3/4 na 20 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 20 27-FSC Brass na na BSPP G3/4 na 20 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 22 27 39-FSC Brass na na BSPP G3/4 na 22 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 22 27-FSC Brass na na BSPP G3/4 na 22 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 22 34 39-FSC Brass na na BSPP G1 na 22 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 22 34-FSC Brass na na BSPP G1 na 22 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 25 34 39-FSC Brass na na BSPP G1 na 25 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 25 34-FSC Brass na na BSPP G1 na 25 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0101 28 34 39-FSC Brass na na BSPP G1 na 28 na na na na Male stud fitting thread Tube to Male Pipe ZINC PLATED STEEL WITH NBR SEAL BSPP
0101 28 34-FSC Brass na na BSPP G1 na 28 na na na na Male stud fitting thread Tube to Male Pipe na BSPP
0102 04 00-FSC Brass na na na na na 4 na na na na 90° Elbow Tube to Tube na na
0102 05 00-FSC Brass na na na na na 5 na na na na 90° Elbow Tube to Tube na na
0102 06 00-FSC Brass na na na na na 6 na na na na 90° Elbow Tube to Tube na na
0102 08 00-FSC Brass na na na na na 8 na na na na 90° Elbow Tube to Tube na na
0102 10 00-FSC Brass na na na na na 10 na na na na 90° Elbow Tube to Tube na na
0102 12 00-FSC Brass na na na na na 12 na na na na 90° Elbow Tube to Tube na na
0102 14 00-FSC Brass na na na na na 14 na na na na 90° Elbow Tube to Tube na na
0102 15 00-FSC Brass na na na na na 15 na na na na 90° Elbow Tube to Tube na na
0102 16 00-FSC Brass na na na na na 16 na na na na 90° Elbow Tube to Tube na na
0102 18 00-FSC Brass na na na na na 18 na na na na 90° Elbow Tube to Tube na na
0102 20 00-FSC Brass na na na na na 20 na na na na 90° Elbow Tube to Tube na na
0102 22 00-FSC Brass na na na na na 22 na na na na 90° Elbow Tube to Tube na na
0102 25 00-FSC Brass na na na na na 25 na na na na 90° Elbow Tube to Tube na na
0102 28 00-FSC Brass na na na na na 28 na na na na 90° Elbow Tube to Tube na na
0103 04 10-FSC Brass na na BSPT R1/8 na 4 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 06 10-FSC Brass na na BSPT R1/8 na 6 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 06 13-FSC Brass na na BSPT R1/4 na 6 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 08 13-FSC Brass na na BSPT R1/4 na 8 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 08 17-FSC Brass na na BSPT R3/8 na 8 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 10 13-FSC Brass na na BSPT R1/4 na 10 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 12 13-FSC Brass na na BSPT R1/4 na 12 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 14 17-FSC Brass na na BSPT R3/8 na 14 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 14 21-FSC Brass na na BSPT R1/2 na 14 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 15 21-FSC Brass na na BSPT R1/2 na 15 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 16 17-FSC Brass na na BSPT R3/8 na 16 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 18 21-FSC Brass na na BSPT R1/2 na 18 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 18 27-FSC Brass na na BSPT R3/4 na 18 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0103 22 27-FSC Brass na na BSPT R3/4 na 22 na na na na Male stud run tee fixed thread Tube to Male Pipe na BSPT
0104 04 00-FSC Brass na na na na na 4 na na na na Tee Tube to Tube na na
0104 05 00-FSC Brass na na na na na 5 na na na na Tee Tube to Tube na na
0104 06 00-FSC Brass na na na na na 6 na na na na Tee Tube to Tube na na
0104 08 00-FSC Brass na na na na na 8 na na na na Tee Tube to Tube na na
0104 10 00-FSC Brass na na na na na 10 na na na na Tee Tube to Tube na na
0104 12 00-FSC Brass na na na na na 12 na na na na Tee Tube to Tube na na
0104 14 00-FSC Brass na na na na na 14 na na na na Tee Tube to Tube na na
0104 15 00-FSC Brass na na na na na 15 na na na na Tee Tube to Tube na na
0104 16 00-FSC Brass na na na na na 16 na na na na Tee Tube to Tube na na
0104 18 00-FSC Brass na na na na na 18 na na na na Tee Tube to Tube na na
0104 20 00-FSC Brass na na na na na 20 na na na na Tee Tube to Tube na na
0104 22 00-FSC Brass na na na na na 22 na na na na Tee Tube to Tube na na
0104 25 00-FSC Brass na na na na na 25 na na na na Tee Tube to Tube na na
0105 04 10-FSC Brass na na BSPT R1/8 na 4 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 05 10-FSC Brass na na BSPT R1/8 na 5 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 05 13-FSC Brass na na BSPT R1/4 na 5 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 06 10-FSC Brass na na BSPT R1/8 na 6 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 06 11-FSC Brass na na NPT NPT1/8 na 6 na na na na Male stud fitting thread Tube to Male Pipe na NPT
0105 06 13-FSC Brass na na BSPT R1/4 na 6 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 06 14-FSC Brass na na NPT NPT1/4 na 6 na na na na Male stud fitting thread Tube to Male Pipe na NPT
0105 06 17-FSC Brass na na BSPT R3/8 na 6 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 08 10-FSC Brass na na BSPT R1/8 na 8 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 08 11-FSC Brass na na NPT NPT1/8 na 8 na na na na Male stud fitting thread Tube to Male Pipe na NPT
0105 08 13-FSC Brass na na BSPT R1/4 na 8 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 08 14-FSC Brass na na NPT NPT1/4 na 8 na na na na Male stud fitting thread Tube to Male Pipe na NPT
0105 08 17-FSC Brass na na BSPT R3/8 na 8 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 10 10-FSC Brass na na BSPT R1/8 na 10 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 10 13-FSC Brass na na BSPT R1/4 na 10 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 10 14-FSC Brass na na NPT NPT1/4 na 10 na na na na Male stud fitting thread Tube to Male Pipe na NPT
0105 10 17-FSC Brass na na BSPT R3/8 na 10 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 10 18-FSC Brass na na NPT NPT3/8 na 10 na na na na Male stud fitting thread Tube to Male Pipe na NPT
0105 10 21-FSC Brass na na BSPT R1/2 na 10 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 10 22-FSC Brass na na NPT NPT1/2 na 10 na na na na Male stud fitting thread Tube to Male Pipe na NPT
0105 12 13-FSC Brass na na BSPT R1/4 na 12 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 12 17-FSC Brass na na BSPT R3/8 na 12 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 12 21-FSC Brass na na BSPT R1/2 na 12 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 14 13-FSC Brass na na BSPT R1/4 na 14 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 14 17-FSC Brass na na BSPT R3/8 na 14 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 14 21-FSC Brass na na BSPT R1/2 na 14 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 14 27-FSC Brass na na BSPT R3/4 na 14 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 15 17-FSC Brass na na BSPT R3/8 na 15 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 15 21-FSC Brass na na BSPT R1/2 na 15 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 16 13-FSC Brass na na BSPT R1/4 na 16 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 16 17-FSC Brass na na BSPT R3/8 na 16 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 16 21-FSC Brass na na BSPT R1/2 na 16 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 16 27-FSC Brass na na BSPT R3/4 na 16 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 18 21-FSC Brass na na BSPT R1/2 na 18 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 18 27-FSC Brass na na BSPT R3/4 na 18 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 20 21-FSC Brass na na BSPT R1/2 na 20 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 20 27-FSC Brass na na BSPT R3/4 na 20 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 22 21-FSC Brass na na BSPT R1/2 na 22 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 22 27-FSC Brass na na BSPT R3/4 na 22 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 22 34-FSC Brass na na BSPT R1 na 22 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 25 27-FSC Brass na na BSPT R3/4 na 25 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 25 34-FSC Brass na na BSPT R1 na 25 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 28 27-FSC Brass na na BSPT R3/4 na 28 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0105 28 34-FSC Brass na na BSPT R1 na 28 na na na na Male stud fitting thread Tube to Male Pipe na BSPT
0106 04 00-FSC Brass na na na na na 4 na na na na Connector Tube to Tube na na
0106 05 00-FSC Brass na na na na na 5 na na na na Connector Tube to Tube na na
0106 06 00-FSC Brass na na na na na 6 na na na na Connector Tube to Tube na na
0106 08 00-FSC Brass na na na na na 8 na na na na Connector Tube to Tube na na
0106 10 00-FSC Brass na na na na na 10 na na na na Connector Tube to Tube na na
0106 12 00-FSC Brass na na na na na 12 na na na na Connector Tube to Tube na na
0106 14 00-FSC Brass na na na na na 14 na na na na Connector Tube to Tube na na
0106 15 00-FSC Brass na na na na na 15 na na na na Connector Tube to Tube na na
0106 16 00-FSC Brass na na na na na 16 na na na na Connector Tube to Tube na na
0106 18 00-FSC Brass na na na na na 18 na na na na Connector Tube to Tube na na
0106 20 00-FSC Brass na na na na na 20 na na na na Connector Tube to Tube na na
0106 22 00-FSC Brass na na na na na 22 na na na na Connector Tube to Tube na na
0106 25 00-FSC Brass na na na na na 25 na na na na Connector Tube to Tube na na
0106 28 00-FSC Brass na na na na na 28 na na na na Connector Tube to Tube na na
0107 04 00-FSC Brass na na na na na 4 na na na na Cross Tube to Tube na na
0107 06 00-FSC Brass na na na na na 6 na na na na Cross Tube to Tube na na
0107 08 00-FSC Brass na na na na na 8 na na na na Cross Tube to Tube na na
0107 10 00-FSC Brass na na na na na 10 na na na na Cross Tube to Tube na na
0107 12 00-FSC Brass na na na na na 12 na na na na Cross Tube to Tube na na
0107 14 00-FSC Brass na na na na na 14 na na na na Cross Tube to Tube na na
0107 15 00-FSC Brass na na na na na 15 na na na na Cross Tube to Tube na na
0107 16 00-FSC Brass na na na na na 16 na na na na Cross Tube to Tube na na
0107 18 00-FSC Brass na na na na na 18 na na na na Cross Tube to Tube na na
0107 20 00-FSC Brass na na na na na 20 na na na na Cross Tube to Tube na na
0107 22 00-FSC Brass na na na na na 22 na na na na Cross Tube to Tube na na
0108 04 10-FSC Brass na na BSPT R1/8 na 4 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 05 10-FSC Brass na na BSPT R1/8 na 5 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 06 10-FSC Brass na na BSPT R1/8 na 6 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 06 13-FSC Brass na na BSPT R1/4 na 6 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 08 10-FSC Brass na na BSPT R1/8 na 8 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 08 13-FSC Brass na na BSPT R1/4 na 8 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 08 17-FSC Brass na na BSPT R3/8 na 8 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 10 13-FSC Brass na na BSPT R1/4 na 10 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 10 17-FSC Brass na na BSPT R3/8 na 10 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 12 13-FSC Brass na na BSPT R1/4 na 12 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 12 17-FSC Brass na na BSPT R3/8 na 12 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 14 17-FSC Brass na na BSPT R3/8 na 14 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 14 21-FSC Brass na na BSPT R1/2 na 14 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 16 17-FSC Brass na na BSPT R3/8 na 16 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 16 21-FSC Brass na na BSPT R1/2 na 16 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 18 21-FSC Brass na na BSPT R1/2 na 18 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 18 27-FSC Brass na na BSPT R3/4 na 18 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 20 27-FSC Brass na na BSPT R3/4 na 20 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 22 27-FSC Brass na na BSPT R3/4 na 22 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0108 22 34-FSC Brass na na BSPT R1 na 22 na na na na Male stud branch tee fixed thread Tube to Male Pipe na BSPT
0109 04 10-FSC Brass na na BSPT R1/8 na 4 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 04 13-FSC Brass na na BSPT R1/4 na 4 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 05 10-FSC Brass na na BSPT R1/8 na 5 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 05 13-FSC Brass na na BSPT R1/4 na 5 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 06 10-FSC Brass na na BSPT R1/8 na 6 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 06 11-FSC Brass na na NPT NPT1/8 na 6 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na NPT
0109 06 13-FSC Brass na na BSPT R1/4 na 6 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 06 14-FSC Brass na na NPT NPT1/4 na 6 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na NPT
0109 08 10-FSC Brass na na BSPT R1/8 na 8 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 08 11-FSC Brass na na NPT NPT1/8 na 8 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na NPT
0109 08 13-FSC Brass na na BSPT R1/4 na 8 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 08 14-FSC Brass na na NPT NPT1/4 na 8 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na NPT
0109 08 17-FSC Brass na na BSPT R3/8 na 8 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 10 13-FSC Brass na na BSPT R1/4 na 10 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 10 14-FSC Brass na na NPT NPT1/4 na 10 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na NPT
0109 10 17-FSC Brass na na BSPT R3/8 na 10 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 10 21-FSC Brass na na BSPT R1/2 na 10 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 12 13-FSC Brass na na BSPT R1/4 na 12 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 12 17-FSC Brass na na BSPT R3/8 na 12 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 12 21-FSC Brass na na BSPT R1/2 na 12 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 14 17-FSC Brass na na BSPT R3/8 na 14 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 14 21-FSC Brass na na BSPT R1/2 na 14 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 15 17-FSC Brass na na BSPT R3/8 na 15 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 15 21-FSC Brass na na BSPT R1/2 na 15 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 16 17-FSC Brass na na BSPT R3/8 na 16 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 16 21-FSC Brass na na BSPT R1/2 na 16 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 16 27-FSC Brass na na BSPT R3/4 na 16 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 18 21-FSC Brass na na BSPT R1/2 na 18 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 18 27-FSC Brass na na BSPT R3/4 na 18 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 20 21-FSC Brass na na BSPT R1/2 na 20 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 20 27-FSC Brass na na BSPT R3/4 na 20 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 22 27-FSC Brass na na BSPT R3/4 na 22 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 22 34-FSC Brass na na BSPT R1 na 22 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 25 27-FSC Brass na na BSPT R3/4 na 25 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 25 34-FSC Brass na na BSPT R1 na 25 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 28 27-FSC Brass na na BSPT R3/4 na 28 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0109 28 34-FSC Brass na na BSPT R1 na 28 na na na na Male stud elbow fixed 90° thread Tube to Male Pipe na BSPT
0114 04 10-FSC Brass na na BSPP G1/8 na 4 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 04 13-FSC Brass na na BSPP G1/4 na 4 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 05 10-FSC Brass na na BSPP G1/8 na 5 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 05 13-FSC Brass na na BSPP G1/4 na 5 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 06 10-FSC Brass na na BSPP G1/8 na 6 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 06 13-FSC Brass na na BSPP G1/4 na 6 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 06 17-FSC Brass na na BSPP G3/8 na 6 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 08 10-FSC Brass na na BSPP G1/8 na 8 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 08 13-FSC Brass na na BSPP G1/4 na 8 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 08 17-FSC Brass na na BSPP G3/8 na 8 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 10 13-FSC Brass na na BSPP G1/4 na 10 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 10 17-FSC Brass na na BSPP G3/8 na 10 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 10 21-FSC Brass na na BSPP G1/2 na 10 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 12 13-FSC Brass na na BSPP G1/4 na 12 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 12 17-FSC Brass na na BSPP G3/8 na 12 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 12 21-FSC Brass na na BSPP G1/2 na 12 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 14 13-FSC Brass na na BSPP G1/4 na 14 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 14 17-FSC Brass na na BSPP G3/8 na 14 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 14 21-FSC Brass na na BSPP G1/2 na 14 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 15 17-FSC Brass na na BSPP G3/8 na 15 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 15 21-FSC Brass na na BSPP G1/2 na 15 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 16 13-FSC Brass na na BSPP G1/4 na 16 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 16 17-FSC Brass na na BSPP G3/8 na 16 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 16 21-FSC Brass na na BSPP G1/2 na 16 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 18 17-FSC Brass na na BSPP G3/8 na 18 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 18 21-FSC Brass na na BSPP G1/2 na 18 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 18 27-FSC Brass na na BSPP G3/4 na 18 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 20 17-FSC Brass na na BSPP G3/8 na 20 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 20 21-FSC Brass na na BSPP G1/2 na 20 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 20 27-FSC Brass na na BSPP G3/4 na 20 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 22 27-FSC Brass na na BSPP G3/4 na 22 na na na na Female stud fitting thread Tube to Female Pipe na BSPP
0114 25 27-FSC Brass na na BSPP G3/4 na 25 na na na na Female stud fitting thread Tube to Pipe na BSPP
0116 04 00-FSC Brass na na na na na 4 na na na na Bulkhead Connector Tube to Tube na na
0116 05 00-FSC Brass na na na na na 5 na na na na Bulkhead Connector Tube to Tube na na
0116 06 00-FSC Brass na na na na na 6 na na na na Bulkhead Connector Tube to Tube na na
0116 08 00-FSC Brass na na na na na 8 na na na na Bulkhead Connector Tube to Tube na na
0116 10 00-FSC Brass na na na na na 10 na na na na Bulkhead Connector Tube to Tube na na
0116 12 00-FSC Brass na na na na na 12 na na na na Bulkhead Connector Tube to Tube na na
0116 14 00-FSC Brass na na na na na 14 na na na na Bulkhead Connector Tube to Tube na na
0116 15 00-FSC Brass na na na na na 15 na na na na Bulkhead Connector Tube to Tube na na
0116 16 00-FSC Brass na na na na na 16 na na na na Bulkhead Connector Tube to Tube na na
0116 18 00-FSC Brass na na na na na 18 na na na na Bulkhead Connector Tube to Tube na na
0116 20 00-FSC Brass na na na na na 20 na na na na Bulkhead Connector Tube to Tube na na
0116 22 00-FSC Brass na na na na na 22 na na na na Bulkhead Connector Tube to Tube na na
0118 04 10 39-FSC Brass na na BSPP G1/8 na 4 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 05 10 39-FSC Brass na na BSPP G1/8 na 5 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 06 10 39-FSC Brass na na BSPP G1/8 na 6 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 06 13 39-FSC Brass na na BSPP G1/4 na 6 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 08 10 39-FSC Brass na na BSPP G1/8 na 8 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 08 13 39-FSC Brass na na BSPP G1/4 na 8 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 08 17 39-FSC Brass na na BSPP G3/8 na 8 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 10 13 39-FSC Brass na na BSPP G1/4 na 10 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 10 17 39-FSC Brass na na BSPP G3/8 na 10 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 12 13 39-FSC Brass na na BSPP G1/4 na 12 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 12 17 39-FSC Brass na na BSPP G3/8 na 12 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 14 13 39-FSC Brass na na BSPP G1/4 na 14 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 14 13-FSC Brass na na BSPP G1/4 na 14 na na na na Male stud single banjo thread with Captive Sealing Washer Tube to Male Pipe na BSPP
0118 14 17 39-FSC Brass na na BSPP G3/8 na 14 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 14 21 39-FSC Brass na na BSPP G1/2 na 14 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 15 17-FSC Brass na na BSPP G3/8 na 15 na na na na Male stud single banjo thread with Captive Sealing Washer Tube to Male Pipe na BSPP
0118 15 21 39-FSC Brass na na BSPP G1/2 na 15 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 16 21 39-FSC Brass na na BSPP G1/2 na 16 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 18 21 39-FSC Brass na na BSPP G1/2 na 18 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 20 27 39-FSC Brass na na BSPP G3/4 na 20 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0118 20 27-FSC Brass na na BSPP G3/4 na 20 na na na na Male stud single banjo thread with Captive Sealing Washer Tube to Male Pipe na BSPP
0118 22 27 39-FSC Brass na na BSPP G3/4 na 22 na na na na Male stud single banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0119 04 10 39-FSC Brass na na BSPP G1/8 na 4 na na na na Male stud double banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0119 06 10 39-FSC Brass na na BSPP G1/8 na 6 na na na na Male stud double banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0119 08 10 39-FSC Brass na na BSPP G1/8 na 8 na na na na Male stud double banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0119 08 13 39-FSC Brass na na BSPP G1/4 na 8 na na na na Male stud double banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0119 08 13-FSC Brass na na BSPP G1/4 na 8 na na na na Male stud double banjo thread with Captive Sealing Washer Tube to Male Pipe na BSPP
0119 08 17-FSC Brass na na BSPP G3/8 na 8 na na na na Male stud double banjo thread with Captive Sealing Washer Tube to Male Pipe na BSPP
0119 10 13 39-FSC Brass na na BSPP G1/4 na 10 na na na na Male stud double banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0119 12 13 39-FSC Brass na na BSPP G1/4 na 12 na na na na Male stud double banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0119 14 17 39-FSC Brass na na BSPP G3/8 na 14 na na na na Male stud double banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0119 14 21 39-FSC Brass na na BSPP G1/2 na 14 na na na na Male stud double banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0119 18 21 39-FSC Brass na na BSPP G1/2 na 18 na na na na Male stud double banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0119 22 27 39-FSC Brass na na BSPP G3/4 na 22 na na na na Male stud double banjo thread with Bi-Material Seal Tube to Male Pipe na BSPP
0142 04 00-FSC Brass na na na na na 4 na na na na Y with mounting boss Tube to Tube na na
0142 06 00-FSC Brass na na na na na 6 na na na na Y with mounting boss Tube to Tube na na
0142 08 00-FSC Brass na na na na na 8 na na na na Y with mounting boss Tube to Tube na na
0142 10 00-FSC Brass na na na na na 10 na na na na Y with mounting boss Tube to Tube na na
0142 12 00-FSC Brass na na na na na 12 na na na na Y with mounting boss Tube to Tube na na
0142 14 00-FSC Brass na na na na na 14 na na na na Y with mounting boss Tube to Tube na na
0199 04 10-FSC Brass na na BSPP G1/8 na 4 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 04 13-FSC Brass na na BSPP G1/4 na 4 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 06 10-FSC Brass na na BSPP G1/8 na 6 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 06 13-FSC Brass na na BSPP G1/4 na 6 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 08 10-FSC Brass na na BSPP G1/8 na 8 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 08 13-FSC Brass na na BSPP G1/4 na 8 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 08 17-FSC Brass na na BSPP G3/8 na 8 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 10 13-FSC Brass na na BSPP G1/4 na 10 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 10 17-FSC Brass na na BSPP G3/8 na 10 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 10 21-FSC Brass na na BSPP G1/2 na 10 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 14 17-FSC Brass na na BSPP G3/8 na 14 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 14 21-FSC Brass na na BSPP G1/2 na 14 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 18 21-FSC Brass na na BSPP G1/2 na 18 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 18 27-FSC Brass na na BSPP G3/4 na 18 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 22 27-FSC Brass na na BSPP G3/4 na 22 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 22 34-FSC Brass na na BSPP G1 na 22 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
0199 28 34-FSC Brass na na BSPP G1 na 28 na na na na Male stud elbow adjustable 90° thread Tube to Male Pipe NBR BSPP
164C-10 Forged Brass 5/8 Compression na na 5/8 na Compression na na na Tee Tube to Tube na NPTF
164C-12 Forged Brass 3/4 Compression na na 3/4 na Compression na na na Tee Tube to Tube na NPTF
164C-2 Forged Brass 1/8 Compression na na 1/8 na Compression na na na Tee Tube to Tube na NPTF
164C-4 Forged Brass 1/4 Compression na na 1/4 na Compression na na na Tee Tube to Tube na NPTF
164C-5 Forged Brass 5/16 Compression na na 5/16 na Compression na na na Tee Tube to Tube na NPTF
164C-6 Forged Brass 3/8 Compression na na 3/8 na Compression na na na Tee Tube to Tube na NPTF
164C-6-4-4 Forged Brass 3/8 Compression na na 1/4 na Compression na 1/4 na Tee Tube to Tube na NPTF
164C-6-6-4 Forged Brass 3/8 Compression na na 3/8 na Compression na 1/4 na Tee Tube to Tube na NPTF
164C-8 Forged Brass 1/2 Compression na na 1/2 na Compression na na na Tee Tube to Tube na NPTF
164C-8-8-6 Forged Brass 1/2 Compression na na 1/2 na Compression na 3/8 na Tee Tube to Tube na NPTF
165C-10 Forged Brass 5/8 Compression na na 5/8 na Compression na na na 90° Elbow Tube to Tube na NPTF
165C-12 Forged Brass 3/4 Compression na na 3/4 na Compression na na na 90° Elbow Tube to Tube na NPTF
165C-2 Forged Brass 1/8 Compression na na 1/8 na Compression na na na 90° Elbow Tube to Tube na NPTF
165C-3 Forged Brass 3/16 Compression na na 3/16 na Compression na na na 90° Elbow Tube to Tube na NPTF
165C-4 Forged Brass 1/4 Compression na na 1/4 na Compression na na na 90° Elbow Tube to Tube na NPTF
165C-5 Forged Brass 5/16 Compression na na 5/16 na Compression na na na 90° Elbow Tube to Tube na NPTF
165C-6 Forged Brass 3/8 Compression na na 3/8 na Compression na na na 90° Elbow Tube to Tube na NPTF
165C-7 Forged Brass 7/16 Compression na na 7/16 na Compression na na na 90° Elbow Tube to Tube na NPTF
165C-8 Forged Brass 1/2 Compression na na 1/2 na Compression na na na 90° Elbow Tube to Tube na NPTF
168C-4-2 Forged Brass 1/4 Compression na na na na Male Pipe 1/8 na 1/8 Gage Tee Tube to Pipe na NPTF
169C-10-8 Forged Brass 5/8 Compression na na na na Male Pipe 1/2 na na 90° Elbow Tube to Pipe na NPTF
169C-12-12 Forged Brass 3/4 Compression na na na na Male Pipe 3/4 na na 90° Elbow Tube to Pipe na NPTF
169C-12-8 Forged Brass 3/4 Compression na na na na Male Pipe 1/2 na na 90° Elbow Tube to Pipe na NPTF
169C-2-1 Forged Brass 1/8 Compression na na na na Male Pipe 1/16 na na 90° Elbow Tube to Pipe na NPTF
169C-3-1 Forged Brass 3/16 Compression na na na na Male Pipe 1/16 na na 90° Elbow Tube to Pipe na NPTF
169C-3-2 Forged Brass 3/16 Compression na na na na Male Pipe 1/8 na na 90° Elbow Tube to Pipe na NPTF
169C-3-4 Forged Brass 3/16 Compression na na na na Male Pipe 1/4 na na 90° Elbow Tube to Pipe na NPTF
169C-4-2 Forged Brass 1/4 Compression na na na na Male Pipe 1/8 na na 90° Elbow Tube to Pipe na NPTF
169C-4-4 Forged Brass 1/4 Compression na na na na Male Pipe 1/4 na na 90° Elbow Tube to Pipe na NPTF
169C-4-6 Forged Brass 1/4 Compression na na na na Male Pipe 3/8 na na 90° Elbow Tube to Pipe na NPTF
169C-5-2 Forged Brass 5/16 Compression na na na na Male Pipe 1/8 na na 90° Elbow Tube to Pipe na NPTF
169C-5-4 Forged Brass 5/16 Compression na na na na Male Pipe 1/4 na na 90° Elbow Tube to Pipe na NPTF
169C-5-6 Forged Brass 5/16 Compression na na na na Male Pipe 3/8 na na 90° Elbow Tube to Pipe na NPTF
169C-6-2 Forged Brass 3/8 Compression na na na na Male Pipe 1/8 na na 90° Elbow Tube to Pipe na NPTF
169C-6-4 Forged Brass 3/8 Compression na na na na Male Pipe 1/4 na na 90° Elbow Tube to Pipe na NPTF
169C-6-6 Forged Brass 3/8 Compression na na na na Male Pipe 3/8 na na 90° Elbow Tube to Pipe na NPTF
169C-6-8 Forged Brass 3/8 Compression na na na na Male Pipe 1/2 na na 90° Elbow Tube to Pipe na NPTF
169C-8-4 Forged Brass 1/2 Compression na na na na Male Pipe 1/4 na na 90° Elbow Tube to Pipe na NPTF
169C-8-6 Forged Brass 1/2 Compression na na na na Male Pipe 3/8 na na 90° Elbow Tube to Pipe na NPTF
169C-8-8 Forged Brass 1/2 Compression na na na na Male Pipe 1/2 na na 90° Elbow Tube to Pipe na NPTF
170C-12-12 Forged Brass 3/4 Compression na na na na Female Pipe 3/4 na na 90° Elbow Tube to Female Pipe na NPTF
170C-2-2 Forged Brass 1/8 Compression na na na na Female Pipe 1/8 na na 90° Elbow Tube to Female Pipe na NPTF
170C-3-2 Forged Brass 3/16 Compression na na na na Female Pipe 1/8 na na 90° Elbow Tube to Female Pipe na NPTF
170C-4-2 Forged Brass 1/4 Compression na na na na Female Pipe 1/8 na na 90° Elbow Tube to Female Pipe na NPTF
170C-4-4 Forged Brass 1/4 Compression na na na na Female Pipe 1/4 na na 90° Elbow Tube to Female Pipe na NPTF
170C-6-4 Forged Brass 3/8 Compression na na na na Female Pipe 1/4 na na 90° Elbow Tube to Female Pipe na NPTF
170C-6-6 Forged Brass 3/8 Compression na na na na Female Pipe 3/8 na na 90° Elbow Tube to Female Pipe na NPTF
170C-7-4 Forged Brass 7/16 Compression na na na na Female Pipe 1/4 na na 90° Elbow Tube to Female Pipe na NPTF
170C-8-6 Forged Brass 1/2 Compression na na na na Female Pipe 3/8 na na 90° Elbow Tube to Female Pipe na NPTF
170C-8-8 Forged Brass 1/2 Compression na na na na Female Pipe 1/2 na na 90° Elbow Tube to Female Pipe na NPTF
171C-2-2 Forged Brass 1/8 Compression na na na na Male Pipe 1/8 na na Run Tee Tube to Pipe na NPTF
171C-3-2 Forged Brass 3/16 Compression na na na na Male Pipe 1/8 na na Run Tee Tube to Pipe na NPTF
171C-4-2 Forged Brass 1/4 Compression na na na na Male Pipe 1/8 na na Run Tee Tube to Pipe na NPTF
171C-4-4 Forged Brass 1/4 Compression na na na na Male Pipe 1/4 na na Run Tee Tube to Pipe na NPTF
171C-6-4 Forged Brass 3/8 Compression na na na na Male Pipe 1/4 na na Run Tee Tube to Pipe na NPTF
172C-2-2 Forged Brass 1/8 Compression na na na na Male Pipe 1/8 na na Branch Tee Tube to Pipe na NPTF
172C-3-2 Forged Brass 3/16 Compression na na na na Male Pipe 1/8 na na Branch Tee Tube to Pipe na NPTF
172C-4-2 Forged Brass 1/4 Compression na na na na Male Pipe 1/8 na na Branch Tee Tube to Pipe na NPTF
172C-4-4 Forged Brass 1/4 Compression na na na na Male Pipe 1/4 na na Branch Tee Tube to Pipe na NPTF
172C-6-2 Forged Brass 3/8 Compression na na na na Male Pipe 1/8 na na Branch Tee Tube to Pipe na NPTF
172C-6-4 Forged Brass 3/8 Compression na na na na Male Pipe 1/4 na na Branch Tee Tube to Pipe na NPTF
172C-6-6 Forged Brass 3/8 Compression na na na na Male Pipe 3/8 na na Branch Tee Tube to Pipe na NPTF
172C-8-6 Forged Brass 1/2 Compression na na na na Male Pipe 3/8 na na Branch Tee Tube to Pipe na NPTF
176C-4-2 Forged Brass 1/4 Compression na na na na Male Pipe 1/8 na 1/8 Branch Tee Tube to Pipe na NPTF
177C-4-2 Forged Brass 1/4 Compression na na na na Compression 1/4 na 1/8 Branch Tee Tube to Female Pipe na NPTF
179C-4-2 Forged Brass 1/4 Compression na na na na Male Pipe 1/8 na na 45° Elbow Tube to Pipe na NPTF
179C-4-4 Forged Brass 1/4 Compression na na na na Male Pipe 1/4 na na 45° Elbow Tube to Pipe na NPTF
179C-6-2 Forged Brass 3/8 Compression na na na na Male Pipe 1/8 na na 45° Elbow Tube to Pipe na NPTF
179C-6-4 Forged Brass 3/8 Compression na na na na Male Pipe 1/4 na na 45° Elbow Tube to Pipe na NPTF
179C-6-6 Forged Brass 3/8 Compression na na na na Male Pipe 3/8 na na 45° Elbow Tube to Pipe na NPTF
179C-8-6 Forged Brass 1/2 Compression na na na na Male Pipe 3/8 na na 45° Elbow Tube to Pipe na NPTF
264C-3 Extruded Brass 3/16 Compression na na 3/16 na Compression na na na Tee Tube to Tube na NPTF
264C-4 Extruded Brass 1/4 Compression na na 1/4 na Compression na na na Tee Tube to Tube na NPTF
265C-4 Extruded Brass 1/4 Compression na na 1/4 na Compression na na na 90° Elbow Tube to Tube na NPTF
269C-2-2 Extruded Brass 1/8 Compression na na na na Male Pipe 1/8 na na 90° Elbow Tube to Pipe na NPTF
269C-3-2 Extruded Brass 3/16 Compression na na na na Male Pipe 1/8 na na 90° Elbow Tube to Pipe na NPTF
269C-4-2 Extruded Brass 1/4 Compression na na na na Male Pipe 1/8 na na 90° Elbow Tube to Pipe na NPTF
269C-4-4 Extruded Brass 1/4 Compression na na na na Male Pipe 1/4 na na 90° Elbow Tube to Pipe na NPTF
269C-5-2 Extruded Brass 5/16 Compression na na na na Male Pipe 1/8 na na 90° Elbow Tube to Pipe na NPTF
269C-5-4 Extruded Brass 5/16 Compression na na na na Male Pipe 1/4 na na 90° Elbow Tube to Pipe na NPTF
269C-6-2 Extruded Brass 3/8 Compression na na na na Male Pipe 1/8 na na 90° Elbow Tube to Pipe na NPTF
269C-6-4 Extruded Brass 3/8 Compression na na na na Male Pipe 1/4 na na 90° Elbow Tube to Pipe na NPTF
269C-6-6 Extruded Brass 3/8 Compression na na na na Male Pipe 3/8 na na 90° Elbow Tube to Pipe na NPTF
269C-7-6 Extruded Brass 7/16 Compression na na na na Male Pipe 3/8 na na 90° Elbow Tube to Pipe na NPTF
270C-4-2 Extruded Brass 1/4 Compression na na na na Female Pipe 1/8 na na 90° Elbow Tube to Female Pipe na NPTF
60C-10 Brass 5/8 Compression na na na na na na na na Sleeve Tube na NPTF
60C-12 Brass 3/4 Compression na na na na na na na na Sleeve Tube na NPTF
60C-14 Brass 7/8 Compression na na na na na na na na Sleeve Tube na NPTF
60C-2 Brass 1/8 Compression na na na na na na na na Sleeve Tube na NPTF
60C-3 Brass 3/16 Compression na na na na na na na na Sleeve Tube na NPTF
60C-4 Brass 1/4 Compression na na na na na na na na Sleeve Tube na NPTF
60C-5 Brass 5/16 Compression na na na na na na na na Sleeve Tube na NPTF
60C-6 Brass 3/8 Compression na na na na na na na na Sleeve Tube na NPTF
60C-7 Brass 7/16 Compression na na na na na na na na Sleeve Tube na NPTF
60C-8 Brass 1/2 Compression na na na na na na na na Sleeve Tube na NPTF
60PT-10 Acetal 5/8 Compression na na na na na na na na Sleeve Tube na NPTF
60PT-4 Acetal 1/4 Compression na na na na na na na na Sleeve Tube na NPTF
60PT-5 Acetal 5/16 Compression na na na na na na na na Sleeve Tube na NPTF
60PT-6 Acetal 3/8 Compression na na na na na na na na Sleeve Tube na NPTF
60PT-8 Acetal 1/2 Compression na na na na na na na na Sleeve Tube na NPTF
61C-10 Brass 5/8 Compression na na na na na na na na Nut Tube na NPTF
61C-12 Brass 3/4 Compression na na na na na na na na Nut Tube na NPTF
61C-14 Brass 7/8 Compression na na na na na na na na Nut Tube na NPTF
61C-2 Brass 1/8 Compression na na na na na na na na Nut Tube na NPTF
61C-3 Brass 3/16 Compression na na na na na na na na Nut Tube na NPTF
61C-4 Brass 1/4 Compression na na na na na na na na Nut Tube na NPTF
61C-5 Brass 5/16 Compression na na na na na na na na Nut Tube na NPTF
61C-6 Brass 3/8 Compression na na na na na na na na Nut Tube na NPTF
61C-7 Brass 7/16 Compression na na na na na na na na Nut Tube na NPTF
61C-8 Brass 1/2 Compression na na na na na na na na Nut Tube na NPTF
61CL-10 Brass 5/8 Compression na na na na na na na na Long Nut Tube na NPTF
61CL-12 Brass 3/4 Compression na na na na na na na na Long Nut Tube na NPTF
61CL-4 Brass 1/4 Compression na na na na na na na na Long Nut Tube na NPTF
61CL-5 Brass 5/16 Compression na na na na na na na na Long Nut Tube na NPTF
61CL-6 Brass 3/8 Compression na na na na na na na na Long Nut Tube na NPTF
61CL-8 Brass 1/2 Compression na na na na na na na na Long Nut Tube na NPTF
62C-10 Brass 5/8 Compression na na na na na na na na Union Tube to Tube na NPTF
62C-10-6 Brass 5/8 Compression na na 3/8 na Compression na na na Union Tube to Tube na NPTF
62C-12 Brass 3/4 Compression na na 3/4 na Compression na na na Union Tube to Tube na NPTF
62C-14 Brass 7/8 Compression na na 7/8 na Compression na na na Union Tube to Tube na NPTF
62C-2 Brass 1/8 Compression na na 1/8 na Compression na na na Union Tube to Tube na NPTF
62C-3 Brass 3/16 Compression na na 3/16 na Compression na na na Union Tube to Tube na NPTF
62C-4 Brass 1/4 Compression na na 1/4 na Compression na na na Union Tube to Tube na NPTF
62C-4-3 Brass 1/4 Compression na na 3/16 na Compression na na na Union Tube to Tube na NPTF
62C-5 Brass 5/16 Compression na na 5/16 na Compression na na na Union Tube to Tube na NPTF
62C-6 Brass 3/8 Compression na na 3/8 na Compression na na na Union Tube to Tube na NPTF
62C-6-4 Brass 3/8 Compression na na 1/4 na Compression na na na Union Tube to Tube na NPTF
62C-7 Brass 7/16 Compression na na 7/16 na Compression na na na Union Tube to Tube na NPTF
62C-8 Brass 1/2 Compression na na 1/2 na Compression na na na Union Tube to Tube na NPTF
62C-8-6 Brass 1/2 Compression na na 3/8 na Compression na na na Union Tube to Tube na NPTF
62CBH-4 Brass 1/4 Compression na na 1/4 na Compression na na na Bulkhead Tube to Tube na NPTF
62CBH-6 Brass 3/8 Compression na na 3/8 na Compression na na na Bulkhead Tube to Tube na NPTF
639C-4 Brass 1/4 Compression na na na na na na na na Plug Tube na NPTF
63PT-4-40 Brass 1/4 Compression na na na na na na na na Accessories (nuts, sleeves, plugs, caps) Accessories (nuts, sleeves, plugs, caps) na n/a
63PT-6-62 Brass 3/8 Compression na na na na na na na na Accessories (nuts, sleeves, plugs, caps) Accessories (nuts, sleeves, plugs, caps) na n/a
66C-10-8 Brass 5/8 Compression na na na na Female Pipe 1/2 na na Connector Tube to Female Pipe na NPTF
66C-2-2 Brass 1/8 Compression na na na na Female Pipe 1/8 na na Connector Tube to Female Pipe na NPTF
66C-3-2 Brass 3/16 Compression na na na na Female Pipe 1/8 na na Connector Tube to Female Pipe na NPTF
66C-3-4 Brass 3/16 Compression na na na na Female Pipe 1/4 na na Connector Tube to Female Pipe na NPTF
66C-4-2 Brass 1/4 Compression na na na na Female Pipe 1/8 na na Connector Tube to Female Pipe na NPTF
66C-4-4 Brass 1/4 Compression na na na na Female Pipe 1/4 na na Connector Tube to Female Pipe na NPTF
66C-5-2 Brass 5/16 Compression na na na na Female Pipe 1/8 na na Connector Tube to Female Pipe na NPTF
66C-5-4 Brass 5/16 Compression na na na na Female Pipe 1/4 na na Connector Tube to Female Pipe na NPTF
66C-6-2 Brass 3/8 Compression na na na na Female Pipe 1/8 na na Connector Tube to Female Pipe na NPTF
66C-6-4 Brass 3/8 Compression na na na na Female Pipe 1/4 na na Connector Tube to Female Pipe na NPTF
66C-6-6 Brass 3/8 Compression na na na na Female Pipe 3/8 na na Connector Tube to Female Pipe na NPTF
66C-6-8 Brass 3/8 Compression na na na na Female Pipe 1/2 na na Connector Tube to Female Pipe na NPTF
66C-7-6 Brass 7/16 Compression na na na na Female Pipe 3/8 na na Connector Tube to Female Pipe na NPTF
66C-8-4 Brass 1/2 Compression na na na na Female Pipe 1/4 na na Connector Tube to Female Pipe na NPTF
66C-8-6 Brass 1/2 Compression na na na na Female Pipe 3/8 na na Connector Tube to Female Pipe na NPTF
66C-8-8 Brass 1/2 Compression na na na na Female Pipe 1/2 na na Connector Tube to Female Pipe na NPTF
682C-3-2 Brass 3/16 Compression na na na na Male Pipe 1/8 na na Tank Fitting Tube to Pipe na NPTF
682C-6-6 Brass 3/8 Compression na na na na Male Pipe 3/8 na na Tank Fitting Tube to Pipe na NPTF
682C-8-8 Brass 1/2 Compression na na na na Male Pipe 1/2 na na Tank Fitting Tube to Pipe na NPTF
68C-10-12 Brass 5/8 Compression na na na na Male Pipe 3/4 na na Connector Tube to Pipe na NPTF
68C-10-6 Brass 5/8 Compression na na na na Male Pipe 3/8 na na Connector Tube to Pipe na NPTF
68C-10-8 Brass 5/8 Compression na na na na Male Pipe 1/2 na na Connector Tube to Pipe na NPTF
68C-12-12 Brass 3/4 Compression na na na na Male Pipe 3/4 na na Connector Tube to Pipe na NPTF
68C-12-8 Brass 3/4 Compression na na na na Male Pipe 1/2 na na Connector Tube to Pipe na NPTF
68C-14-12 Brass 7/8 Compression na na na na Male Pipe 3/4 na na Connector Tube to Pipe na NPTF
68C-2-1 Brass 1/8 Compression na na na na Male Pipe 1/16 na na Connector Tube to Pipe na NPTF
68C-2-2 Brass 1/8 Compression na na na na Male Pipe 1/8 na na Connector Tube to Pipe na NPTF
68C-3-1 Brass 3/16 Compression na na na na Male Pipe 1/16 na na Connector Tube to Pipe na NPTF
68C-3-2 Brass 3/16 Compression na na na na Male Pipe 1/8 na na Connector Tube to Pipe na NPTF
68C-3-4 Brass 3/16 Compression na na na na Male Pipe 1/4 na na Connector Tube to Pipe na NPTF
68C-4-2 Brass 1/4 Compression na na na na Male Pipe 1/8 na na Connector Tube to Pipe na NPTF
68C-4-4 Brass 1/4 Compression na na na na Male Pipe 1/4 na na Connector Tube to Pipe na NPTF
68C-4-6 Brass 1/4 Compression na na na na Male Pipe 3/8 na na Connector Tube to Pipe na NPTF
68C-4-8 Brass 1/4 Compression na na na na Male Pipe 1/2 na na Connector Tube to Pipe na NPTF
68C-5-2 Brass 5/16 Compression na na na na Male Pipe 1/8 na na Connector Tube to Pipe na NPTF
68C-5-4 Brass 5/16 Compression na na na na Male Pipe 1/4 na na Connector Tube to Pipe na NPTF
68C-6-2 Brass 3/8 Compression na na na na Male Pipe 1/8 na na Connector Tube to Pipe na NPTF
68C-6-4 Brass 3/8 Compression na na na na Male Pipe 1/4 na na Connector Tube to Pipe na NPTF
68C-6-6 Brass 3/8 Compression na na na na Male Pipe 3/8 na na Connector Tube to Pipe na NPTF
68C-6-8 Brass 3/8 Compression na na na na Male Pipe 1/2 na na Connector Tube to Pipe na NPTF
68C-7-4 Brass 7/16 Compression na na na na Male Pipe 1/4 na na Connector Tube to Pipe na NPTF
68C-8-4 Brass 1/2 Compression na na na na Male Pipe 1/4 na na Connector Tube to Pipe na NPTF
68C-8-6 Brass 1/2 Compression na na na na Male Pipe 3/8 na na Connector Tube to Pipe na NPTF
68C-8-8 Brass 1/2 Compression na na na na Male Pipe 1/2 na na Connector Tube to Pipe na NPTF







美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
