Brass Garden Hose Fittings

Parker's Garden Hose fittings and high flow quick couplers are solid brass with 3/4" garden hose thread.





Parker's Garden hose fittings connect garden hose to other garden hose, to pipe or to tubing. Hose end threads are 3/4" garden hose thread. Swivel connectors allow hose to twist without kinking. Hose barb ends for use with 97HC hose clamp or equivalent. All female connector ends should have a rubber washer (901GH-12) inserted prior to usage.
Parker's water service couplings are used anywhere water hoses are connected and disconnected frequently. The unvalved design permits maximum flow with minimum pressure drop.

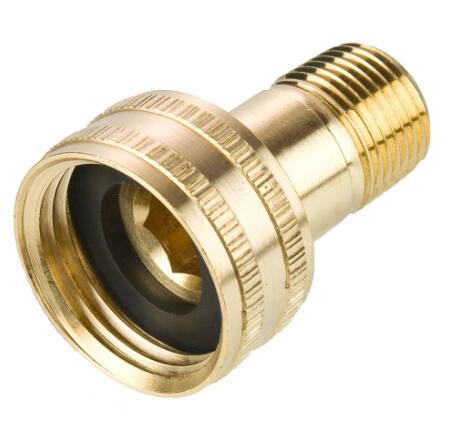

Brass Garden Hose Fittings



Markets:
- Industrial
- Mobile
- Factory/process automation

Features/Benefits:
- All brass construction
- ?” garden hose thread
- Rubber washer
- Flare, hose barb and pipe end configurations
- High flow couplers

Applications:
- Water lines
- Wash down lines
- Mobile water tanks

Custom configurations and sizes are available upon request. Contact us for additional information.



Technical Specifications

Connection Type: Barb, Flare and Thread
Application: Water lines, Wash down lines and Mobile water tanks
Minimum Operating Temperature: -40 to 35 °F, -40 to 2 °C
Maximum Operating Temperature: 100 to 250 °F, 38 to 121 °C
Maximum Operating Pressure: 150 - 200 psi, 10 -14 bar
Tube Material: Garden Hose, Tubing, Pipe
Materials of Construction: Brass
Washer Material: Rubber



Brass Garden Hose Fittings 型号

Part Shape Style Connection 1 Thread Size (inch) Connection 1 Hose I.D. (inch) Connection 1 Tube O.D. (inch) Connection 1 Style Connection 2 Thread Size (inch) Connection 2 Hose I.D. (inch) Connection 2 Style
101GHSV-12 Connector Hose Thread to Hose Thread 3/4 na na Hose Thread 3/4 na Hose Thread
1163-60-BPD Coupler Hose Thread 3/4 na na Hose Thread na na na
1163-61-BPD Nipple Hose Thread 3/4 na na Hose Thread na na na
50GHSV-6-12 Swivel Connector Flare to Female Hose 3/8 na 3/8 Male Flare 3/4 na Hose Thread
50GHSV-8-12 Swivel Connector Flare to Female Hose 1/2 na 1/2 Male Flare 3/4 na Hose Thread
53GH-8-12 Connector Hose Barb to Male Hose na 1/2 na Hose Barb 3/4 na Hose Thread
54GH-10-12 Connector Hose Barb to Male Hose na 5/8 na Hose Barb 3/4 na Hose Thread
55GH-12-12 Connector Hose Barb to Male Hose na 3/4 na Hose Barb 3/4 na Hose Thread
69GH-12-4 Connector Male Hose to Male Pipe 3/4 na na Hose Thread 1/4 na Male Pipe
69GH-12-6 Connector Male Hose to Male Pipe 3/4 na na Hose Thread 3/8 na Male Pipe
70GH-12-8 Connector Male Hose to Male Pipe 3/4 na na Hose Thread 1/2 na Male Pipe
71GH-12-12 Connector Male Hose to Male Pipe 3/4 na na Hose Thread 3/4 na Male Pipe
75GH-12 Connector Male Hose to Male Hose 3/4 na na Hose Thread 3/4 na Hose Thread
78GH-12-4 Connector Male Hose to Female Pipe 3/4 na na Hose Thread 1/4 na Female Pipe
79GH-12-6 Connector Male Hose to Female Pipe 3/4 na na Hose Thread 3/8 na Female Pipe
80GH-12-8 Connector Male Hose to Female Pipe 3/4 na na Hose Thread 1/2 na Female Pipe
81GH-12-12 Connector Male Hose to Female Pipe 3/4 na na Hose Thread 3/4 na Female Pipe
82GH-12-8 Connector Female Hose to Male Pipe 3/4 na na Hose Thread 1/2 na Male Pipe
83GH-12-12 Connector Female Hose to Male Pipe 3/4 na na Hose Thread 3/4 na Male Pipe
88GH-12-4 Swivel Connector Swivel Female Garden Hose to Male Pipe 3/4 na na Hose Thread 1/4 na Male Pipe
88GH-12-6 Swivel Connector Swivel Female Garden Hose to Male Pipe 3/4 na na Hose Thread 3/8 na Male Pipe
901GH-12 Washer Hose Thread 3/4 na na Hose Thread na na na
90GH-12-10 Swivel Connector Swivel Female Garden Hose to Hose Barb 3/4 na na Hose Thread na 5/8 Hose Barb
90GH-12-12 Swivel Connector Swivel Female Garden Hose to Hose Barb 3/4 na na Hose Thread na 3/4 Hose Barb
90GH-12-3 Swivel Connector Swivel Female Garden Hose to Hose Barb 3/4 na na Hose Thread na 3/16 Hose Barb
90GH-12-4 Swivel Connector Swivel Female Garden Hose to Hose Barb 3/4 na na Hose Thread na 1/4 Hose Barb
90GH-12-6 Swivel Connector Swivel Female Garden Hose to Hose Barb 3/4 na na Hose Thread na 3/8 Hose Barb
90GH-12-8 Swivel Connector Swivel Female Garden Hose to Hose Barb 3/4 na na Hose Thread na 1/2 Hose Barb
94GH-12 Hose Nut Hose Thread 3/4 na na Hose Thread na na na
95GH-12-2 Hose Nut Reducer Hose Thread to Female Pipe 3/4 na na Hose Thread 1/8 na Female Pipe
96GH-12 Hose Cap Hose Thread 3/4 na na Hose Thread na na na
98GH-12-8 Connector Female Hose to Female Pipe 3/4 na na Hose Thread 1/2 na Female Pipe
98GHSV-12-8 Swivel Connector Swivel Female Hose to Female Pipe 3/4 na na Hose Thread 1/2 na Female Pipe
99GH-12-12 Connector Female Hose to Female Pipe 3/4 na na Hose Thread 3/4 na Female Pipe
99GHSV-12-12 Swivel Connector Swivel Female Hose to Female Pipe 3/4 na na Hose Thread 3/4 na Female Pipe
