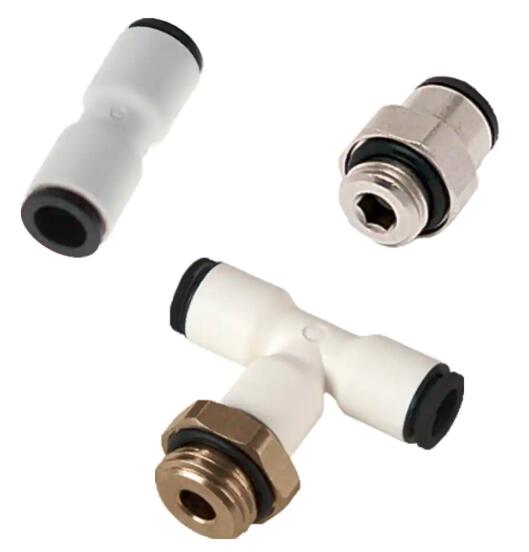

CleanFit Push-In Fittings for Life Sciences and Clean Rooms
Parker Fittings接头 - Pneumatic Fittings

用于生命科学和洁净室的 CleanFit 快插接头 | #6801 06 10

这种“生态设计”的 CleanFit 系列驱动高科技设备在清洁度、可靠性和安全性方面超越当前的连接限制。它确保与大多数气体完美兼容，并符合苛刻的应用和标准。这种“生态设计”的 CleanFit 系列适用于生命科学和洁净室，在清洁度、可靠性和安全性方面使高科技设备超越了当前的连接限制。

这种超洁净系列可确保与大多数气体完美兼容，因此符合苛刻的应用和标准。

CleanFit Push-In Fittings for Life Sciences and Clean Rooms

This "eco-designed" CleanFit range drives high-tech equipment beyond current connection limits in terms of cleanliness, reliability and safety. It ensures perfect compatibility with most gases, and complies with demanding applications and standards. This "eco-designed" CleanFit range for Life Sciences and Clean Rooms drives high-tech equipment beyond current connection limits in terms of cleanliness, reliability and safety. This ultra-clean range ensures perfect compatibility with most gases, and therefore complies with demanding applications and standards.

特点/优点：

- 易于使用

- 符合人体工程学和美观的设计
- 完全适用于便携式设备的紧凑型产品
- 防静电和气密包装以防止污染

- 纯度和安全性

- 推荐用于氧气应用和纯气体
- 高清洁度，符合 ASTM G93 : B 级和粒径 300 级
- 生产中 100% 泄漏测试
- 日期编码以保证质量和可追溯性

- 符合健康法规的高科技材料

- 生物源聚合物，化学镀镍黄铜
- 与推荐用于去污过程的清洁剂兼容
- 优异的化学和机械耐受性，即使在高温下
- 可消毒使用标准的化学和辐射程序

清洁包装
所有配件都包装在一个防静电密封袋中，保证无可挑剔的清洁度，安全和易于使用。

应用：

- 呼吸
- 生物流体管理
- 洁净室
- 制药过程
- 实验室
- O2 电路

市场：

- 实验室/诊断
- 医疗
- 制药

技术：

- 推入式连接和断开
- 推入式接头
- 聚合物推入式接头
- 推入式接头
- 气动接头
- 即时接头
- 快速接头
- 连接器

技术特性：

- 流体：呼吸，中性和纯医用气体。其他流体：请咨询我们
- 材料：生物基聚合物、技术聚合物、不锈钢、EPDM、镀镍黄铜
- 压力：真空至 15 巴。工作压力因温度而异
- 温度：-10°C 至 +95°C

法规：

- DI：2002/95/EC (RoHS)、2011/65/EC
- DI：1907/2006 (REACH)
- ASTM G93-03.B-300
- ISO 15001 < 30 bar
- BAM（润滑脂认证残留物）
- CGA G4.1
- EN 12021 < 0,1 mg/m3
- VDI 2083-8（进行中）

产品类型：

- 堵头
- 科T恤，男BSPT螺纹
- 端盖
- 和不等弯头
- 和不等插件弯头
- 和不等管对管接头
- 等于隔板连接
- 等于单?件
- 等径三通
- 路径插件倒钩式连接器
- 插入式等径三通
- 插入式等径三通
- 插入式异径管
- 止口三通，BSPT 外螺纹
- 螺栓分岔三通，BSPP 外螺纹和公制螺纹
- 螺栓分岔三通，BSPT 外螺纹
- 螺柱弯头，BSPP 外螺纹和公制螺纹
- 螺柱弯头，BSPT 外螺纹
- 螺柱接头，BSPP 内螺纹
- 螺柱接头，BSPP 外螺纹和公制螺纹
- 螺柱接头，BSPT 外螺纹
- 螺柱三通，BSPP 外螺纹和公制螺纹
- 螺柱运行三通，BSPT 外螺纹
- 螺柱立管，BSPT 外螺纹

Features/Benefits:

- Ease of Use

- Ergonomic and aesthetic design
- Compact product fully adapted to portable devices
- Antistatic and airtight packaging to prevent contamination

- Purity & Security

- Recommended for O2 applications and pure gases
- High cleanliness level, according to ASTM G93: level B and particle size level 300
- 100% leak-tested in production
- Date coding to guarantee quality and traceability

- Hi-Tech Materials Complying with Health Regulations

- Bio-sourced polymer, chemical nickel-plated brass
- Compatible with cleaning agents recommended for decontamination processes
- Excellent chemical and mechanical resistance, even at high temperatures
- Sterilisable using standard chemical and radiation procedures

Clean Packaging
All fittings are packed in an antistatic and airtight bag, guaranteeing impeccable cleanliness for safe and easy use.


Applications:

- Respiratory
- Bio-Fluid Management
- Clean Rooms
- Pharmaceutical Process
- Laboratory
- O2 Circuits


Markets:

- Lab/Diagnostic
- Medical
- Pharma


Technologies:

- Push-In Connection and Disconnection
- Push-In Fittings
- Polymer Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors


Technical Characteristics:

- Fluids: Breathing, neutral & pure medical gases. Other fluids: please consult us
- Materials: Bio-based polymer, technical polymer, stainless steel, EPDM, nickel-plated brass
- Pressure: Vacuum to 15 bar. Working pressure varies according to temperature
- Temperature: -10°C to +95°C


Regulations:

- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 1907/2006 (REACH)
- ASTM G93-03.B-300
- ISO 15001 < 30 bar
- BAM (grease certification residue)
- CGA G4.1
- EN 12021 < 0,1 mg/m3
- VDI 2083-8 (in progress)


Product Types:

- Blanking Plug
- Branch Tee, Male BSPT Thread
- End Cap
- Equal and Unequal Elbow
- Equal and Unequal Plug-In Elbow
- Equal and Unequal Tube-to-Tube Connector
- Equal Bulkhead Connector
- Equal Single Y Piece
- Equal Tee
- Plug-In Barb Connector
- Plug-In Equal Branch Tee
- Plug-In Equal Run Tee
- Plug-In Reducer
- Run Tee, Male BSPT Thread
- Stud Branch Tee, Male BSPP and Metric Thread
- Stud Branch Tee, Male BSPT Thread
- Stud Elbow, Male BSPP and Metric Thread
- Stud Elbow, Male BSPT Thread
- Stud Fitting, Female BSPP Thread
- Stud Fitting, Male BSPP and Metric Thread
- Stud Fitting, Male BSPT Thread
- Stud Run Tee, Male BSPP and Metric Thread
- Stud Run Tee, Male BSPT Thread
- Stud Standpipe, Male BSPT Thread

Technical Specifications

技术规格

CleanFit Push-In Fittings for Life Sciences and Clean Rooms 型号

相关文件
文献和参考资料
Parker Legris - 关于如何选择工业配件的 6 个专家提示！
Parker Legris：医疗和生物技术的连接解决方??案
Parker Legris Rectus - 总目录
CleanFit 数据表
CleanFit 部件号标识
生命科学和洁净室应用的连接解决方??案
零件号标识
