Grease Fittings

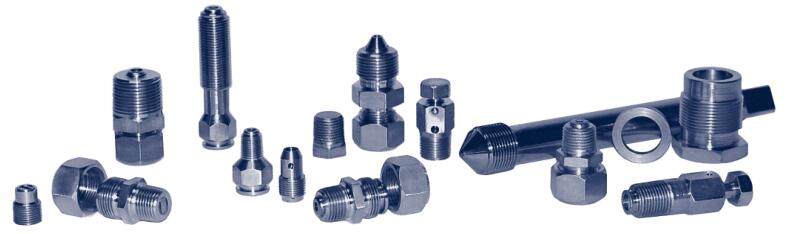

Wellhead Grease Fittings, Combination Lubricant Stick Injector Series
Parker PGI's Combination Lubricant/Stick Injector Grease Fittings accept button head grease gun couplers for injecting grease or stick lubricants. They are offered in double ball and single ball styles for service to 10,000 psi.
Parker PGI's Combination and Stick Injector Grease Fittings feature a heavy-duty radial rivet crimp. This special crimp provides the best “blow-out” protection of any available crimped style fitting. The radial rivet crimp process conforms to the latest revision of NACE when manufactured with 316 SS or 4140 body material.
Wellhead Grease Fittings, Combination Lubricant Stick Injector Series
Markets:
- Chemical
- Petrochemical
- Oil and Gas
Features/Benefits:
- Accepts Button head Coupler
- Heavy Duty Radial Rivet Crimp
- 316 SS and 1215 Material available
Applications:
- Wellhead Lube Systems
Technical Specifications
| Product Style: |
Single or Double Ball Check |
| Connection Thread Size: |
1/4 to 3/4 (NPSM) | 3/8 to 1 (UNC) inch |
| Body Material: |
1215 | 316 SS | Consult factory for additional materials |
| Plating Type: |
Zinc | N/A |
| Heat Treatment: |
Annealed (NACE) | N/A |
| Ball Material: |
AISI 52100 Chrome Alloy | K-Monel? | Consult factory for additional materials |
| Spring Material: |
302 SS | Inconel X-750 | Consult factory for additional materials |
| Length: |
1-1/2" to 4-3/4" |
| Maximum Operating Pressure: |
10,000 psi, 689 bar |
Wellhead Grease Fittings, Combination Lubricant Stick Injector Series型号
| Part |
Style |
Connection Thread Size (inch) |
Body Material |
| CL10P2-10 |
Single Ball Check |
1/4" NPSM |
1215 |
| CL10P2-C0 |
Single Ball Check |
1/4" NPSM |
316 SS |
| CL10P3-10 |
Single Ball Check |
3/8" NPSM |
1215 |
| CL10P3-C0 |
Single Ball Check |
3/8" NPSM |
316 SS |
| CL10P4-10 |
Single Ball Check |
1/2" NPSM |
1215 |
| CL10P4-C0 |
Single Ball Check |
1/2" NPSM |
316 SS |
| CL10P6-10 |
Single Ball Check |
3/4" NPSM |
1215 |
| CL10P6-C0 |
Single Ball Check |
3/4" NPSM |
316 SS |
| CL10S4-10 |
Single Ball Check |
1/2" - 13 UNC |
1215 |
| CL10S6-10 |
Single Ball Check |
3/4" - 10 UNC |
1215 |
| CL11P2-10 |
Double Ball Check |
1/4" NPSM |
1215 |
| CL11P2-C0 |
Double Ball Check |
1/4" NPSM |
316 SS |
| CL11P3-10 |
Double Ball Check |
3/8" NPSM |
1215 |
| CL11P3-C0 |
Double Ball Check |
3/8" NPSM |
316 SS |
| CL11P4-10 |
Double Ball Check |
1/2" NPSM |
1215 |
| CL11P4-C0 |
Double Ball Check |
1/2" NPSM |
316 SS |
| CL11P6-10 |
Double Ball Check |
3/4" NPSM |
1215 |
| CL11P6-C0 |
Double Ball Check |
3/4" NPSM |
316 SS |
| CL14S6-10 |
Double Ball Check |
3/4" - 10 UNC |
1215 |
| CL15S5-10 |
Double Ball Check |
5/8" - 11 UNC |
1215 |
| CL16S7-10 |
Double Ball Check |
7/8" - 9 UNC |
1215 |
| CL17S3-10 |
Single Ball Check |
3/8" - 16 UNC |
1215 |
| CL21S8-10 |
Single Ball Check |
1" - 10 UNC |
1215 |
|
