Compression Style Fittings - Vibra-Lok

运动和控制领域的领导者 Parker 的 Vibra-Lok 接头设计用于在涉及振动、高温、机械冲击和管道运动的应用中提供可靠的密封。套管对管子起到缓冲作用，允许管子在接头中前后弯曲。密封件可补偿管子错位和管子表面缺陷。组装前扩口或扩口管子会使 Vibra-Lok 接头的工作压力加倍。Vibra-Lok 接头可用于涉及静压、轻微浪涌或冲击以及剧烈振动或冲击的应用。Vibra-Lok 的标准螺纹包括 NPTF 和 SAE J1926 直螺纹。

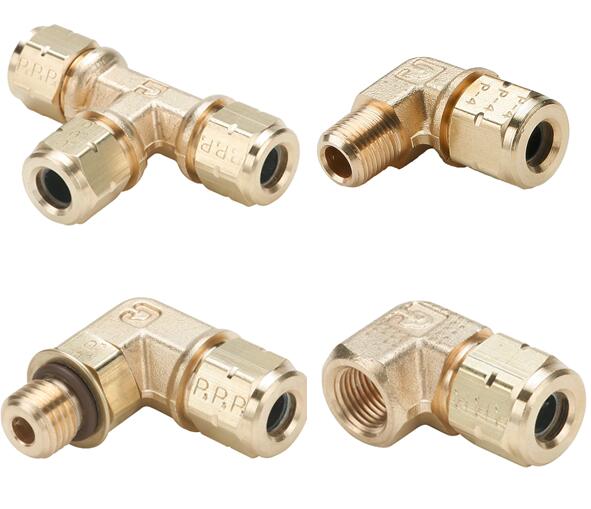

Parker's Vibra-Lok fittings - Compression Style Fittings - Vibra-Lok

Parker's Vibra-Lok fittings provides a positive reliable seal under vibration conditions, mechanical shock or tube movement. The sleeve cushions the tubing permitting the tube to flex back and forth in the fitting. The leader in motion and control Parker's Vibra-Lok fittings are engineered to provide a reliable seal in applications involving vibration, high heat, mechanical shock and tube movement. The sleeve cushions the tubing, permitting the tubing to flex back and forth in the fitting. The seal compensates for tube misalignment and tube surface defects. Flaring or belling the tubing before assembly doubles the working pressure of the Vibra-Lok fitting. Vibra-Lok fittings can be used in applications involving static pressure, minor surges or shock and severe vibrations or shock. Standard threads for Vibra-Lok include NPTF and SAE J1926 straight threads.

市场：
- 重型卡车
- 拖车
- 移动设备
- 发动机

特点/优势：
- 丁腈橡胶和碳氟化合物的弹性密封
- 出色的抗振性
- 套管抗老化-
本体上的正螺母止动底部螺母，无需目视检查
- 所有黄铜结构
- SAE J1926 和 NPTF 螺纹是标准的
- 可选 ISO 6149 直螺纹和英制管螺纹
- 化学镀镍主体可与生物柴油一起
使用 - 与铜、铝、钢（邦迪）、不锈钢和玻璃管一起使用
- 螺纹密封剂可用

应用：
- 油管线
- 燃料管线
- 冷却剂管线
- 实验室（玻璃管） )

Markets:
- Heavy duty truck
- Trailer
- Mobile
- Engines

Features/Benefits:
- Elastomeric seal in both Buna N and Fluorocarbon
- Excellent vibration resistance
- Sleeves resist deterioration
- Positive nut stop bottoms nut on body requiring no visual inspection
- All Brass construction
- SAE J1926 and NPTF threads are standard
- Optional ISO 6149 straight threads and British pipe threads
- Electroless nickel plated bodies can be used with bio-diesel
- Use with copper, aluminum, steel (bundy), stainless steel and glass tubing
- Thread sealant available

Applications:
- Oil lines
- Fuel lines
- Coolant lines
- Laboratory (glass tubing)

Technical Specifications

Compression Style Fittings - Vibra-Lok型号
