派克 Parker Fast&Tite压缩式塑料接头 Parker Fittings接头
Compression Fittings

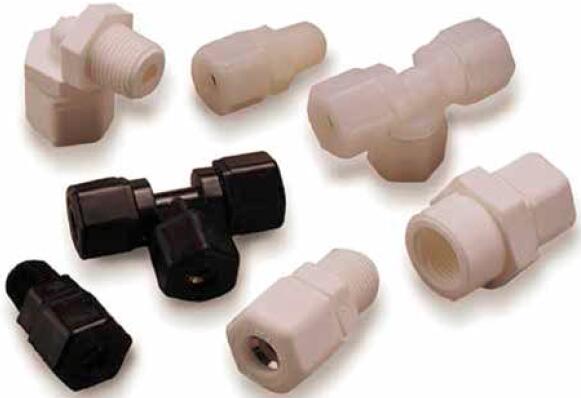

派克 Parker Fast-Tite Compression Style Plastic Fittings

派克的Fast&Tite接头无需安装工具即可在几秒钟内完成防漏密封。Fast&Tite符合FDA和NSF-51的食品接触要求。派克的Fast&Tite接头是一种压缩型接头,无需工具即可在几秒钟内安装,并且提供牢固,可靠,防漏的密封,而无需使用夹具或进行调整。独特的卡环固定环,再加上丁腈O形圈,可以形成可靠的密封,并且只需用手拧紧即可确保良好的卡环固定性。与软金属,玻璃管和以下派克Parflex Division管一起使用。Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact. Parker's Fast & Tite fittings are a compression style fitting that installs in seconds without tools and provides a tight, sure, leak proof seal without clamps or adjustments. A unique grab ring for tube retention, coupled with a Nitrile o-ring creates a positive seal and assures good tube retention with only hand tight assembly. Use with soft metal, glass tubing and the following Parker Parflex Division tubing.



Compression Style Plastic Fittings, Fast-Tite



- 聚乙烯
- 尼龙
- 聚丙烯
- 聚氨酯
- PTFE
- FEP
- PFA

市场:
- 水过滤
- 饮料分配
- 包装
- 生命科学
- 装瓶
- 半导体

特性/优点:
- 白色或黑色聚丙烯或白色尼龙
- 无需工具即可在几秒钟内安装
- 302不锈钢卡环用于管子固定
- 丁腈O形环用于可靠密封
- 符合FDA认证,NSF-51
- 手动组装

应用范围:
- 水管线
- 饮料管线
- 食品
- 冷却系统

可根据要求提供定制配置和尺寸。请与我们联系以获取更多信息。

- Polyethylene
- Nylon
- Polypropylene
- Polyurethane
- PTFE
- FEP
- PFA

Markets:
- Water Filtration
- Beverage Dispensing
- Packaging
- Life Science
- Bottling
- Semi-Conductor

Features/Benefits:
- White or black Polypropylene or white Nylon
- Installs in seconds without tools
- 302 stainless steel grab ring for tube retention
- Nitrile O-ring for positive seal
- FDA compliant , NSF-51
- Hand tight assembly

Applications:
- Water Lines
- Beverage Lines
- Food
- Cooling Systems

Custom configurations and sizes are available upon request. Contact us for additional information.



Technical Specifications

技术指标

  • 连接2螺纹尺寸(英寸): na
  • 连接2管道外径(英寸): na
  • 连接1样式: 管
  • 连接2样式: na
  • 连接1管道外径(英寸): 5/8
  • 风格: 管
  • 主体材质: na
  • 形状: O型圈
  • 最低工作温度: 0°F,-18°C
  • 最高工作温度: 212°F,100°C
  • 最大工作压力: 50磅/平方英寸,3.5巴
  • 灯管材质: 热塑性,玻璃,软金属
  • 媒体: 水,空气,其他兼容液体
  • 应用: 过滤,纯化,分配
  • 夹环材料: 302不锈钢
  • O型圈材料: 丁腈

Connection Type: Compression, Thread
Materials of Construction: Nylon, Polypropylene
Shape: Various
Minimum Operating Temperature: -40 (Nylon) -0 (Polypropylene) °F, -40 (Nylon) -18 (Polypropylene) °C
Maximum Operating Temperature: 200 (Nylon) 212 (Polypropylene °F, 93 (Nylon) 100 (Polypropylene) °C
Maximum Operating Pressure: 50 - 300 psi, 3.5 - 20 bar
Tube Material: Thermoplastic, Glass, Soft Metal
Media: Water, Air, Other Compatible Fluids
Application: Filtration, Purification, Dispensing
Gripping Ring Material: 302 Stainless Steel
O-Ring Material: NitrileSpecifications
Met: FDA, NSF-51



Compression Style Plastic Fittings, Fast-Tite型号

Part Shape Style Body Material Connection 1 Tube O.D. (inch) Connection 1 Style Connection 2 Thread Size (inch) Connection 2 Tube O.D. (inch) Connection 2 Style
100R O-ring Tube na 5/8 Tube na na na
10GR Grab Ring Tube na 5/8 Tube na na na
10GRP Plastic Grab Ring Tube na 5/8 Tube na na na
40R O-ring Tube na 1/4 Tube na na na
4GR Grab Ring Tube na 1/4 Tube na na na
4GRP Plastic Grab Ring Tube na 1/4 Tube na na na
50R O-ring Tube na 5/16 Tube na na na
5GR Grab Ring Tube na 5/16 Tube na na na
5GRP Plastic Grab Ring Tube na 5/16 Tube na na na
60R O-ring Tube na 3/8 Tube na na na
6GR Grab Ring Tube na 3/8 Tube na na na
6GRP Plastic Grab Ring Tube na 3/8 Tube na na na
80R O-ring Tube na 1/2 Tube na na na
8GR Grab Ring Tube na 1/2 Tube na na na
8GRP Plastic Grab Ring Tube na 1/2 Tube na na na
N10EU10 90° Elbow Tube to Tube Nylon 5/8 Compression na 5/8 Compression
N10FC8 Connector Tube to Female Pipe Nylon 5/8 Compression 1/2 na NPTF
N10FE8 90° Elbow Tube to Female Pipe Nylon 5/8 Compression 1/2 na NPTF
N10MC12 Connector Tube to Pipe Nylon 5/8 Compression 3/4 na NPTF
N10MC4 Connector Tube to Pipe Nylon 5/8 Compression 1/4 na NPTF
N10MC6 Connector Tube to Pipe Nylon 5/8 Compression 3/8 na NPTF
N10MC8 Connector Tube to Pipe Nylon 5/8 Compression 1/2 na NPTF
N10ME8 90° Elbow Tube to Pipe Nylon 5/8 Compression 1/2 na NPTF
N10MR8 Male Run Tee Tube to Pipe Nylon 5/8 Compression 1/2 na NPTF
N10MT8 Male Branch Tee Tube to Pipe Nylon 5/8 Compression 1/2 na NPTF
N10NS Nut and Spacer Tube Nylon 5/8 Tube na na na
N10TS8 Tube Support Tube Nylon 5/8 Tube na na na
N10TU10 Tee Tube to Tube Nylon 5/8 Compression na 5/8 Compression
N10TU6 Tee Tube to Tube Nylon 5/8 Compression na 3/8 Compression
N10UC10 Union Tube to Tube Nylon 5/8 Compression na 5/8 Compression
N10UC6 Union Tube to Tube Nylon 5/8 Compression na 3/8 Compression
N10UC8 Union Tube to Tube Nylon 5/8 Compression na 1/2 Compression
N4BU4 Bulkhead Tube to Tube Nylon 1/4 Compression na 1/4 Compression
N4EU4 90° Elbow Tube to Tube Nylon 1/4 Compression na 1/4 Compression
N4FC2 Connector Tube to Female Pipe Nylon 1/4 Compression 1/8 na NPTF
N4FC4 Connector Tube to Female Pipe Nylon 1/4 Compression 1/4 na NPTF
N4FE2 90° Elbow Tube to Female Pipe Nylon 1/4 Compression 1/8 na NPTF
N4FE4 90° Elbow Tube to Female Pipe Nylon 1/4 Compression 1/4 na NPTF
N4MC2 Connector Tube to Pipe Nylon 1/4 Compression 1/8 na NPTF
N4MC4 Connector Tube to Pipe Nylon 1/4 Compression 1/4 na NPTF
N4MC6 Connector Tube to Pipe Nylon 1/4 Compression 3/8 na NPTF
N4ME2 90° Elbow Tube to Pipe Nylon 1/4 Compression 1/8 na NPTF
N4ME4 90° Elbow Tube to Pipe Nylon 1/4 Compression 1/4 na NPTF
N4ME6 90° Elbow Tube to Pipe Nylon 1/4 Compression 3/8 na NPTF
N4MR2 Male Run Tee Tube to Pipe Nylon 1/4 Compression 1/8 na NPTF
N4MT2 Male Branch Tee Tube to Pipe Nylon 1/4 Compression 1/8 na NPTF
N4MT4 Male Branch Tee Tube to Pipe Nylon 1/4 Compression 1/4 na NPTF
N4NS Nut and Spacer Tube Nylon 1/4 Tube na na na
N4TS3 Tube Support Tube Nylon 1/4 Tube na na na
N4TU4 Tee Tube to Tube Nylon 1/4 Compression na 1/4 Compression
N4UC4 Union Tube to Tube Nylon 1/4 Compression na 1/4 Compression
N5BU5 Bulkhead Tube to Tube Nylon 5/16 Compression na 5/16 Compression
N5EU4 90° Elbow Tube to Tube Nylon 5/16 Compression na 1/4 Compression
N5EU5 90° Elbow Tube to Tube Nylon 5/16 Compression na 5/16 Compression
N5FE2 90° Elbow Tube to Female Pipe Nylon 5/16 Compression 1/8 na NPTF
N5MC2 Connector Tube to Pipe Nylon 5/16 Compression 1/8 na NPTF
N5MC4 Connector Tube to Pipe Nylon 5/16 Compression 1/4 na NPTF
N5ME2 90° Elbow Tube to Pipe Nylon 5/16 Compression 1/8 na NPTF
N5ME4 90° Elbow Tube to Pipe Nylon 5/16 Compression 1/4 na NPTF
N5ME6 90° Elbow Tube to Pipe Nylon 5/16 Compression 3/8 na NPTF
N5MT2 Male Branch Tee Tube to Pipe Nylon 5/16 Compression 1/8 na NPTF
N5MT4 Male Branch Tee Tube to Pipe Nylon 5/16 Compression 1/4 na NPTF
N5NS Nut and Spacer Tube Nylon 5/16 Tube na na na
N5TS3 Tube Support Tube Nylon 5/16 Tube na na na
N5TU5 Tee Tube to Tube Nylon 5/16 Compression na 5/16 Compression
N5UC4 Union Tube to Tube Nylon 5/16 Compression na 1/4 Compression
N5UC5 Union Tube to Tube Nylon 5/16 Compression na 5/16 Compression
N6BU6 Bulkhead Tube to Tube Nylon 3/8 Compression na 3/8 Compression
N6EU4 90° Elbow Tube to Tube Nylon 3/8 Compression na 1/4 Compression
N6EU5 90° Elbow Tube to Tube Nylon 3/8 Compression na 5/16 Compression
N6EU6 90° Elbow Tube to Tube Nylon 3/8 Compression na 3/8 Compression
N6FC4 Connector Tube to Female Pipe Nylon 3/8 Compression 1/4 na NPTF
N6FC6 Connector Tube to Female Pipe Nylon 3/8 Compression 3/8 na NPTF
N6FC8 Connector Tube to Female Pipe Nylon 3/8 Compression 1/2 na NPTF
N6FE4 90° Elbow Tube to Female Pipe Nylon 3/8 Compression 1/4 na NPTF
N6FE6 90° Elbow Tube to Female Pipe Nylon 3/8 Compression 3/8 na NPTF
N6MC12 Connector Tube to Pipe Nylon 3/8 Compression 3/4 na NPTF
N6MC2 Connector Tube to Pipe Nylon 3/8 Compression 1/8 na NPTF
N6MC4 Connector Tube to Pipe Nylon 3/8 Compression 1/4 na NPTF
N6MC6 Connector Tube to Pipe Nylon 3/8 Compression 3/8 na NPTF
N6MC8 Connector Tube to Pipe Nylon 3/8 Compression 1/2 na NPTF
N6ME12 90° Elbow Tube to Pipe Nylon 3/8 Compression 3/4 na NPTF
N6ME4 90° Elbow Tube to Pipe Nylon 3/8 Compression 1/4 na NPTF
N6ME6 90° Elbow Tube to Pipe Nylon 3/8 Compression 3/8 na NPTF
N6ME8 90° Elbow Tube to Pipe Nylon 3/8 Compression 1/2 na NPTF
N6MR4 Male Run Tee Tube to Pipe Nylon 3/8 Compression 1/4 na NPTF
N6MT4 Male Branch Tee Tube to Pipe Nylon 3/8 Compression 1/4 na NPTF
N6MT6 Male Branch Tee Tube to Pipe Nylon 3/8 Compression 3/8 na NPTF
N6NS Nut and Spacer Tube Nylon 3/8 Tube na na na
N6TS4 Tube Support Tube Nylon 3/8 Tube na na na
N6TU6 Tee Tube to Tube Nylon 3/8 Compression na 3/8 Compression
N6UC4 Union Tube to Tube Nylon 3/8 Compression na 1/4 Compression
N6UC5 Union Tube to Tube Nylon 3/8 Compression na 5/16 Compression
N6UC6 Union Tube to Tube Nylon 3/8 Compression na 3/8 Compression
N8BU8 Bulkhead Tube to Tube Nylon 1/2 Compression na 1/2 Compression
N8EU6 90° Elbow Tube to Tube Nylon 1/2 Compression na 3/8 Compression
N8EU8 90° Elbow Tube to Tube Nylon 1/2 Compression na 1/2 Compression
N8FC6 Connector Tube to Female Pipe Nylon 1/2 Compression 3/8 na NPTF
N8FC8 Connector Tube to Female Pipe Nylon 1/2 Compression 1/2 na NPTF
N8FE6 90° Elbow Tube to Female Pipe Nylon 1/2 Compression 3/8 na NPTF
N8FE8 90° Elbow Tube to Female Pipe Nylon 1/2 Compression 1/2 na NPTF
N8MC12 Connector Tube to Pipe Nylon 1/2 Compression 3/4 na NPTF
N8MC2 Connector Tube to Pipe Nylon 1/2 Compression 1/8 na NPTF
N8MC4 Connector Tube to Pipe Nylon 1/2 Compression 1/4 na NPTF
N8MC6 Connector Tube to Pipe Nylon 1/2 Compression 3/8 na NPTF
N8MC8 Connector Tube to Pipe Nylon 1/2 Compression 1/2 na NPTF
N8ME12 90° Elbow Tube to Pipe Nylon 1/2 Compression 3/4 na NPTF
N8ME4 90° Elbow Tube to Pipe Nylon 1/2 Compression 1/4 na NPTF
N8ME6 90° Elbow Tube to Pipe Nylon 1/2 Compression 3/8 na NPTF
N8ME8 90° Elbow Tube to Pipe Nylon 1/2 Compression 1/2 na NPTF
N8MR6 Male Run Tee Tube to Pipe Nylon 1/2 Compression 3/8 na NPTF
N8MT6 Male Branch Tee Tube to Pipe Nylon 1/2 Compression 3/8 na NPTF
N8MT8 Male Branch Tee Tube to Pipe Nylon 1/2 Compression 1/2 na NPTF
N8NS Nut and Spacer Tube Nylon 1/2 Compression na na na
N8TS6 Tube Support Tube Nylon 1/2 Tube na na na
N8TU6 Tee Tube to Tube Nylon 1/2 Compression na 3/8 Compression
N8TU8 Tee Tube to Tube Nylon 1/2 Compression na 1/2 Compression
N8UC6 Union Tube to Tube Nylon 1/2 Compression na 3/8 Compression
N8UC8 Union Tube to Tube Nylon 1/2 Compression na 1/2 Compression
P10EU10 90° Elbow Tube to Tube Black Polypropylene 5/8 Compression na 5/8 Compression
P10FC8 Connector Tube to Female Pipe Black Polypropylene 5/8 Compression 1/2 na NPTF
P10FE8 90° Elbow Tube to Female Pipe Black Polypropylene 5/8 Compression 1/2 na NPTF
P10MC12 Connector Tube to Pipe Black Polypropylene 5/8 Compression 3/4 na NPTF
P10MC2 Connector Tube to Pipe Black Polypropylene 5/8 Compression 1/8 na NPTF
P10MC4 Connector Tube to Pipe Black Polypropylene 5/8 Compression 1/4 na NPTF
P10MC6 Connector Tube to Pipe Black Polypropylene 5/8 Compression 3/8 na NPTF
P10MC8 Connector Tube to Pipe Black Polypropylene 5/8 Compression 1/2 na NPTF
P10ME12 90° Elbow Tube to Pipe Black Polypropylene 5/8 Compression 3/4 na NPTF
P10ME8 90° Elbow Tube to Pipe Black Polypropylene 5/8 Compression 1/2 na NPTF
P10MR8 Male Run Tee Tube to Pipe Black Polypropylene 5/8 Compression 1/2 na NPTF
P10MT8 Branch Tee Tube to Pipe Black Polypropylene 5/8 Compression 1/2 na NPTF
P10NS Nut and Spacer Tube Black Polypropylene 5/8 Tube na na na
P10TS8 Tube Support Tube Black Polypropylene 5/8 Tube na na na
P10TU10 Tee Tube to Tube Black Polypropylene 5/8 Compression na 5/8 Compression
P10TU6 Tee Tube to Tube Black Polypropylene 5/8 Compression na 3/8 Compression
P10UC10 Union Tube to Tube Black Polypropylene 5/8 Compression na 5/8 Compression
P10UC6 Union Tube to Tube Black Polypropylene 5/8 Compression na 3/8 Compression
P10UC8 Union Tube to Tube Black Polypropylene 5/8 Compression na 1/2 Compression
P4BU4 Bulkhead Tube to Tube Black Polypropylene 1/4 Compression na 1/4 Compression
P4EU4 90° Elbow Tube to Tube Black Polypropylene 1/4 Compression na 1/4 Compression
P4FC2 Connector Tube to Female Pipe Black Polypropylene 1/4 Compression 1/8 na NPTF
P4FC4 Connector Tube to Female Pipe Black Polypropylene 1/4 Compression 1/4 na NPTF
P4FE2 90° Elbow Tube to Female Pipe Black Polypropylene 1/4 Compression 1/8 na NPTF
P4FE4 90° Elbow Tube to Female Pipe Black Polypropylene 1/4 Compression 1/4 na NPTF
P4MC2 Connector Tube to Pipe Black Polypropylene 1/4 Compression 1/8 na NPTF
P4MC4 Connector Tube to Pipe Black Polypropylene 1/4 Compression 1/4 na NPTF
P4MC4-B na Body Only Black Polypropylene 1/4 na 1/4 na na
P4MC6 Connector Tube to Pipe Black Polypropylene 1/4 Compression 3/8 na NPTF
P4ME2 90° Elbow Tube to Pipe Black Polypropylene 1/4 Compression 1/8 na NPTF
P4ME4 90° Elbow Tube to Pipe Black Polypropylene 1/4 Compression 1/4 na NPTF
P4ME6 90° Elbow Tube to Pipe Black Polypropylene 1/4 Compression 3/8 na NPTF
P4MR2 Male Run Tee Tube to Pipe Black Polypropylene 1/4 Compression 1/8 na NPTF
P4MT2 Branch Tee Tube to Pipe Black Polypropylene 1/4 Compression 1/8 na NPTF
P4MT4 Branch Tee Tube to Pipe Black Polypropylene 1/4 Compression 1/4 na NPTF
P4NS Nut and Spacer Tube Black Polypropylene 1/4 Tube na na na
P4TS3 Tube Support Tube Black Polypropylene 1/4 Tube na na na
P4TU4 Tee Tube to Tube Black Polypropylene 1/4 Compression na 1/4 Compression
P4UC4 Union Tube to Tube Black Polypropylene 1/4 Compression na 1/4 Compression
P5BU5 Bulkhead Tube to Tube Black Polypropylene 5/16 Compression na 5/16 Compression
P5EU4 90° Elbow Tube to Tube Black Polypropylene 5/16 Compression na 1/4 Compression
P5EU5 90° Elbow Tube to Tube Black Polypropylene 5/16 Compression na 5/16 Compression
P5FE2 90° Elbow Tube to Female Pipe Black Polypropylene 5/16 Compression 1/8 na NPTF
P5MC2 Connector Tube to Pipe Black Polypropylene 5/16 Compression 1/8 na NPTF
P5MC4 Connector Tube to Pipe Black Polypropylene 5/16 Compression 1/4 na NPTF
P5ME2 90° Elbow Tube to Pipe Black Polypropylene 5/16 Compression 1/8 na NPTF
P5ME4 90° Elbow Tube to Pipe Black Polypropylene 5/16 Compression 1/4 na NPTF
P5ME6 90° Elbow Tube to Pipe Black Polypropylene 5/16 Compression 3/8 na NPTF
P5MT2 Branch Tee Tube to Pipe Black Polypropylene 5/16 Compression 1/8 na NPTF
P5MT4 Branch Tee Tube to Pipe Black Polypropylene 5/16 Compression 1/4 na NPTF
P5NS Nut and Spacer Tube Black Polypropylene 5/16 Tube na na na
P5TS3 Tube Support Tube Black Polypropylene 5/16 Tube na na na
P5TU5 Tee Tube to Tube Black Polypropylene 5/16 Compression na 5/16 Compression
P5UC4 Union Tube to Tube Black Polypropylene 5/16 Compression na 1/4 Compression
P5UC5 Union Tube to Tube Black Polypropylene 5/16 Compression na 5/16 Compression
P6BU6 Bulkhead Tube to Tube Black Polypropylene 3/8 Compression na 3/8 Compression
P6EU4 90° Elbow Tube to Tube Black Polypropylene 3/8 Compression na 1/4 Compression
P6EU5 90° Elbow Tube to Tube Black Polypropylene 3/8 Compression na 5/16 Compression
P6EU6 90° Elbow Tube to Tube Black Polypropylene 3/8 Compression na 3/8 Compression
P6FC4 Connector Tube to Female Pipe Black Polypropylene 3/8 Compression 1/4 na NPTF
P6FC6 Connector Tube to Female Pipe Black Polypropylene 3/8 Compression 3/8 na NPTF
P6FC8 Connector Tube to Female Pipe Black Polypropylene 3/8 Compression 1/2 na NPTF
P6FE4 90° Elbow Tube to Female Pipe Black Polypropylene 3/8 Compression 1/4 na NPTF
P6FE6 90° Elbow Tube to Female Pipe Black Polypropylene 3/8 Compression 3/8 na NPTF
P6MC12 Connector Tube to Pipe Black Polypropylene 3/8 Compression 3/4 na NPTF
P6MC2 Connector Tube to Pipe Black Polypropylene 3/8 Compression 1/8 na NPTF
P6MC4 Connector Tube to Pipe Black Polypropylene 3/8 Compression 1/4 na NPTF
P6MC6 Connector Tube to Pipe Black Polypropylene 3/8 Compression 3/8 na NPTF
P6MC8 Connector Tube to Pipe Black Polypropylene 3/8 Compression 1/2 na NPTF
P6ME12 90° Elbow Tube to Pipe Black Polypropylene 3/8 Compression 3/4 na NPTF
P6ME4 90° Elbow Tube to Pipe Black Polypropylene 3/8 Compression 1/4 na NPTF
P6ME6 90° Elbow Tube to Pipe Black Polypropylene 3/8 Compression 3/8 na NPTF
P6ME8 90° Elbow Tube to Pipe Black Polypropylene 3/8 Compression 1/2 na NPTF
P6MR4 Male Run Tee Tube to Pipe Black Polypropylene 3/8 Compression 1/4 na NPTF
P6MT4 Branch Tee Tube to Pipe Black Polypropylene 3/8 Compression 1/4 na NPTF
P6MT6 Branch Tee Tube to Pipe Black Polypropylene 3/8 Compression 3/8 na NPTF
P6NS Nut and Spacer Tube Black Polypropylene 3/8 Tube na na na
P6TS4 Tube Support Tube Black Polypropylene 3/8 Tube na na na
P6TU6 Tee Tube to Tube Black Polypropylene 3/8 Compression na 3/8 Compression
P6UC4 Union Tube to Tube Black Polypropylene 3/8 Compression na 1/4 Compression
P6UC5 Union Tube to Tube Black Polypropylene 3/8 Compression na 5/16 Compression
P6UC6 Union Tube to Tube Black Polypropylene 3/8 Compression na 3/8 Compression
P8BU8 Bulkhead Tube to Tube Black Polypropylene 1/2 Compression na 1/2 Compression
P8EU6 90° Elbow Tube to Tube Black Polypropylene 1/2 Compression na 3/8 Compression
P8EU8 90° Elbow Tube to Tube Black Polypropylene 1/2 Compression na 1/2 Compression
P8FC6 Connector Tube to Female Pipe Black Polypropylene 1/2 Compression 3/8 na NPTF
P8FC8 Connector Tube to Female Pipe Black Polypropylene 1/2 Compression 1/2 na NPTF
P8FE6 90° Elbow Tube to Female Pipe Black Polypropylene 1/2 Compression 3/8 na NPTF
P8FE8 90° Elbow Tube to Female Pipe Black Polypropylene 1/2 Compression 1/2 na NPTF
P8MC12 Connector Tube to Pipe Black Polypropylene 1/2 Compression 3/4 na NPTF
P8MC2 Connector Tube to Pipe Black Polypropylene 1/2 Compression 1/8 na NPTF
P8MC4 Connector Tube to Pipe Black Polypropylene 1/2 Compression 1/4 na NPTF
P8MC6 Connector Tube to Pipe Black Polypropylene 1/2 Compression 3/8 na NPTF
P8MC8 Connector Tube to Pipe Black Polypropylene 1/2 Compression 1/2 na NPTF
P8ME12 90° Elbow Tube to Pipe Black Polypropylene 1/2 Compression 3/4 na NPTF
P8ME4 90° Elbow Tube to Pipe Black Polypropylene 1/2 Compression 1/4 na NPTF
P8ME6 90° Elbow Tube to Pipe Black Polypropylene 1/2 Compression 3/8 na NPTF
P8ME8 90° Elbow Tube to Pipe Black Polypropylene 1/2 Compression 1/2 na NPTF
P8MR6 Male Run Tee Tube to Pipe Black Polypropylene 1/2 Compression 3/8 na NPTF
P8MT6 Branch Tee Tube to Pipe Black Polypropylene 1/2 Compression 3/8 na NPTF
P8MT8 Branch Tee Tube to Pipe Black Polypropylene 1/2 Compression 1/2 na NPTF
P8NS Nut and Spacer Tube Black Polypropylene 1/2 Tube na na na
P8TS6 Tube Support Tube Black Polypropylene 1/2 Tube na na na
P8TU6 Tee Tube to Tube Black Polypropylene 1/2 Compression na 3/8 Compression
P8TU8 Tee Tube to Tube Black Polypropylene 1/2 Compression na 1/2 Compression
P8UC6 Union Tube to Tube Black Polypropylene 1/2 Compression na 3/8 Compression
P8UC8 Union Tube to Tube Black Polypropylene 1/2 Compression na 1/2 Compression
W10EU10 90° Elbow Tube to Tube White Polypropylene 5/8 Compression na 5/8 Compression
W10FC8 Connector Tube to Female Pipe White Polypropylene 5/8 Compression 1/2 na NPTF
W10FE8 90° Elbow Tube to Female Pipe White Polypropylene 5/8 Compression 1/2 na NPTF
W10MC12 Connector Tube to Pipe White Polypropylene 5/8 Compression 3/4 na NPTF
W10MC2 Connector Tube to Pipe White Polypropylene 5/8 Compression 1/8 na NPTF
W10MC4 Connector Tube to Pipe White Polypropylene 5/8 Compression 1/4 na NPTF
W10MC6 Connector Tube to Pipe White Polypropylene 5/8 Compression 3/8 na NPTF
W10MC8 Connector Tube to Pipe White Polypropylene 5/8 Compression 1/2 na NPTF
W10ME8 90° Elbow Tube to Pipe White Polypropylene 5/8 Compression 1/2 na NPTF
W10MR8 Male Run Tee Tube to Pipe White Polypropylene 5/8 Compression 1/2 na NPTF
W10MT8 Branch Tee Tube to Pipe White Polypropylene 5/8 Compression 1/2 na NPTF
W10NS Nut and Spacer Tube White Polypropylene 5/8 Tube na na na
W10TU10 Tee Tube to Tube White Polypropylene 5/8 Compression na 5/8 Compression
W10TU6 Tee Tube to Tube White Polypropylene 5/8 Compression na 3/8 Compression
W10UC10 Union Tube to Tube White Polypropylene 5/8 Compression na 5/8 Compression
W10UC6 Union Tube to Tube White Polypropylene 5/8 Compression na 3/8 Compression
W10UC8 Union Tube to Tube White Polypropylene 5/8 Compression na 1/2 Compression
W4BU4 Bulkhead Tube to Tube White Polypropylene 1/4 Compression na 1/4 Compression
W4EU4 90° Elbow Tube to Tube White Polypropylene 1/4 Compression na 1/4 Compression
W4FC2 Connector Tube to Female Pipe White Polypropylene 1/4 Compression 1/8 na NPTF
W4FC4 Connector Tube to Female Pipe White Polypropylene 1/4 Compression 1/4 na NPTF
W4FE2 90° Elbow Tube to Female Pipe White Polypropylene 1/4 Compression 1/8 na NPTF
W4FE4 90° Elbow Tube to Female Pipe White Polypropylene 1/4 Compression 1/4 na NPTF
W4MC2 Connector Tube to Pipe White Polypropylene 1/4 Compression 1/8 na NPTF
W4MC4 Connector Tube to Pipe White Polypropylene 1/4 Compression 1/4 na NPTF
W4MC6 Connector Tube to Pipe White Polypropylene 1/4 Compression 3/8 na NPTF
W4ME2 90° Elbow Tube to Pipe White Polypropylene 1/4 Compression 1/8 na NPTF
W4ME4 90° Elbow Tube to Pipe White Polypropylene 1/4 Compression 1/4 na NPTF
W4ME6 90° Elbow Tube to Pipe White Polypropylene 1/4 Compression 3/8 na NPTF
W4MR2 Male Run Tee Tube to Pipe White Polypropylene 1/4 Compression 1/8 na NPTF
W4MT2 Branch Tee Tube to Pipe White Polypropylene 1/4 Compression 1/8 na NPTF
W4MT4 Branch Tee Tube to Pipe White Polypropylene 1/4 Compression 1/4 na NPTF
W4NS Nut and Spacer Tube White Polypropylene 1/4 Tube na na na
W4TU4 Tee Tube to Tube White Polypropylene 1/4 Compression na 1/4 Compression
W4UC4 Union Tube to Tube White Polypropylene 1/4 Compression na 1/4 Compression
W5BU5 Bulkhead Tube to Tube White Polypropylene 5/16 Compression na 5/16 Compression
W5EU4 90° Elbow Tube to Tube White Polypropylene 5/16 Compression na 1/4 Compression
W5EU5 90° Elbow Tube to Tube White Polypropylene 5/16 Compression na 5/16 Compression
W5FE2 90° Elbow Tube to Female Pipe White Polypropylene 5/16 Compression 1/8 na NPTF
W5MC2 Connector Tube to Pipe White Polypropylene 5/16 Compression 1/8 na NPTF
W5MC4 Connector Tube to Pipe White Polypropylene 5/16 Compression 1/4 na NPTF
W5ME2 90° Elbow Tube to Pipe White Polypropylene 5/16 Compression 1/8 na NPTF
W5ME4 90° Elbow Tube to Pipe White Polypropylene 5/16 Compression 1/4 na NPTF
W5ME6 90° Elbow Tube to Pipe White Polypropylene 5/16 Compression 3/8 na NPTF
W5MT2 Branch Tee Tube to Pipe White Polypropylene 5/16 Compression 1/8 na NPTF
W5MT4 Branch Tee Tube to Pipe White Polypropylene 5/16 Compression 1/4 na NPTF
W5NS Nut and Spacer Tube White Polypropylene 5/16 Tube na na na
W5TU5 Tee Tube to Tube White Polypropylene 5/16 Compression na 5/16 Compression
W5UC4 Union Tube to Tube White Polypropylene 5/16 Compression na 1/4 Compression
W5UC5 Union Tube to Tube White Polypropylene 5/16 Compression na 5/16 Compression
W6BU6 Bulkhead Tube to Tube White Polypropylene 3/8 Compression na 3/8 Compression
W6EU4 90° Elbow Tube to Tube White Polypropylene 3/8 Compression na 1/4 Compression
W6EU5 90° Elbow Tube to Tube White Polypropylene 3/8 Compression na 5/16 Compression
W6EU6 90° Elbow Tube to Tube White Polypropylene 3/8 Compression na 3/8 Compression
W6FC4 Connector Tube to Female Pipe White Polypropylene 3/8 Compression 1/4 na NPTF
W6FC6 Connector Tube to Female Pipe White Polypropylene 3/8 Compression 3/8 na NPTF
W6FC8 Connector Tube to Female Pipe White Polypropylene 3/8 Compression 1/2 na NPTF
W6FE4 90° Elbow Tube to Female Pipe White Polypropylene 3/8 Compression 1/4 na NPTF
W6FE6 90° Elbow Tube to Female Pipe White Polypropylene 3/8 Compression 3/8 na NPTF
W6MC12 Connector Tube to Pipe White Polypropylene 3/8 Compression 3/4 na NPTF
W6MC2 Connector Tube to Pipe White Polypropylene 3/8 Compression 1/8 na NPTF
W6MC4 Connector Tube to Pipe White Polypropylene 3/8 Compression 1/4 na NPTF
W6MC6 Connector Tube to Pipe White Polypropylene 3/8 Compression 3/8 na NPTF
W6MC8 Connector Tube to Pipe White Polypropylene 3/8 Compression 1/2 na NPTF
W6ME12 90° Elbow Tube to Pipe White Polypropylene 3/8 Compression 3/4 na NPTF
W6ME4 90° Elbow Tube to Pipe White Polypropylene 3/8 Compression 1/4 na NPTF
W6ME6 90° Elbow Tube to Pipe White Polypropylene 3/8 Compression 3/8 na NPTF
W6ME8 90° Elbow Tube to Pipe White Polypropylene 3/8 Compression 1/2 na NPTF
W6MR4 Male Run Tee Tube to Pipe White Polypropylene 3/8 Compression 1/4 na NPTF
W6MT4 Branch Tee Tube to Pipe White Polypropylene 3/8 Compression 1/4 na NPTF
W6MT6 Branch Tee Tube to Pipe White Polypropylene 3/8 Compression 3/8 na NPTF
W6NS Nut and Spacer Tube White Polypropylene 3/8 Tube na na na
W6TU6 Tee Tube to Tube White Polypropylene 3/8 Compression na 3/8 Compression
W6UC4 Union Tube to Tube White Polypropylene 3/8 Compression na 1/4 Compression
W6UC5 Union Tube to Tube White Polypropylene 3/8 Compression na 5/16 Compression
W6UC6 Union Tube to Tube White Polypropylene 3/8 Compression na 3/8 Compression
W8BU8 Bulkhead Tube to Tube White Polypropylene 1/2 Compression na 1/2 Compression
W8EU6 90° Elbow Tube to Tube White Polypropylene 1/2 Compression na 3/8 Compression
W8EU8 90° Elbow Tube to Tube White Polypropylene 1/2 Compression na 1/2 Compression
W8FC6 Connector Tube to Female Pipe White Polypropylene 1/2 Compression 3/8 na NPTF
W8FC8 Connector Tube to Female Pipe White Polypropylene 1/2 Compression 1/2 na NPTF
W8FE6 90° Elbow Tube to Female Pipe White Polypropylene 1/2 Compression 3/8 na NPTF
W8FE8 90° Elbow Tube to Female Pipe White Polypropylene 1/2 Compression 1/2 na NPTF
W8MC12 Connector Tube to Pipe White Polypropylene 1/2 Compression 3/4 na NPTF
W8MC2 Connector Tube to Pipe White Polypropylene 1/2 Compression 1/8 na NPTF
W8MC4 Connector Tube to Pipe White Polypropylene 1/2 Compression 1/4 na NPTF
W8MC6 Connector Tube to Pipe White Polypropylene 1/2 Compression 3/8 na NPTF
W8MC8 Connector Tube to Pipe White Polypropylene 1/2 Compression 1/2 na NPTF
W8ME12 90° Elbow Tube to Pipe White Polypropylene 1/2 Compression 3/4 na NPTF
W8ME4 90° Elbow Tube to Pipe White Polypropylene 1/2 Compression 1/4 na NPTF
W8ME6 90° Elbow Tube to Pipe White Polypropylene 1/2 Compression 3/8 na NPTF
W8ME8 90° Elbow Tube to Pipe White Polypropylene 1/2 Compression 1/2 na NPTF
W8MR6 Male Run Tee Tube to Pipe White Polypropylene 1/2 Compression 3/8 na NPTF
W8MT6 Branch Tee Tube to Pipe White Polypropylene 1/2 Compression 3/8 na NPTF
W8MT8 Branch Tee Tube to Pipe White Polypropylene 1/2 Compression 1/2 na NPTF
W8NS Nut and Spacer Tube White Polypropylene 1/2 Tube na na na
W8TU6 Tee Tube to Tube White Polypropylene 1/2 Compression na 3/8 Compression
W8TU8 Tee Tube to Tube White Polypropylene 1/2 Compression na 1/2 Compression
W8UC6 Union Tube to Tube White Polypropylene 1/2 Compression na 3/8 Compression
W8UC8 Union Tube to Tube White Polypropylene 1/2 Compression na 1/2 Compression






美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology


E-mail:sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址:北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编:100102
电话:010-8428 2935, 8428 9077, 8428 3983
手机:139 101 22694
Http://www.cnmec.biz
传真:010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
