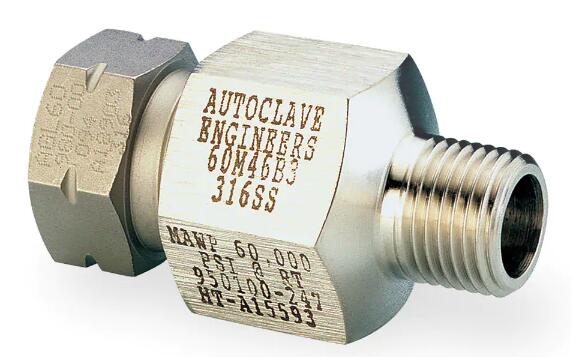

Parker Autoclave 的锥螺纹接头和接头 Cone and Thread Adapters and Couplings
Parker Fittings接头 - Tube Fittings

Parker Autoclave 的锥螺纹接头和接头设计用于与 Parker Autoclave 中压和高压管一起使用。这些适配器和接头的额定压力从 15,000 PSI (1035 BAR) 到 150,000 PSI (10342 BAR)。公/母适配器旨在使母连接适应另一种尺寸和/或类型的连接，而无需额外的接头。在选择涉及两种不同尺寸连接的适配器时，较大的连接应该在公端，这样可以最大限度地提高适配器的机械强度。

接头的制造允许将标准尺寸的管子或管子和标准管子与母对母接头的任何组合连接起来。Parker Autoclave 接头的压力等级基于使用的较低额定连接。

注意：NPT 螺纹必须使用高质量的 PTFE 胶带和/或 PTFE 膏产品密封。有关如何使用螺纹密封剂，请参阅螺纹密封剂制造商的说明。密封性能可能因许多因素而异，例如压力、温度、介质、螺纹质量、螺纹材料、正确的螺纹接合和螺纹密封剂的正确使用。客户应限制 NPT 接头的组装和拆卸次数，因为组装过程中的螺纹变形会 随着时间的推移导致密封质量下降。仅使用 PTFE 胶带时，请考虑使用螺纹润滑以防止配合零件磨损。

Parker Autoclave 的锥螺纹接头和接头 - Cone and Thread Adapters and Couplings

Parker Autoclave's Medium and High pressure line of Adapters and Couplings provide system flexibility by providing a one piece fitting with two different end connections. The installer minimizes the number of overall connections. Parker Autoclave's Cone and Thread Adapters and Couplings are designed for use with Parker Autoclave medium and high pressure tubing. These Adapters and Couplings are rated up from 15,000 PSI (1035 BAR) up to 150,000 PSI (10342 BAR). The male /female Adapters are designed to adapt a female connec?tion to another size and/or type of connection without the need for additional couplings. In selecting an adapter involving two different sized connections, the larger connection should be on the male end where it is possible to maximize the mechani?cal strength of the adapter. The Couplings are manufactured to permit the joining of any combina?tion of standard size tubing or tubing and standard pipe with female-to-female couplings. The pressure rating of Parker Autoclave Couplings is based on the lower rated connection used. NOTE: NPT threads must be sealed using a high quality PTFE tape and/or PTFE paste product. Refer to thread sealant manufacturer's instructions on how to apply thread sealant. Sealing performance may vary based on many factors such as pressure, temperature, media, thread quality, thread material, proper thread engagement and proper use of thread sealant. Customer should limit the number of times an NPT fitting is assembled and disassembled because thread deformation during assembly will result in deteriorating seal quality over time. When using only PTFE tape, consider using thread lubrication to prevent galling of mating parts

市场：

- 石油和天然气
- 石化
- 研究
- 化学
- 电源

特点：

- 工作压力达 150,000 psi (10342 bar)
- 管道尺寸为 1/8"、1/4"、3/8"、5/16"、9/16"、3/4" 和 1-1/2 "
- 连接包括 Speed Bite、C&T 中高压和 NPT
- 用于安全和泄漏检测的泄水孔
- 由冷加工 316 不锈钢制成的配件
- 可提供特殊材料

应用：

- 测试面板
- 海上防滑面板
- 化学品注入
- 特种高压气体系统
- 研究系统

Markets:
- Oil and Gas
- Petrochemical
- Research
- Chemical
- Power


Features:
- Working pressures to 150,000 psi (10342 bar)
- Tubing sizes are 1/8”, 1/4", 3/8", 5/16”, 9/16", 3/4", and 1-1/2"
- Connections include Speed Bite, C&T Medium and High Pressure , and NPT
- Weep holes for safety and leak detection
- Fittings manufactured from cold worked 316 stainless steel
- Available in special materials

Applications:
- Test Panels
- Offshore Skid Panels
- Chemical Injection
- Specialty High Pressure Gas Systems
- Research Systems

Technical Specifications

Cone and Thread Adapters and Couplings 型号
