用于管和软管连接的转换接头适配器 Parker 接头 Parker Adapters
Conversion Adapters for Tube and Hose Connections

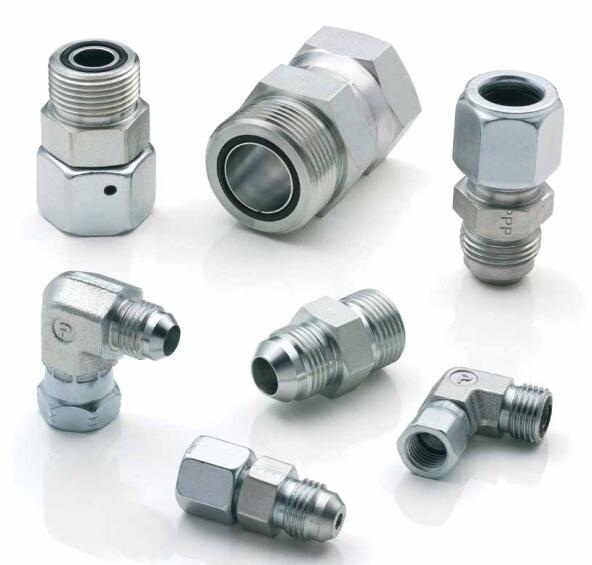

Parker 的转换接头具有当今市场所需的许多不同的管和软管端转换，包括 Parker 的 Triple-Lok 37° 扩口、Seal-Lok O 型环面密封 (ORFS)、Seal-Lok ORFS 旋转接头、Triple-Lok 37° 喇叭口旋转接头、Ferulok SAE 无喇叭口、EO 24° 无喇叭口公制旋转接头、Ferulok SAE 无喇叭口隔板、BSPP 60° 锥形旋转接头和公制旋转接头。Parker's Conversion Adapters feature many different tube and hose end conversions needed in the market today, including Parker's Triple-Lok 37° flare, Seal-Lok O-ring Face Seal (ORFS), Seal-Lok ORFS swivel, Triple-Lok 37° flare swivel, Ferulok SAE flareless, EO 24° flareless metric swivel, Ferulok SAE flareless bulkhead, BSPP 60° cone swivel, and metric swivel.

Conversion Adapters for Tube and Hose Connections

Parker offers many different conversion adapters to support whatever tube or hose end conversion needed. Parker's Conversion Adapters feature many different tube and hose end conversions needed in the market today, including Parker's Triple-Lok 37° flare, Seal-Lok O-ring Face Seal (ORFS), Seal-Lok ORFS swivel, Triple-Lok 37° flare swivel, Ferulok SAE flareless, EO 24° flareless metric swivel, Ferulok SAE flareless bulkhead, BSPP 60° cone swivel, and metric swivel.

市场：
- 建筑
- 军事地面系统
- 空中升降机
- 农业
- 物料搬运
- 军用船舶
- 机床
- 替代能源
- 运输
- 离岸
- 石油和天然气

特点/优势：
- 满足或超过 SAE J1453、SAE J514 和 ISO 8434-1 的所有相关行业要求。
- 钢制配件大大超过了 SAE 72 小时无红锈的腐蚀要求，经独立测试机构发现，持续时间高达 1,000 小时。这种增强的性能通过延长设备寿命为客户提供竞争优势，从而增加收入并降低保修成本。
- 派克用于 Seal-Lok ORFS 接头的 Trap-Seal 通过消除装配过程中 O 形圈脱落和 O 形圈挤压引起的潜在液压泄漏，改善了客户体验。这为客户提供了竞争优势，同时降低了总成本。
- 提供尺寸为 1/8” 至 2” 的钢、不锈钢和黄铜材质，压力高达 7700 psi。

应用：
- 液压流体和气体处理连接

Markets:
- Construction
- Military Ground Systems
- Aerial Lift
- Agriculture
- Material Handling
- Military Marine
- Machine Tool
- Alternative Energy
- Transportation
- Off-Shore
- Oil & Gas

Features/Benefits:
- Meet or exceed all pertinent industry requirements of SAE J1453, SAE J514, and ISO 8434-1.
- Steel fittings substantially exceeded the SAE corrosion requirements of 72 hours without red rust, lasting up to 1,000 as found by an independent test facility. This enhanced performance provides customers with a competitive advantage through extended equipment life, leading to increased revenues and reduced warranty costs.
- Parker's Trap-Seal for Seal-Lok ORFS fittings improves customer experience by eliminating potential hydraulic leaks caused by O-ring fall-out and O-ring pinch during assembly. This provides customers a competitive advantage while leading to reduced overall cost.
- Offered in steel, stainless steel and brass in sizes 1/8” through 2” with pressures up to 7700 psi.

Applications:
- Hydraulic fluid and gas handling connections

Technical Specifications

Conversion Adapters for Tube and Hose Connections型号
