Tube Fabrication Equipment
Cutting and bending tools
Parker cutting and bending tools provide a neat, quick method for cutting tube at right angles.

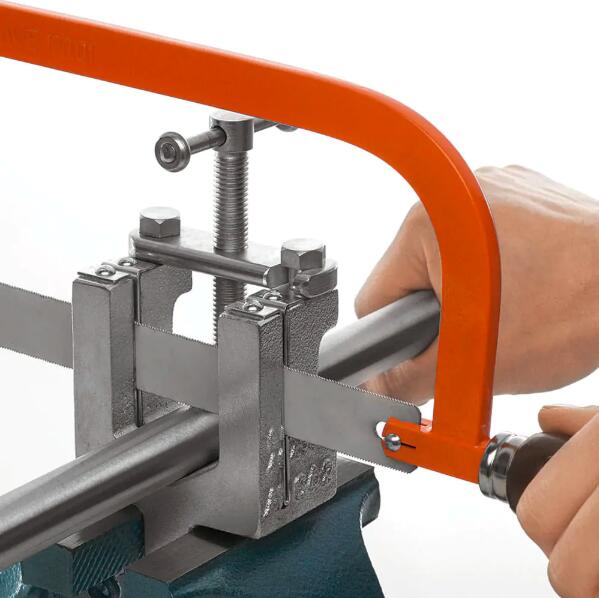

Parker cutting and bending tools provide a neat, quick method for cutting tube at right angles. An exact cut is achieved using hardened guides. The use of deeper section sawblades that cut in both directions is recommended for best results. The AV 6/42 can be used in a vice or just clamped onto the tube for cutting. This tool, with a weight of 0.7 kg, can be used for tubes with outside diameters from 6 to 42 mm.
Cutting and bending tools
Markets for HVM-B device:
- Workshops
Applications:
- Suitable for general hydraulic applications.
Features/ Benefits of the HVM-B device:
- Square cut – Exact tube preparation greatly reduces leakage caused by assembly failures.
- Contour clamping – Tube is not distorted by clamping.
- No vice required – For workshop application AV 6/42 can simply be clamped onto the tube without using a vice or other attachment.
- Replaceable guides – Worn-out guides can easily be replaced to maintain a neat cutting result.
- Light – At only 0.7 kg, the AV 6/42 should be carried in the toolbox of every hydraulic tube fitter.
Technical Specifications
| Product Type: |
Tube cutting tool without saw, Spare hardened guides for tube saw square, Combined tube bending and cutting tool for 6 to 12 mm tube, Spare hardened guide for BAV06/12KPLX, Bending roll 6/8 mm for BAV06/12KPLX, Bending roll 10 mm, Bending roll 12 mm, Bending pin, Lever complete for BAV06/12KPLX, Tube bending tool complete device including 6 bending rolls for 6 to 18 mm tube and bend lever, Tube bending tool complete device including 3 bending segments for 20 to 25 mm tube and bend lever, Bending roll 6/8 mm for BV06/18KPLX, Bending roll 10/12 mm, Bending roll 14 mm, Bending roll 15 mm, Bending roll 16 mm, Bending roll 18 mm, Bending segment 20 mm, Bending segment 22 mm, Bending segment 25 mm, Fixing roll, Lever complete for BV06/18KPLX, Fixing arm, Lever complete for BV20/25KPLX, Bar extension tube, Tube deburrer, Tube deburrer replacement blades, BV6/18 tube bending tool , BV6/18 tube bending tool, AV6/42 tube saw square, Hacksaw, Flat file, Deburring tool, fixture for assembly cones VOMO and cone-template KONU |
| Size: |
6-42 mm |
| Tube Material: |
Steel, Stainless Steel |
