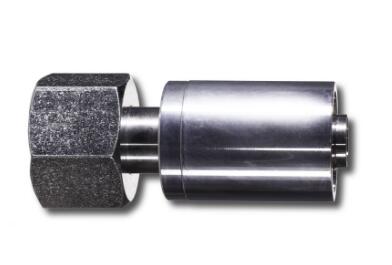

Crimped Thermoplastic UHP Hose Fittings, CX Series
Parker Polyflex High Pressure CX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.
Markets:
- Industrial
- Oil & Gas
- Marine
- Construction machinery
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- Ultra-high pressure application for construction and shipbuilding industry
- Industrial cleaning and jetting
- Suitable for hose types with working pressure from 138 up to 150 MPa (20.000 up to 21.750 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
DN25 |
| Hose I.D. (size): |
-16 |
| Hose Inside Diameter: |
1 inch |
| Connection Thread Size: |
1 5/16-12, 1-14, 4 1/8?-3 , 3 5/8-5 inch, 42x2 mm |
| Connection Type: |
UNF, Metric, ACME , ACME - 2G |
| Length: |
5,7, 4,8, 12, 10,4, 10,3, 11,4 inch |
| Maximum Operating Pressure: |
20000, 21750, 15000 psi |
| Shape: |
Straight |
| Product Style: |

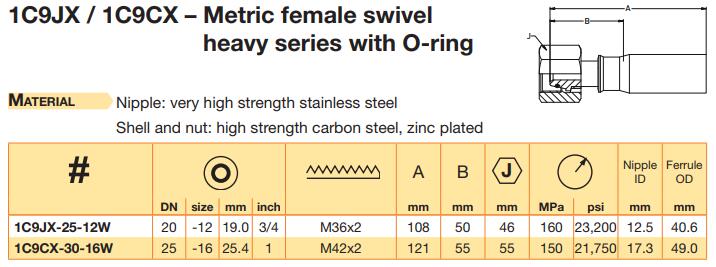

Type ?M? female swivel, Metric female swivel heavy series with O-ring, Medium pressure tube nipple, 1502 Hammerlug union female, 2202 Hammerlug union female, 1502 Hammerlug union male, 2202 Hammerlug union male |
| Materials of Construction: |
Nipple: very high strength stainless steel
Shell and nut: high strength carbon steel, zinc plated, Nipple: very high strength stainless steel
Shell: high strength carbon steel, zinc plated, Stainless Steel |
