Parker Fittings接头
Grease Fittings
Permanent Fittings for Parflex Hose – CY Series

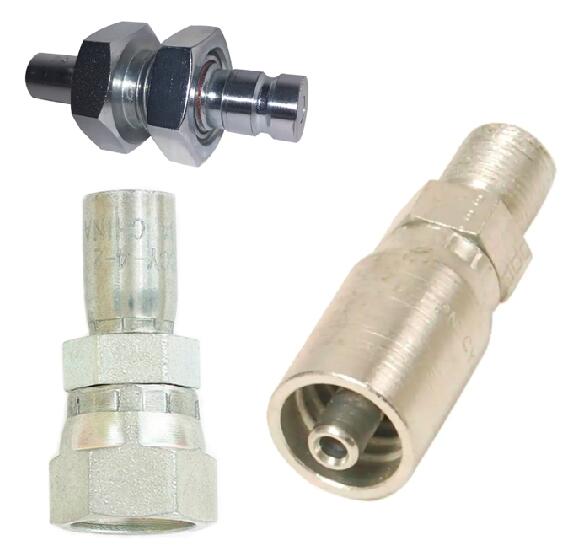

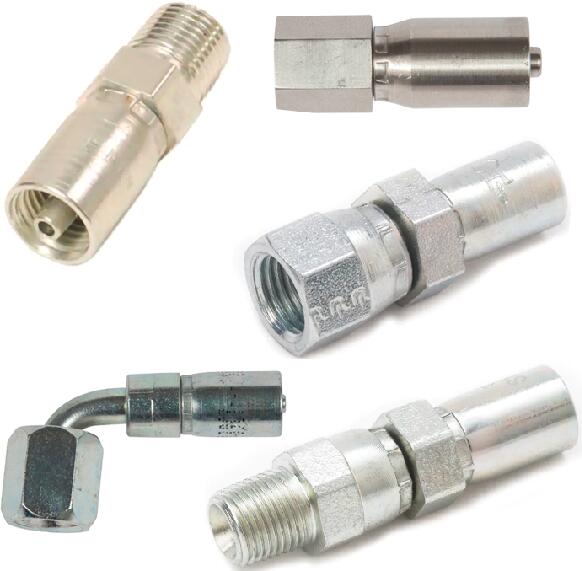

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.
Parker's CY Series are durable, steel, crimp style permanent fittings that are qualified for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose, and are especially useful in applications that involve diagnostic hydraulic lines, grease and lubrication lines, construction equipment, mobile equipment, and more. They are available in straight crimp fittings and 90° elbow shapes to accommodate different application requirements.
Permanent Fittings for Parflex Hose – CY Series
Markets:
- Material Handling
- Industrial
- Agriculture
- Construction
- Mobile Equipment
- Transportation
Features/Benefits:
- Available as a straight crimp fitting or as a 90° elbow shape
Applications:
- Hydraulic and pneumatic systems where a small O.D. hose is necessary
- Diagnostic hydraulic lines
- Grease and lubrication lines
Technical Specifications
| Port Size: |
1/8, 3/16, 1/4 inch |
| Tube Material: |
Various |
| Application: |
Various |
| Connection Type: |
Crimped, 37° Flare, NPTF Pipe, Specialty, Seal-Lok |
| Hose Inside Diameter: |
3, 5 mm, 1/8, 3/16 inch |
| Connection Thread Size: |
varies |
| Length: |
varies |
| Shape: |
Straight, 90° |
| Materials of Construction: |
Steel, Stainless Steel |
| Product Style: |
Crimp (Permanent) |
Permanent Fittings for Parflex Hose – CY Series型号
| Part |
Shape |
Style |
Hose I.D. (inch) |
Length (inch) |
| 101CY-2-2 |
Straight |
Male NPTF Pipe - Rigid - Straight |
0.125 |
1.31 |
| 101CY-2-3 |
Straight |
Male NPTF Pipe - Rigid - Straight |
0.1875 |
1.74 |
| 101CY-4-2 |
Straight |
Male NPTF Pipe - Rigid - Straight |
0.125 |
1.51 |
| 101CY-4-3 |
Straight |
Male NPTF Pipe - Rigid - Straight |
0.1875 |
1.97 |
| 102CY-2-3 |
Straight |
Female NPTF Pipe - Rigid - Straight |
0.1875 |
1.97 |
| 106CY-2-2 |
Straight |
Female JIC 37° - Swivel - Straight |
0.125 |
1.52 |
| 106CY-3-2 |
Straight |
Female JIC 37° - Swivel - Straight |
0.125 |
1.55 |
| 106CY-4-2 |
Straight |
Female JIC 37° - Swivel - Straight |
0.125 |
1.58 |
| 106CY-4-3 |
Straight |
Female JIC 37° - Swivel - Straight |
0.1875 |
1.98 |
| 113CY-2-2 |
Straight |
Male NPTF Pipe - Swivel - Straight |
0.125 |
1.89 |
| 113CY-2-3 |
Straight |
Male NPTF Pipe - Swivel - Straight |
0.1875 |
2.29 |
| 139CY-4-2 |
90° Elbow - Short Drop |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
0.125 |
1.61 |
| 139CY-4-3 |
90° Elbow - Short Drop |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
0.1875 |
1.9 |
| 1GK91N-2-4 |
Straight |
Bulkhead w/Zerk Port Integrated |
0.1875 |
1.46 |
| 1GKCY-2-2 |
Straight |
Bulkhead w/Zerk Port Integrated |
0.125 |
1.45 |
| 1GKCY-2-2-L77 |
Straight, Long |
Bulkhead w/Zerk Port Integrated |
0.125 |
1.71 |
| 1GKCY-2-3 |
Straight |
Bulkhead w/Zerk Port Integrated |
0.1875 |
1.86 |
| 1J9CY-4-2 |
90° Elbow - Short Drop |
Female Seal-Lok - Swivel - Short Drop |
0.125 |
1.81 |
| 1JCCY-4-2 |
Straight |
Female Seal-Lok - Swivel - Straight - Short |
0.125 |
1.29 |
| 1LMCY-2-2 |
Straight |
Male Grease |
0.125 |
1.26 |
| 1PDCY-2-2 |
Straight |
Bulkhead Diagnostic Nipple |
0.125 |
2.4 |
|
