Pneumatic Fittings
Direct Install Connectors

A range of high performance connectors dedicated to direct install systems for FTTx to guarantee easy use and long service time.

A range of high performance connectors dedicated to direct install systems for FTTx* to guarantee easy use and long service time.

*FTTx: Fiber To The x = home, building, campus, etc

Features/Benefits:

- Optimised Installation

- Reliable technology of push-in connection
- Minimum distance between two tubes when connected, eliminating the risk of blockage during blowing
- 1 connector for 2 different wall thicknesses of the tubing (bridging possible between direct buried and direct install micro-tubing)
- Ultra compact design and intuitive installation
- Safety clip for preventing risk of accidental disconnection

- Longevity & Reliability

- Tried-and-tested connection technology to ensure capability to expand network
- Perfect sealing IP68: full protection against particle ingress
- UL94 V-2: flame resistance for indoor installations
- Date coding to guarantee quality and traceability
- 100% leak-tested in production

Markets:

- Telecommunication
- Information Technology

Applications:

- Connector for FTTX Applications
- Air and Water Conveying
- Direct Install Networks
- Air Blowing
- Aerial Ducting
- Sub-Ducts

Technologies:

- Tube to tube connectors
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Optic fibre connectors

Technical Characteristics:

- Compatible fluids: Air, water
- Materials: polycarbonate, stainless steel, technical polymer, NBR
- Pressure: 0 to 15 bar
- Temperature: -15°C to +45°C
- Storage temperature: -20°C to +80°C

Regulations:

- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- IP68: Seepage resistance to water and dust
- UL94 V-2: Flame resistance
- Patent family FR2924194 (safety clips)

Product Types:

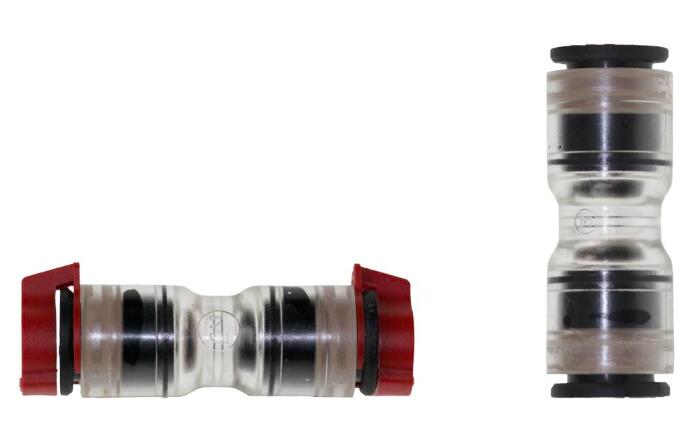

- Equal Tube-to-Tube Connector
- Equal Tube-to-Tube Connector with Red Tamper-Proof Safety Clips
- End Cap
- End Cap with Red Tamper-Proof Safety Clip

Technical Specifications

Direct Install Connectors 型号
