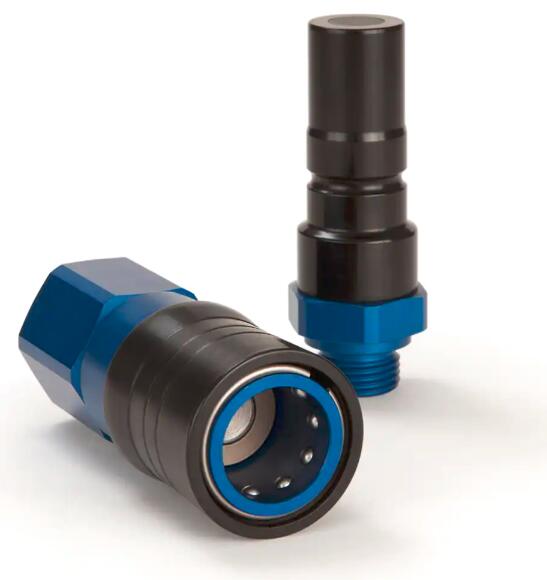

Parker NSA Series Dry Break Quick Connect Coupling
Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

Parker NSA系列干式快接接头是一种带有平面干式快速接头。与最小的压降相比,NSA系列在连接过程中具有最小的流体损失,并且在连接过程中不含空气或灰尘。额定直径为10/12的干断式快速接头系统,用于20巴以下的铁路应用。可用阳极氧化铝制成。



Parker NSA Series Dry Break Quick Connect Coupling
服务器和电子冷却液冷 热管理应用干式快速接头
电子冷却应用干式快速接头



Parker Dry break quick coupling system with nominal diameter 10/12 for railway applications up to 20 bar. Available made of anodized aluminium. Parker's Quick Connect Coupling Series NSA are dry break couplings with a flat face valve. Series NSA stands out for the minimal fluid loss during connection compared with minimal pressure drop and no inclusion of air or dust during connection.

市场:
-电子冷却
-发电
-运输
-工业
-防御

特性/优点:
-连接/断开时干断提升阀,可降低溢出
-重量轻,由于铝结构
-快速组装推乐连接-节省时间的

应用:
-水和冷却液管线
-冷却和回火管线
-电子零件冷却
-军用车辆
-流体输送
-工业液压管路



Markets:
- Electronic Cooling
- Power Generation
- Transportation
- Industrial
- Defense

Features/Benefits:
- Dry-break poppet valve for reduced spillage during connection/disconnection
- Light weight due to aluminium construction
- Push-Lok connection for fast assembly - time saving

Applications:
- Water and coolant lines
- Cooling and tempering lines
- Cooling of Electronic Components
- Military vehicles
- Fluid Transfer
- Industrial hydraulic lines



Technical Specifications

Diameter: Nominal: 10 or 12 mm
Valve Included: Yes
Version: flat-sealing
Connection Thread Size: 30x1,5, 1/2, 3/4 inch
Hose Inside Diameter: 12 mm
Hex Size: 27, 32, 35 mm
Materials of Construction: Anodized Aluminium
Seal Material: Fluorosilicone
Minimum Operating Temperature: -50 °C
Maximum Operating Temperature: 175 °C
Maximum Operating Pressure: 20 bar
Application: Transportation - Railway





NSA SeriesDry Break Quick Connect Coupling型号

Part Type Connection Type Outside Diameter (mm) Length (mm)
NSA-391-12MBO Coupling Male BSPP Thread 40 88
NSA-392-8MBO Plug Male BSPP Thread - with O-Ring seal na 81
NSA-501-12PL Coupling Parker Push-Lok 44,5 126,40
NSA-501-30MCL Coupling Male Thread - metric - DIN 2353 44,5 99,4
NSA-501-8FB Coupling Female BSPP Thread 44,5 99,4
NSA-502-12PL Plug Parker Push-Lok na 117,1
NSA-502-30MCL Plug Male Thread - metric na 91,1
NSA-502-8MBO Plug Male BSPP Thread - with O-Ring seal na 91,1
